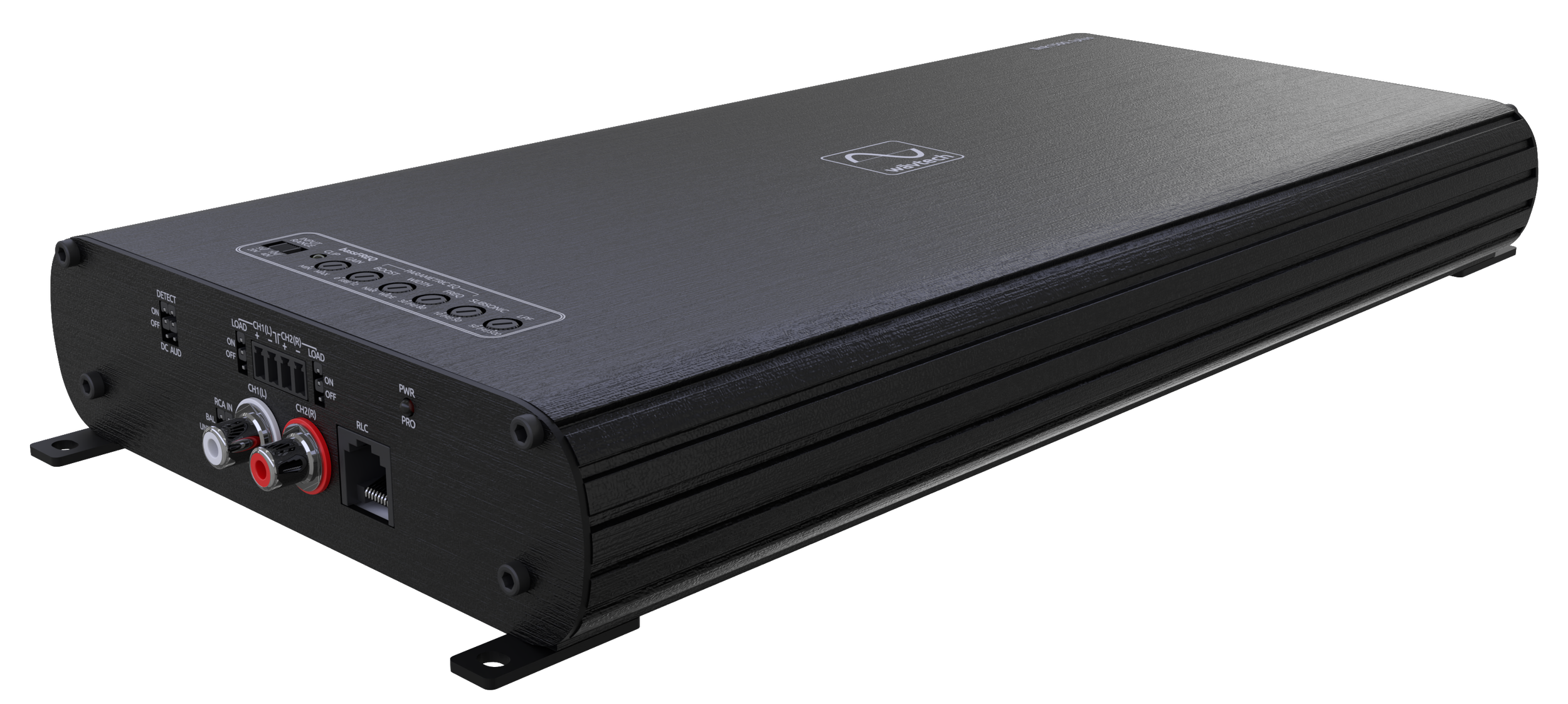

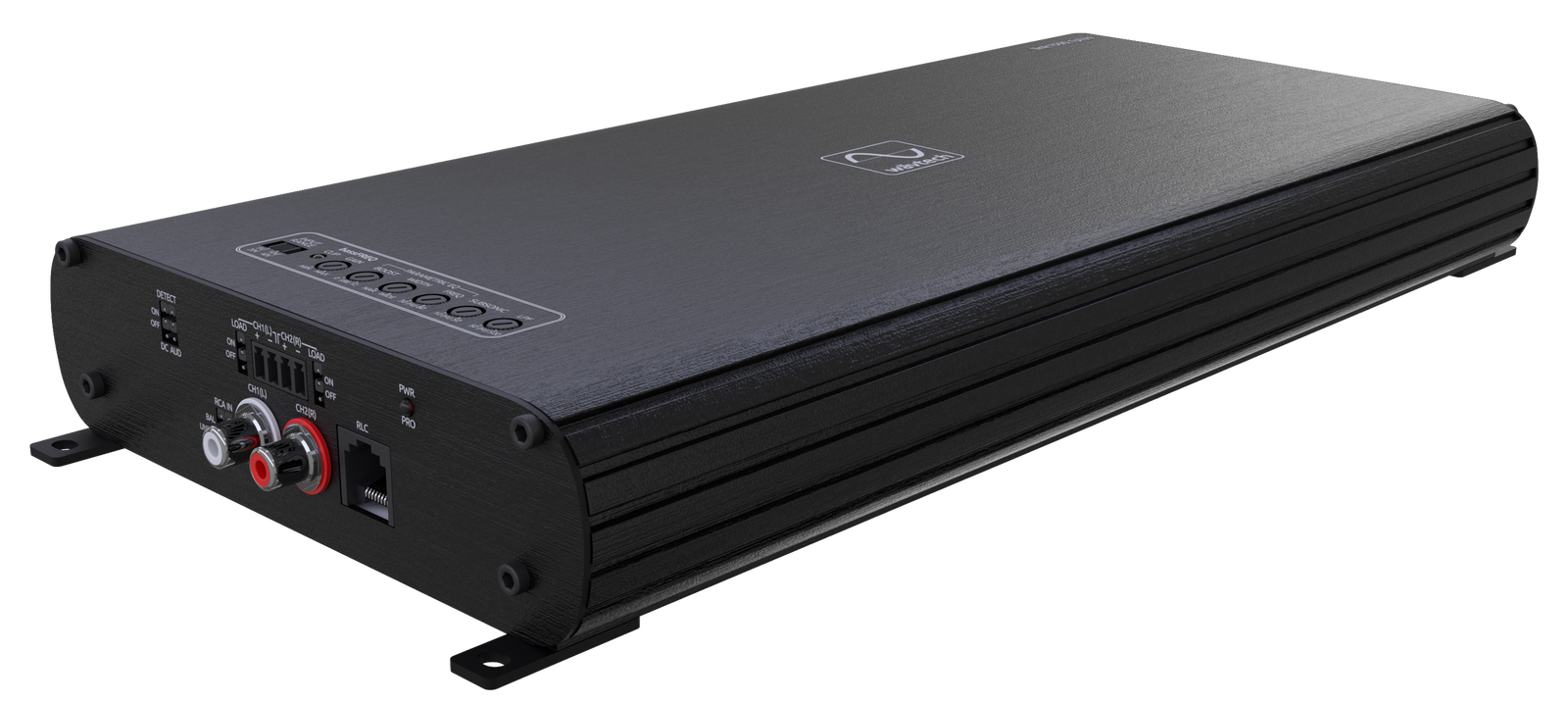

Wavtech link1500.1plus 1500 Watt Mono Amplifier

Brand: Wavtech | SKU: link1500.1plus | UPC: 700987201512

Sale price
$699.95
Regular price
$799.95
You save
13%
Taxes calculated at checkout

Have a question?

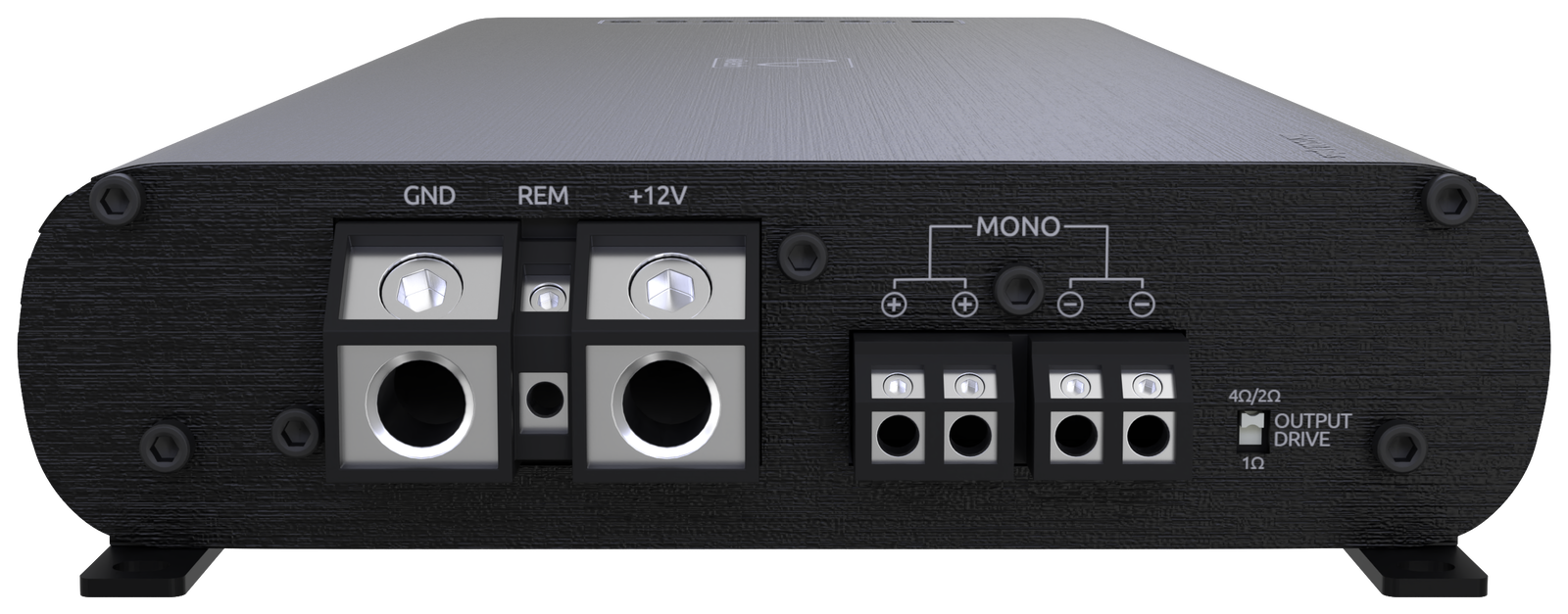

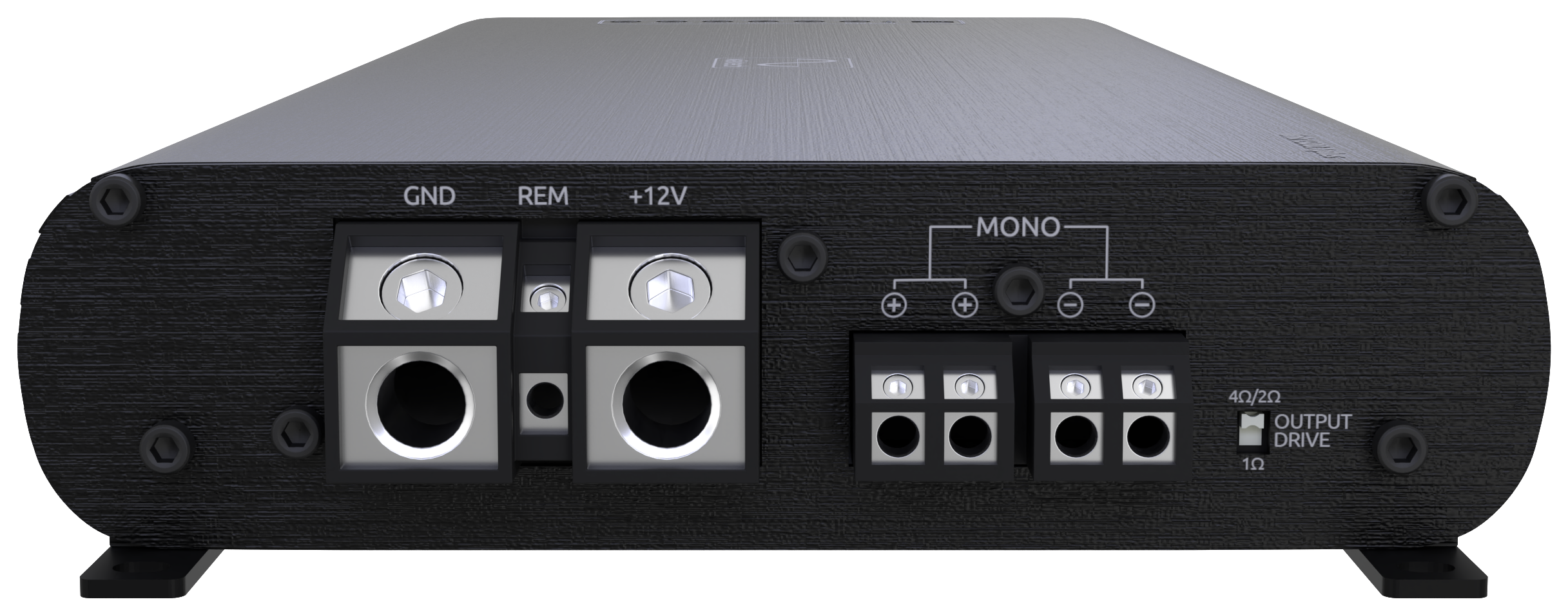

The link1500.1plus is the result of extensive engineering and development. The goal was an amplifier with the same power output at either 2 or 1 ohm. This amp makes 1500 watts RMS @ 2 or 1 ohm. This is achieved with our new dual rail voltage power supply. When setting up the amp, simply select the impedance of your subwoofer with the 4/2 or 1 ohm switch and the amp does the rest. At 13.11”x6.5”x1.65”, it is incredible small for a 1500 watt RMS amp.

The link1500.1plus features our bassFREQ preamp, with a 24dB per octave crossover, an adjustable parametric EQ and a 24dB per octave subsonic filter. Like all Wāvtech amplifiers, the speaker level inputs of the link1500.1plus can handle up to 40V and have our adaptive loading technology. The optional linkRC remote allows for control of the subwoofer system from the vehicles front seat. The link1500.1plus is also compatible with OEM start/stop systems.

Specs

1500 Watt Mono Amplifier

900 watts x 1 @ 4 ohms

1500 watts x 1 @ 2 ohms

1500 watts x 1 @ 1 ohm

Only 13.11”x6.5”x1.65”

Dual Rail Voltage Power Supply

Fully Adjustable Parametric EQ

Variable Low-Pass Crossover (-24dB/oct)

Variable Subsonic Filter (-24dB/oct)

Remote Level Control (RLC) w/Optional linkRC

bassFREQ Bass Processor w/Parametic EQ

Active Thermal Management

Start/Stop System Compatible

Adaptive OEM Load Technology

40V Input Capability

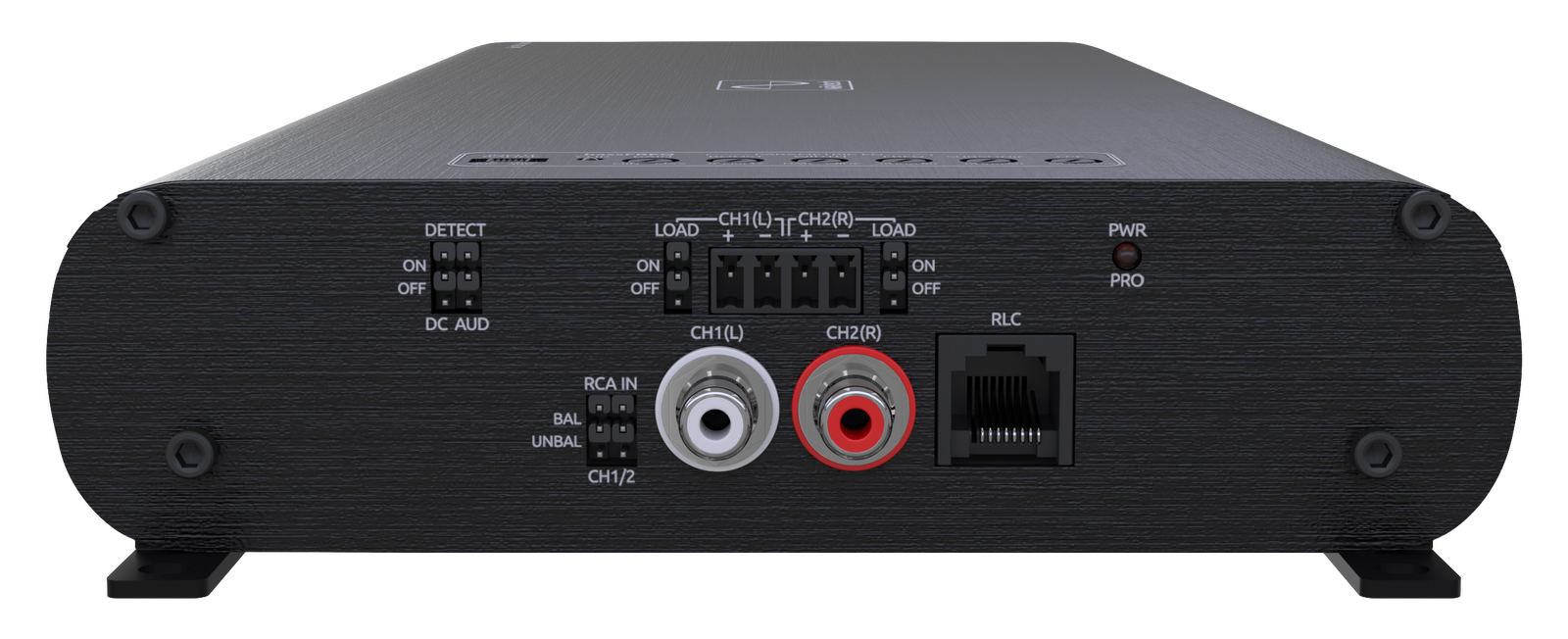

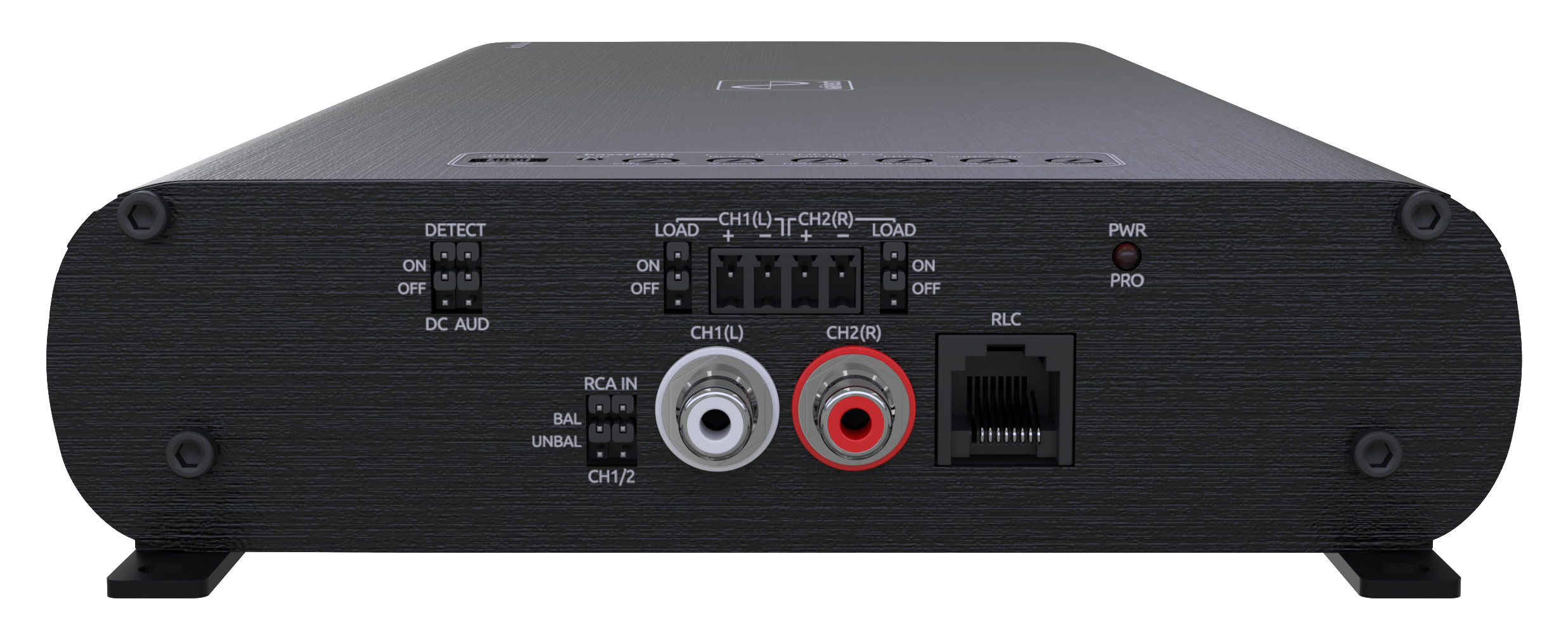

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Locking Detachable Hi-Level Speaker Terminals

0 Gauge Power/Ground Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link1500.1plus Specifications

Input Sensitivity

SPK --------------------------- 1-20Vrms, 2-40Vrms

RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms

Max Input Voltage (SPK) ------ 40Vrms

Frequency Response ----------- <10Hz to >500Hz (=0/-3dB)

THD+N ------------------------------- <1% at rated power

S/N ------------------------------------- >77dBA (1W, 4Ω)

Brand Wavtech
