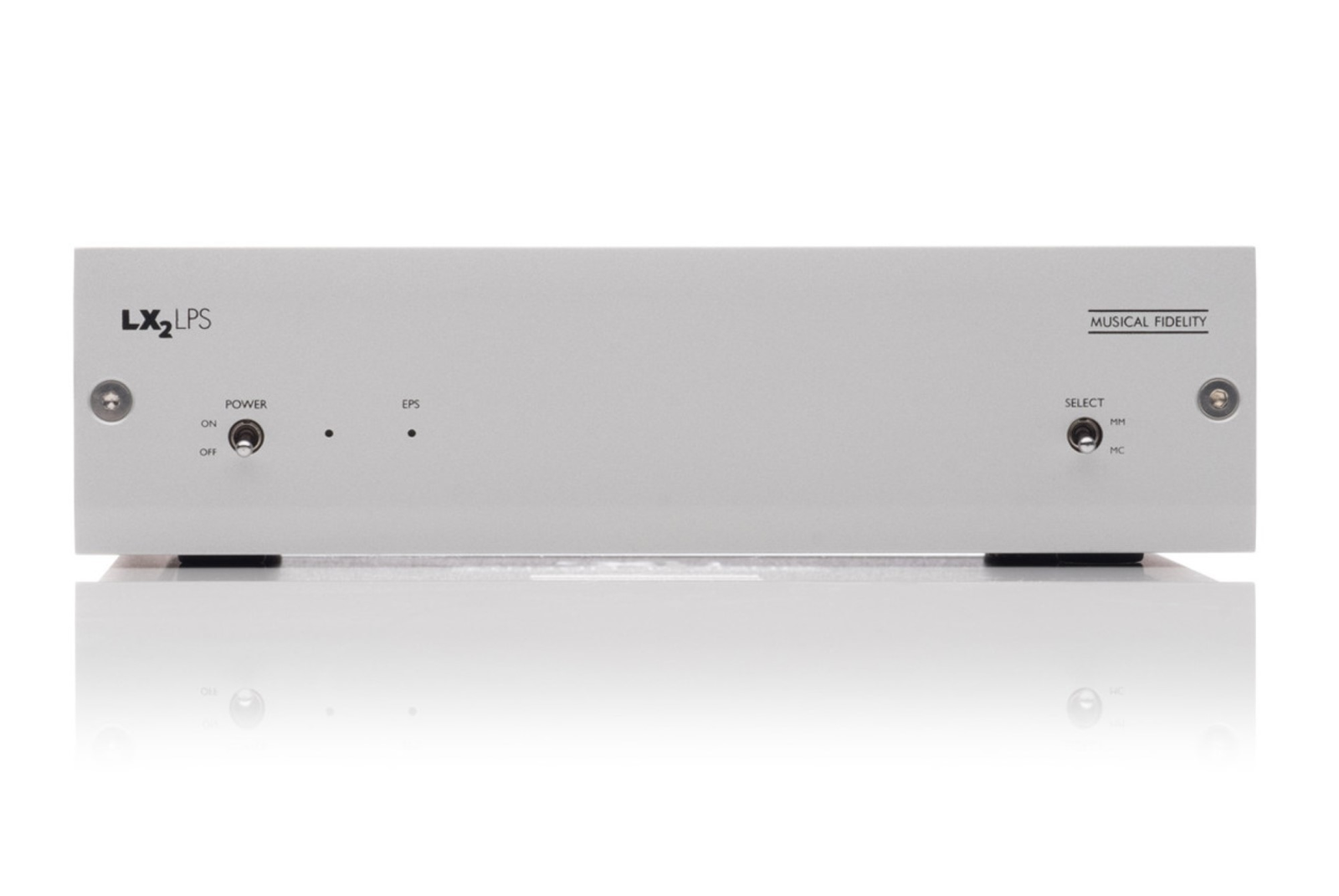

Musical Fidelity LX2-LPS Phono Stage Open Box
The LX2-LPS is a phono pre-amplifier of superb sonic quality.
The LX2-LPS is Musical Fidelity's new baby. A high quality flexible MM/MC phono stage with adjustable impedance and excellent technical performance. Housed in beautifully detailed and handsome metalwork it is the epitome of understated high class elegance.
We designed it for reference level listening so it is unerringly accurate and faithful to the input. Its purpose in life is to give you your music as its artists and producers intended: nothing more, and nothing less.
The critical elements of a phono stage are: accurate RIAA, low noise, low distortion, and overload margin.
Technical Performance
- Musical Fidelity's RIAA correction is famous for its predictable and consistent accuracy. The LX2-LPS accuracy is ±0.25dB 20Hz-20kHZ, also it extends to 45kHz so there is no overshoot ringing.
This results in absolutely clear high frequencies with no intermodulation or other distracting anomalies.
- The noise ratio on both MM (better than 82dB) and MC (better than 72dB) is outstanding and virtually inaudible at any volume setting. That is unless you are a half deaf head-banger.But then I don't expect that MF's refinement and subtly would be quite your thing!
- The LX LPS distortion is vanishingly low, typically less than 0.007% across the audio band.
- Overload margin is exemplary. Simply put, it is virtually impossible for any real world cartridge to overload it.
As we all know nothing is perfect, but the LX2-LPS gets very near.
Specs
MM
- Input Impedance: 47 KΩ
- Input Sensitivity: 3.0mV
- Total Harmonic Distortion: 0.01%
- Signal to Noise Ratio: >80dB
- Input Overload Margin: 15dB
MC
- Input Impedance: 100 Ω
- Input Sensitivity: 300μV
- Total Harmonic Distortion: 0.01%
- Signal to Noise Ratio: >70dB
- Input Overload Margin: 22dB
General
- RIAA Response ±0.25dB
- Power Requirement 12-24V 100mA regulated

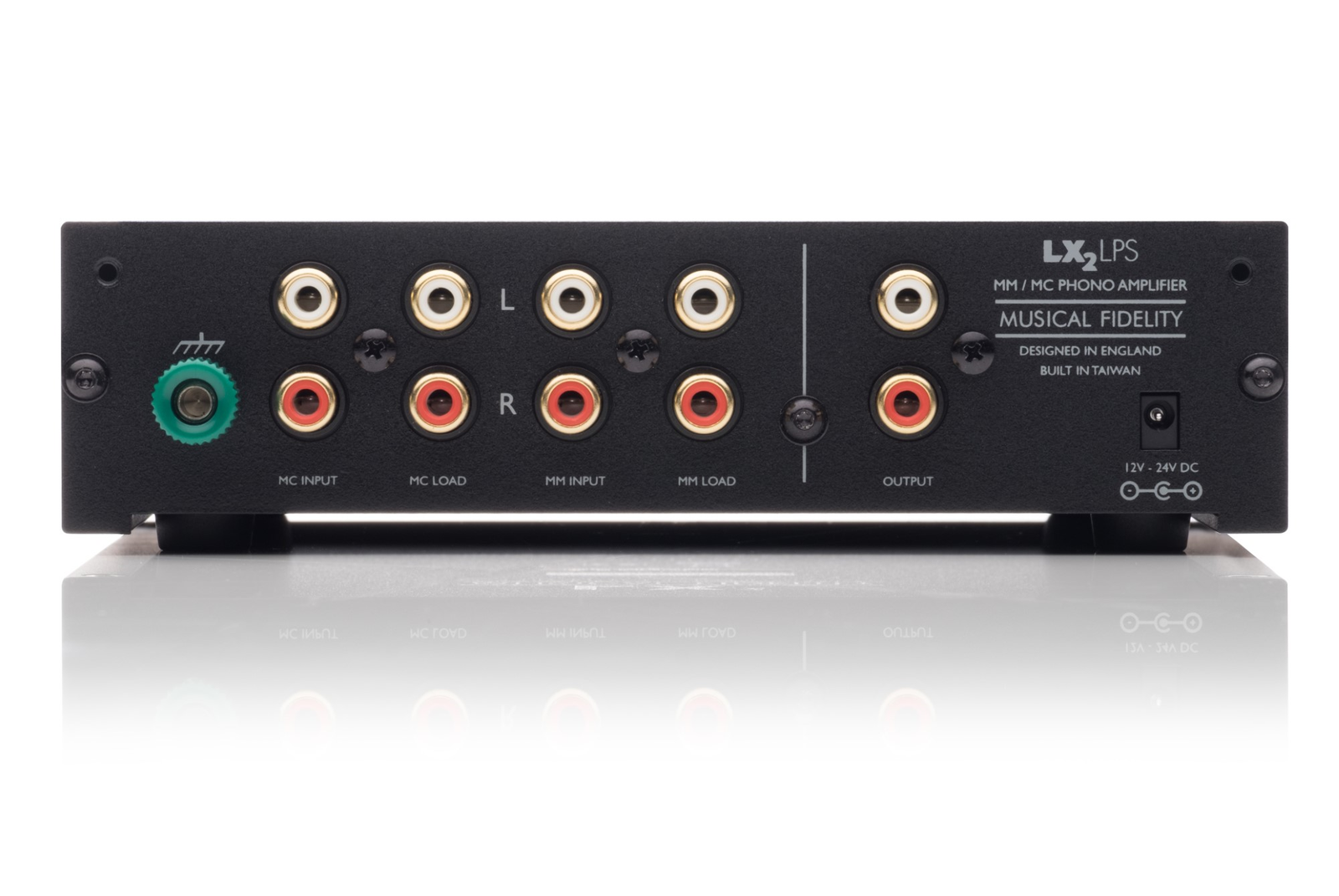

- Connections
- Moving Magnet Input: 1pr RCA sockets
- Moving Magnet Loading: 1pr RCA sockets
- Moving Coil Input: 1pr RCA sockets
- Moving Coil Loading: 1pr RCA sockets
- Power Input: DC Jack (1.3mm inner pin, outer diam. 3.5mm
Dimensions
- Length (including terminals) 197 mm
- Width 172 mm
- Height (including feet) 46.5 mm
Weight
- (Unpacked / packed): 1.05 kg/ 1.50 kg
Included accessories
Musical Fidelity Warranty
- Electronics - 5 Years
- Disc Player / Electronics - 5 Years
- Disc Player / Mechanics - 2 Years
- Server - 5 Years
- Remote Control - 1 Year
