Martin Logan EM-IW ElectroMotion In-Wall Speaker (Each)

UPC: 877929006853
$599.99

SKU EM-IW

Product Qualifies for FREE Ground Shipping

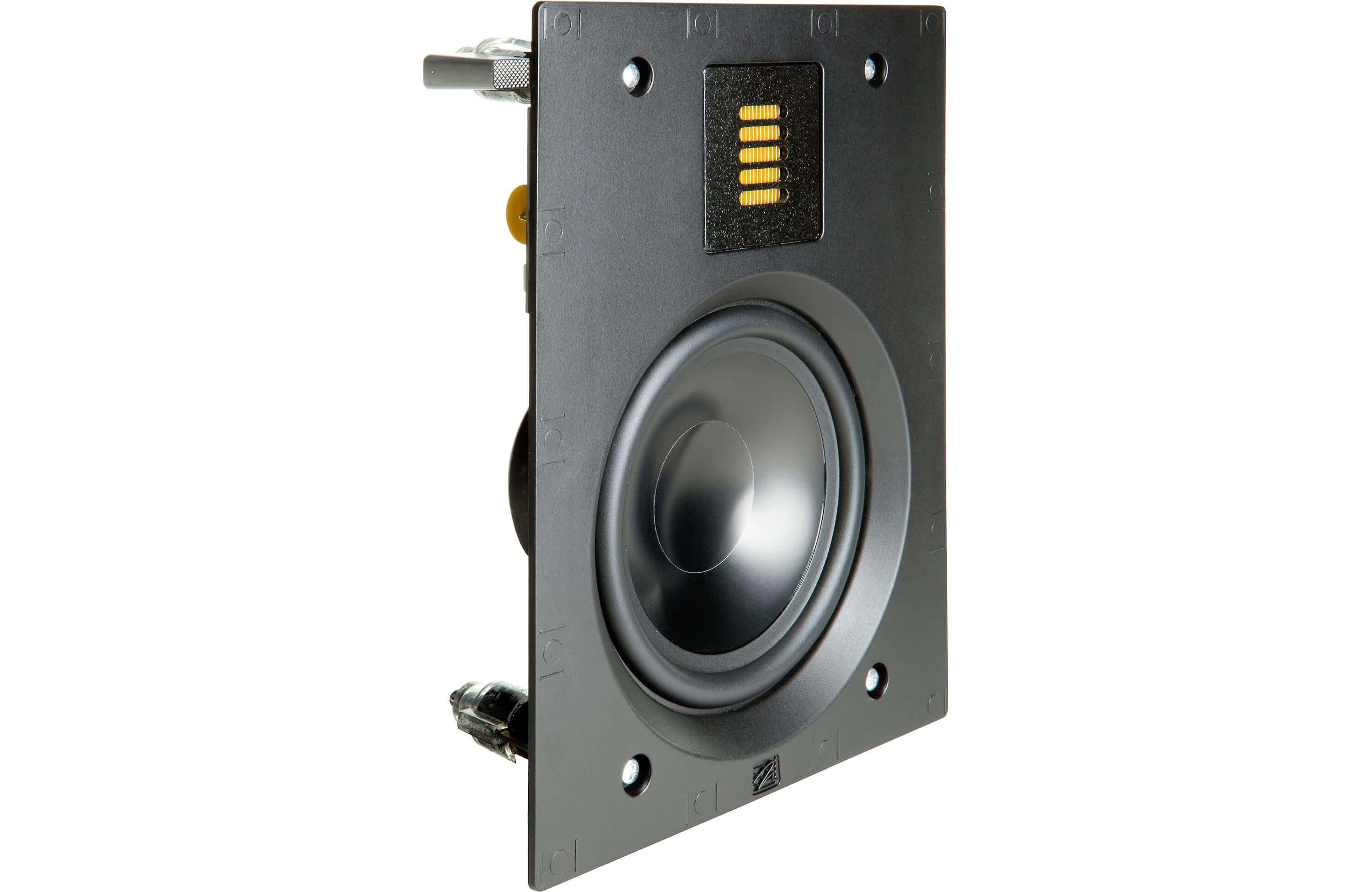

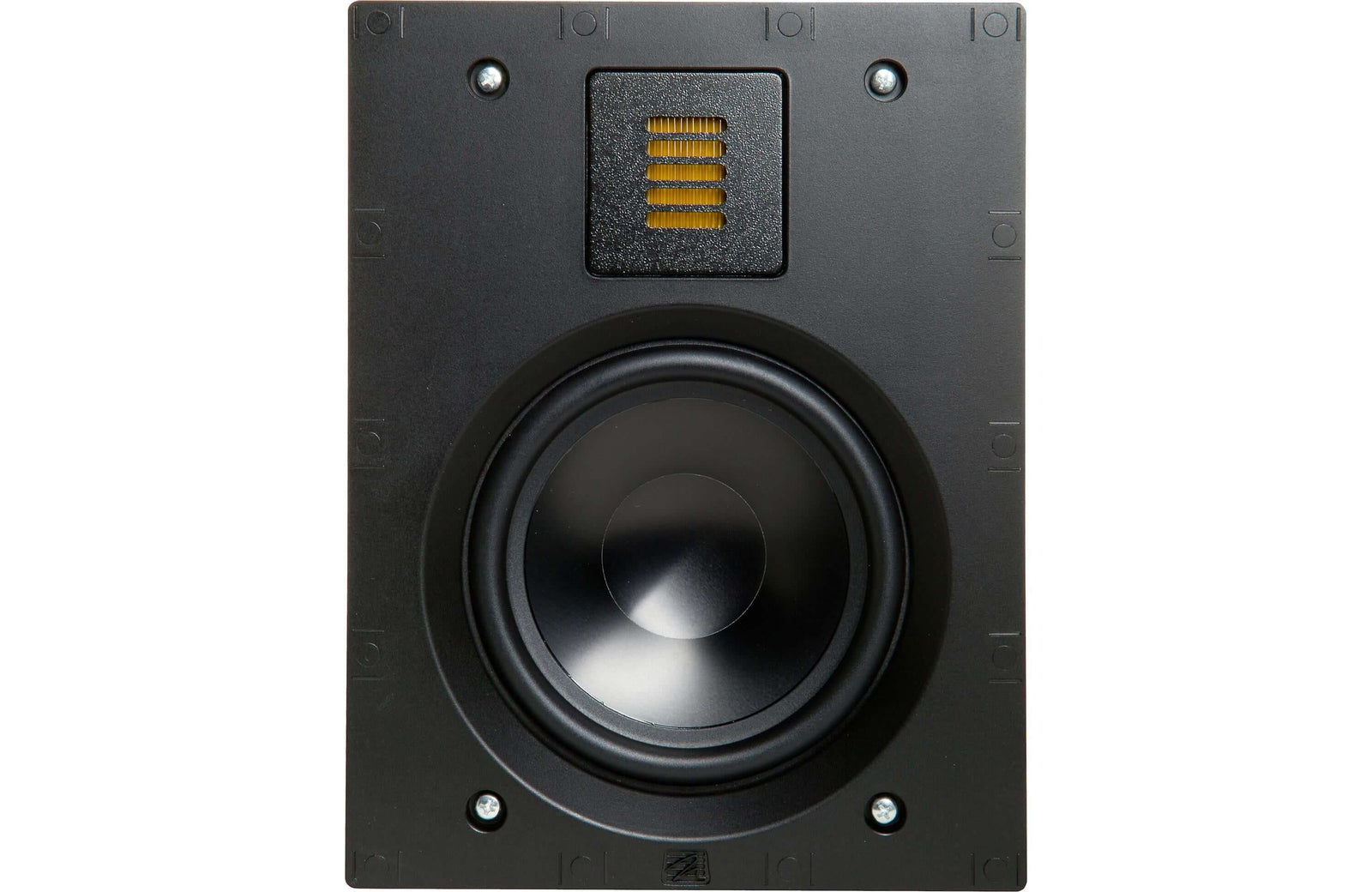

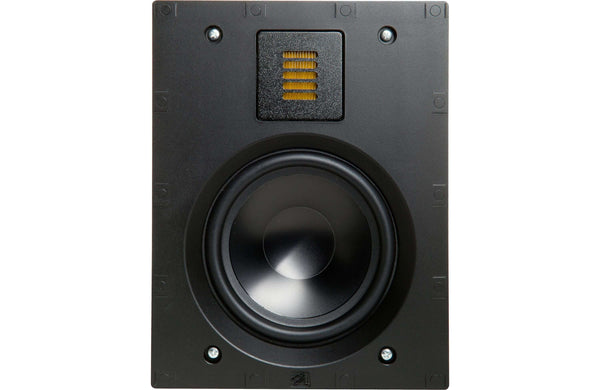

The EM-IW features our exotic Folded Motion tweeter and a 6.5-inch aluminum cone woofer with cast aluminum basket that provides powerful low-frequency bass extension. This stealthy inwall speaker blends seamlessly into any home thanks to it's ultra-low profile, micro perforated grille with no visible bezel.

Folded Motion™ Tweeter
MartinLogan's exquisite Folded Motion tweeter boasts a radiating surface 8-times larger than a typical 1" dome tweeter. The Folded Motion tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works.

This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

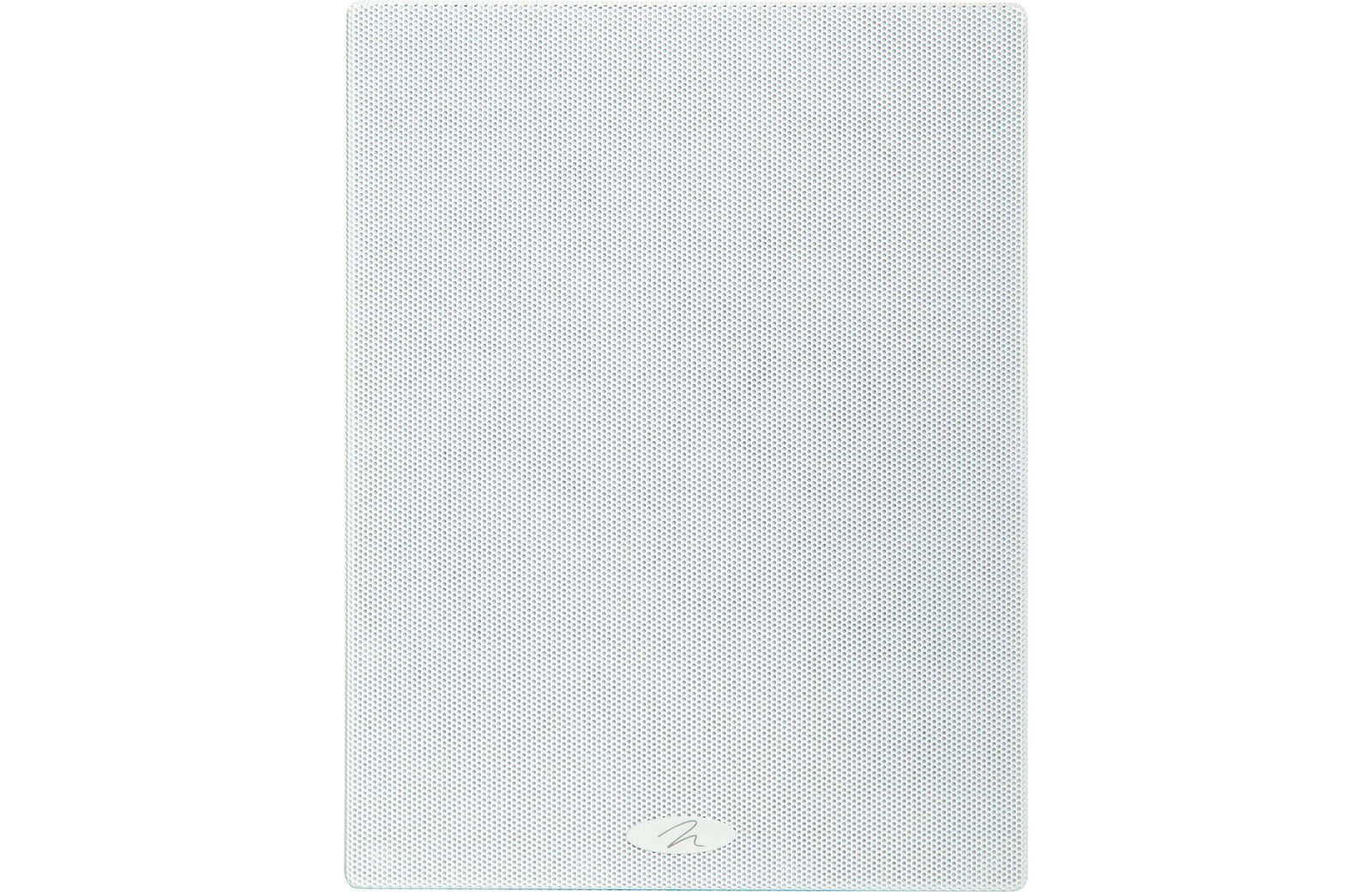

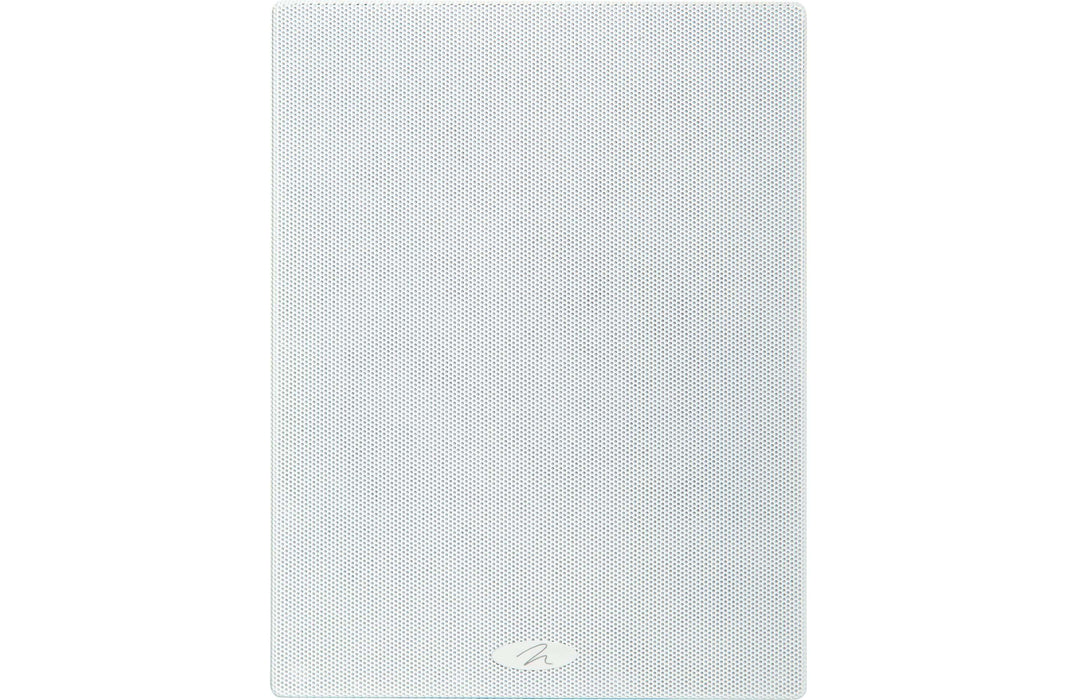

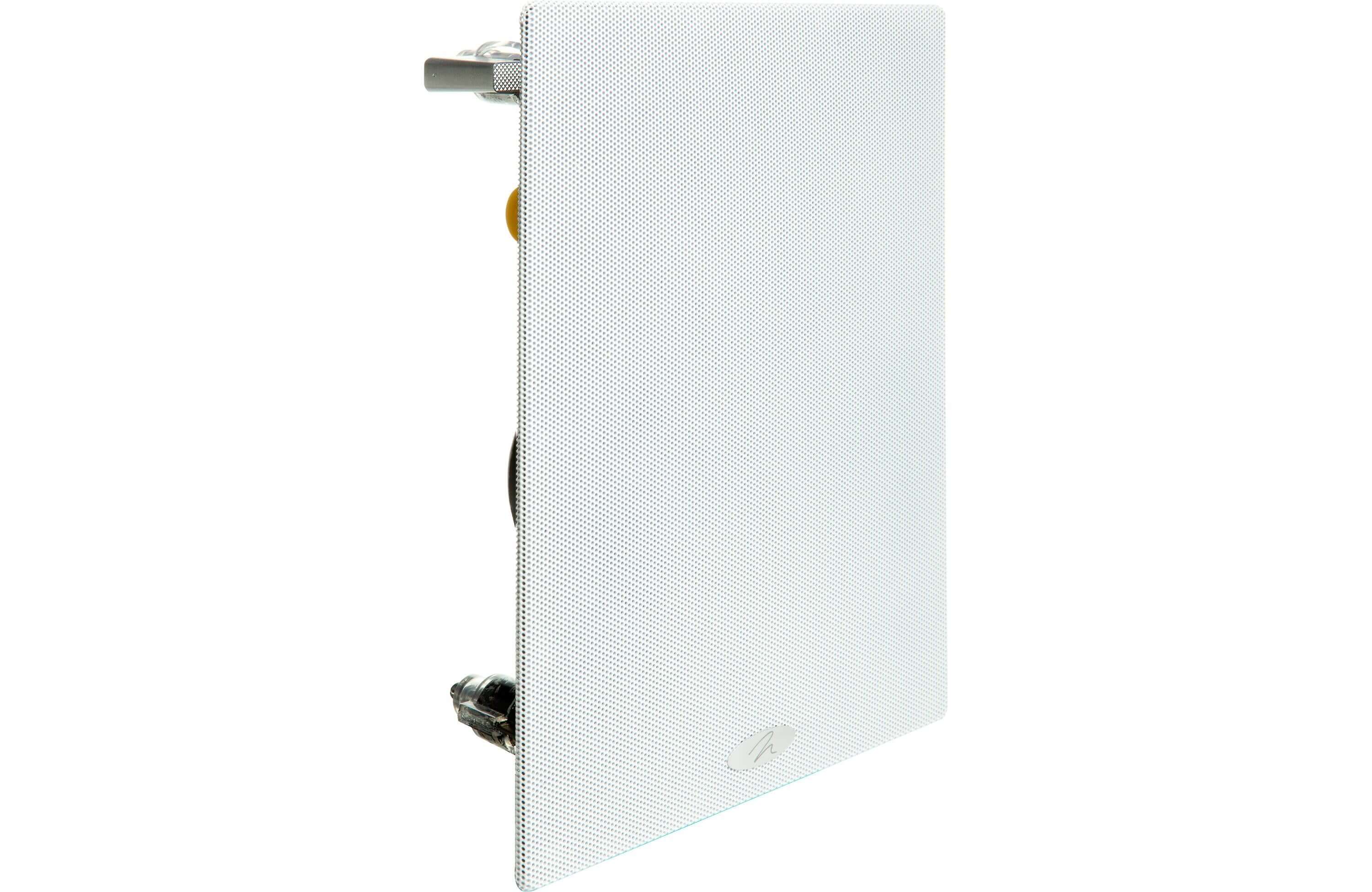

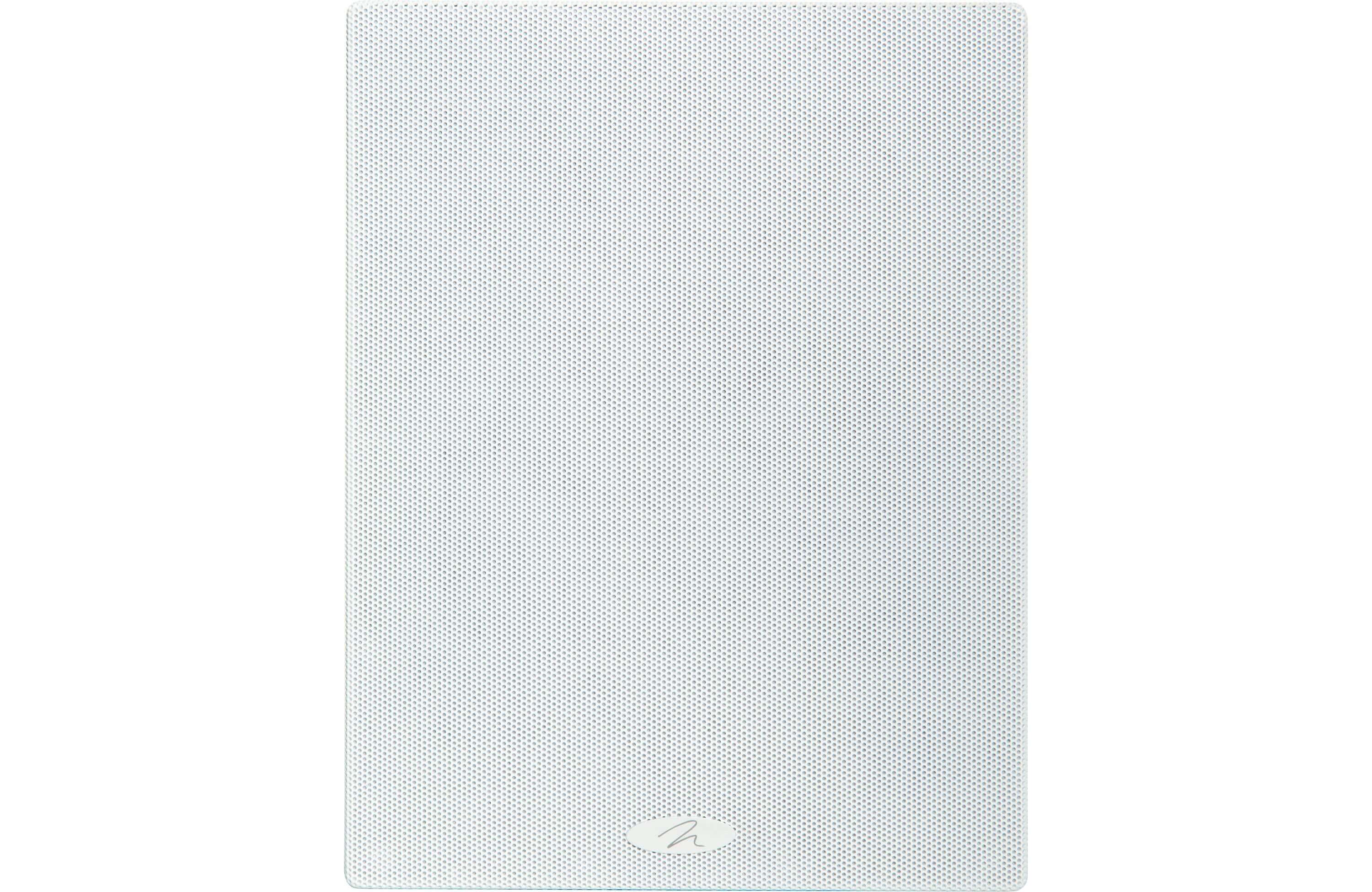

Stealthy Grilles
MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.

Specs
EM-IW Specifications:
Application
In-Wall

Frequency Response
47–25kHz ±3dB

Dispersion
80° x 80°

Sensitivity
90 dB/2.83 volts/meter

Nominal Impedance
4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.

Recommended Amplifier Power
20-200 watts per channel

Crossover Frequency
2,500 Hz

High Frequency Transducer
1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.

Low Frequency Driver
6.5" (16.5cm) aluminum cone with cast aluminum basket. Concave dust cap.

Weight
5.5lbs. (2.5kg) Each

Overall Dimensions
11" (27.9cm) Height
8.5" (21.6cm) Width
3.925" (10cm) Depth

Cut-Out Dimensions
10.25" (26cm) Height
7.875" (20cm) Width

Depth Required Behind Wall Surface
3.8" (9.7cm)

Projection From Wall Surface
.125" (.3cm)
