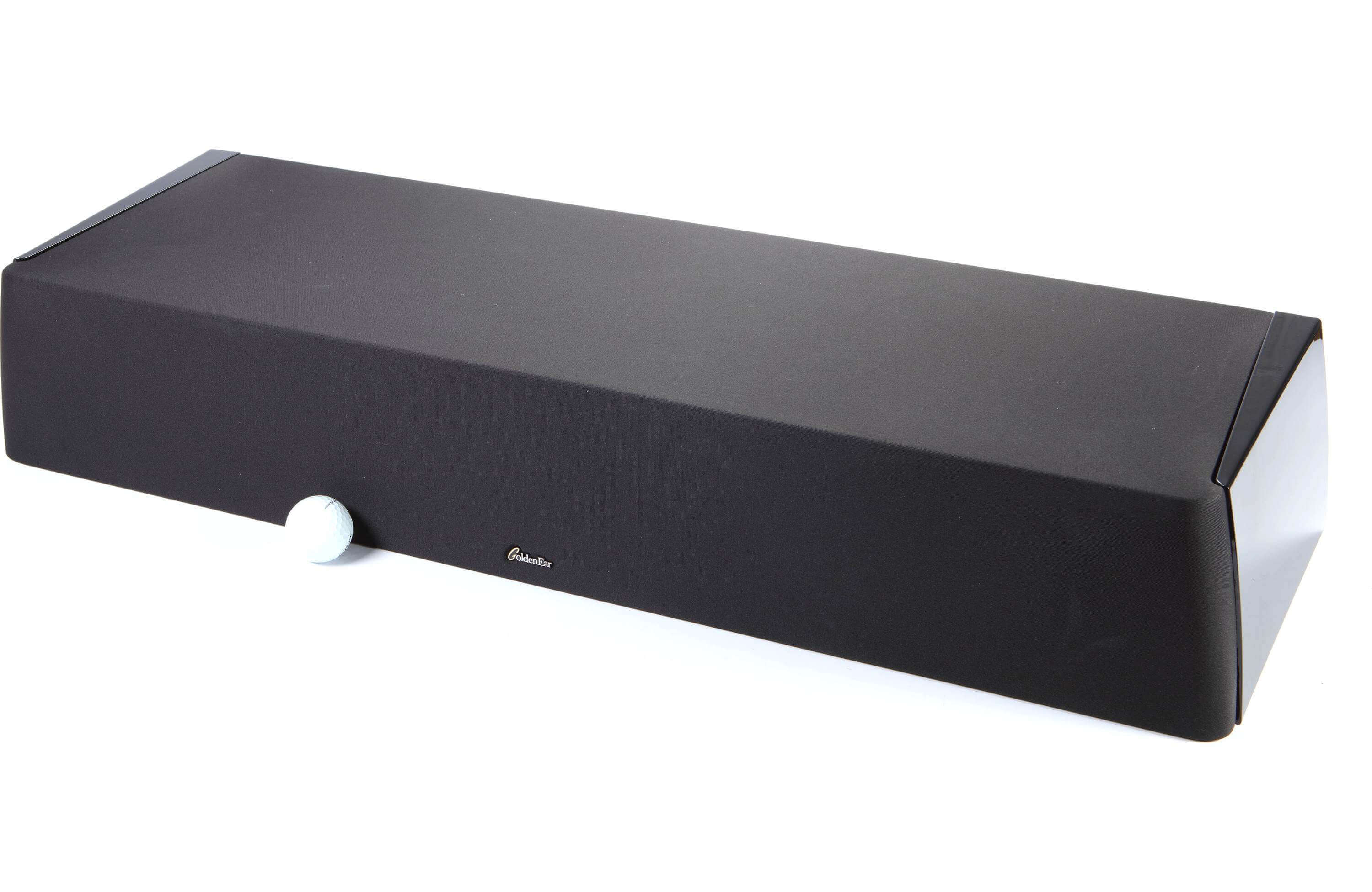

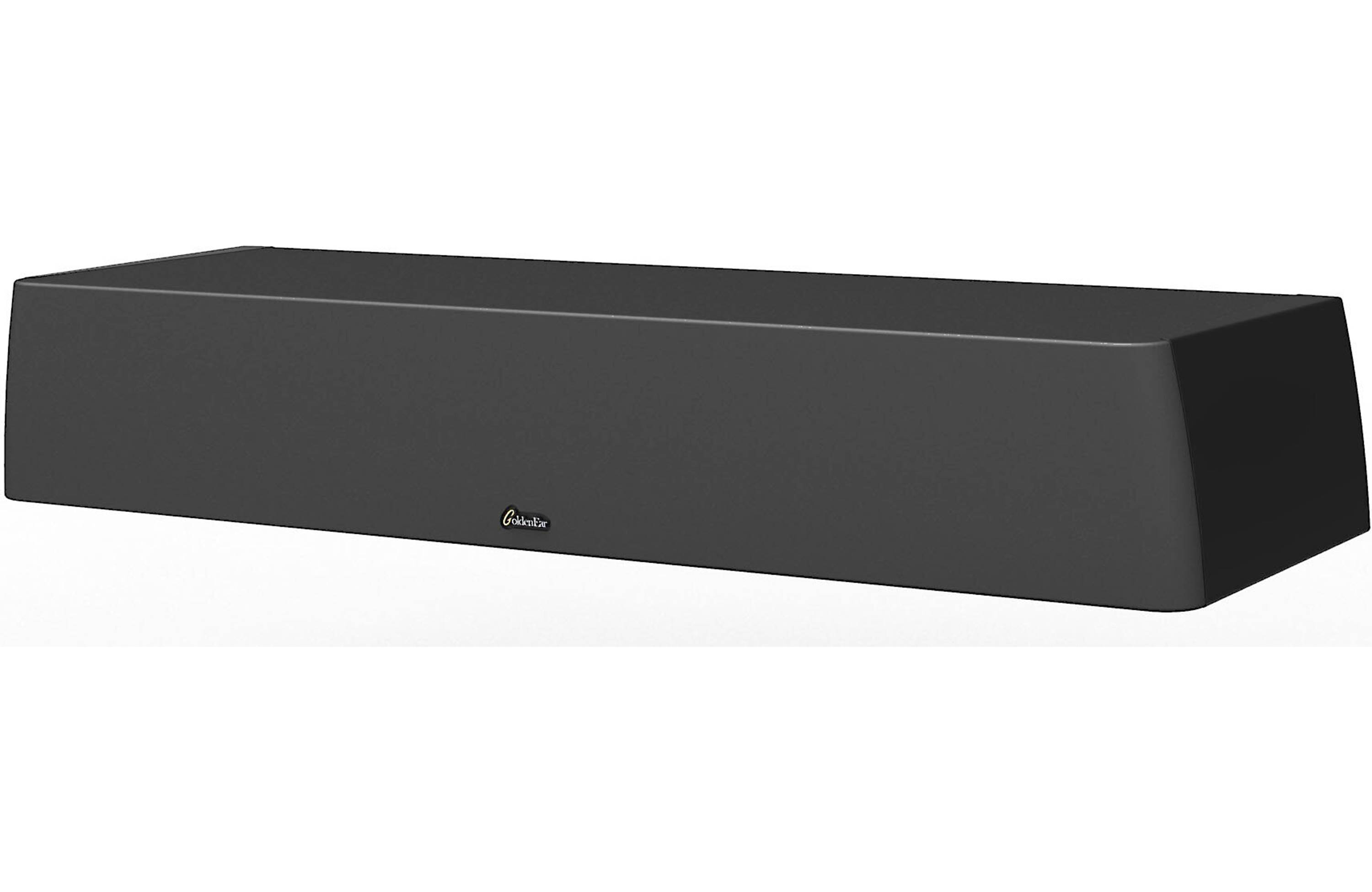

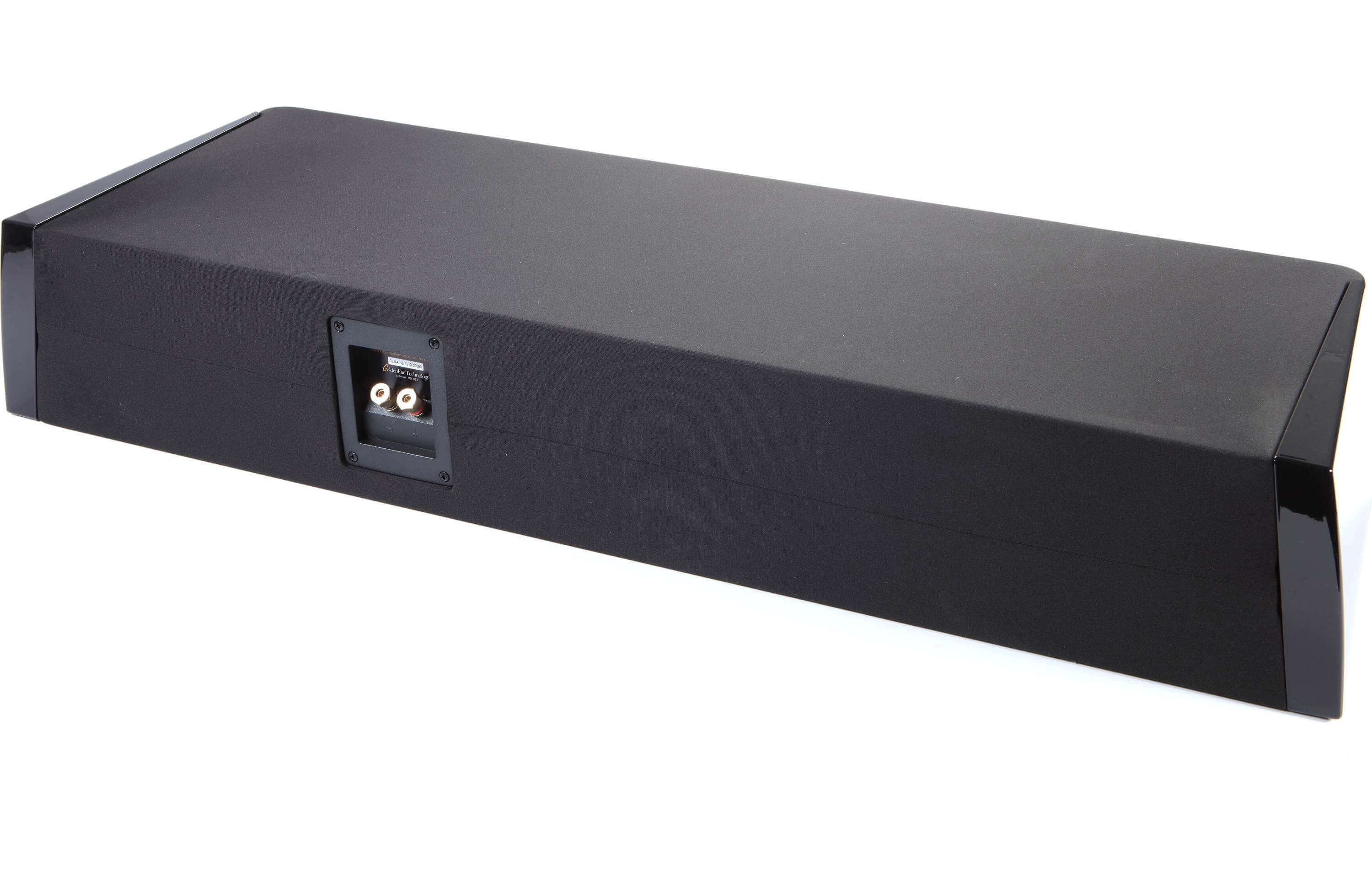

The SuperCenters are high-performance center channel speakers appropriate for the highest quality home theatre systems. They are designed to perfectly complement and match our Triton Towers and Aon Bookshelf loudspeakers, both sonically and cosmetically. Their sophisticated industrial design is both attractive and functional, both minimizing their apparent size as well as enhancing their acoustic performance.
These center channel speaker models incorporate a D Appolito Array of two newly developed long-throw 5-1/4 bass/midrange drivers (four, with reference focused field magnet structures, on the Reference model) surrounding one of our signature High Velocity Folded Ribbon (HVFR) tweeters (and a High-Gauss Reference HVFR on the Reference model). The 5-1/4 drivers incorporate spiderleg cast baskets for rigidity and minimal internal reflection, as well as our unique multi-vaned phase plugs (MVPP), to minimize cross-apex wave propagation interference. They also utilize top-mounted pressure-coupled quadratic planar low frequency radiators that both extend the bass response as well as provide the bass/midrange drivers with ideal acoustic loading and damping. Since the top-mounted passive radiators put out a very low frequency pressure wave, they only require an inch or two of clearance above them so they can be placed in cabinets/wall units if desired (always position the speaker at the front of the opening for best performance)..
Sonically, the SuperCenters offer the same lifelike, highly detailed, high-resolution, smooth, open, boxless sound quality that our SuperSat centers are famous for, but with additional low frequency extension and greater power handling capacity for greater dynamic range and impact.

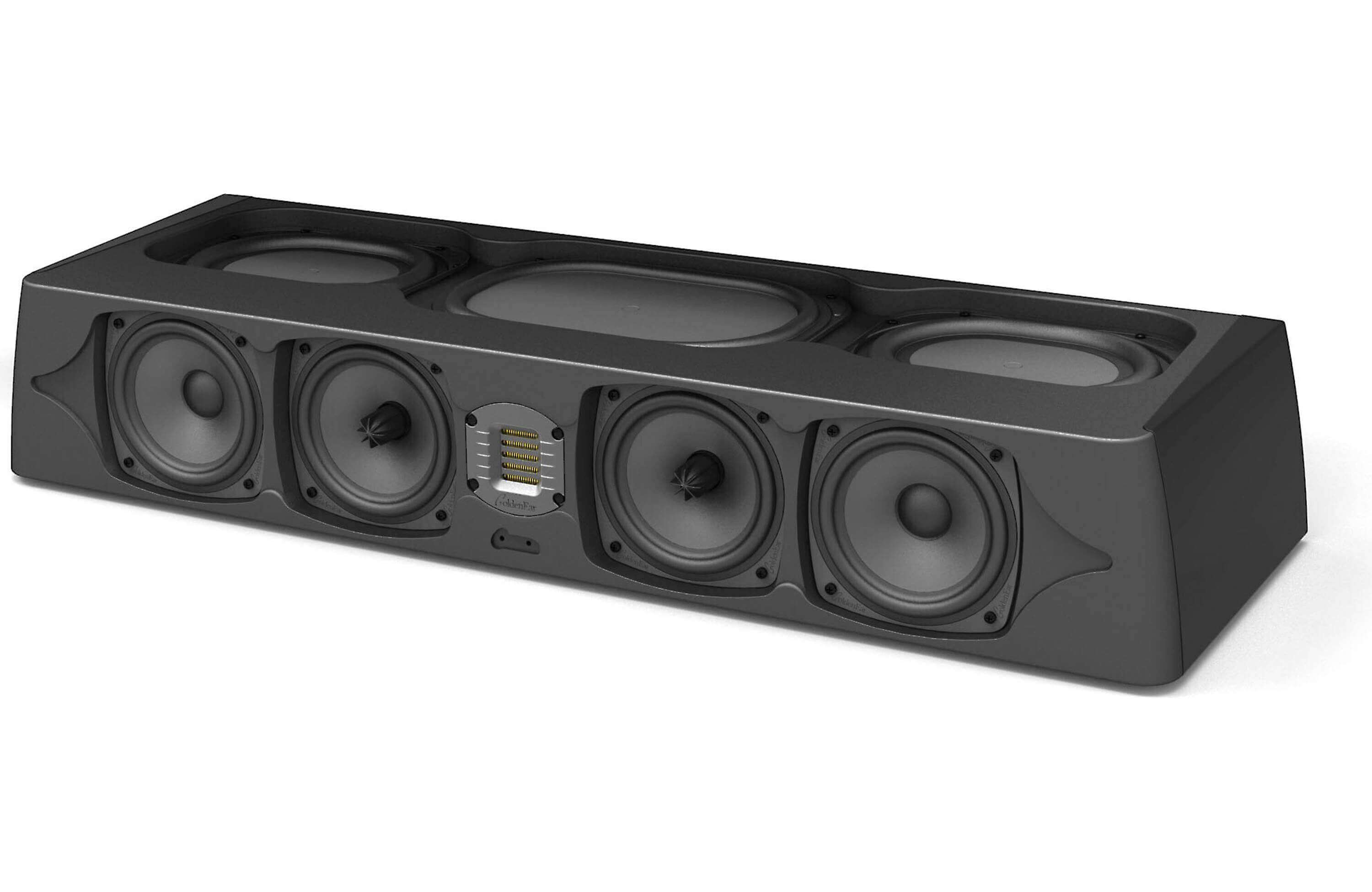

The top of the SuperCenter lineup is the reference-performance SuperCenter Reference, the perfect match for large GoldenEar home theater systems. Only 35 wide, it includes four 5-1/4" drivers utilizing the focused-field magnet structure developed for the Triton Reference, the GoldenEar Reference high-gauss High Velocity Folded Ribbon tweeter, and three planar passive radiators. Our unique linear-phase crossover network employs a fully balanced topology which reduces stray capacitances for dramatically improved clarity. It utilizes precision film capacitors and special internal wiring to perfectly blend the drivers for a seamless homogeneous sound. There are three separate internal chambers: a larger one in the center which contains two 5-1/4 drivers which run up to meet the tweeter and are coupled to the larger, 7 x 10 passive radiator in the center, and two smaller ones which each contain a special 5-1/4 driver engineered for low frequency response, which runs up to 500 Hz, and is coupled to one of the smaller, 6-3/4 x 8 passives
Dimensions 35 (88.9 cm) W
x 5-3/4 (14.6 cm) H
x 11 (28 cm) D
Weight Product: 31 lbs (14 kg) /
Shipping: 38 lbs (17.2 kg)
Frequency Response 33 Hz - 35 kHz
Efficiency 91 dB
Nominal Impedance Compatible with 8 ohms
Driver Complement Four - 5-1/4 Cast-Basket
One - High-Gauss Reference HVFR High-Velocity Folded
Ribbon High-Frequency Radiator
Two - 6-3/4 x 8 Quadratic Planar
One - 7 x 10 Quadratic Planar
Recommended Amplification 20 - 350 watt/channel
