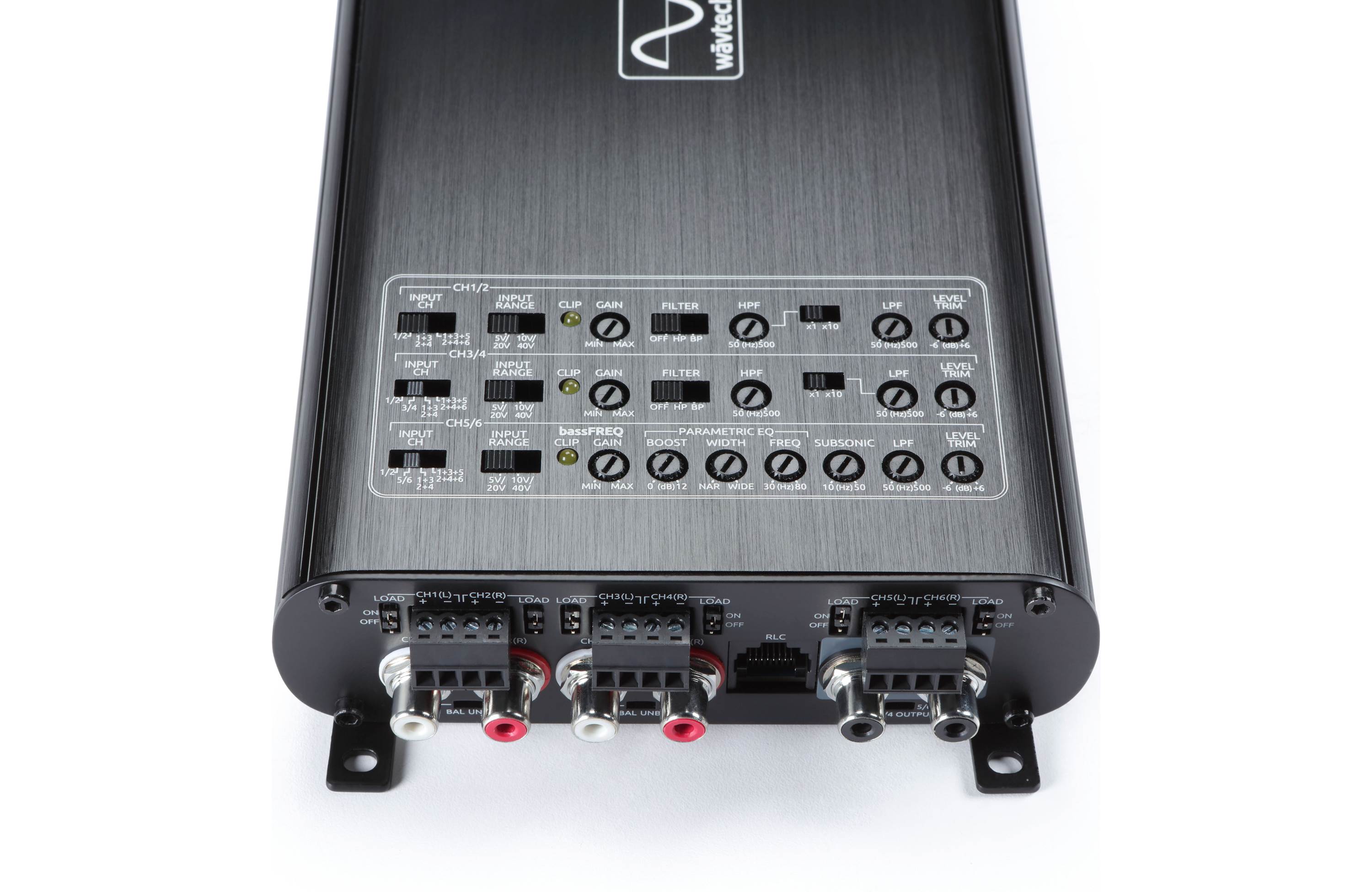

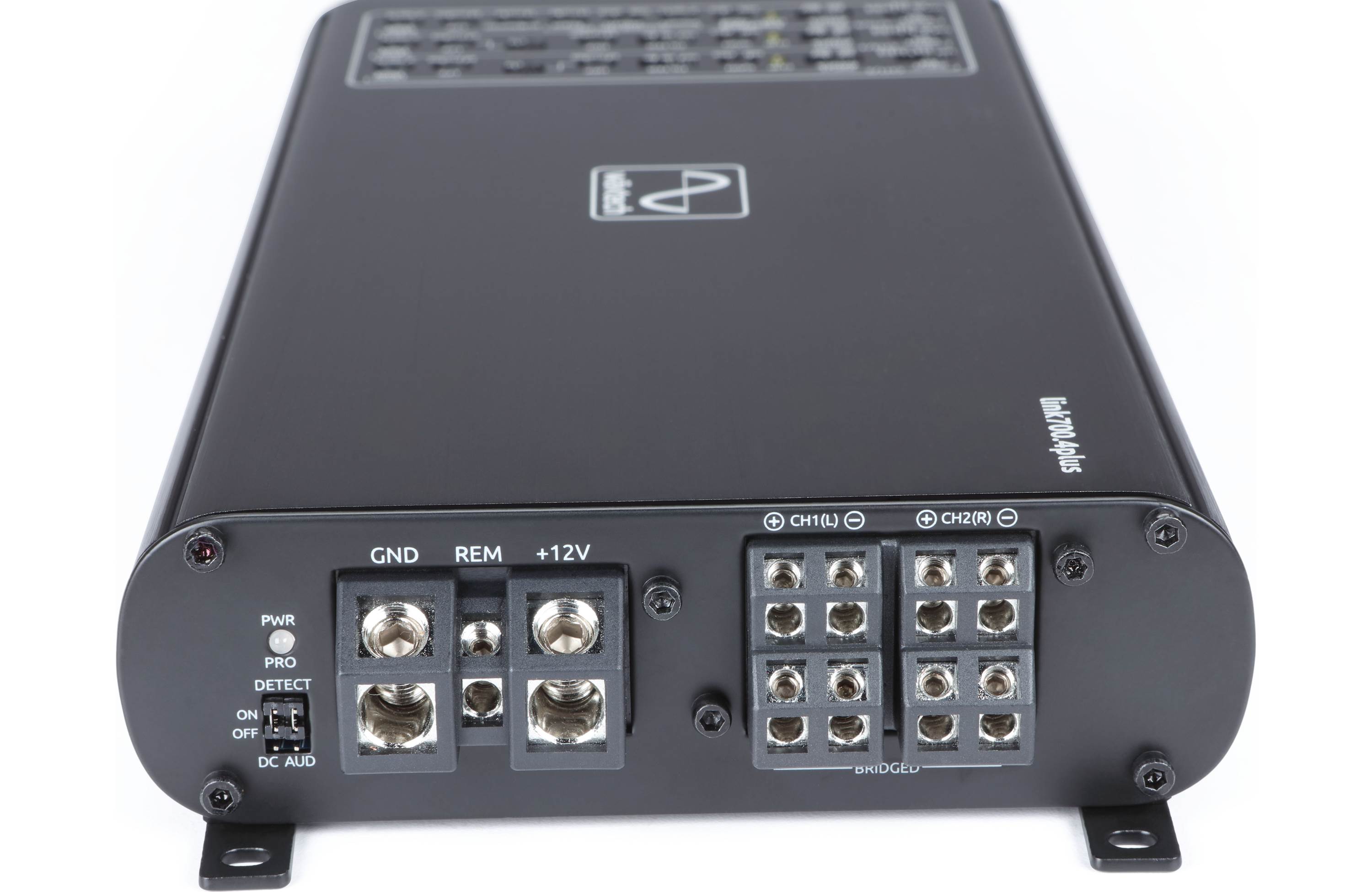

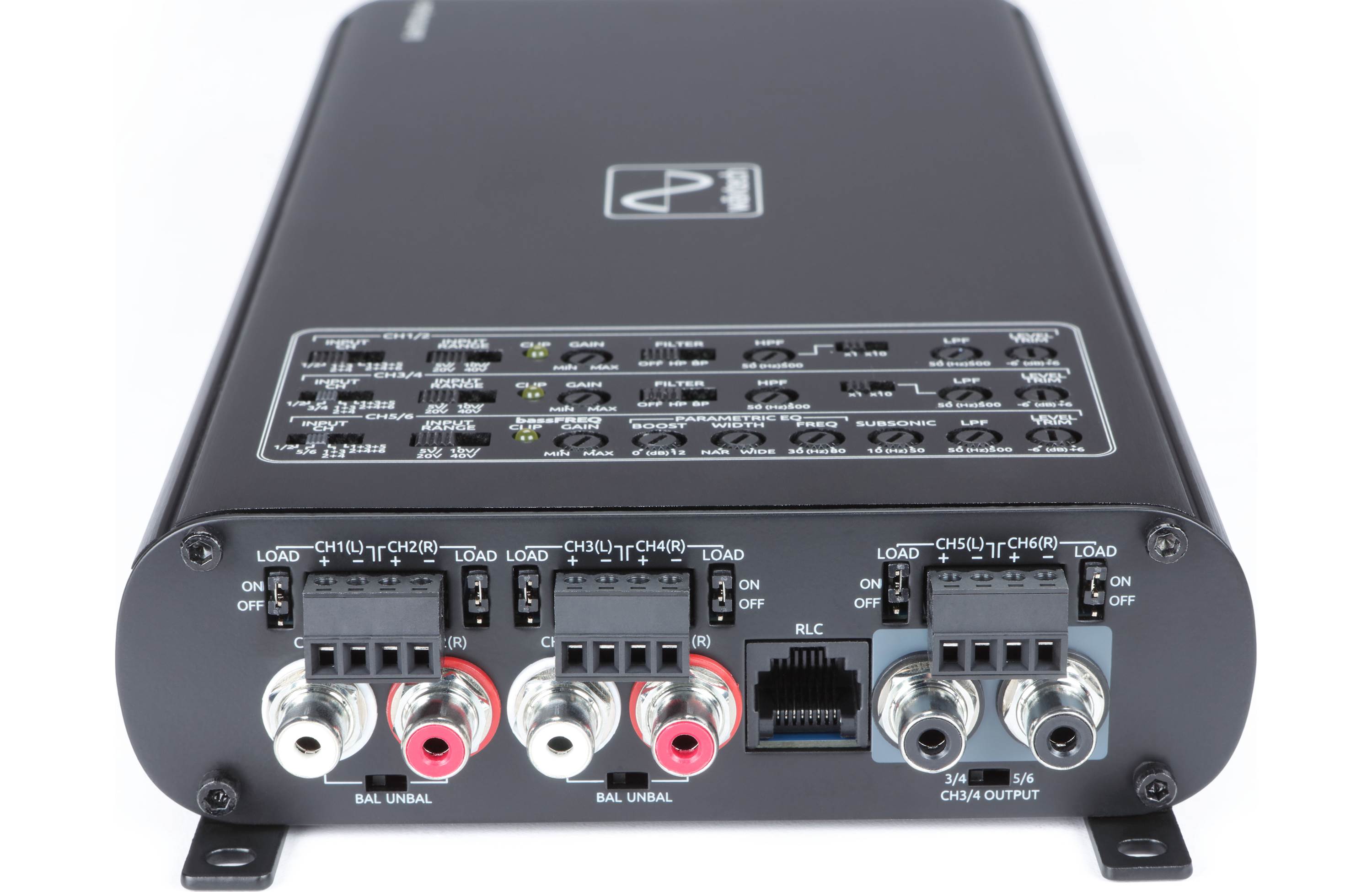

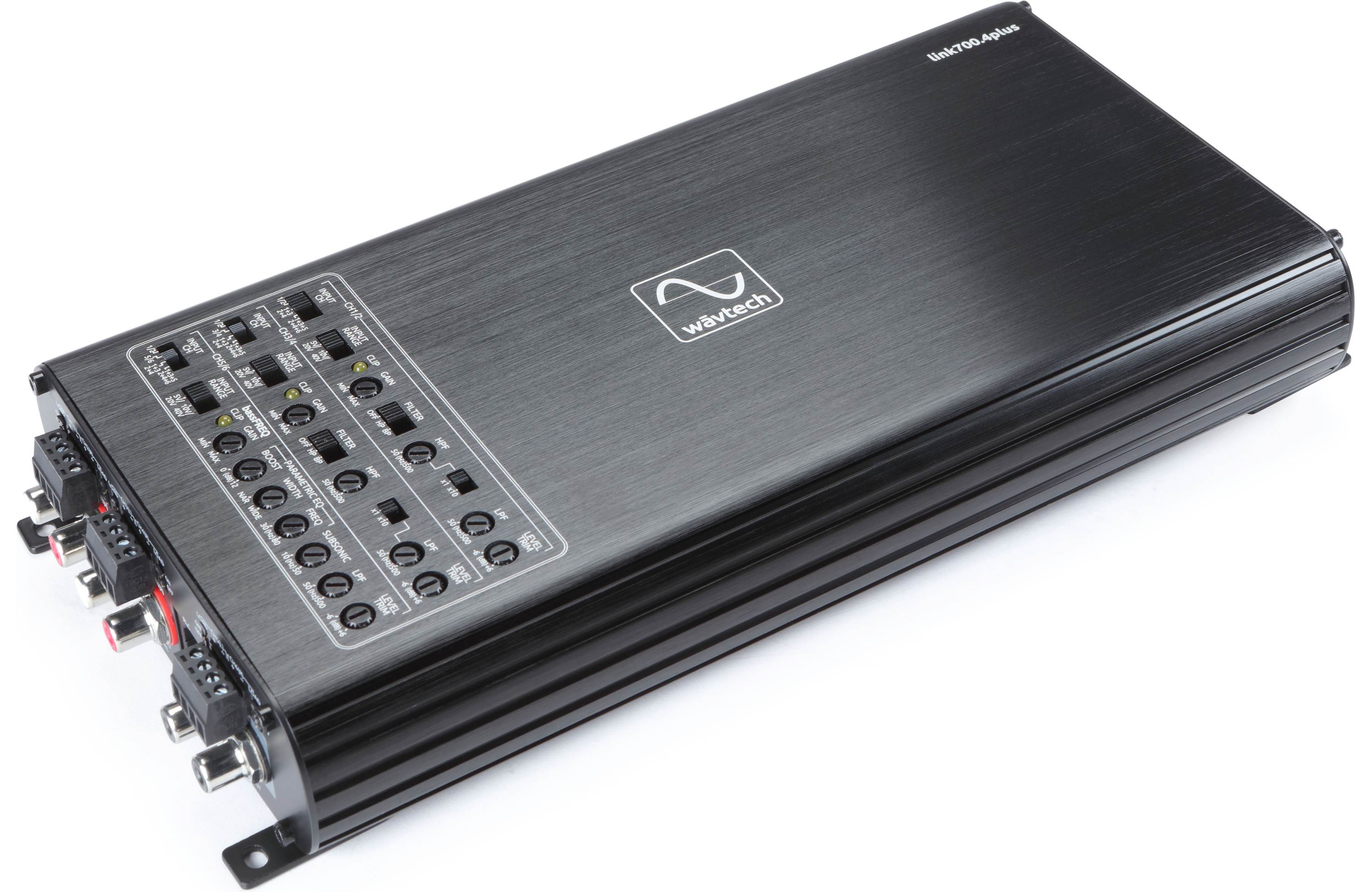

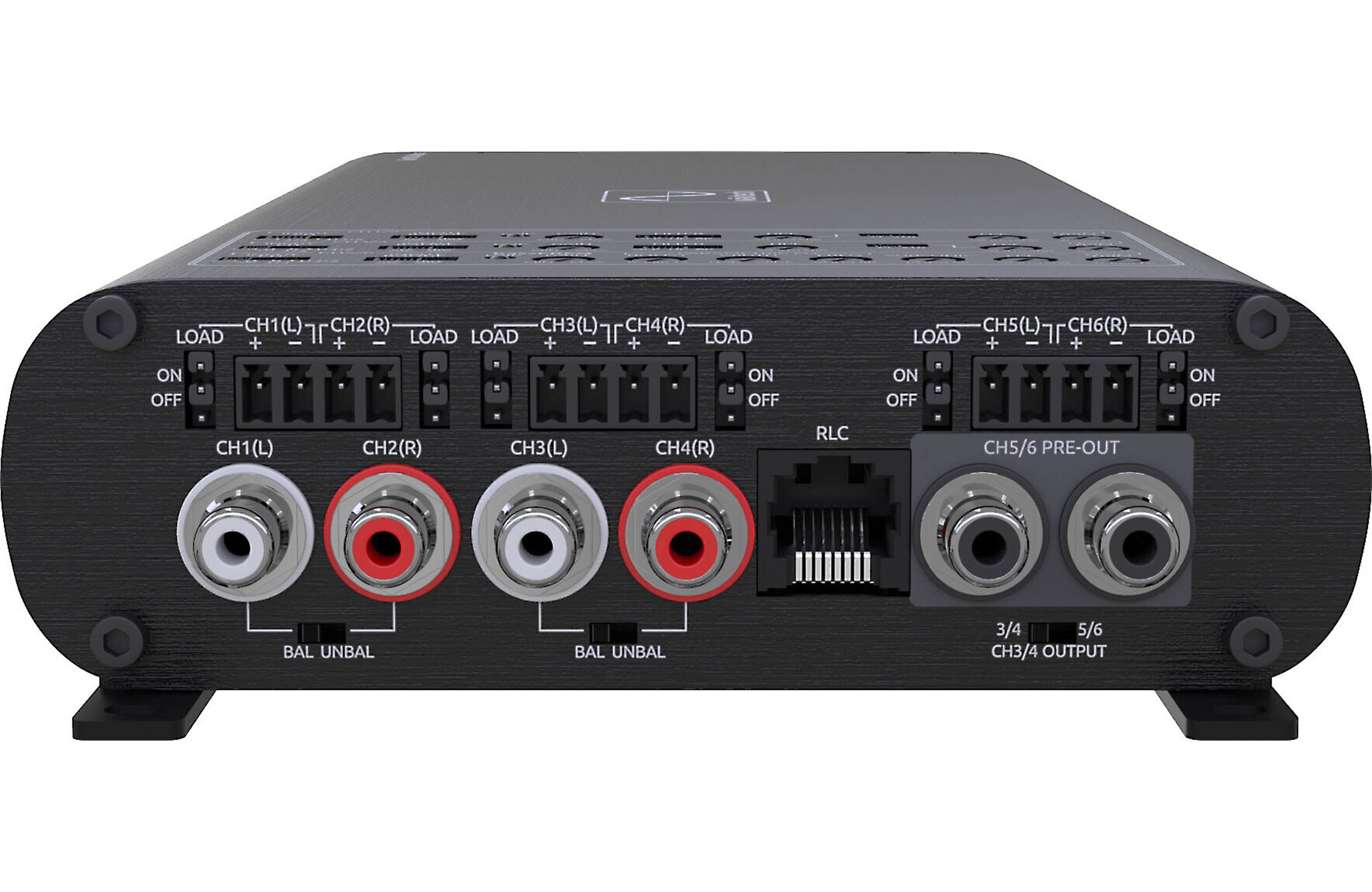

Wavtech link700.4plus 700 Watt 4 Channel Amplifier

Brand: Wavtech | SKU: link700.4plus | UPC: 700987201529

Sale price
$599.95
Regular price
$699.95
You save
14%
Taxes calculated at checkout

Have a question?

The Wāvtech mini series amplifiers pack an incredible amount of power and features into an extremely small package. Still, with a width of only 4.5”, there are some limitations. That is where the plus series comes in. While still incredibly small at just 5.5” wide, that extra 1” opens up some interesting possibilities. Introducing the link700.4plus.

The link700.4plus is the most versatile 4-channel amplifier available. Like our mini series multi-channel amplifiers, the plus series models have built-in summing. But with the additional width, we can now accommodate 6-channels of input. That means you can sum a 3-way OEM system and get front and rear full-range output, plus an RCA Pre-Out for a subwoofer amplifier. It is powerful, producing 100 watts x 4 RMS @ 4 ohms, or 175 watts RMS x 4 @ 2 ohms. In BTL mode the power is 350 watts x 2 RMS @ 4 ohms.

The link700.4plus has our bassFREQ processor, with 24 dB/octave lowpass and subsonic filters, as well as a fully adjustable 1-band parametric EQ. The optional RLC can be configured to control channels 3/4 when in lowpass mode, or the RCA Pre-Out.

Specs

700 Watt 4-Channel Amplifier

100 watts x 4 @ 4 ohms

175 watts x 4 @ 2 ohms

350 watts x 2 @ 4 ohms BTL

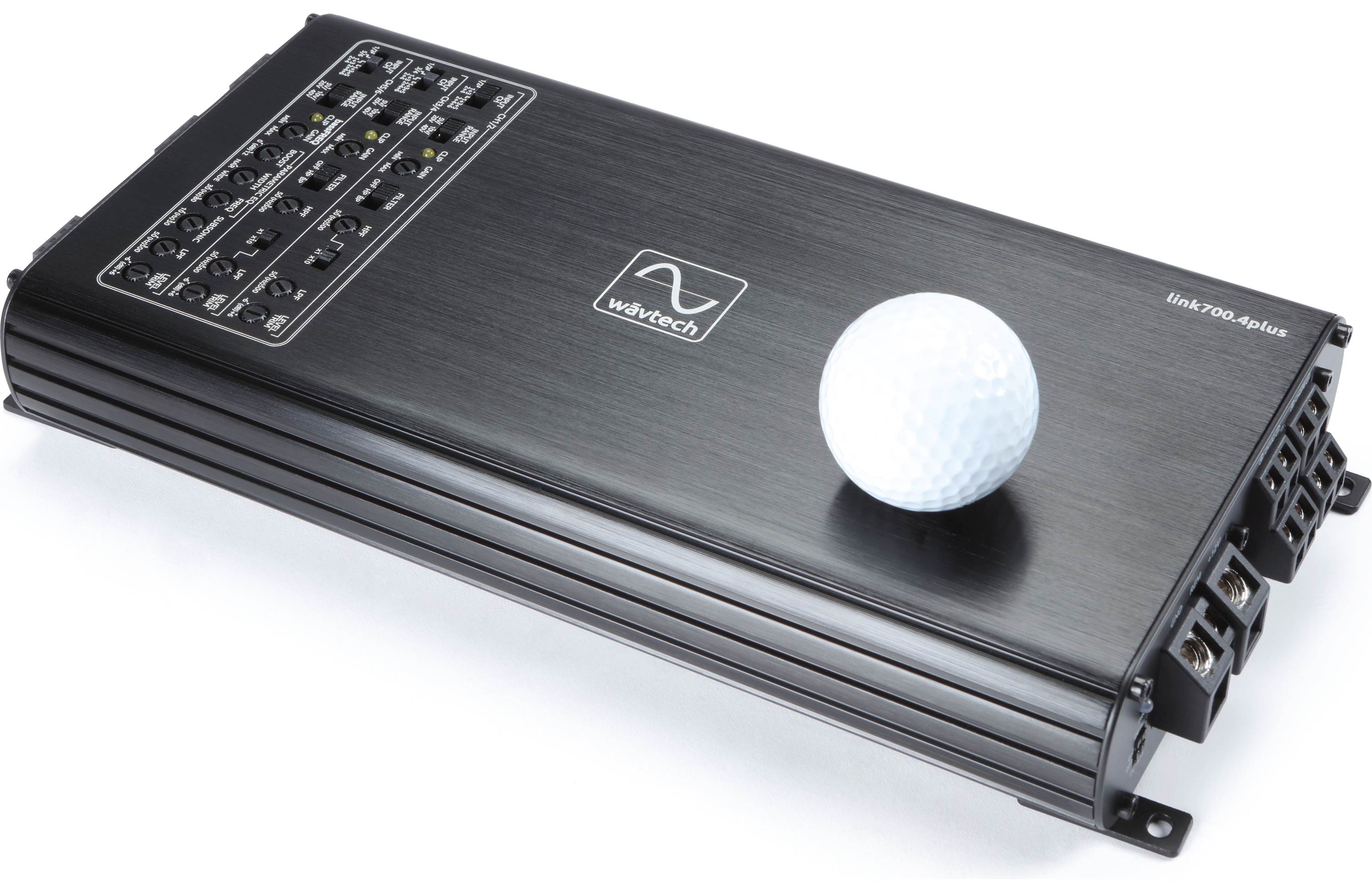

Small Footprint Only 10.25”x5.5”x1.65”

Variable HP Crossover (-12dB/oct) with 1x/10x CH1/2

Variable HP/BP/LP Crossover (-12dB/oct) CH3/4

Variable LP Crossover (-24dB/oct) RCA Pre-Out

Variable Subsonic Filter (-24dB/oct) RCA Pre-Out

Adjustable Parametric EQ RCA Pre-Out

Remote Level Control (RLC) w/Optional linkRC (Channels 3/4 or RCA Pre-Out)

bassFREQ Bass Processor w/Parametic EQ (CH 3/4 or Pre-Out)

Active Thermal Management

Start/Stop System Compatible

Adaptive OEM Load Technology

40V Input Capability

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Locking Detachable Hi-Level Speaker Terminals

4 Gauge Power/Ground Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link700.4plus Specifications

Input Sensitivity

SPK --------------------------- 1-20Vrms, 2-40Vrms

RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms

Max Input Voltage (SPK) ------ 40Vrms

Frequency Response ----------- <10Hz to >45kHz (+0/-3dB)

THD+N ------------------------------- <1% at rated power

S/N ------------------------------------- >80dBA (1W, 4Ω)

Brand Wavtech
