Denon AVR-X4800H 9.4 Channel 8K A/V Receiver with HEOS

by Denon
UPC: 747192138356
$2,499.00

SKU AVR-X4800H

Product Qualifies for FREE Ground Shipping

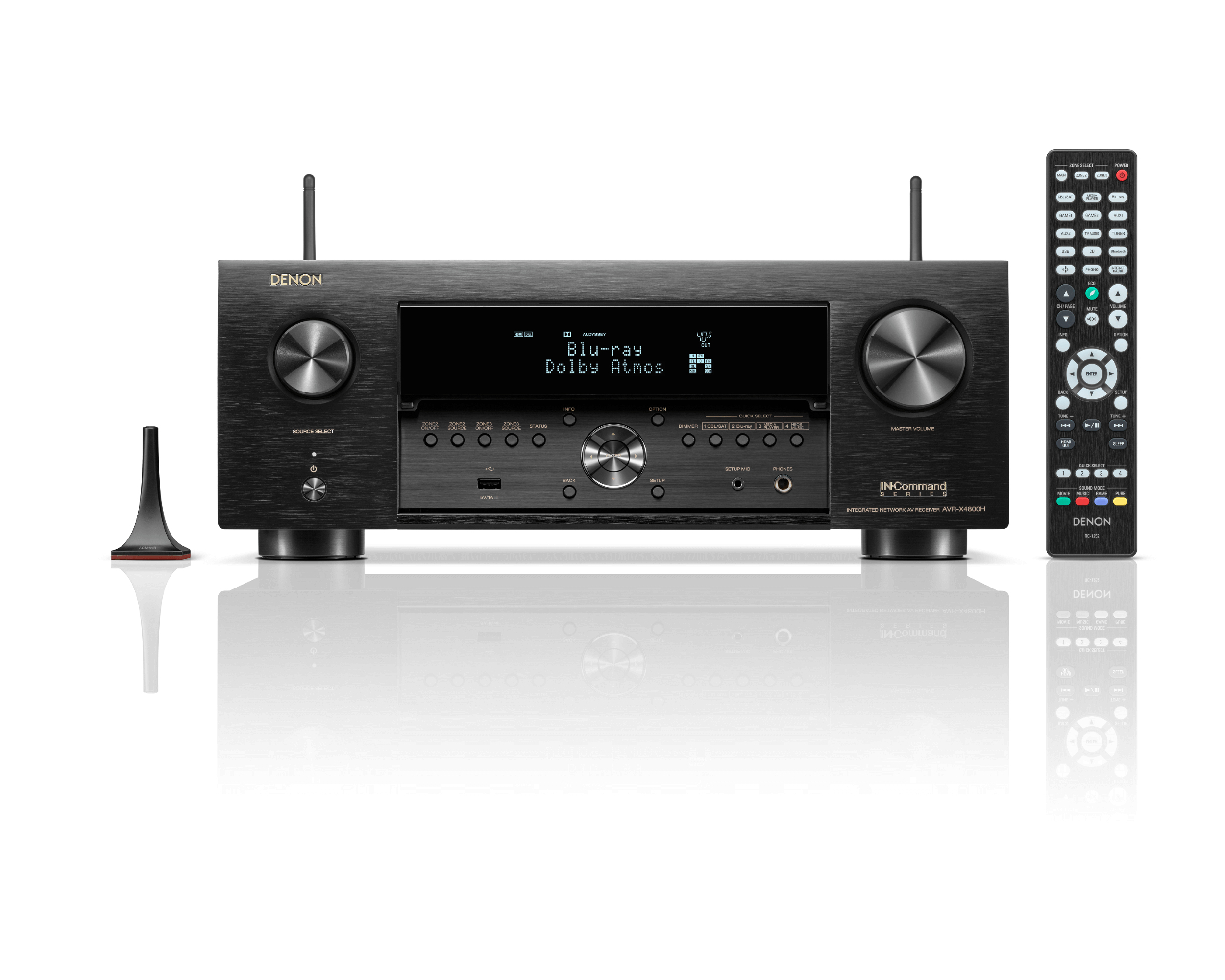

Denon AVR-X4800H 9.4 Channel 8K A/V Receiver with HEOS

AVAILABLE FOR PRE-ORDER

Designed and manufactured in Japan, the powerful AVR-X4800H drives 9.4 channels of amplification. With Dolby Atmos and DTS:X, plus IMAX Enhanced and Auro 3D, the AVR-X4800H envelops larger living spaces in breathtaking 3D audio. With HEOS® Built-in, wirelessly stream your favorite music.


Enveloping 3D audio
Feel like you're in the center
of the action with enveloping 3D sound.

Expert ready
Take advantage of the wide variety of configuration options to best fit your space.

Denon craftsmanship
Designed and manufactured at Denon facilities in Japan and tuned by the Denon Sound Master.

Optimize for your room
Enhance performance with room correction options from Audyssey (installed) or Dirac Live (optional, with future update).

Specs



FEATURES AVR-X4800H
MULTICHANNEL SURROUND
DTS HD Master, DTS:X, DTS:X Pro o, o, -
DTS Neo:X, DTS Neural:X -, o
DTS Virtual:X o
IMAX Enhanced o
Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music o, o, o, o
Dolby ProLogic Ilz, Dolby Surround -, o
Auro 3D o
360 Reality Audio/MPEG H o, o
Audyssey DSX -
Multichannel Stereo o
Max. Number of Processing (Pre-Amp) Channels 11.4

SOUND ENHANCEMENTS
Mono Block Power Amp Construction -
Discrete Power Amplifier o
D.D.S.C. HD Digital o (32 bit)
Pure Direct o
Gold-Plated RCA Terminals -
Clock Jitter Reducer o
Alpha Processing AL32 Processing Multichannel
Denon Link HD -
Audyssey MultEQ XT32
Audyssey Dynamic EQ, Dynamic Volume o, o
Audyssey LFC o
Dirac Live Upgradability o
Compressed Audio Restorer o

NETWORK
Media Server o
HEOS Wireless Multi-Room Technology o
Bluetooth Re-transmit for Bluetooth headphones o
Alexa/Google Voice Assistant/Apple HomePod o, o, o
Lossy Formats: MP3, WMA, AAC o, o, o
Lossless Formats: FLAC, ALAC, WAV o, o, o
Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) o, o, o
DSD Audio Streaming o (2.8/5.6MHz)
FLAC HD 192/24 o
WAV 192/24 o
ALAC 192/24 o
Gapless playback o (FLAC, WAV, ALAC ,DSD)
AirPlay 2 o
TuneIn o
Spotify Connect o
Pandora o
SiriusXM o
Other Streaming Services Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested o
HEOS App Control o
Compatible with Remote APP for Smart Phones Denon 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports o
Wi-Fi o
Bluetooth o

HDMI
HDMI Inputs: Back, Front 7, -
HDCP2.3 Support o
HDMI Outputs: Main, Zone 2, 1
Video conversion Analog -> HDMI o
Analogue to HDMI scaling -
HDMI to HDMI scaling 1080P/4K to 8K
GUI Overlay on HDMI o
HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB o, o
8K/60Hz AB / 4K/120Hz AB Pass-through In/Out 7 / 2 (up to 40Gbps)
HDMI 2.0: 3D / 4K / CEC / ARC / InstaPrevue o / o / o / o / -
Enhanced ARC o
HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR o , o, o, o, o
ALLM (Auto Low Latency Mode) Pass-Through for Gaming o
Variable Refresh Rate, Quick Flame Transport, Quick Media Switching o, o, -
3D Signal Pass-Through o
8K Signal Pass-Through, Scaling, GUI Overlay o, o, o
4K signal pass-through, scaling, GUI overlay o / o / o
HDMI pass-though in standby mode o
Picture adjust / Noise reduction - / -
CEC o
DSD Audio Capability o
Audio Return Channel (ARC), Enhanced ARC o, o
Auto LipSync o

MULTIROOM / CI
Multi-Room Zones 3
Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog o (2ch), o (2ch), o, o
Zone Audio Output: Speaker, Pre-Out o, o
Zone HDMI Output from HDMI Source o
IP Control, RS232 Control, Web Control, App Control o, o /o, o
Remote In/Out o, o
DC Trigger Output 3
HDMI Diagnostics o
OTHERS
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
Dirac Live (upgrade)
Front Display 2-Line FLD
Graphic User Interface - GUI Modern HD GUI
ISF Certification -
GUI Languages 3
Setup Assistent o
Quick Select Plus, Quick Select o, -
Firmware Update by Network / USB o / o
Variable Crossover o
Optimized Bass Redirection o
Bass Sync o
ECO Mode o
Auto Power Off o
Sleep Timer o

INPUTS/OUTPUTS
VIDEO
Composite In / Out 2 / -
Component In / Out 1 / -
HDMI In, Out 7, 3
Multi-Room Video Out: Video, HDMI -, o
AUDIO
Analog In, Out 5, -
Phono (MM) In o
Digital In: Optical, Coaxial 2, 2
Multi-Room Out: Analog, Digital 2, -
Multichannel Pre-Out o (11.4)
Subwoofer Out 4 (independent)
7.1 multichannel input -
OTHER
Speaker Terminal: Gold-Plated Screw, Regular Screw -, o
Number of Speaker Terminals 11
Speaker A/B Assignable
Bi-Amp Drive Assignable
Multi-Room Speaker Terminal Assignable
Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB -, -, -, -, o
USB Audio, Made for iPod, Made for iPhone o, -, -
AM/FM Tuner o

SPECIFICATIONS
Number of Power Amps 9
Power Output (8 ohm, 20Hz - 20kHz, 0.08% 2ch Drive) -
Power Output (8 ohm, 20Hz - 20kHz, 0.05% 2ch Drive) 125W
Power Output (6 ohm, 1kHz, 0.7% 2ch Drive) 165W
Power Output (6 ohm, 1kHz, 10% 1ch Drive) 235W
GENERAL
Metal Front Panel o
System Remote Control RC-1252
Pre-Programmed, Learnable, LCD Display o, -, -
Power Consumption in W 710
Power Consumption No-Sound (ECO on/off) in W 65W/110W
Standby Consumption in W 0.1
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Network Control On Consumption in W (TBD)
Maximum Dimensions
Antenna:Horizontal: (W x D x H) in inches
Antenna:Vertical: (W x D x H) in inches)
【w/o Antenna: (W x D x H) in inches】Maximum Dimensions
Antenna:Horizontal: (W x D x H) in inches
Antenna:Vertical: (W x D x H) in inches)
【w/o Antenna: (W x D x H) in inches】
17.1 x 15.3 x 6.6
( 17.1 x 15.3 x 9.3 )
【 17.1 x 14.9 x 6.6 】
17.1 x 15.3 x 6.6
( 17.1 x 15.3 x 9.3 )
【 17.1 x 14.9 x 6.6 】
Carton Dimensions (Packaging) (W x D x H) in Inches) 20.9 x 18.3 x 11.9 (in)
Weight in lbs 29.1
Weight in lbs (Packaging) 34.9

WARRANTY
3 Year Warranty
