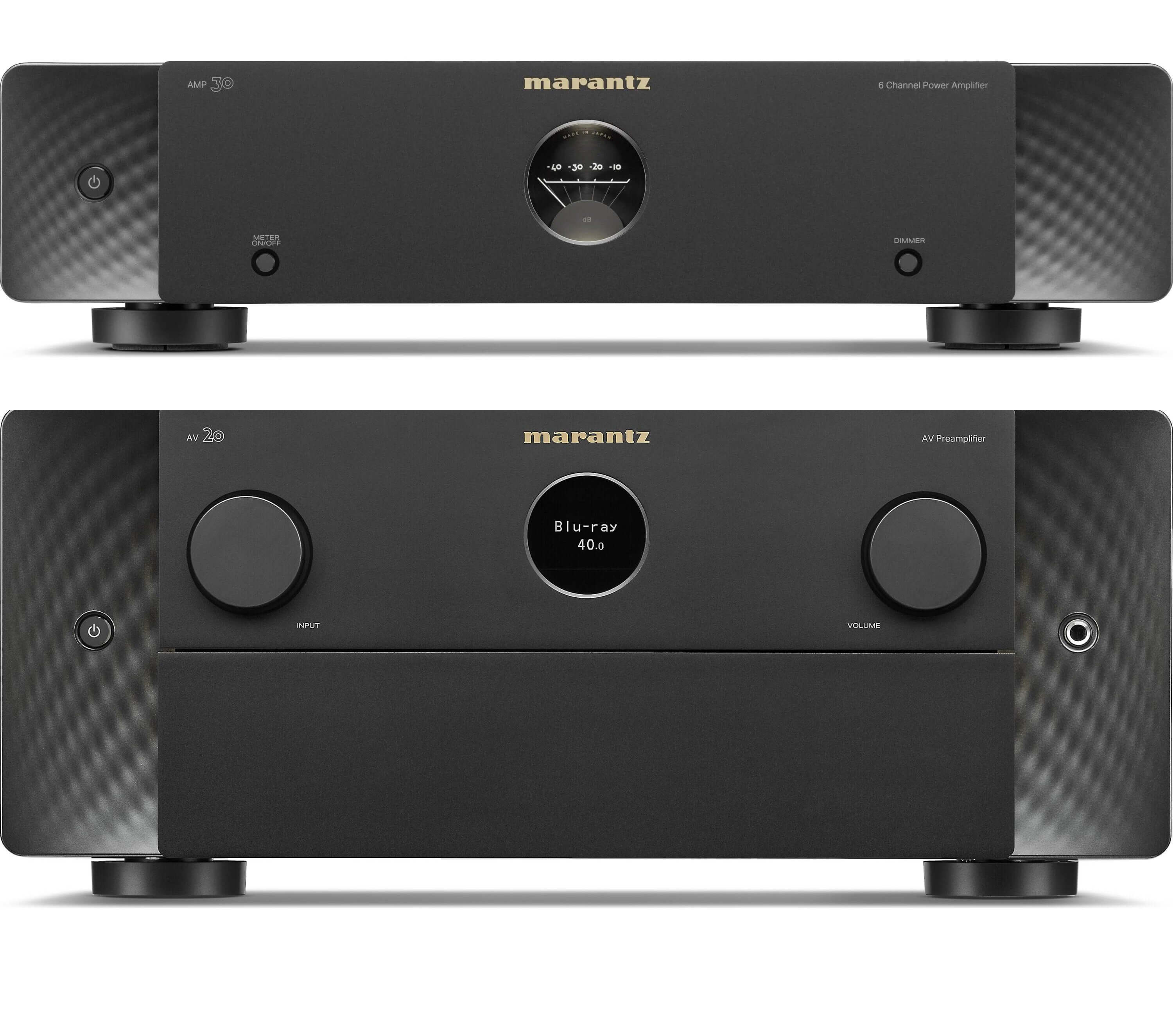

Marantz AV 20 13.4 Channel AV Preamplifier and Marantz AMP 30 6 Channel Power Amplifier Bundle

Brand: Marantz | SKU: AV20AMP30Bundle | UPC: 747192143848

Sale price
$9,300
Regular price
$10,000
You save
7%
Taxes calculated at checkout

Have a question?
Marantz AV 20 13.4 Channel AV Preamplifier and Marantz AMP 30 6 Channel Power Amplifier Bundle - Safe and Sound HQ

Marantz AV 20 13.4 Channel AV Preamplifier and Marantz AMP 30 6 Channel Power Amplifier Bundle

Sale price
$9,300
Regular price
$10,000

This Bundle Includes the Following:

QTY: 1 Marantz AV 20 13.4 Channel A/V Preamplifier

QTY: 1 Marantz AMP 30 6 Channel Power Amplifier

Marantz AV 20 Details:

AV 20 represents the highest measure of performance and capability for reference-level home theater systems. This reference 13.4 Channel Balanced AV Preamplifier features Marantz HDAM discrete circuitry, and boasts seven HDMI inputs, each of which is 8K UHD compatible.

▪Detailed and immersive sound transforms your home theater
▪13.4-channel output allows a variety of speaker layouts such as 7.4.6
▪Decodes Dolby Atmos, DTS:, IMAX Enhanced audio and AURO-3D
▪Acoustic room tuning with Audyssey MultEQ XT32 and optional Dirac Live
▪Seven HDMI inputs (all 8K) and three outputs for highest resolution video
▪Sound Master tuned for warm, rich and detailed Marantz sound
▪High-quality HD on-screen interface makes setup intuitive
▪Balanced and RCA outputs for external power amplifiers
▪Elegant design matches beautiful sound
▪Optimized HDAM-SA3 for fast response and low distortion

Elevated Listening Begins Here
When it comes to home theater, Marantz AV Separates bring your movies to life. AV 20 bears all the cinematic performance and feature-rich innovation we’re renowned for, expertly engineered with a timeless design.

Reference-Quality Performance
AV 20 is engineered to create the most memorable home theater experiences possible.

Sound Master Tuned
Our Marantz Sound Master meticulously tuned AV 20 for amazing performance with careful parts selection to create outstanding sound in your home.

Endlessly Customizable
Comprehensive connectivity options and extensive optimization ability ensures AV 20 will always deliver the perfect results to suit your home theater.

System Matching
Make sure you get the best possible performance from your AV 20 by combining it with other Marantz products – such as the AMP 20.

Marantz AMP 30 Details:

Elevated Listening Begins Here

AMP 30 is a remarkably powerful slimline 6 -channel amplifier, which can be paired with AV 30 for an outstanding home theater system. AMP 30 is rated at 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, and is built on a combination of Marantz's exclusive HDAM and high-efficiency low-distortion Class D amplification.  Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex theaters.

AMP 30: The Next Chapter in Marantz Power

Born from a heritage of passion for music, the Marantz AMP 30 is a high-performance 6-channel power amplifier designed to deliver the utmost in musicality and control for any high-end home theater. Built for power and precision, the AMP 30 seamlessly integrates with the Marantz AV 30 pre-amplifier, or any high-quality processor, to elevate your cinema and music experience. With a commanding output of 200 watts per channel into 8 ohms and a staggering 400 watts per channel into 4 ohms, the AMP 30 handles challenging speaker loads with effortless grace, ensuring maximum dynamic range and the signature warm, rich Marantz sound. It achieves this performance through the careful blending of Marantz HDAM technology in the input stage with advanced, high-efficiency Class D amplification, providing both musical purity and massive power reserves. Its elegant, slimline chassis and premium build quality make it a stunning and essential component in your most demanding home audio

Sound Master Tuned

Our Marantz Sound Master tuned the AMP 30 for exceptional performance with meticulous parts selection to create outstanding sound in your home. Making sound the Marantz way is a seamless fusion of art and science, practiced by creators who balance and select components individually for their sonic qualities—they are the Sound Masters.

Timeless Style

Excellence is heard and seen. AMP 30 is crafted with authentic materials in a modern style befitting its rich heritage and stunning performance. Marantz design is timelessly elegant. AMP 30 is constructed using steel and aluminum casework, while the subtle texture molded into the front panel is lit by the dimmable soft glow of sidelights on either side of our iconic porthole design.

Endlessly Customizable

Comprehensive connectivity options ensure AMP 30 will always deliver the perfect results to suit your home theater. Each of the six 200-watt channels can operate independently, or channel pairs can be switched into bi-amp mode to drive individual speakers more effectively. AMP 30 also supports bridged (BTL) mode to produce up to 400 watts per channel into 8 ohms—providing flexibility and high output where needed.

Compact, Versatile, Scalable

AMP 30 gives you six channels of commanding power in a slimline enclosure. Custom Class D amplification is highly efficient, and strategically incorporated whisper-quiet fans keep the unit running optimally even under highly dynamic conditions, making it perfect for rack-mount theater installations. Combine with additional AMP 30, AMP 20 or AMP 10 power amplifiers to drive more complex speaker configurations.

Complete Compatibility

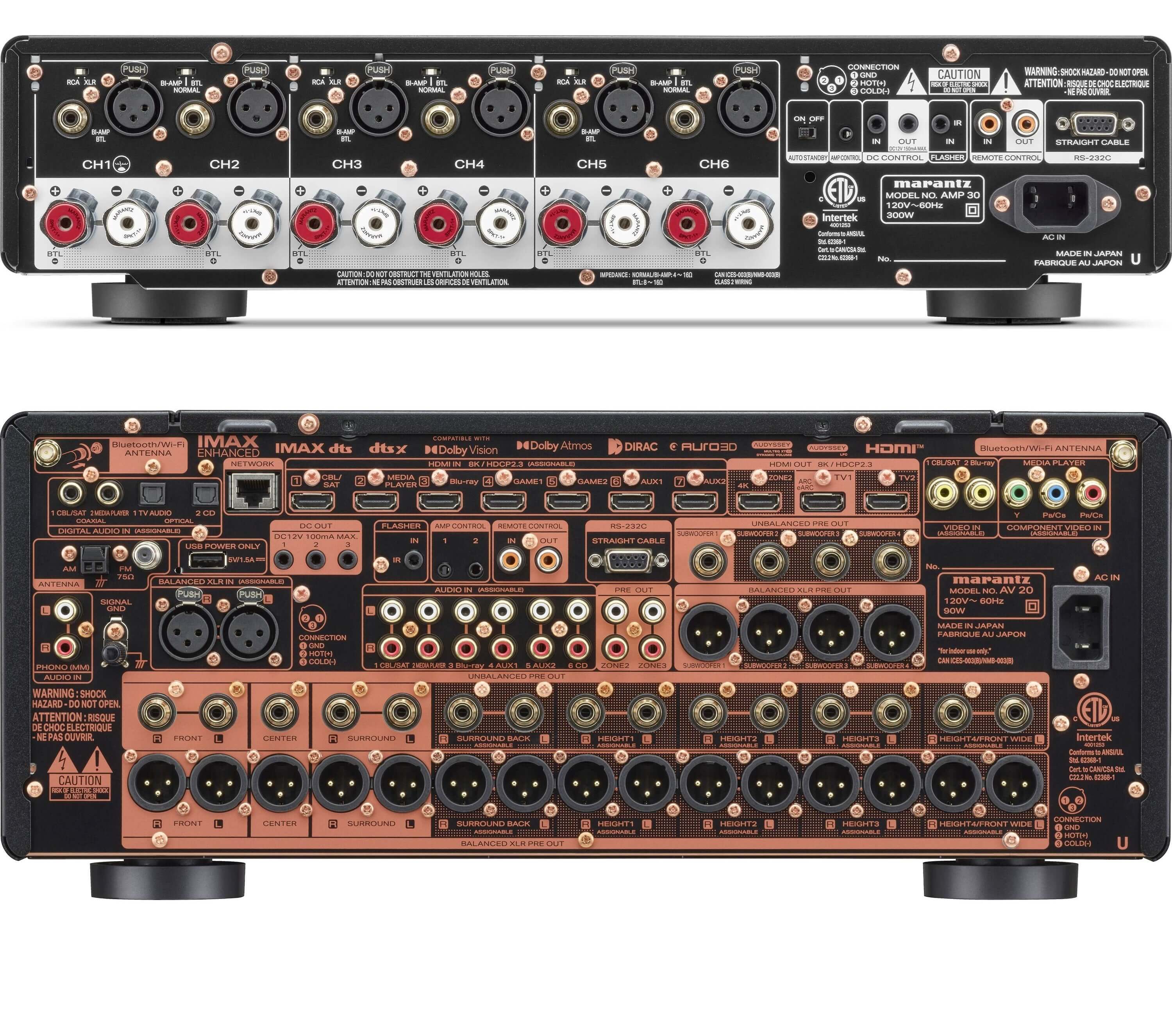

Gold-plated RCA and high-grade XLR connectors accept audio input from most surround processors. Custom Marantz SPKT-1+ binding posts are ergonomic and provide the best possible coupling to loudspeaker cables. Low-distortion, high-power output offers ample drive for virtually any loudspeaker configuration to maximize performance.

BENEFITS

Peerless Performance
AMP 30 delivers a thrilling movie experience, with immersive spaciousness, extraordinary detail, and lifelike dynamics.

Technology Leader
AMP 30 is engineered using best-in-class technologies to enable extraordinary power output, and the dynamic, rich, warm sound for which Marantz is renowned.

Easy Operation
When paired with AV 30 via the included link cable, AMP 30 can be controlled using the preamplifier. Power and illumination settings sync seamlessly for a unified experience.

Elegant Design
A modern expression of timeless design principles, AMP 30 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Brand Marantz
Model AV 20 / AMP 30 BUNDLE
Number of Processing (Pre-Amp) Channels 13.4
Number of Zones 3
Dolby Atmos Yes
Phono Preamp Yes
Coaxial/Optical Digital Inputs 2 / 2
Analog Inputs 6
XLR Input 6
Subwoofer Output 4
HDMI Outputs 3
ARC, eARC Yes, ARC, eARC
HDMI Version 2.1
Room Correction Audyssey MultEQ XT32, Dirac Live (Upgrade)
Bluetooth Yes
App Control Yes
Google Cast Yes
Apple Airplay Yes
Number of Channels 6
Power Output 4 Ohm (Watts) 400
Power Output 8 Ohm (Watts) 200
Bridgeable Power Output (Watts) 400
RCA/XLR Inputs Yes / Yes
Amplifier Class Class D
Weight (lbs) 22
Dimensions - No Antenna H x W x D (inches) 7.5" x 17.4" x 17.2"
Dimensions -Antenna Up H x W x D (inches) 10.0" x 17.4" x 18.0"
Weight (lbs) 22
Warranty 5 Years
