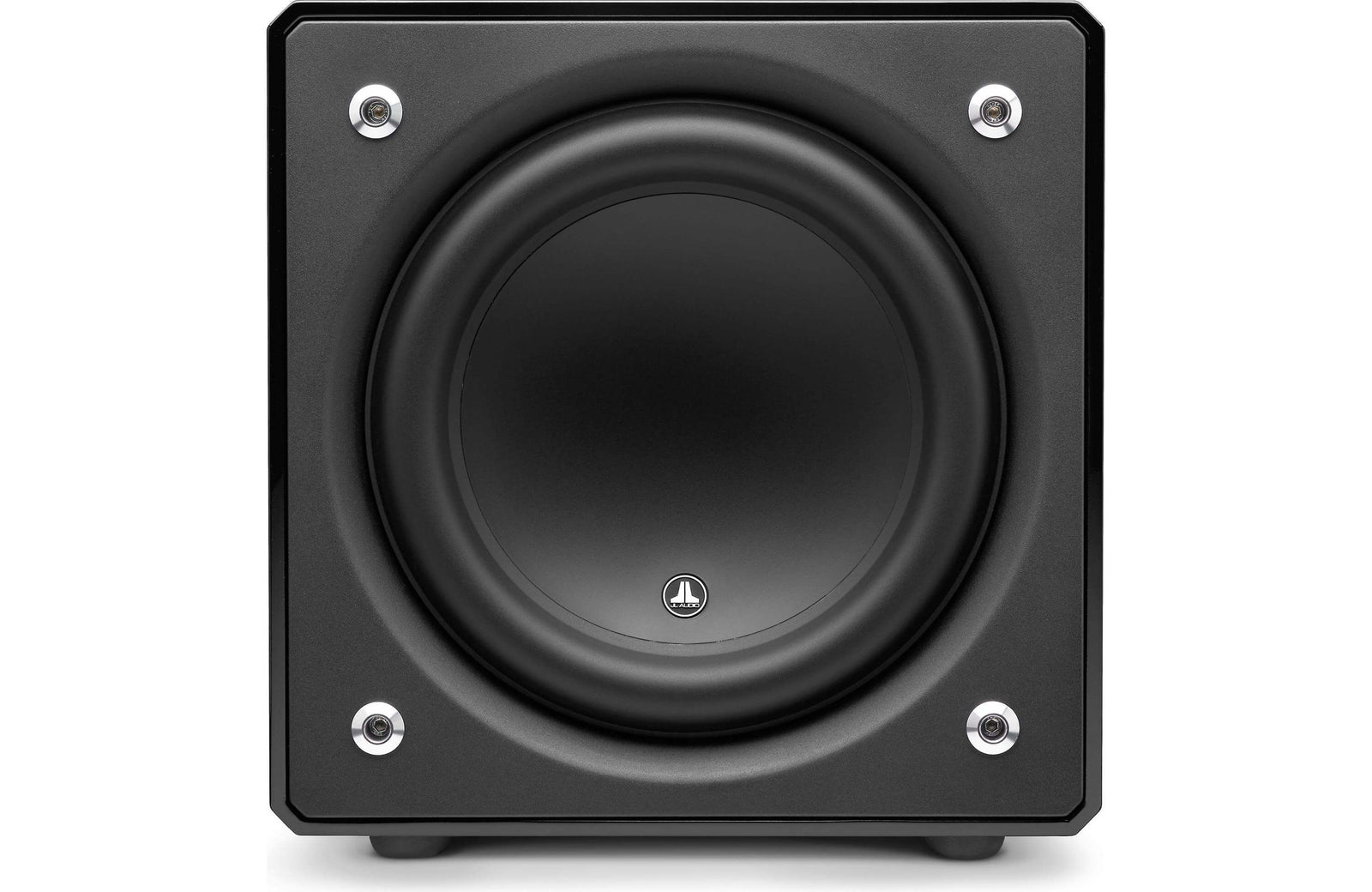

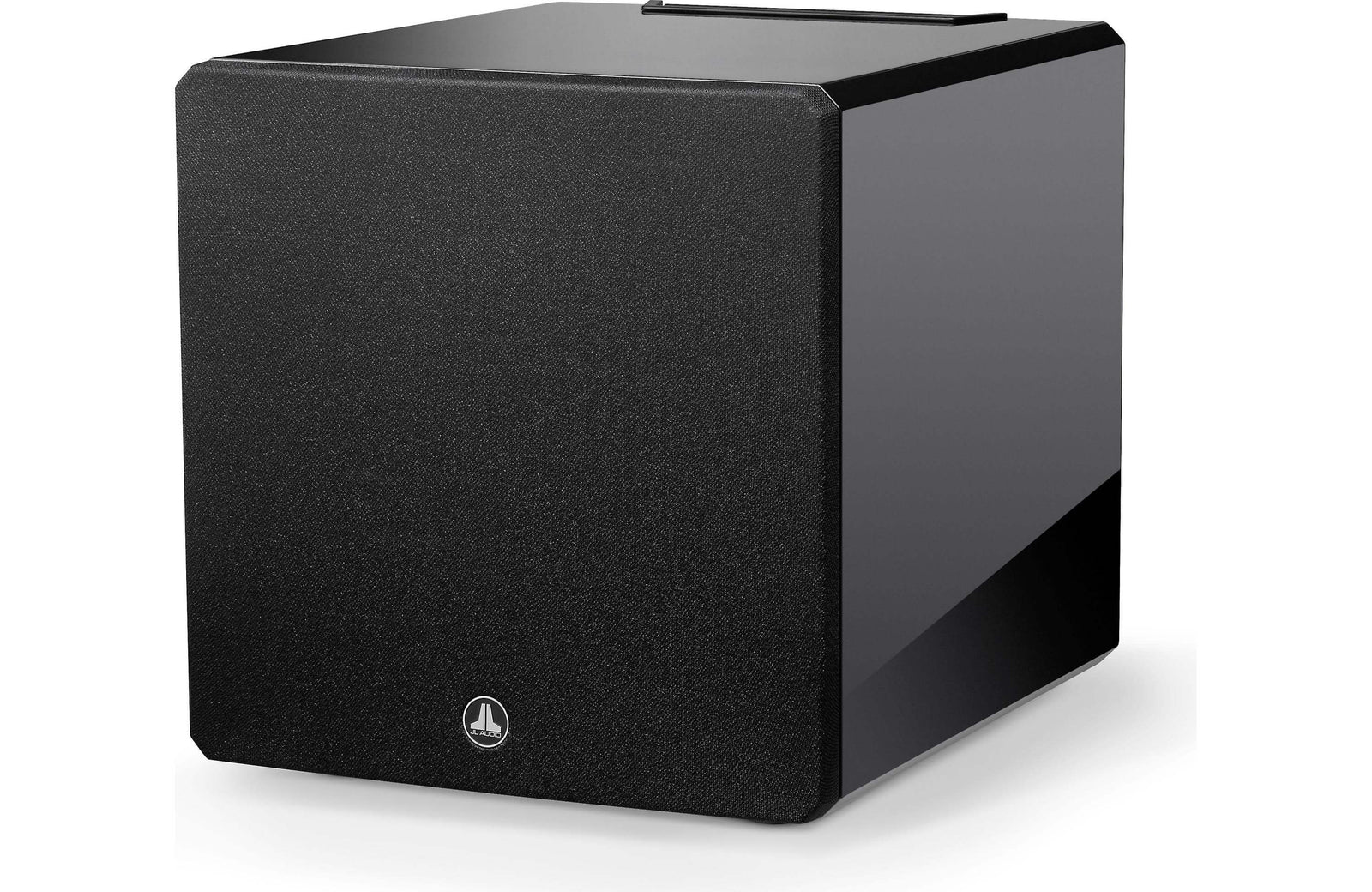

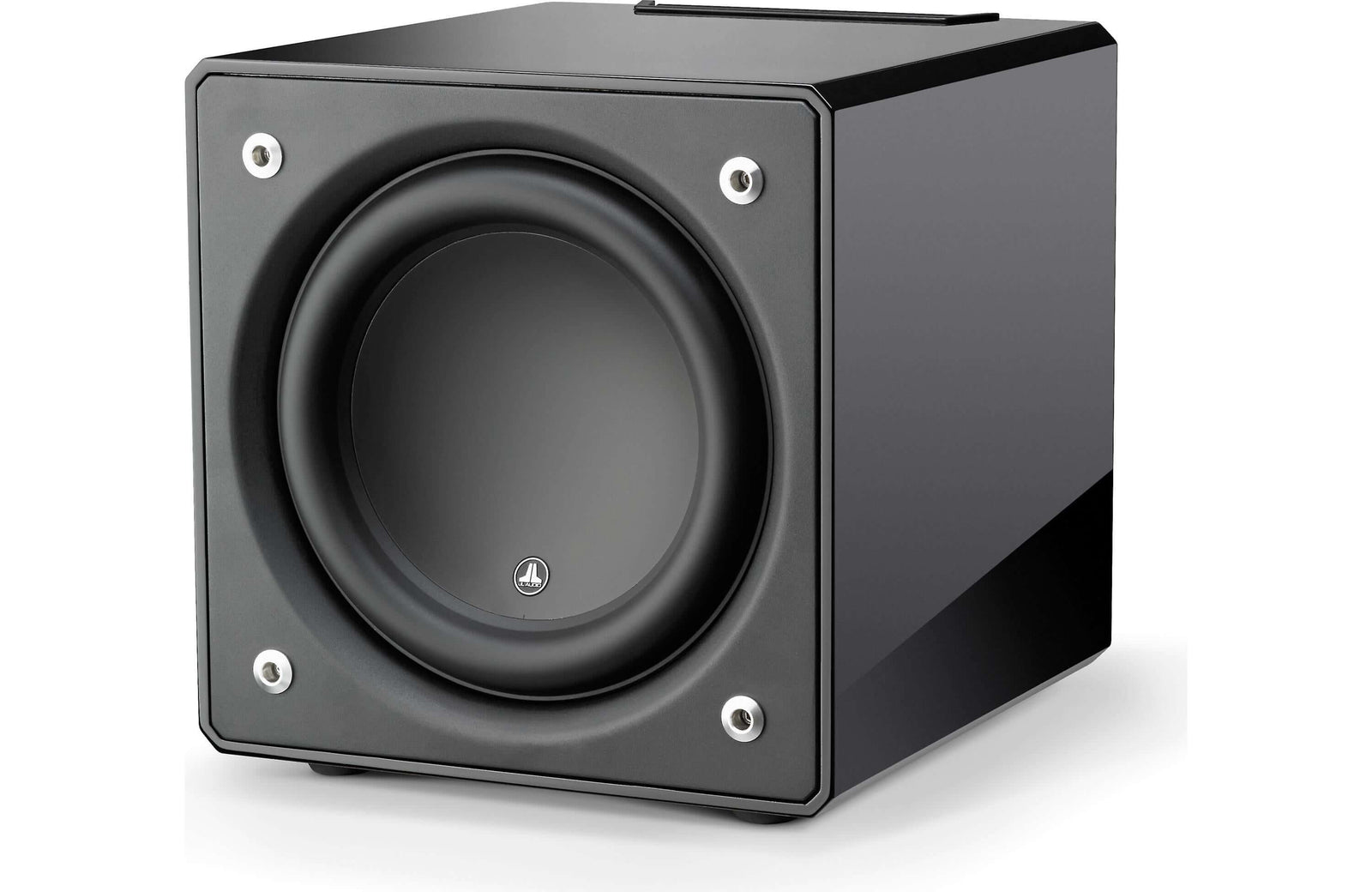

JL Audio E-SUB 112-GLOSS 12 Inch Powered Subwoofer

Brand: JL Audio | SKU: E-SUB112-GLOSS | UPC: 699440962797

Price
$2,900
Taxes calculated at checkout

User Manual
Have a question?

The E-Sub powered subwoofers apply a series of our key technologies to deliver exceptional sound quality, power and value in a wide range of demanding applications

Any great powered subwoofer system must start with an exceptional subwoofer driver. The E-Sub drivers offer impressive, low-distortion excursion envelopes capable of handling the most demanding program material, or the most delicate. To accomplish this, JL Audio's exclusive DMA technology is applied to shape, control and stabilize the drivers' motor strength, ensuring linear behavior over a very long excursion range. Unlike typical steady-state modeling systems, our approach takes into account the dynamic shifts created by current flow and back EMF under real power conditions, with real program material. The payoff offered by DMA optimization is a driver that more faithfully tracks its input signal at all listening levels, leading to superior bass definition and dynamics.

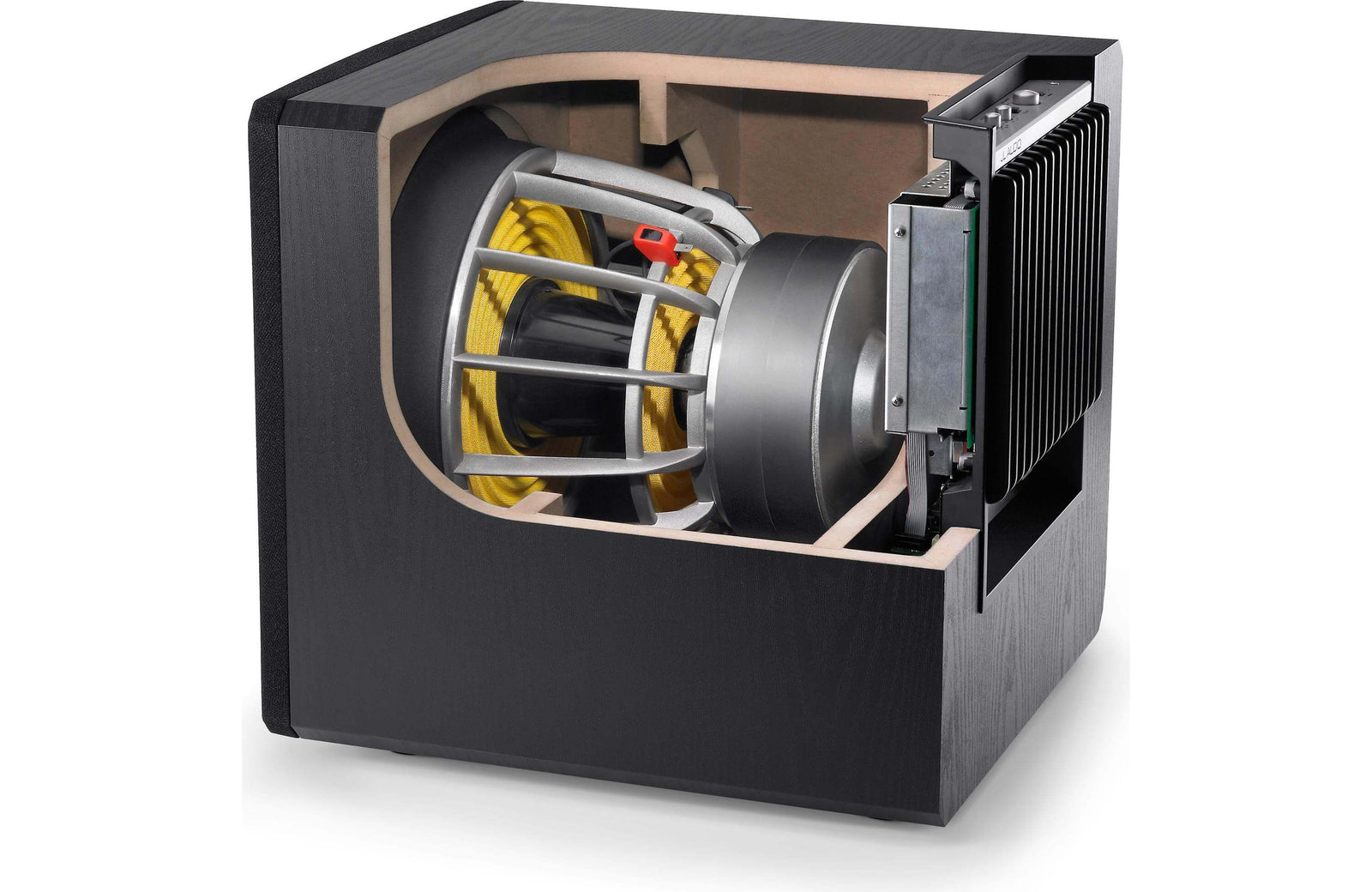

The extreme mounting depth of the E-Sub driver is very deliberate. It permits wide gaps to exist between the three suspension elements (the rubber surround and the dual spiders), imparting exceptional mechanical stability over the driver's full excursion range. This further improves linearity, reduces distortion and enhances long-term reliability. In a stroke of engineering elegance, the steel front mounting flange of the E-Sub driver also forms the entire front baffle of the finished product, while the back-plate of the driver is threaded and bolted to the rear wall of its enclosure for support.

To power these innovative drivers, we engineered a completely new switching amplifier with a regulated, switching power supply. This approach helps make the amplifier more compact, lightweight and efficient, while still delivering ample, clean power to fully exercise the E-Sub driver's performance envelope.

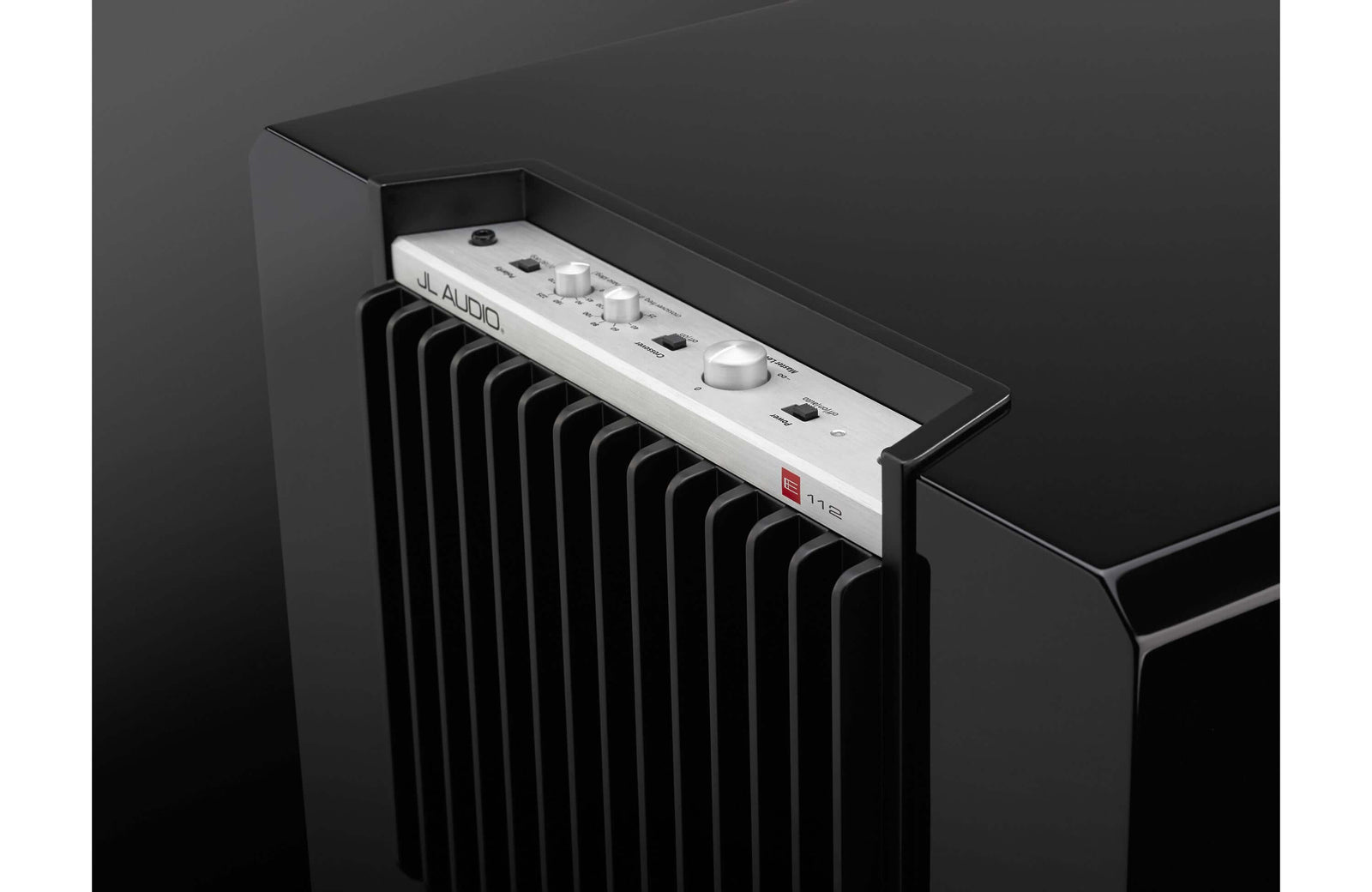

The amplifier module also incorporates a studio-grade signal-processing section, which is controlled from a panel on the top of the subwoofer cabinet. We think you will find making adjustments on an E-Sub a much more enjoyable experience than adjusting the rear-mounted controls found on most powered subwoofers. An attractive cover is also included to hide and protect the controls during normal use.

The feature set has been designed to allow the use of E-Subs in a wide range of applications, from full home theater systems to dedicated two-channel music systems, to desktop audio workstations.

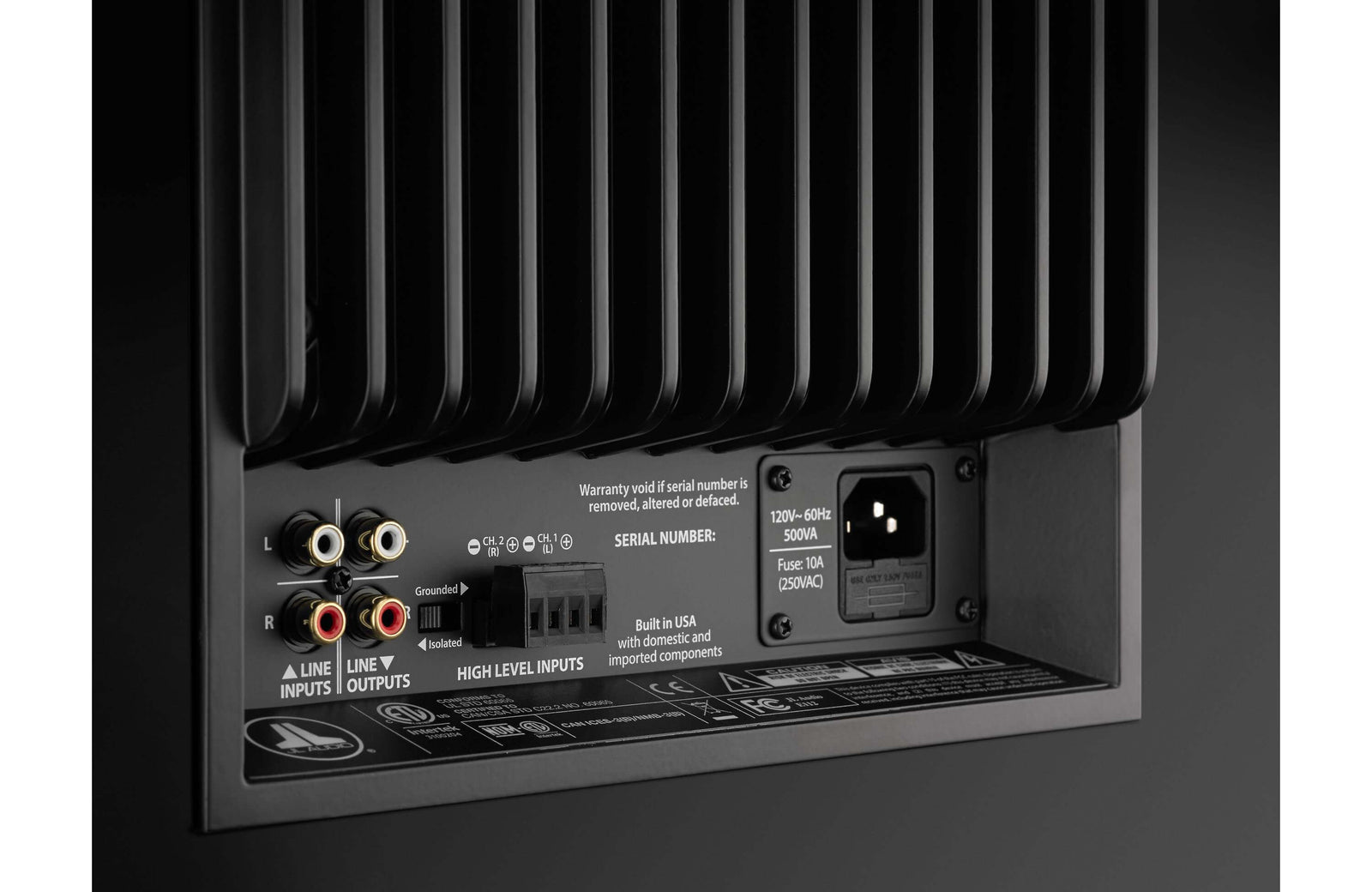

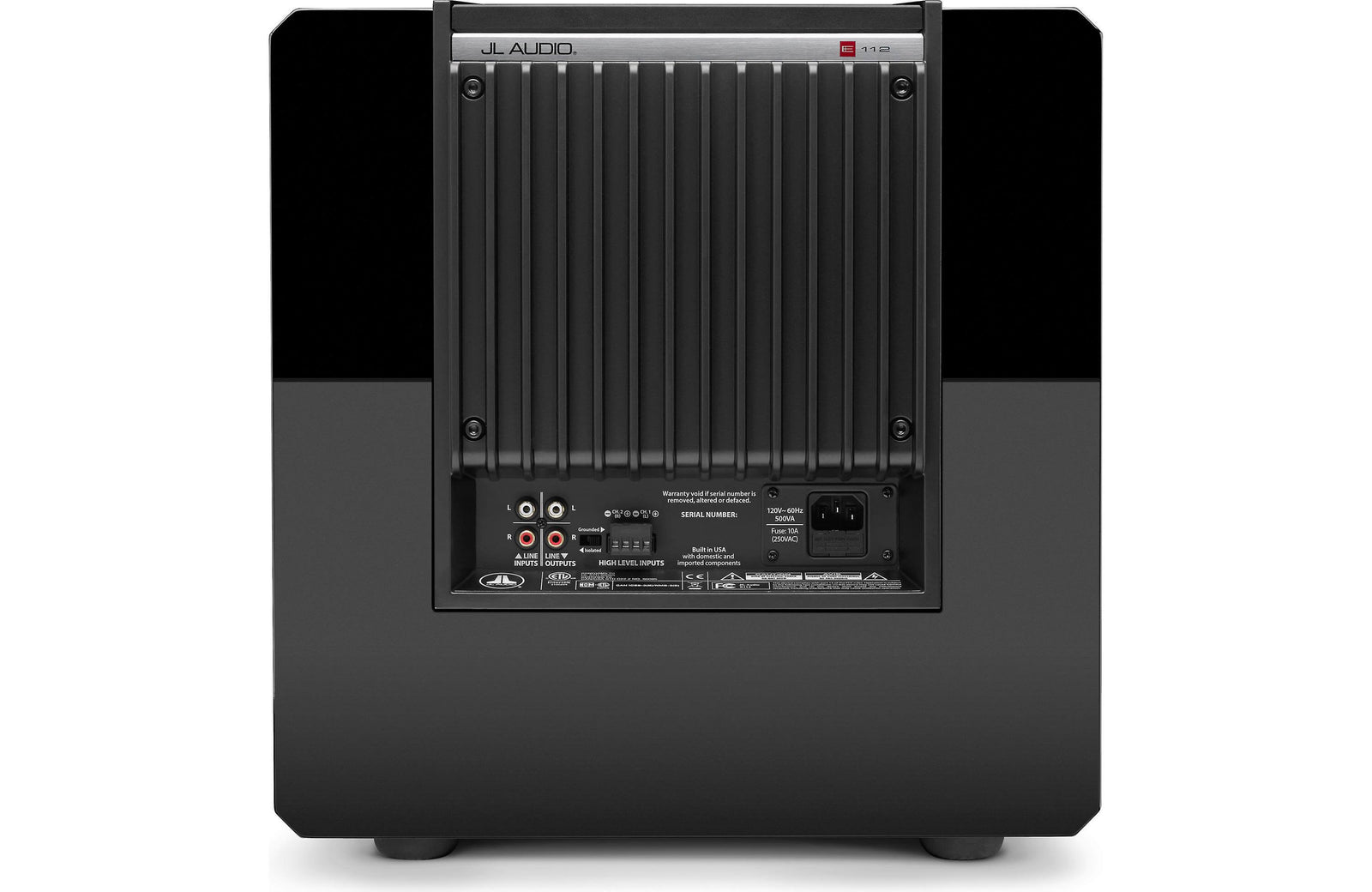

Analog inputs are provided for unbalanced line-level signals or speaker level signals. Using a rear panel switch, the line level inputs can be configured as grounded or isolated, which is very useful in combating ground-related noise problems.

The built-in, active crossover is a true two-way, 4th order Linkwitz-Riley design, with a low-pass filter feeding the subwoofer's amplifier and a high-pass filtered signal exiting through a pair of line outputs. When the on-board crossover is defeated, as is typical in a home theater installation, the line outputs deliver a pass-through signal that permits multiple E-Subs to be interconnected in a daisy-chain' arrangement. Switchable polarity and a fully variable phase control round out the signal processing section. All signal processing is performed in the analog domain, ensuring very low latency in critical applications.

Every E-Sub is precision-built in JL Audio's U.S. factory and individually performance-verified and tested to deliver years of listening enjoyment in your home audio or home theater system.

Brand JL Audio
Model E-SUB 112-GLOSS
Speaker Type Powered Subwoofer
Woofer Poly Cone
Woofer Size (inches) 12
Amplifier Output (Watts) 1500
Frequency Response (Hz) 22-118
Firing Direction Front
Subwoofer Enclosure Type Acoustic Suspension
Subwoofer Inputs LFE, Line Level
App Control No
Wireless Enabled No
Room Correction No
Available Finishes Black Gloss
Dimensions H x W x D (Inches) 16.23" x 15.5" x 18.39"
Weight (lbs) 73.5
Warranty 3 Years

Compare with similar items

JL Audio E-SUB 112-GLOSS 12 Inch Powered Subwoofer - Safe and Sound HQ

This item JL Audio E-SUB 112-GLOSS 12 Inch Powered Subwoofer

JL Audio Fathom F110V2 10 Inch Powered Subwoofer Black Gloss Open Box - Safe and Sound HQ

JL Audio Fathom F110V2 10 Inch Powered Subwoofer Black Gloss

Bowers & Wilkins DB3D Dual 8" Powered Subwoofer - Safe and Sound HQ

Bowers & Wilkins DB3D Dual 8" Powered Subwoofer

Martin Logan BalancedForce 210 Dual 10" Powered Subwoofer - Safe and Sound HQ

Martin Logan BalancedForce 210 Dual 10" Powered Subwoofer

Dali SUB K-14 F 14" Powered Subwoofer - Safe and Sound HQ

Dali SUB K-14 F 14" Powered Subwoofer

Price
$2,900.00
$4,200.00
$4,500.00
$3,499.99
$1,899.00
Brand
JL Audio
JL Audio
Bowers & Wilkins
Martin Logan
Dali
Model
E-SUB 112-GLOSS
Fathom F110 V2
DB3D
BalancedForce 210
SUB K-14 F
Speaker Type
Powered Subwoofer
Powered Subwoofer
Powered Subwoofer
Powered Subwoofer
Powered Subwoofer
Frequency Response (Hz)
22-118
27-111
10-350
20-120
29-160
Firing Direction
Front
Front
Side
Side
Front
Enclosure Type
Acoustic Suspension
Sealed
Sealed
Sealed
Bass Reflex
Amplifier Output RMS (Watts)
1500
1100
1000
850
500
Inputs
LFE, Line Level
LFE, RCA, XLR
LFE, Stereo RCA, XLR
RCA, LFE, XLR
LFE, RCA
Room Correction
No
Yes
No
Optional
No
App Control
No
No
No
No
No
Wireless Enabled
No
No
No
No
No
Available Finishes
Black Gloss
Black Gloss
Gloss Black, Satin White
Black Ash White Satin
Dimensions (HxWxD)
16.23" x 15.5" x 18.39"
15.64" x 12.92" x 17.27"
14 1/2" x 13 7/16" x 13 11/16"
19 1/16" x 19 1/8" x 21 3/8"
16.9" x 15.6" x 16.9"
Weight (lbs)
73.5
69
55.1
96
58.2
Warranty
3 Years
3 Years
2 Years
3 Years
2 Years
