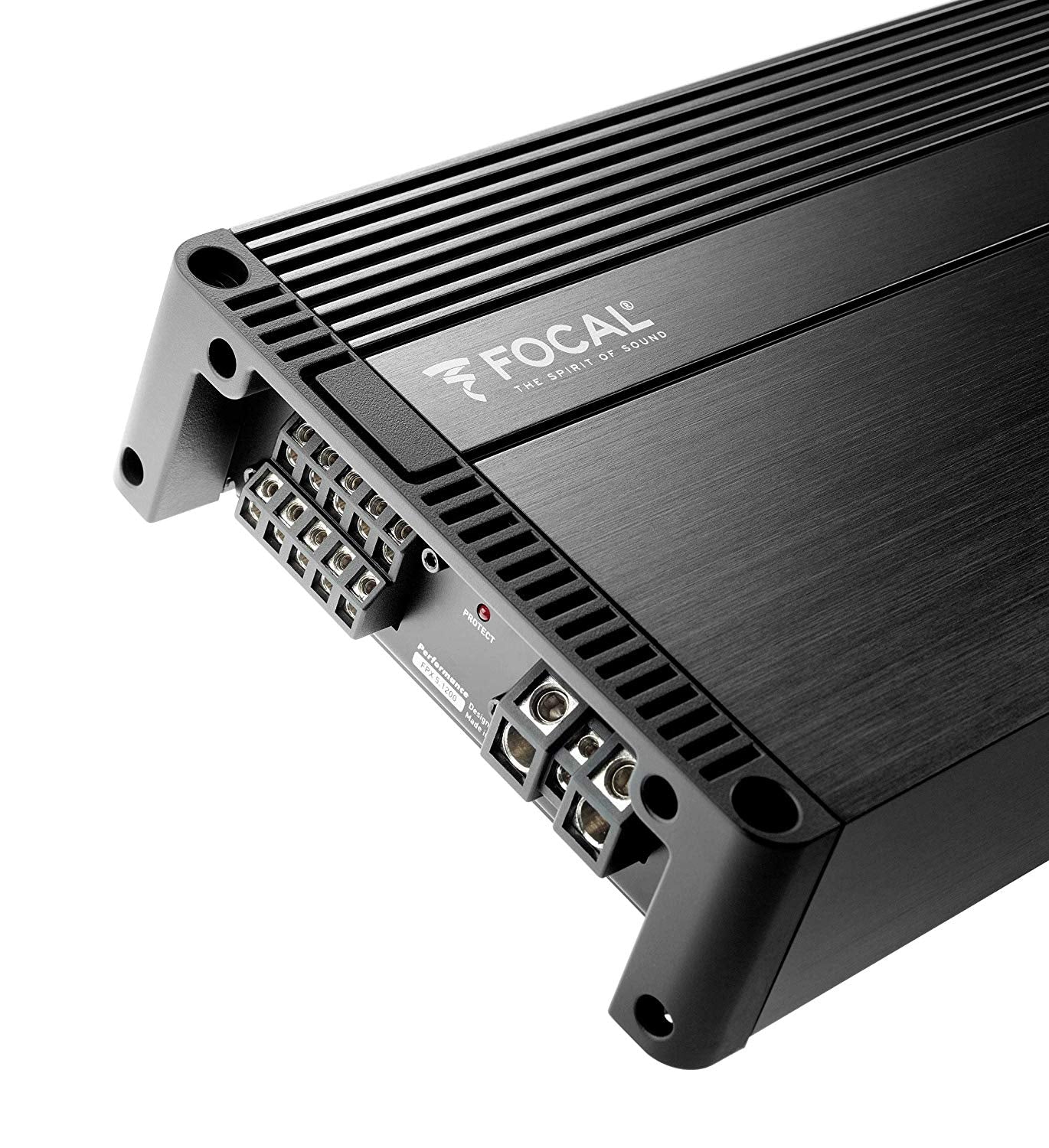

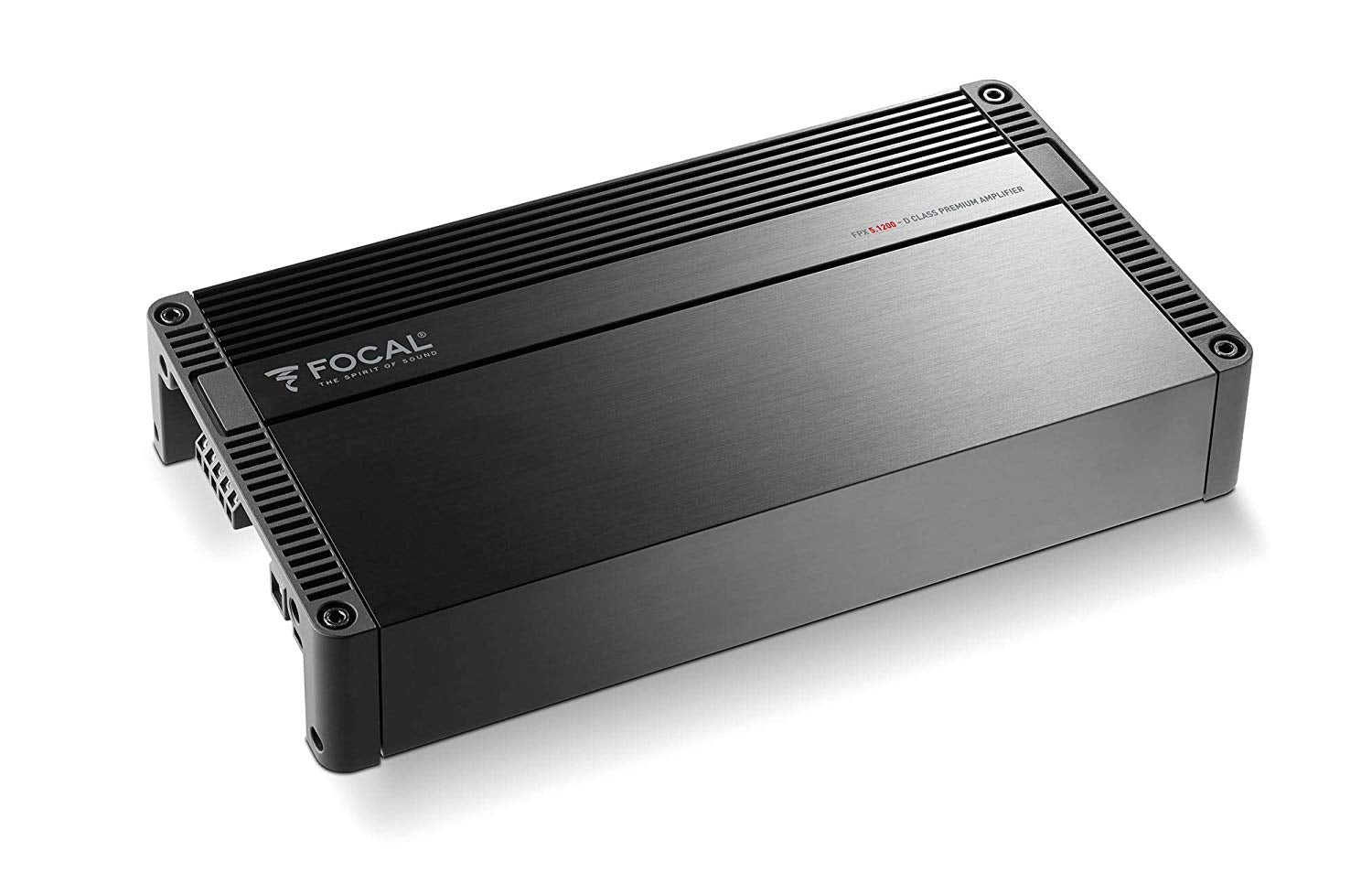

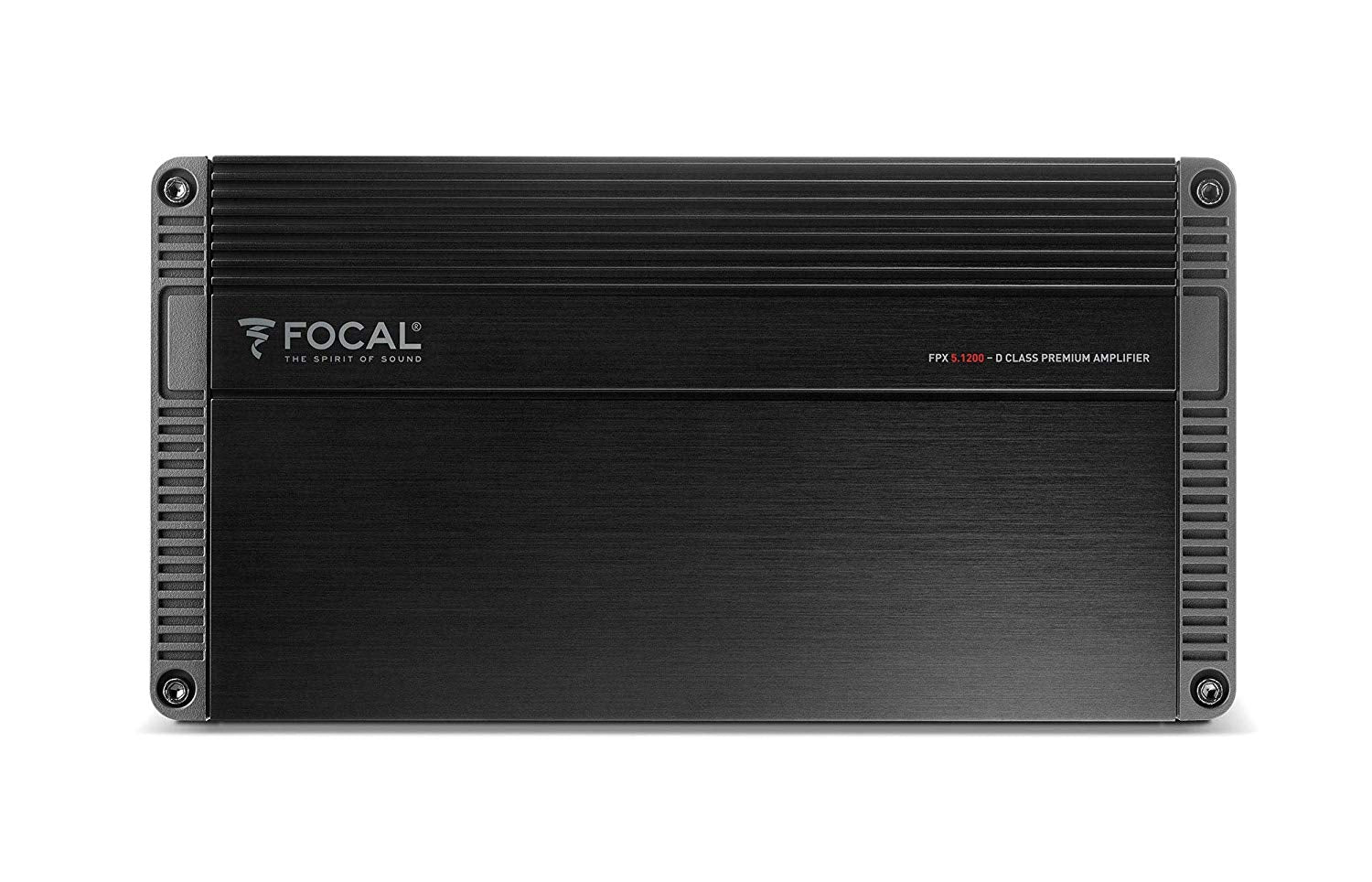

Focal FPX 5.1200 Performance Five Channel Class D Amplifier
Focal FPX FPX 5.1200 Performance Five Channel Class D Amplifier
5-channel amplifier - 4 x 120 Watts
5-channel FPX 5.1200 amplifier has a maximum power of 4 x 120 Watt + 1 x 720 Watt at 2 Ohms!
The input selector (2/4/6 channels) duplicates channels, meaning there will always be 5 output channels, even if the head unit only has one or two stereo outputs.

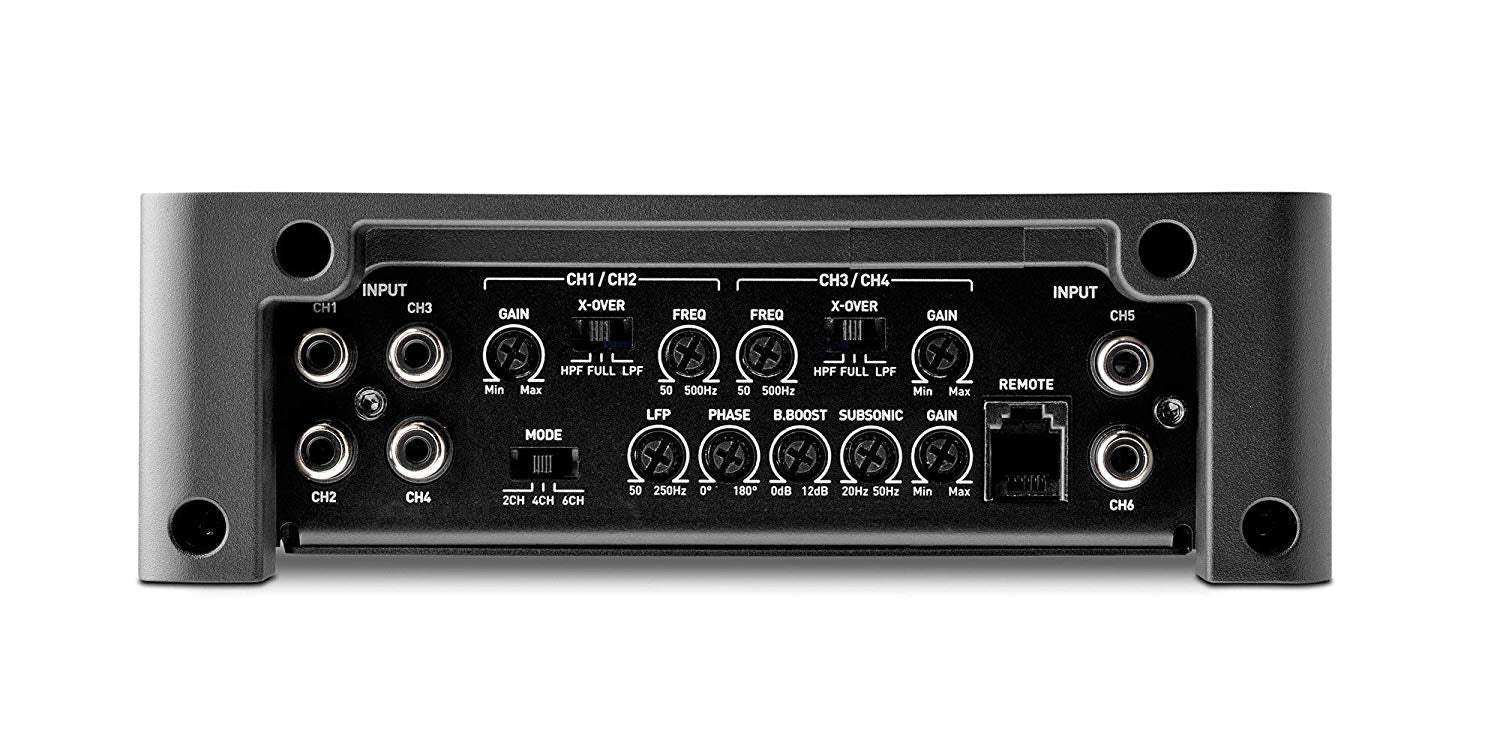

To perfectly tune the subwoofer to the rest of the installation, the bass channel has a low-pass active crossover, a bass equaliser, phase adjustment and a subsonic filter (particularly useful for cutting off frequencies which are too low for a small subwoofer). The remote control enables you to adjust the bass level from the driving seat depending on the type of music you re listening to.
Stable at 4 and 2 Ohms, this new FPX amplifier will drive most speaker drivers on the market with just the right amount of power: 4 x 75 Watts + 1 x 420 Watts RMS at 4 Ohms (CEA standard). With its power and contained volume, FPX 5.1200 makes the installation easier in order to make the most of your boot space.
Classe D amplifier
Input selector (2/4/6 channels)
Stable under 4 and 2 Ohms
Adjustable active crossover for each pair of channels
Dimensions: 13.25" x 6.8" x 2.25" (337 x 175 x 57mm)
CEA Power (4 Ohms) 4 75 Wrms + 1 420 Wrms
Maximum Power (2 Ohms) 4x120Wrms + 1 720 Wrms
Maximum Power (Ch 1-4 bridged at 4 Ohms + Ch 5 at 2 Ohms) 2x240Wrms + 720 Wrms
Bandwidth 10Hz 20kHz
Total Harmonic Distortion 0.03%
SNR (1W/A) 75 dBA
Low-Pass Filter Ch 1-4 50Hz-500Hz
Ch 5 (Subwoofer): Subsonic Filter (High-pass) 10Hz-50Hz+
Ch 5 (Subwoofer): Low-pass filter 50Hz-250Hz
Ch 5 Bass Boost 45Hz / 0 to 12dB
Phase adjustable from 0 to 180 For channel 5
Copy Mode: (6 CH / 4 CH / 2 CH)
Full Range Mode:
Protections Short Circuit, low impedance, reversal of polarity, DC, power drop, heat protection
Weight 9lbs (4.1kg)
13-17/64" x 2-1/4" x 6-57/64" (337 x 175 x 57mm)
