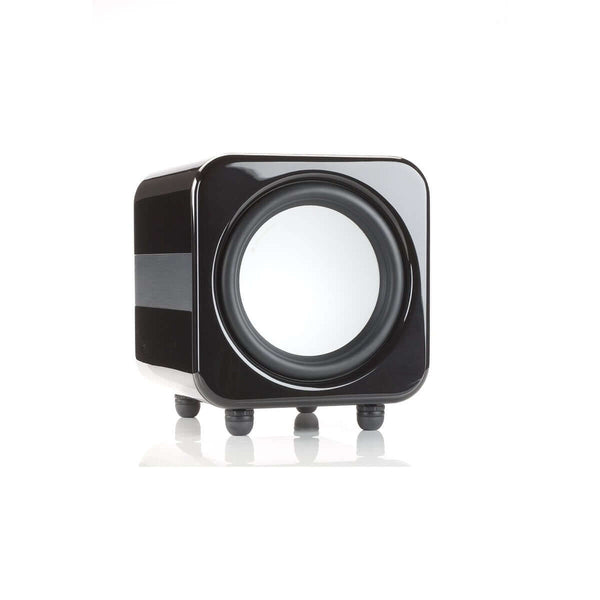

Compact, front-firing 12" Subwoofer with C-CAM driver and a 500 watt Class D amplifier. Combines the best of Monitor Audio technology in a stylish, compact, cabinet finished with aluminium side trims.
12" Front-firing C-CAM sub-woofer driver featuring triple suspension and 3" long throw voice coil.
500 watt Class D amplifier
12v trigger input allows for auto-activation when using a compatible A/V receiver or processor
High efficiency switch mode power supply
Compact sealed cabinet
Top-mounted control of volume and EQ are designed for easy setup and adjustment
Permanently fitted floor spikes can be covered with a heavy duty rubber cover for solid or hard wood flooring
Finished in luxurious metallic black high gloss or metallic pearl white high gloss
Specs
Amplifier Output
500 Watts (RMS) 1000 Watts (Peak)
Low Frequency Limit
27Hz (EQ1) 21Hz (EQ2)
Upper Frequency Limit
40 - 120Hz Variable
Variable Low Pass Filter Alignment
Active 4th order 24dB/octave (two-stage filter)
Cabinet Specification
Sealed Cabinet with 25mm M.D.F construction and internal bracing.
Amplifier Classification
Class-D amplifier
Driver Compliment
1 x 12" C-CAM sub-woofer driver featuring triple suspension and 3" long throw voice coil.
Dimensions: (H x W x D)
340 x 340 x 410 mm
(13 3/8 x 13 3/8 x 16 1/8 inch)
Weight: (unpacked)
22.56Kg (49.63lbs)
Mains Input Voltage
100 - 120 Vac, 220 - 240 Vac, 50/60Hz
Input Impedance
20K Ohms
