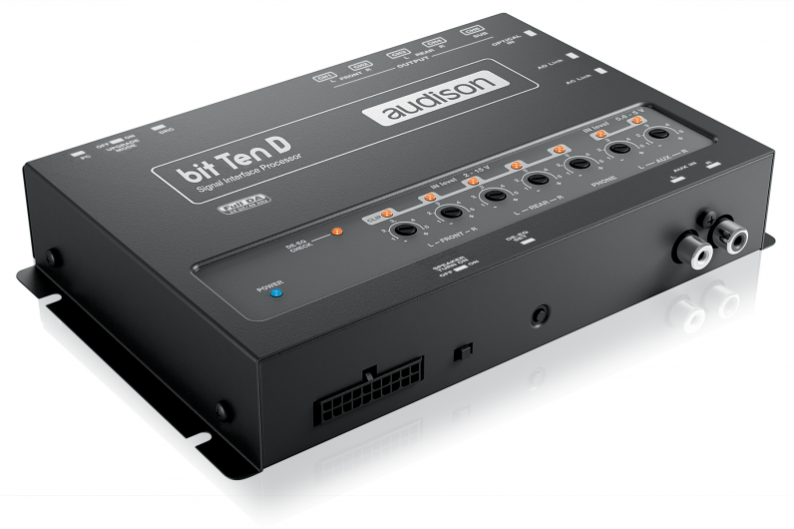

Audison Bit Ten D Signal Interface Processor with 4 Channels In and 5 Out, DRC

by Audison
UPC: 8018823104944

Audison Bit Ten D Signal Interface Processor with 4 Channels In and 5 Out, DRC

bit Ten D is a multi-function digital processor conceived and built to process digital and analogue signal both on the input and on output to the amplifier (featuring AD Link connection) and create top-performance system with any source typology.

Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten D processes the signal with extreme accuracy and wide configurability thanks to a software especially designed for car acoustic peculiarities.
bit Ten D features an optical digital input, minimizing interference and degradations of the signal found in traditional analog interconnects, also by-passing the A/D conversion phases of analog signals.
Thanks to the AD Link connection, the available outputs become 8 in total, all in digital format; they can also be used simultaneously with the analog ones (for a maximum of 8 outputs total).
The AC Link is completely dedicated to the remote control of the system. The system is comprised of one connector for the provided DRC and one for the amplifiers present in the system. The DRC is supplied with the bit Ten D product.


Auto tuning by Audison bit Tune and communication with bit Drive portal.

De-equalization function to flatten any equalization applied by default by OEM sources.
Full DA HD

Pure digital signal transfer with a resolution up to 24 bit / 96 kHz


Tech. features
Analog Inputs 4 high lev. + 2 pre in
Digital Inputs 1
Analog Outputs 5
Digital Outputs 8
Equalizers for each Outputs 31-band graphic equalizer (1/3 Oct.; 12dB)
Crossover Filter Type Full / Hi-Pass / Low Pass / Band Pass
Filter mode and slope Linkwitz @ 12 / 24
Butterworth @ 6 / 12 / 18 / 24
