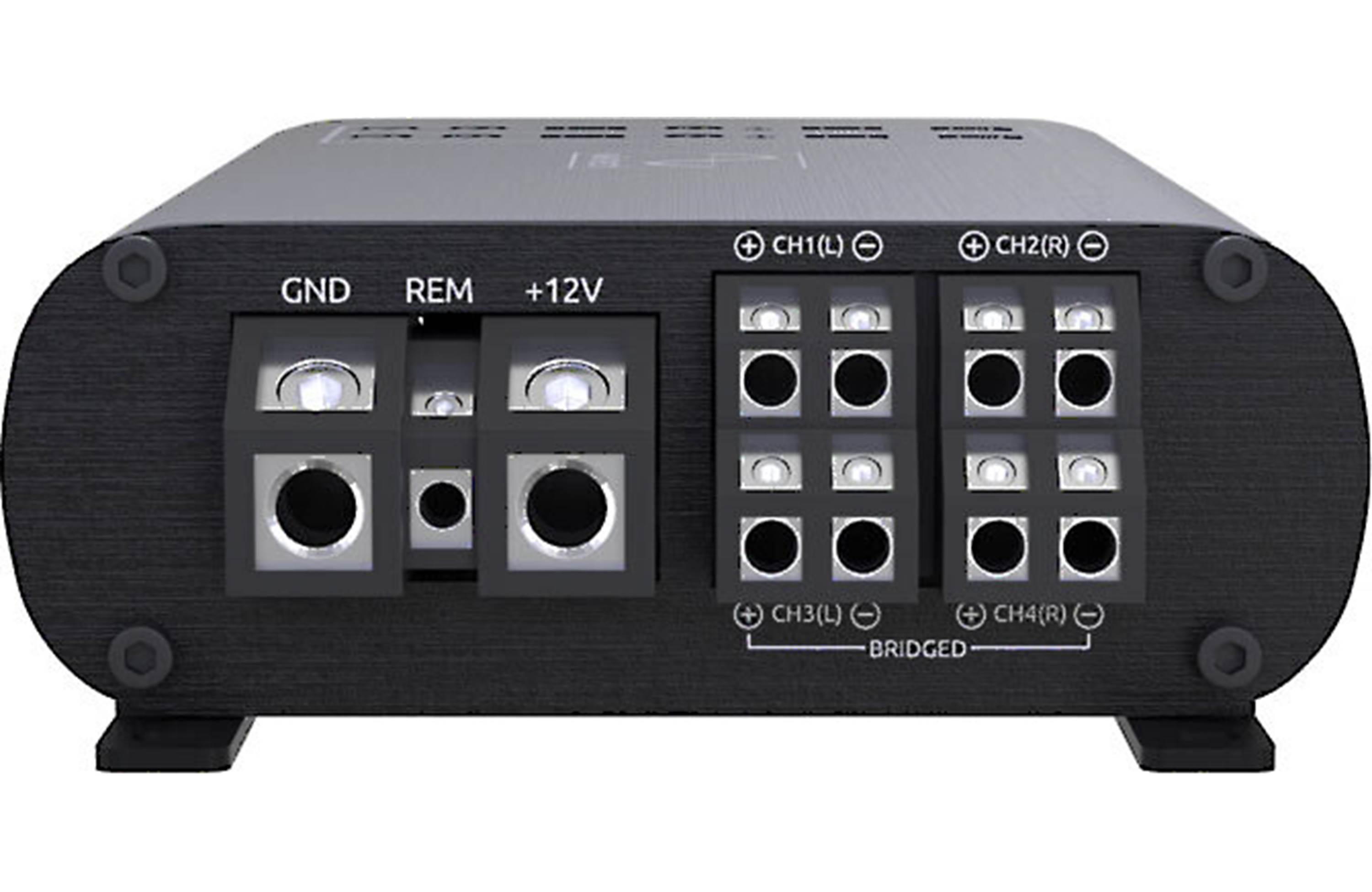

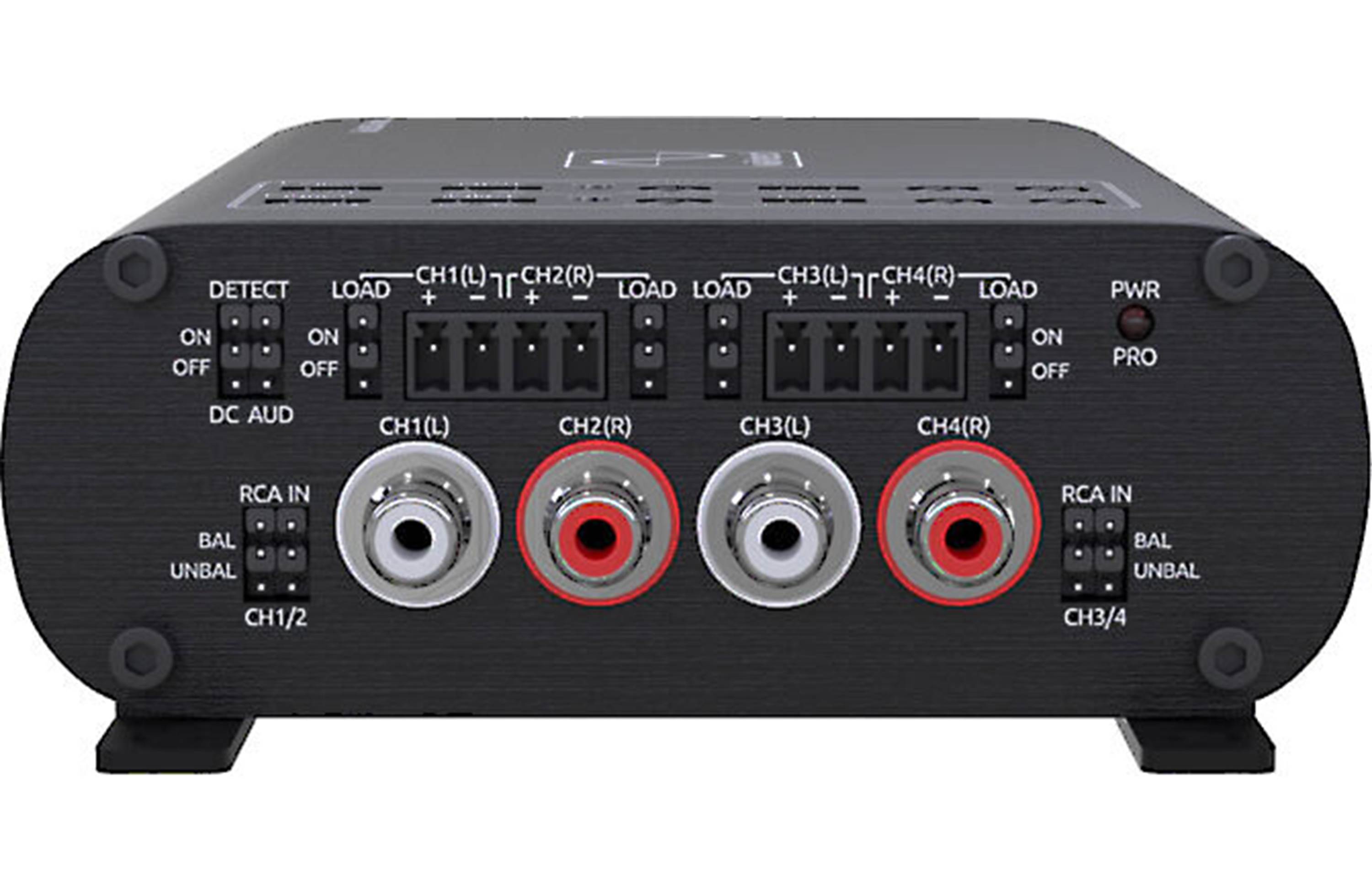

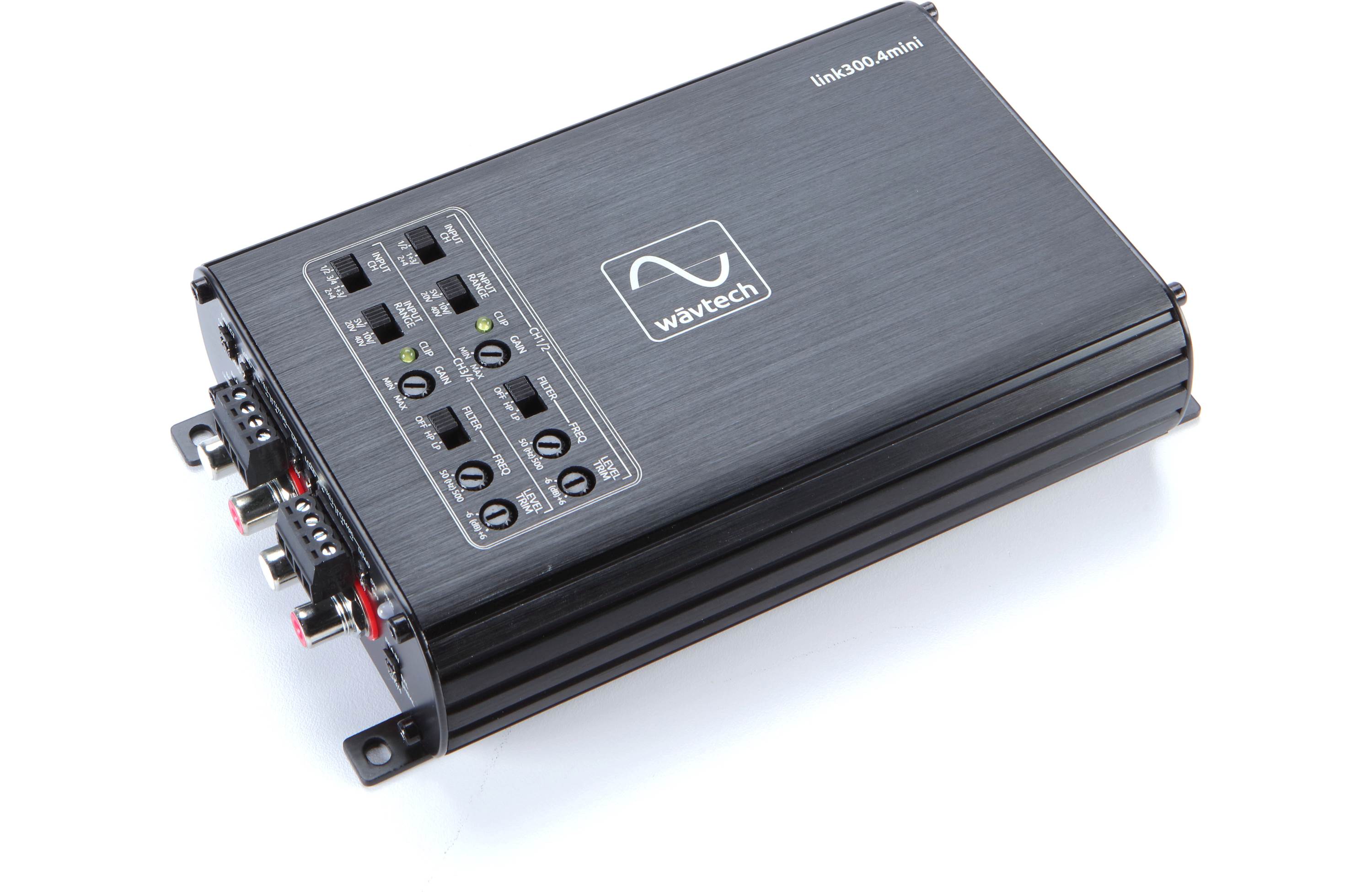

Wavtech link300.4mini Compact 300 Watt 4 Channel Amplifier

Brand: Wavtech | SKU: link300.4mini | UPC: 700987201468

Sale price
$349.95
Regular price
$449.95
You save
22%
Taxes calculated at checkout

Have a question?

The link300.4mini is in a class by itself. The most obvious thing is its extremely small size, but don’t Iet that fool you. Unlike most small footprint amplifiers, the link300.4mini is bridgeable. It can easily drive a nice set of components as well as a subwoofer. The link300.4mini has Wāvtech’s best in class LOC, with built-in loading and the ability to handle up to 40V of hi-level input.

Perhaps the most unique feature is the built-in summing. For factory audio systems that don’t have a full range signal, the link300.4mini can handle that internally, so no additional processor is required. The level trim adjustment allows for fine tuning the output of each pair of channels. As if all of that isn’t enough, the link300.4mini is compatible with OEM start/stop systems as well.

Specs

300 Watt 4-Channel Amplifier

50 watts x 4 @ 4 ohms

75 watts x 4 @ 2 ohms

150 watts x 2 @ 4 ohms BTL

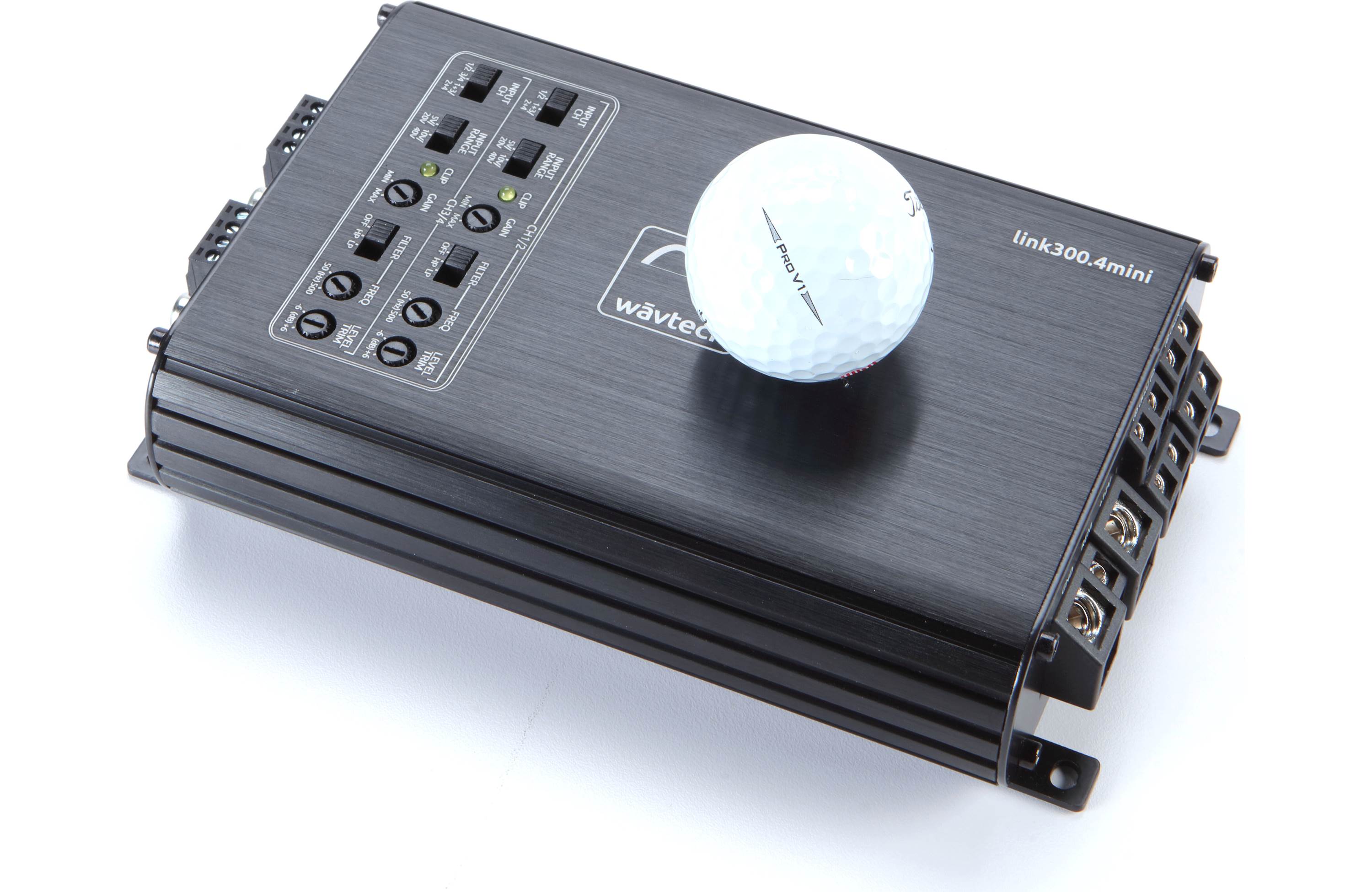

Small Footprint Only 6.4”x4.5”x1.65”

Variable Hi/Low Pass Crossover (-12dB/oct)

Built-In Summing w/Level Trim Adjustment

Active Thermal Management

Start/Stop Sytem Compatible

Adaptive OEM Load Technology

40V Input Capability

Differential Balanced Inputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Locking Detachable Hi-Level Speaker Terminals

4 Gauge Power/Ground Terminals

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting tabs

link300.4mini Specifications

Input Sensitivity

SPK --------------------------- 1-20Vrms, 2-40Vrms

RCA --------------------------- 0.2V-5Vrms, 0.4V-10Vrms

Max Input Voltage (SPK) ------ 40Vrms

Frequency Response ----------- <10Hz to >45kHz (+0/-3dB)

THD+N ------------------------------- <1% at rated power

S/N ------------------------------------- >86dBA (1W, 4Ω)

Brand Wavtech
