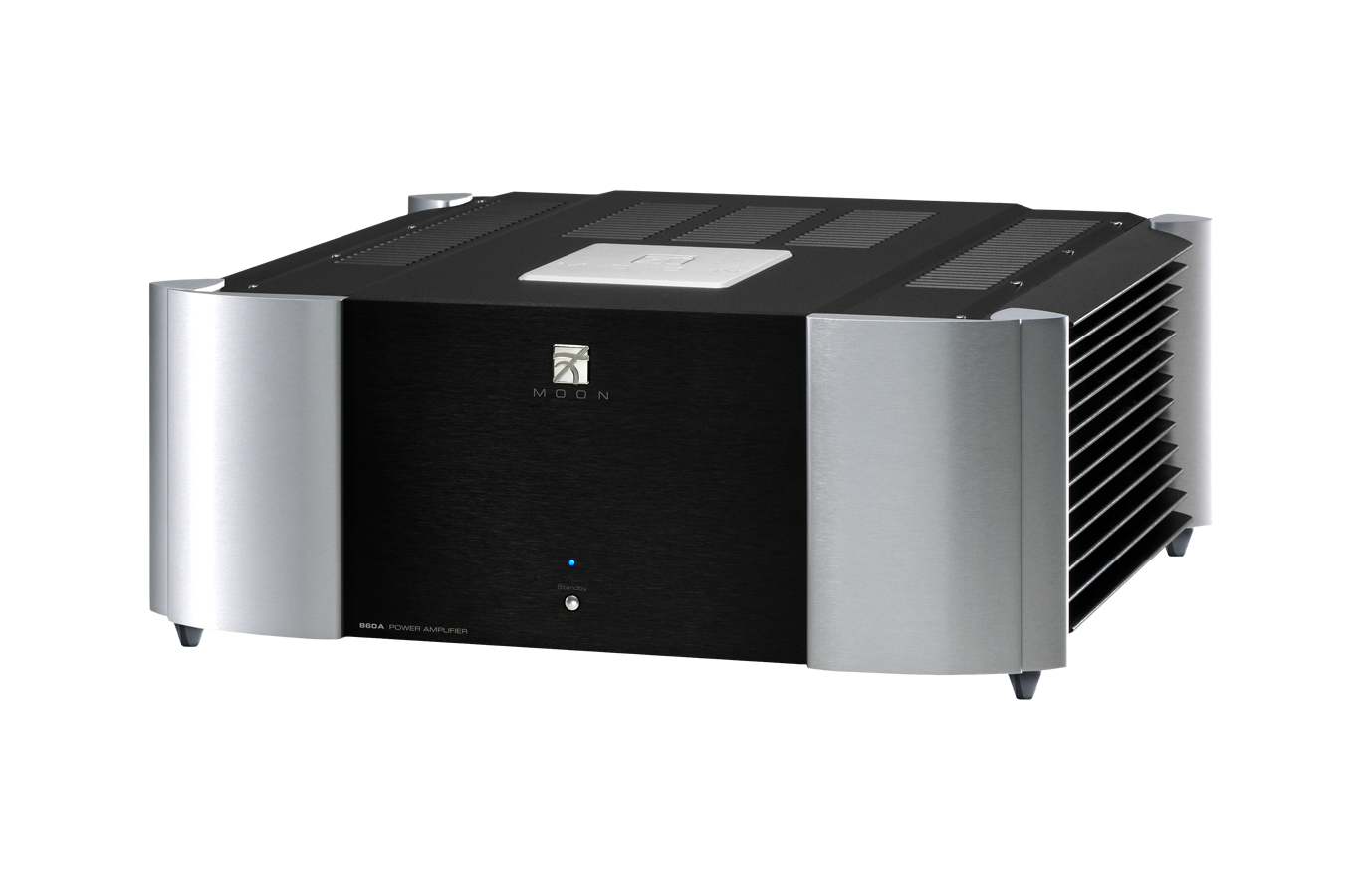

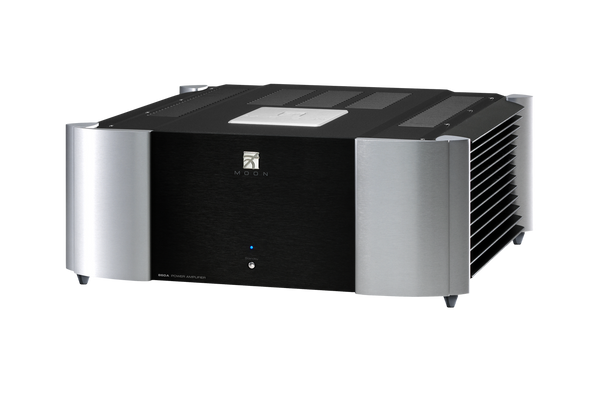

Simaudio 860A V2 Power Amplifier Store Demo


Exceptional transparency
The MOON 860A v2 Power Amplifier is a balanced differential dual-mono Power Amplifier that provides both exceptional transparency and a remarkable musical soundstage.

A true evolution
A true evolution on earlier designs, and incorporates trickle-down technologies from the massive 888 Power Amplifier.

225W per channel
450W at 4 and 750W in monaral mode

Design features

Monaural operation via rear-panel switch.
DC-coupled design with DC-servo control for greatest transparency.
Switchable AC-coupling for best match with a variety of preamplifiers.
Output stable into any load impedance.
Class A power output up to 5 watts.
Very high damping factor for superior musical dynamics, speaker control and refined harmonic accuracy and timbre.


Output Power at 8 225 W per channel
Output Power at 4 450 W per channel
Output Power - Monaural mode at 8 750 W Input Sensitivity 1.2V
Input Impedance 47,500 Gain 31dB
Signal-to-noise Ratio 110dB @ full power
Frequency response (full range) 10Hz - 100kHz +0/-3.0dB
Crosstalk @ 1kHz -110dB
THD (20Hz - 20kHz @ 1 W) 0.005%
THD (20Hz - 20kHz @ 200 W) 0.03%
Intermodulation distortion 0.006%
Power Supply Capacitance 240 000 uF
Shipping weight 90 lb / 40 kg
Dimensions (width x height x depth) 18.75 x 7.5 x 17.5 in, 47.6 x 19.2 x 44.5 cm
