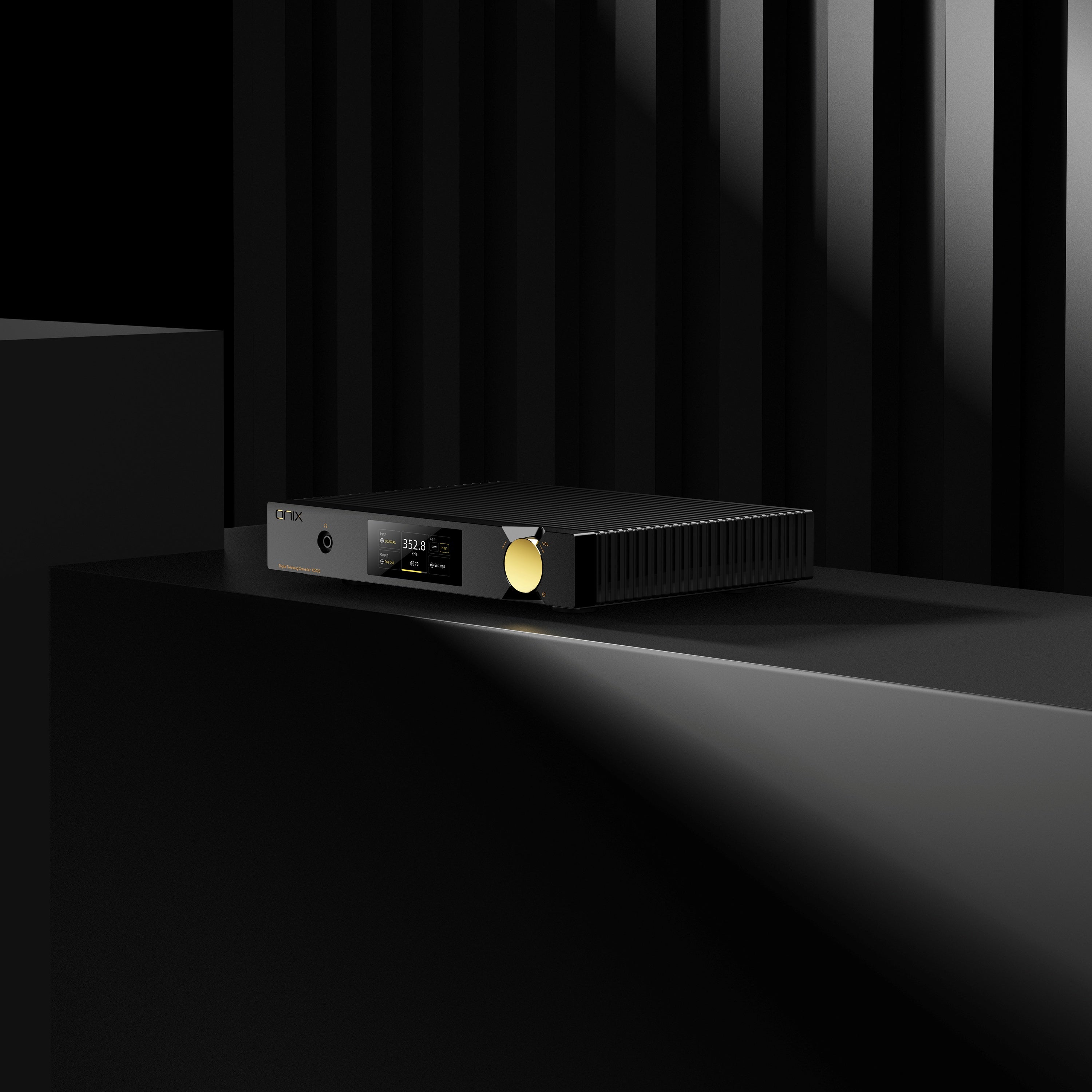

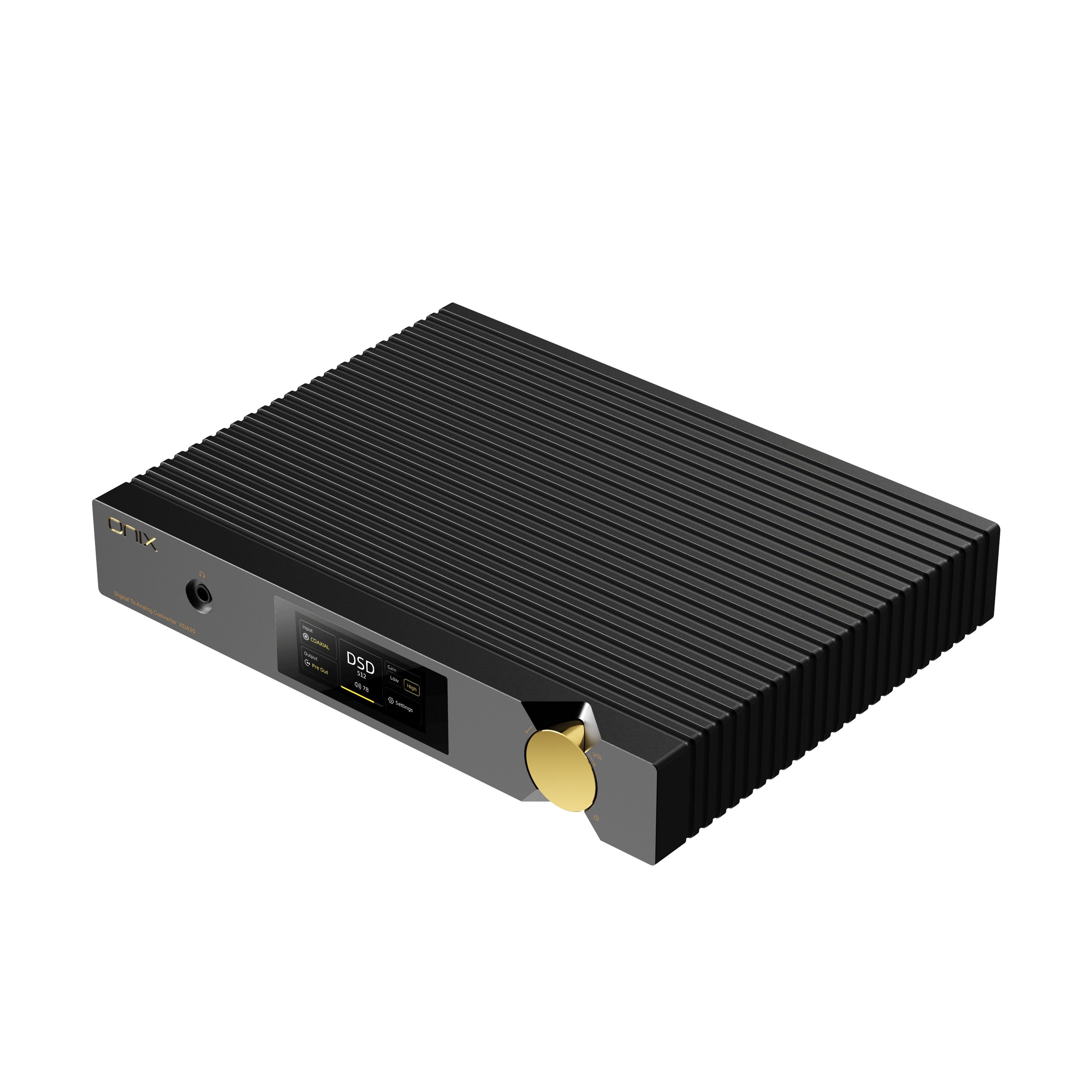

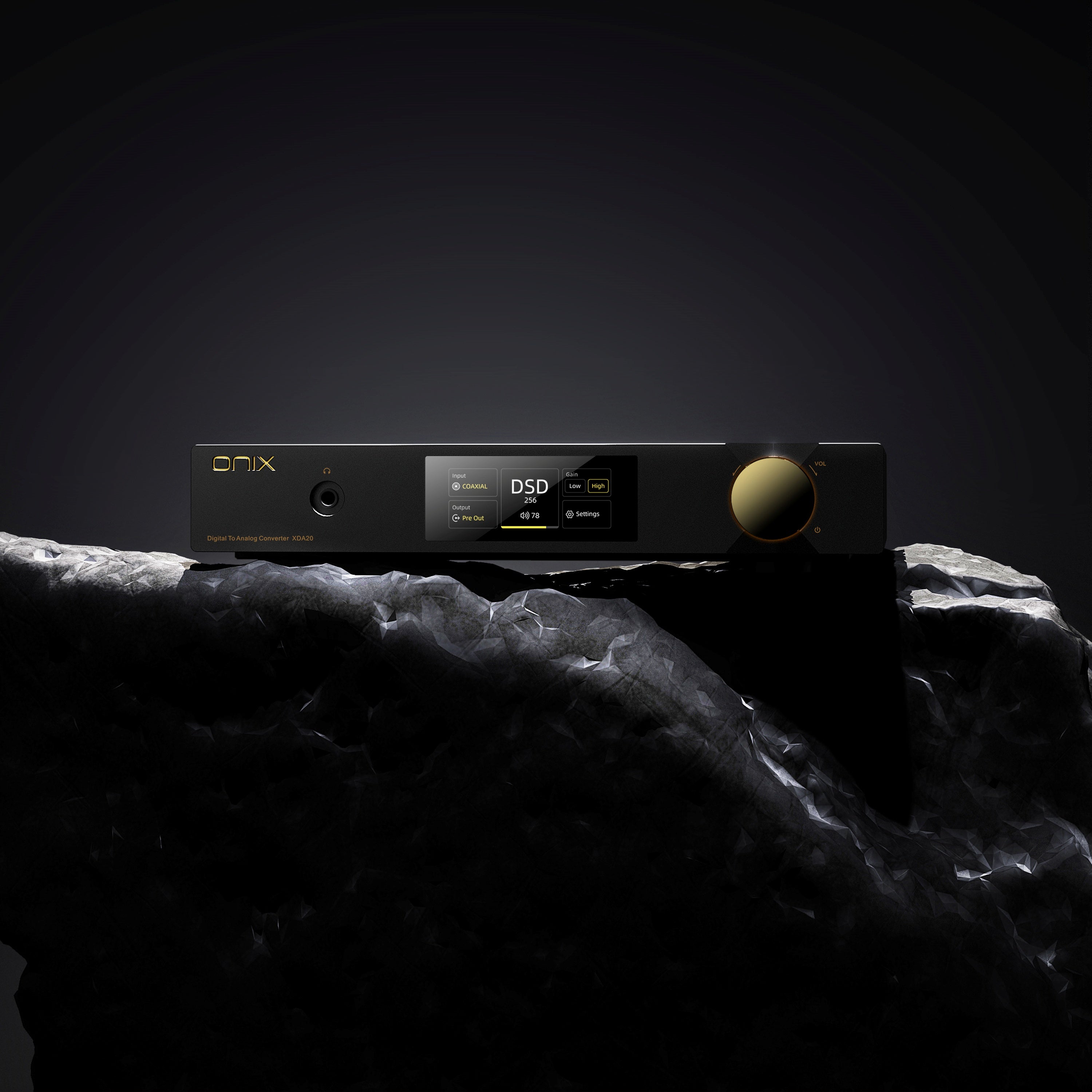

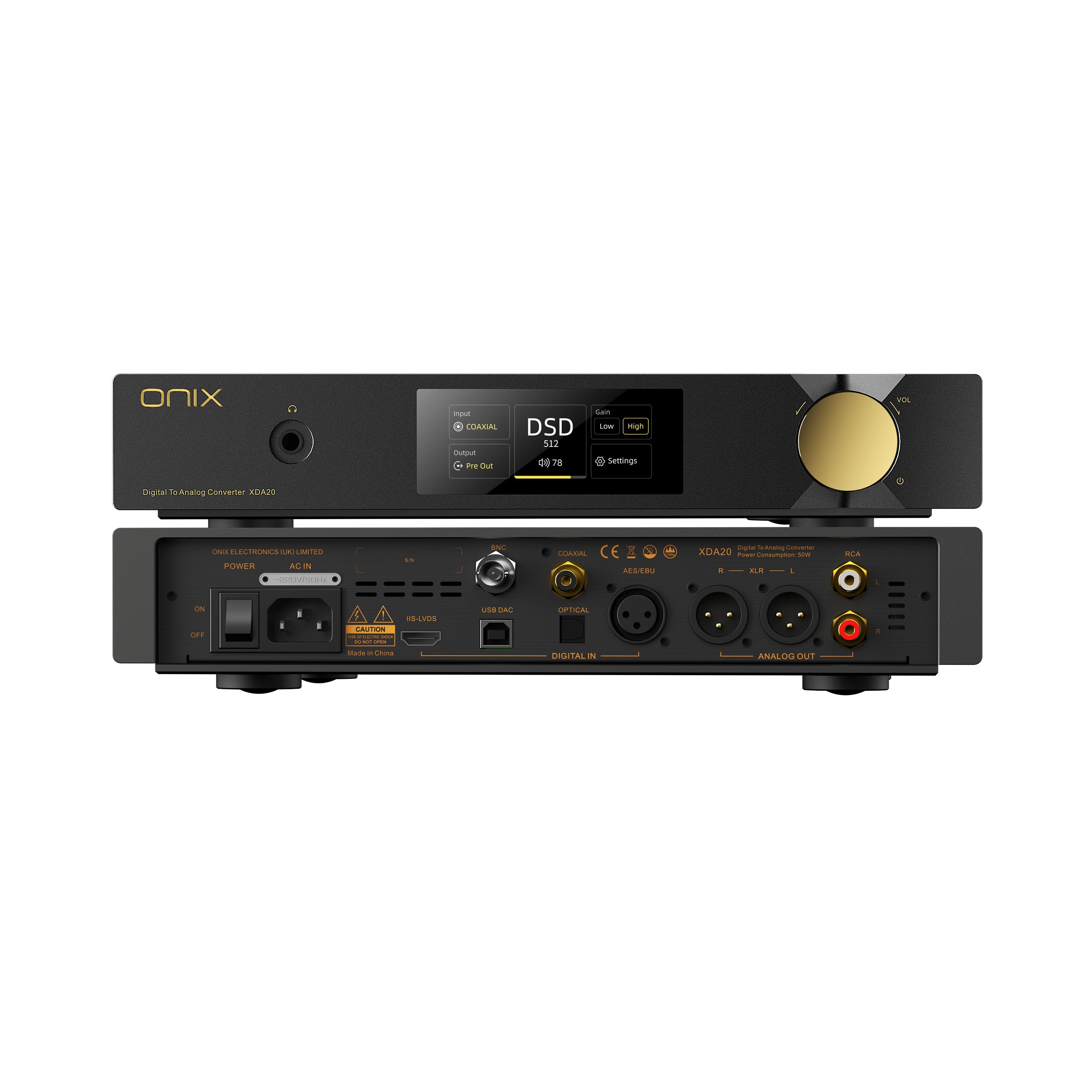

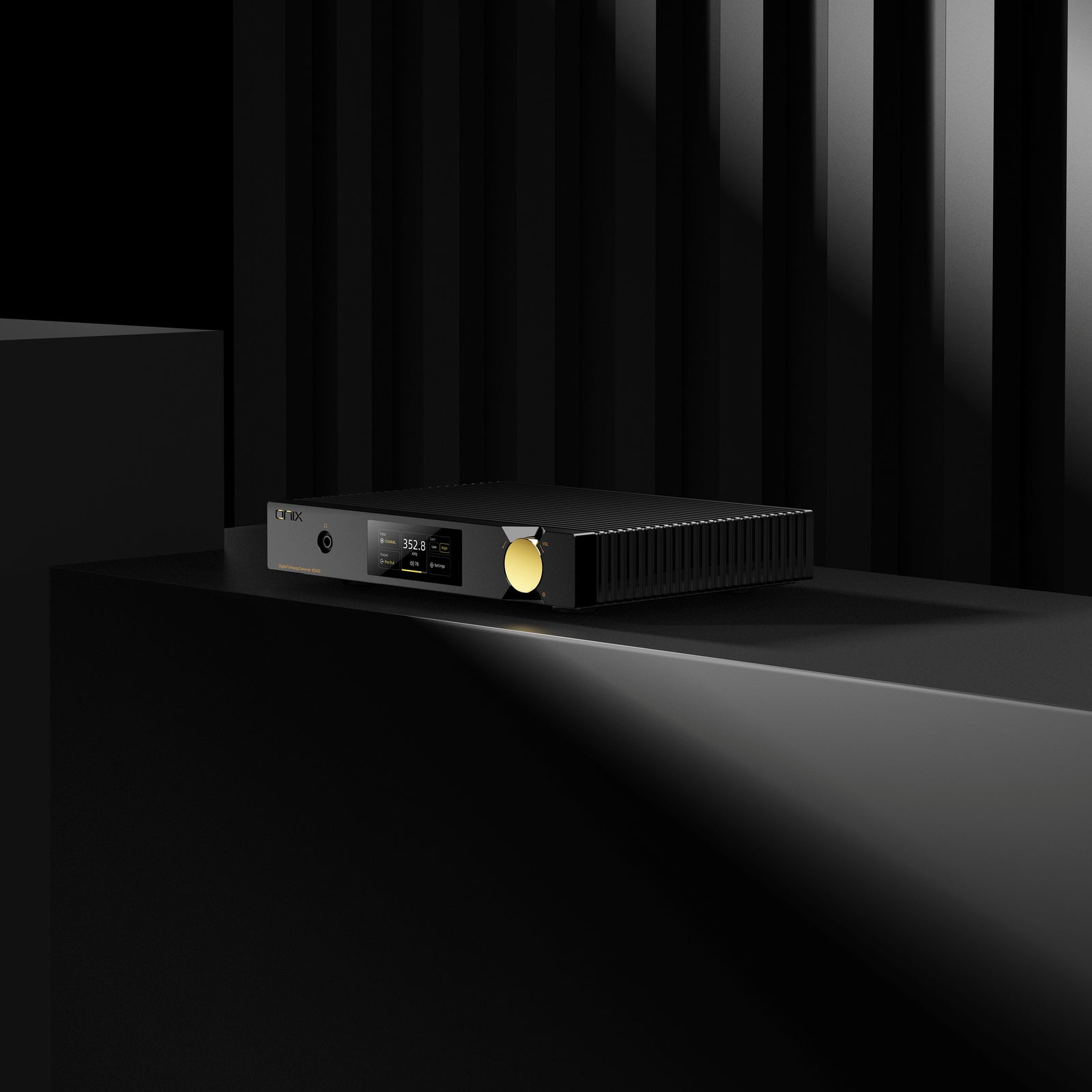

Shanling Onix Zenith XDA20 Reference Digital to Analog Converter

Brand: Shanling | SKU: XDA20 | UPC: 5060978090125

Price
$2,399
Taxes calculated at checkout

Have a question?
Shanling Onix Zenith XDA20 Reference Digital to Analog Converter - Safe and Sound HQ

Shanling Onix Zenith XDA20 Reference Digital to Analog Converter

Price
$2,399
Building Up Zenith Line
XDA20 is the second device to join our Zenith line, a dedicated range of products focused on High-End desktop and speaker Hi-Fi setups. XDA20 represents the High-End DAC to be paired with the previously released XST20 SACD Transport and upcoming XMT20 Streamer.

High End DAC Assembly
The ONIX XDA20 draws inspiration from our ONIX Miracle System and features the same ESS Flagship DAC, the ES9039Pro. However, for the XDA20, the DAC circuit got upgraded to a pair of these amazing top-grade DACs and utilizes eight pieces of OPA1611 in our in-house developed I/V Conversion Circuit.

Superior Power Supply
Clear and stable power is the key to true high fidelity sound, which is why XDA20 comes with combinations of 15W 25W Talema transformers and the superb Vishay capacitors for power filtering.

Advanced I2S Input
We designed the Zenith line to create the ultimate Source – DAC pairing, utilizing the immaculate I2S connection between the devices. As such, the XDA20 performs at its best when running from the I2S input, ideally when combined with out XST20 or XMT20 transports. But to ensure compatibility with other I2S transports on the market, we added our special FPGA-assisted I2S circuit into the XDA20, offering 10 different pin-outs for easy matching with all types of transports.
Brand Shanling
Model Zenith XDA20
DAC Chip ES9039Pro
Signal to Noise Ratio (dB) RCA 123, XLR 127
Coaxial/Optial Digital Inputs 1 / 1
RCA/XLR Outputs 1 / 1
Subwoofer Output LFE No, RCA/XLR YES
Headphone Amplifier Yes
Bluetooth No
Wi-Fi No
Bit Depth -SPDIF (dB) 24
Max Sampling Rate (SPDIF) 192 kHz
Bit Depth -USB (dB) 32
Mas Sampling Rate (USB) 768 kHz
Dimensions (H x W x D) 2.8" x 12.6" x 9.4"
Weight (lbs) 12.6
Warranty 1 Year

Compare with similar items

Shanling Onix Zenith XDA20 Reference Digital to Analog Converter - Safe and Sound HQ

This item Shanling Onix Zenith XDA20 Reference Digital to Analog Converter

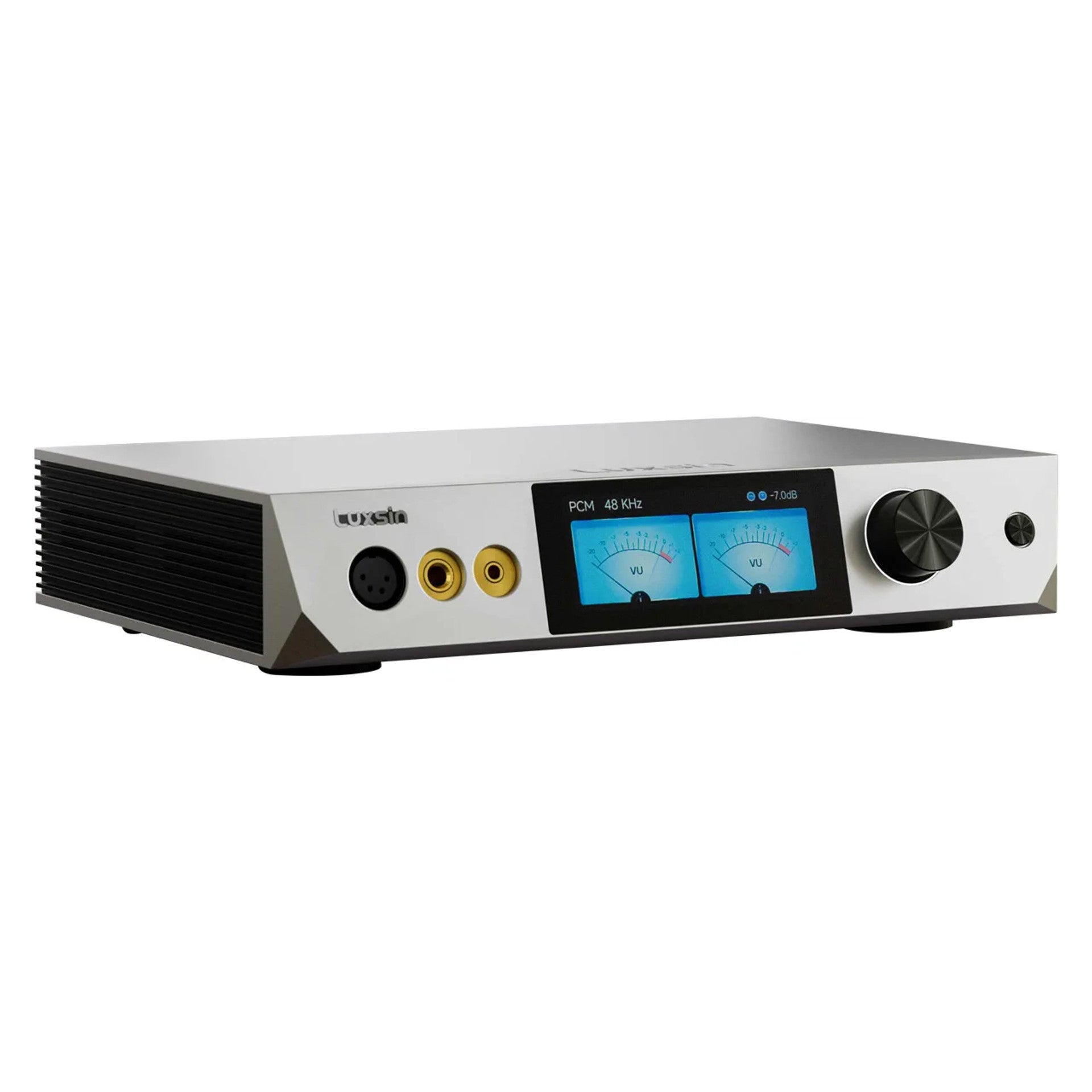

Luxsin Audio X9 Headphone Amplifier and DAC B-Stock - Safe and Sound HQ

Luxsin Audio X9 Headphone Amplifier and DAC

Musical Fidelity M8X DAC High-end DAC with balanced Discrete Output Stage and Headphone Amplifier - Safe and Sound HQ

Musical Fidelity M8X DAC High-end DAC with balanced Discrete Output Stage and Headphone Amplifier

Price
$2,399.00
$999.00
$2,999.99
Rating
3
Brand
Shanling
Luxsin Audio
Musical Fidelity
Model
Zenith XDA20
X9
M8x DAC
DAC
ES9039Pro
AKM AK4191EQ+AK4499EX (USB), XMOS XU316 (USB)
2x ESS Sabre ES9038Q2M
Signal to Noise Ratio (dB)
RCA 123, XLR 127
> 125 (RCA), > 128 (XLR), > 128 (Headphone Output)
> 100
Coaxial/Optical Digital Inputs
1 / 1
1 / 1
1 / 3
RCA/XLR Outputs
1 / 1
1 / 1
1 / 1
Subwoofer Output
LFE No, RCA/XLR YES
Yes, 2
0
Headphone Amplifier
Yes
Yes
Yes
Bluetooth
No
Yes
No
Wi-FI
No
Yes
No
Bit Depth (SPDIF)
24
24
24
Max Sampling Rate (SPDIF)
192 kHz
192 kHz
192 kHz
Bit Depth (USB)
32
32
32
Max Sampling Rate (USB)
768 kHz
768 kHz
768 kHz
Dimensions (HxWxD)
2.8" x 12.6" x 9.4"
2.56" x 11.8" x 8.1"
4.01" x 19.0" x 15"
Weight (lbs)
12.6
8.2
23.4
Warranty
1 Year
1 Year
5 Years
