Rega Elex MK4 Integrated Stereo Amplifier

Brand: Rega | SKU: ElexMK4 | UPC: 5056186700383

Price
$1,895
Taxes calculated at checkout

PRODUCT SHOWCASE VIDEO

Rega Elex MK4 Product Showcase

User Manual
Have a question?

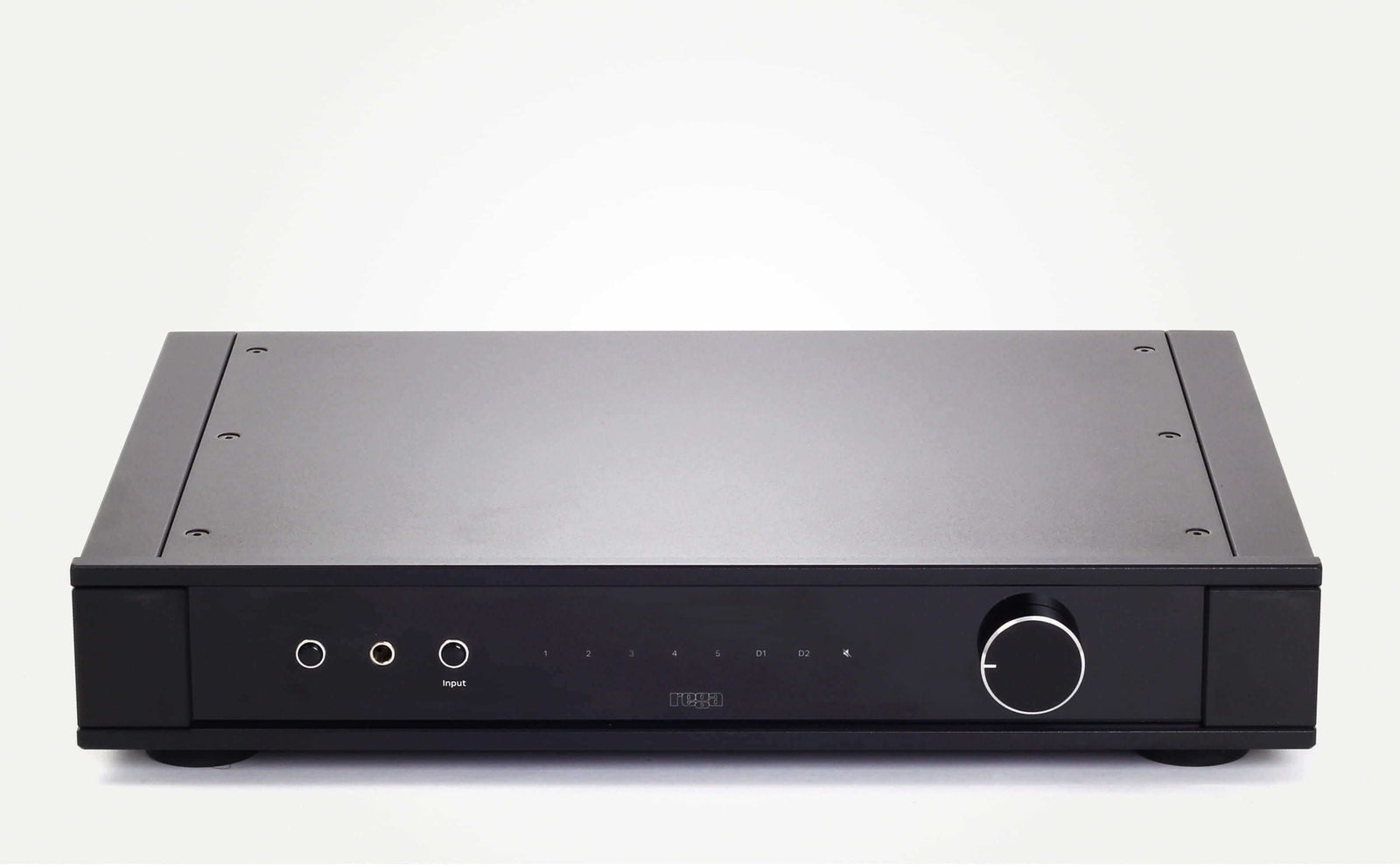

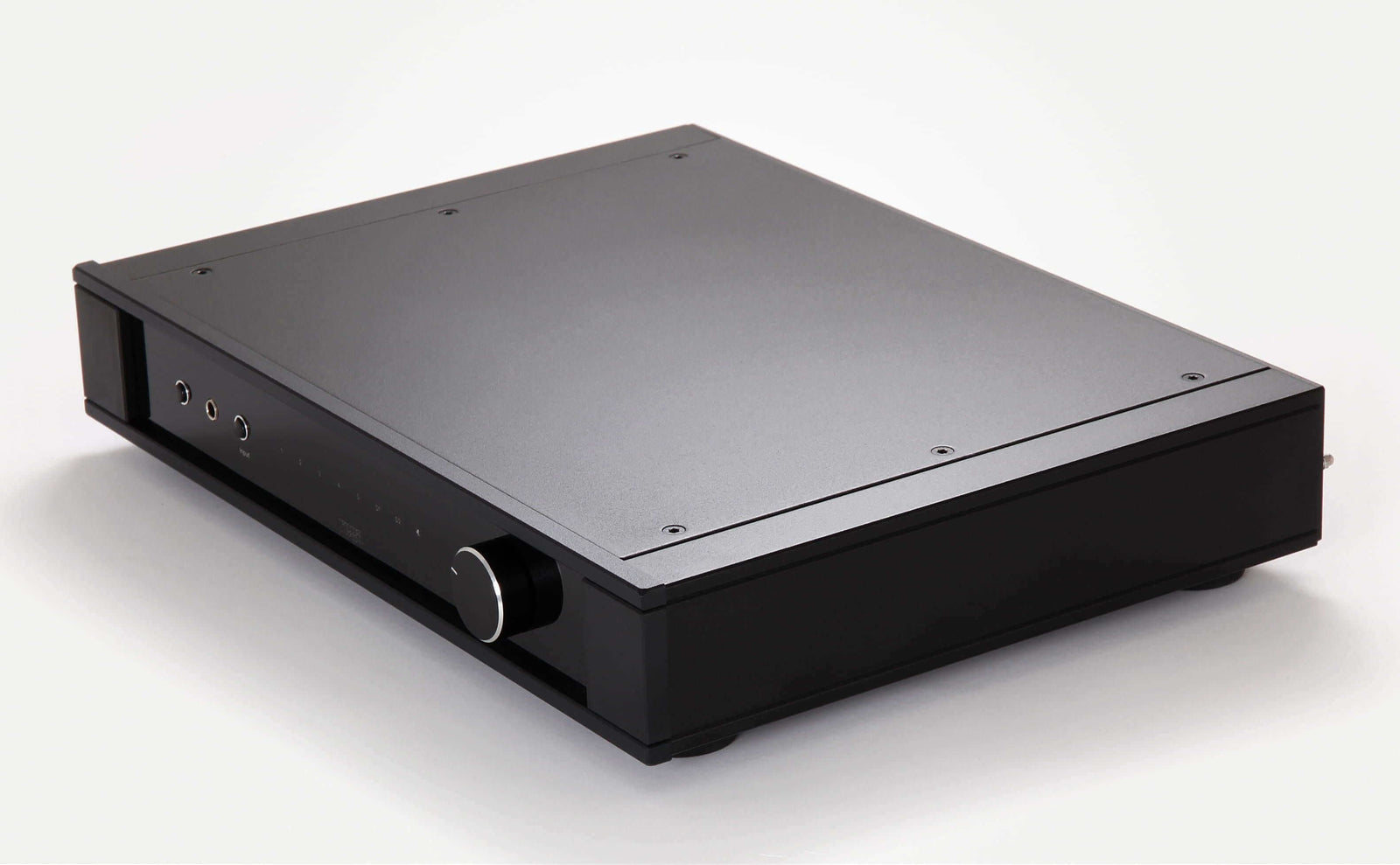

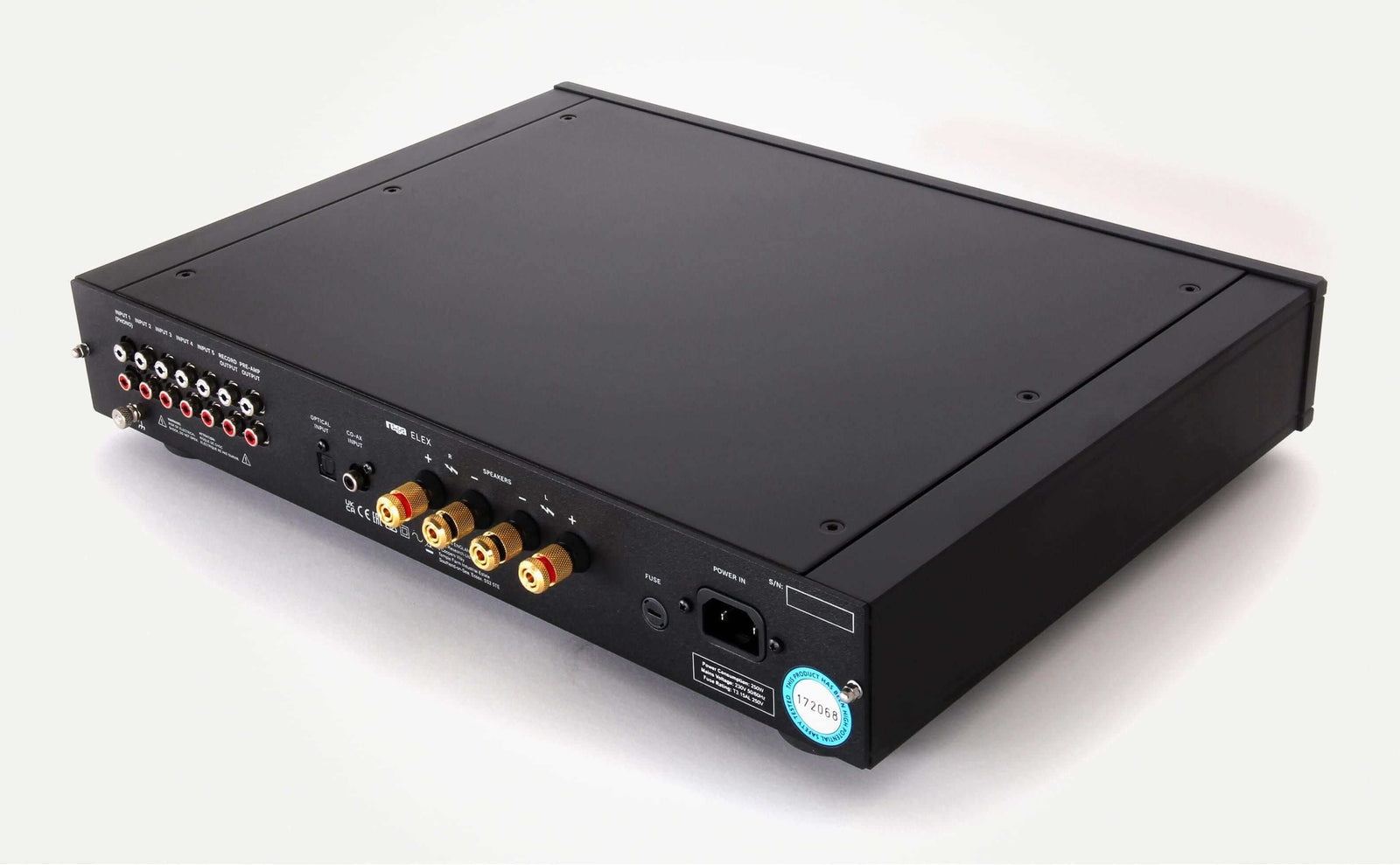

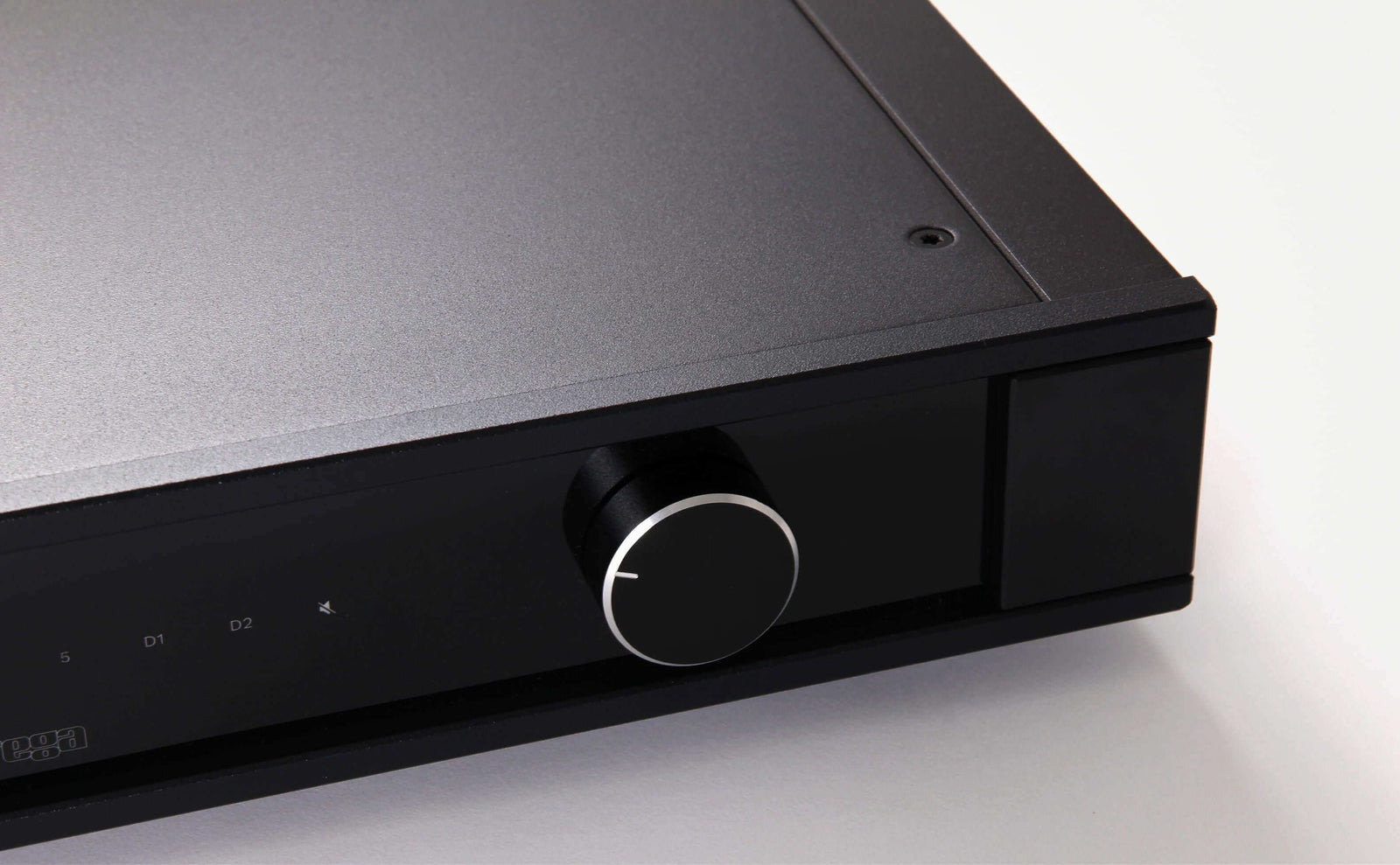

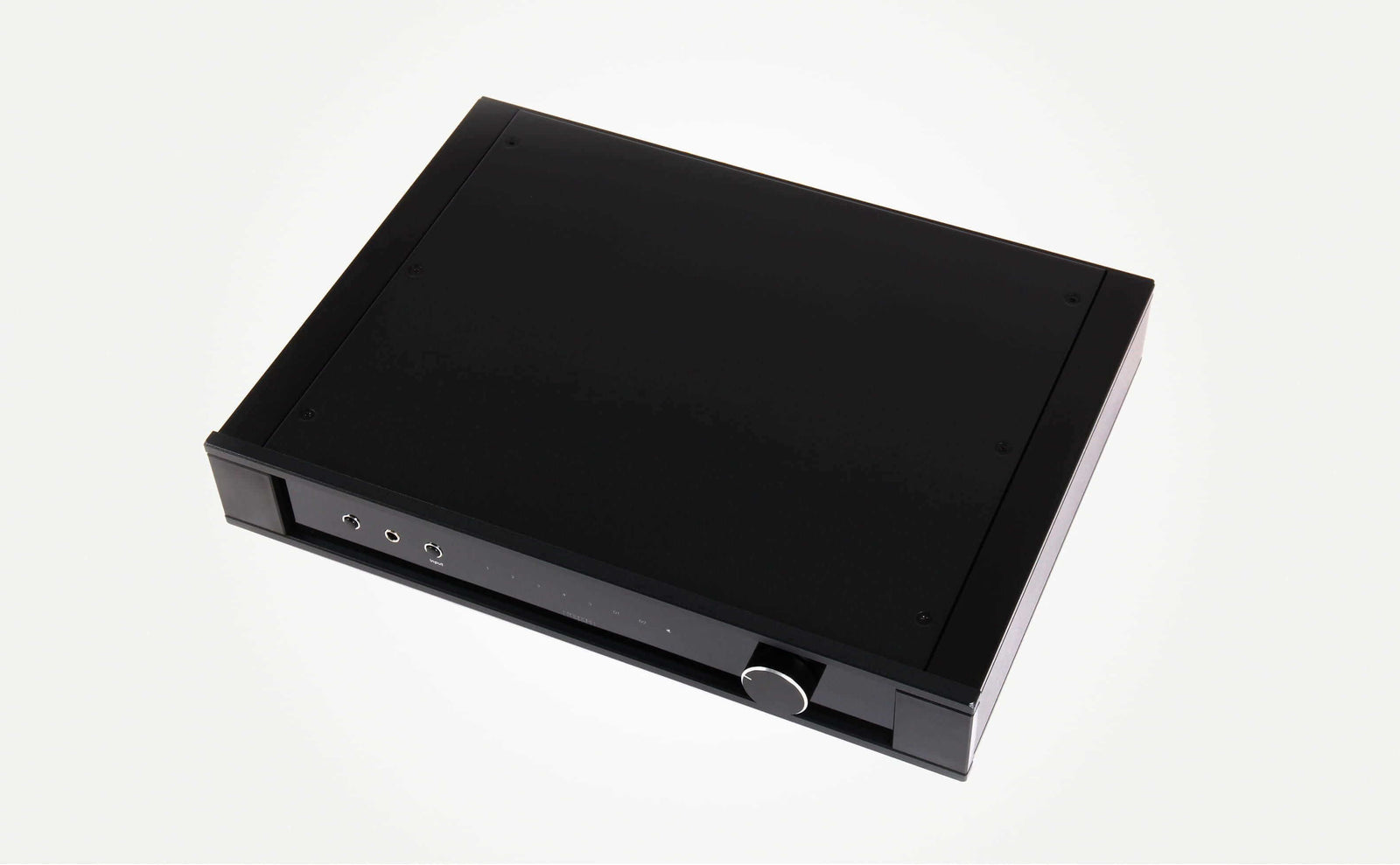

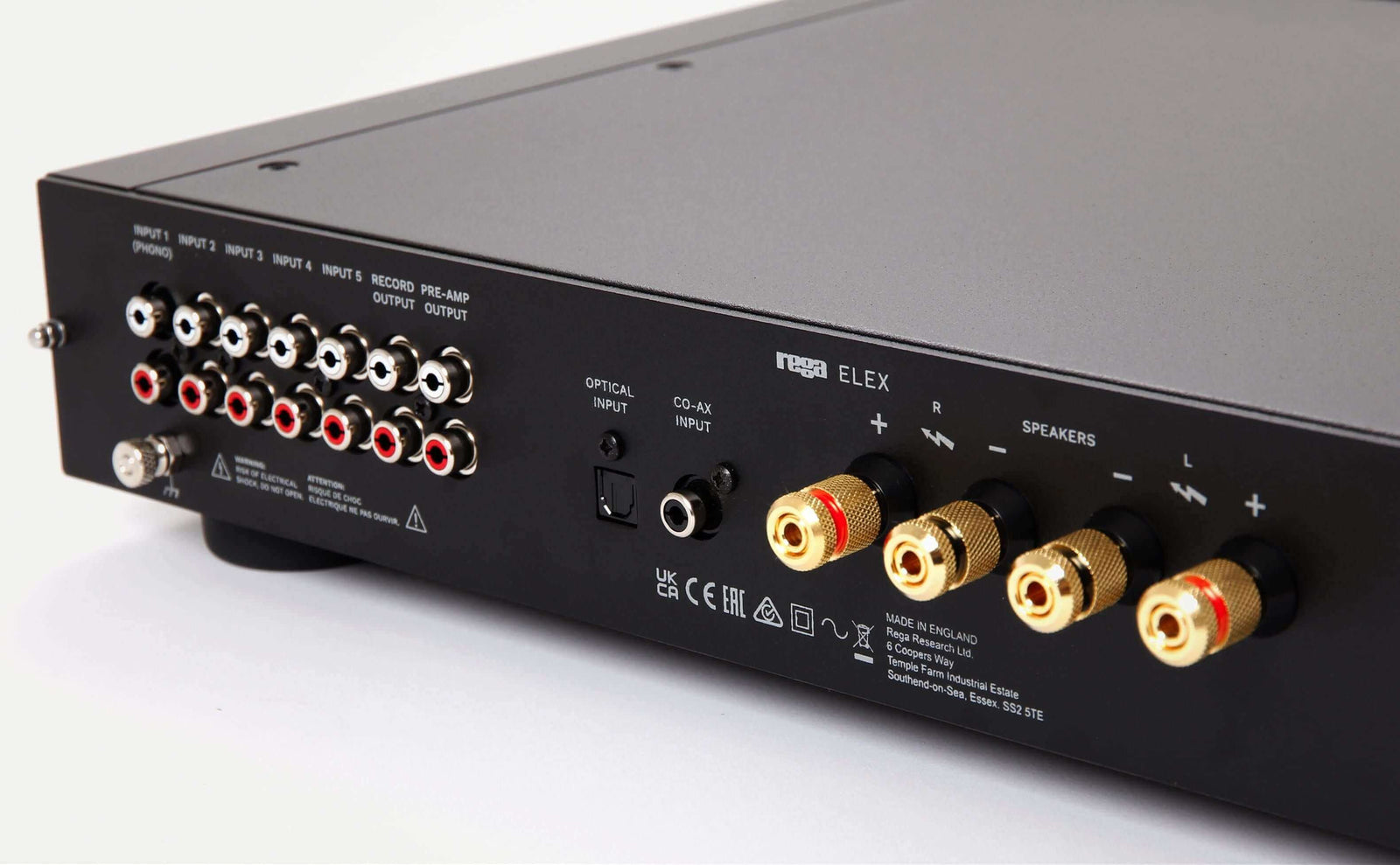

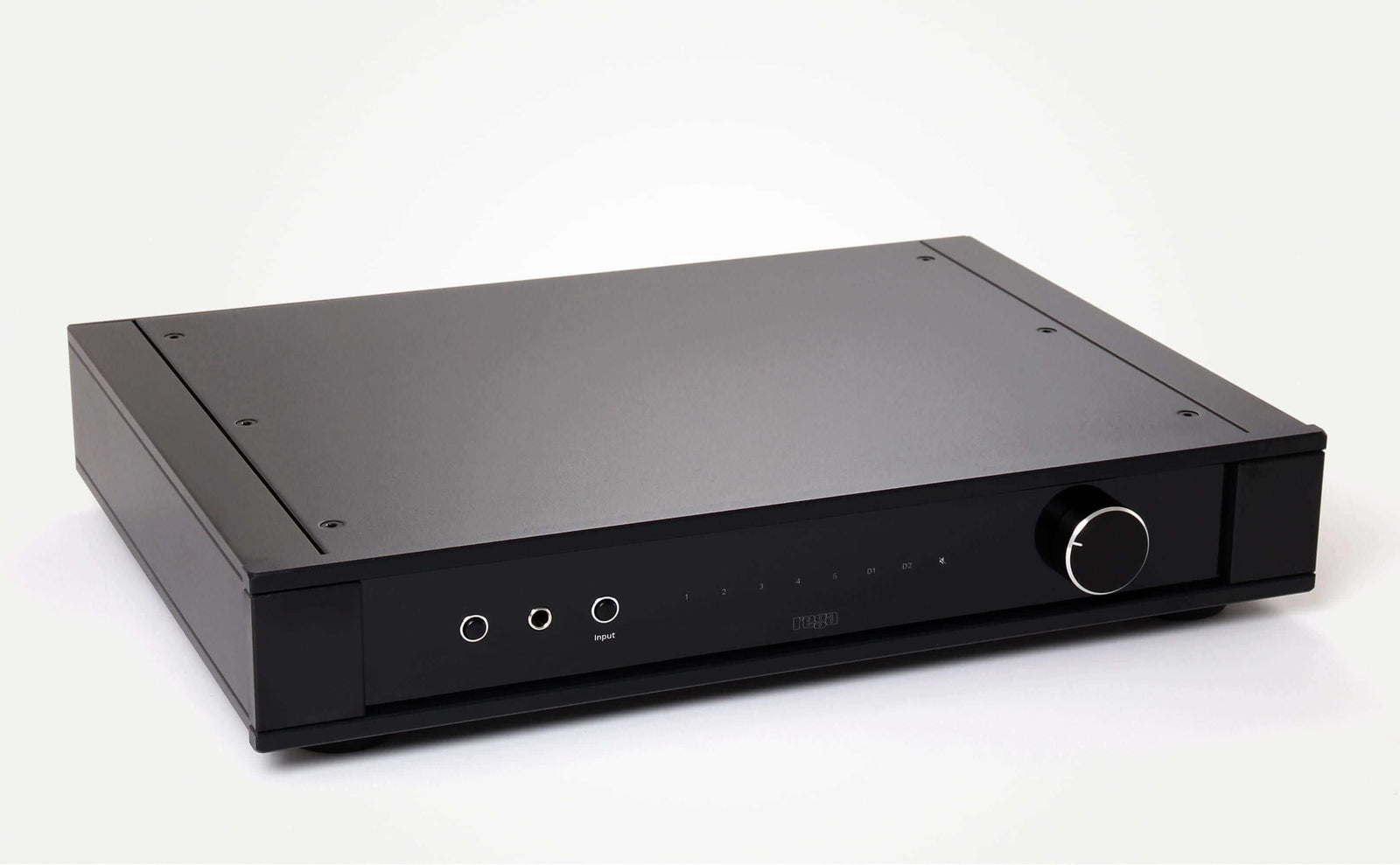

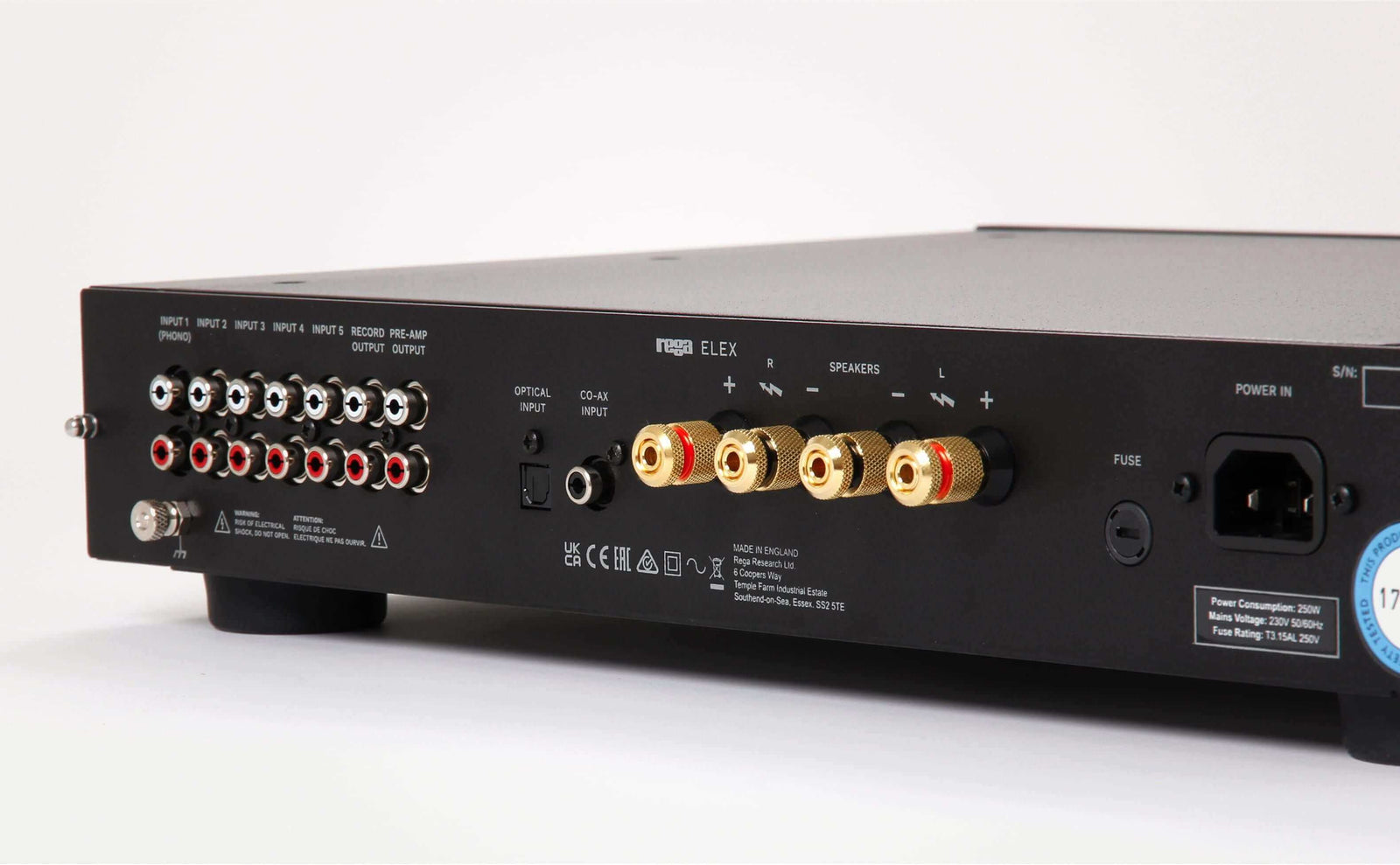

Rega Elex MK4 Integrated Stereo Amplifier Open Box showcasing sleek design and connectivity options.

Rega Elex MK4 Integrated Stereo Amplifier

Price
$1,895

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

Bringing your music to life
The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage,  you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.

Key Features

  • 72 W per channel into 8 Ω / 90 W into 6 Ω
  • High quality moving magnet phono stage
  • High performance Rega DAC circuit for digital inputs
  • 2 x Digital inputs - 1 x optical and 1 x Co-Axial
  • Headphone output
  • 4 Line level inputs
  • New custom design case
  • Thermal Cut-Out
  • Lifetime warranty against manufacture defects

Amplification circuit
Our engineers have re-engineered the entire ELEX circuit board to optimize performance. MK4 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 72W per channel into 8Ω loads. This power is provided by a quiet multi-stage linear supply whilst supply rails for digital and analogue sections are galvanically isolated.

Digital Circuit / DAC
The DAC is based closely on the hugely successful Rega DAC-R circuit. The galvanically/optically isolated digital inputs utilize a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. Our engineers have worked exceptionally hard to ensure that the analogue side of the circuit is not affected in any way by the introduction of digital inputs.

MM Phono Stage
A high performance Rega designed integrated moving magnet (MM) phono stage is carefully built into the circuit. The RIAA equalization has been split into two stages to minimize interaction. Polyester capacitors have been used in the signal path and polypropylene capacitors are used in the RIAA equalization circuits.

Headphone Output
We have taken great care to incorporate the headphone socket on the Elex MK4. This has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path ensuring no loss of performance when it is not in use.

Custom Case
The new custom case design and construction brings the Elex MK4 inline with the rest of the Rega range and provides improved heat dissipation by using the entire case as an ultra efficient heat sink.

Protection
The Elex MK4 includes Thermal Cut-Out, short circuit protection and DC protection to prevent the risk of damage from excess heat, excessive currents or short circuits.

Brand Rega
Model Elex MK4
Power Output 8 Ohms (Watts) 72
Total Harmonic Distortion .005%
Amplifier Class Class AB
App Control No
HDMI Inputs 0
HDMI Outputs 0
ARC, eARC No
Analog Inputs 5
Analog Outputs 1
Phono Preamp Yes
Optical/Coaxial Digital Inputs 1 / 1
Subwoofer Outputs 0
Preamp Output Yes
XLR Inputs 0
XLR Outputs 0
Home Theater Bypass No
Bluetooth No
Streaming No
DAC Wolfson WM8742
AM/FM Tuner No
Room Correction No
Dimensions -No Antenna H x W x D (inches) 3.22" x 17.0" x 13.4"
Weight (lbs) 24.3
Warranty 3 Years
