Surround Yourself with Perfection
The M17 V2i carries on the enviable task of representing NAD s finest surround sound performance. Infinite possibilities await thanks to the M17 V2i s most impressive feature, Modular Design Construction (MDC), NAD s proven method for preventing premature obsolescence. Dolby Atmos and DTS-HD Master Audio combine with Dirac Live Room Correction to deliver hyper-realism that captures every dimension of a performance. Add bit-perfect 4K UHD video processing and the M17 V2i delivers the most accurate sound and image experience you ve ever had. The M17 V2i is second-to-none in terms of flexibility and up-to-the-minute digital technology.
Modular Design Construction (MDC)
With MDC all major digital circuits can be upgraded and replaced to keep the M17 V2i forever young and capable. This NAD innovation is a unique architecture that keeps pace with the fast changing world of digital formats by allowing connectivity and feature upgrades as newer technologies become available. In fact, this M17 V2i is the previous M17 chassis with a new video MDC and a new audio MDC installed. MDC defies premature obsolescence, so you can keep pace with the latest developments in high performance AV through dealer-installed modules. Your M17 V2i can be upgraded as your needs and tastes develop, and you only need to replace the module you want to upgrade, not the entire AV preamp processor.
Fully Featured Surround
The M17 V2i offers full HDMI video switching and surround sound decoding along with 11.1 balanced outputs. Brimming with a full complement of sophisticated features like the high resolution lossless surround formats from Dolby TrueHD and DTS-HDMasters Audio decoding, and now object-based audio with Dolby Atmos, the M17 provides the highest levels of performance. The surround mode of the source material is automatically detected via the digital inputs of the M17 V2i, and the most advanced form of decoding, based on y our setup, is switched in. Conversion of the encoded digital bitstream is performed with high resolution and extremely linear D/A converters carefully selected for their performance capabilities.
FEATURES & DETAILS
Fully Balanced outputs for all 11.1 channels (Mini XLR for Height Channels)
Differential DACs for each channel
Separate linear and active power supplies dedicated for analogue and digital sections
MDC Modular Design Construction (MDC), includes AM 17 Audio and VM 310 Video modules
5 x HDMI Digital Audio/Video Inputs - 4K UHD full support with 4K/60p/4:4:4/HDCP 2.2; 2 HDMI outputs (1 HDCP 2.2 with CEC, 1 HDCP 1.4)
Dolby Atmos and DTS-HD Master Audio support
BluOS Enabled for wireless multi-room music streaming (upgrade kit included) AirPlay 2 Integration
Hi-Res Audio playback including 24-bit/192kHz FLAC / WAV / AIFF
5 Custom A/V Presets
Independent source and volume controls for Zone 2
RS-232 Port Interface for Advanced Control Systems
Eco-friendly operation with <0.5W standby power consumption
Complete with Dirac Live Full Frequency Software and Calibrated Microphone
Fully Balanced Audio with Separate Linear Supply
Like all professional recording studios and sound stages, the M17 V2i offers fully balanced audio outputs for all eleven channels. Locking connectors and special interface electronics allow long cable runs without noise pickup or signal loss. The silent black background and explosive dynamics afforded by the balanced line stage amplifier adds drama and excitement to your music and movies.
World s Most Sophisticated Digital Room Correction System
Dirac Live and its powerful room correction software is built in to the M17 V2i, including its own calibrated measurement microphone and Dirac Live Full Frequency. Advanced users can build the perfect listening environment that corrects for both the timing and colourations in sound, including the ability to create custom target curves for room response and the option to choose from a variety of third-party calibrated microphones.
The BluOS Advantage
BluOS , the advanced operating system and music management software shared with NAD s sister brand Bluesound, is included in the M17 V2i making it unique among high-end AV Processors. When connected to the Internet via Ethernet or Wi-Fi, the M17 V2i has access to thousands of Internet radio stations and over a dozen high quality music services including Spotify, Amazon Music, Tidal, Deezer, and many more. With full support for Master Quality Authenticated (MQA) technology, the M17 V2i has the highest resolution audio performance available combined with the highest definition video performance.
Flexible Setup

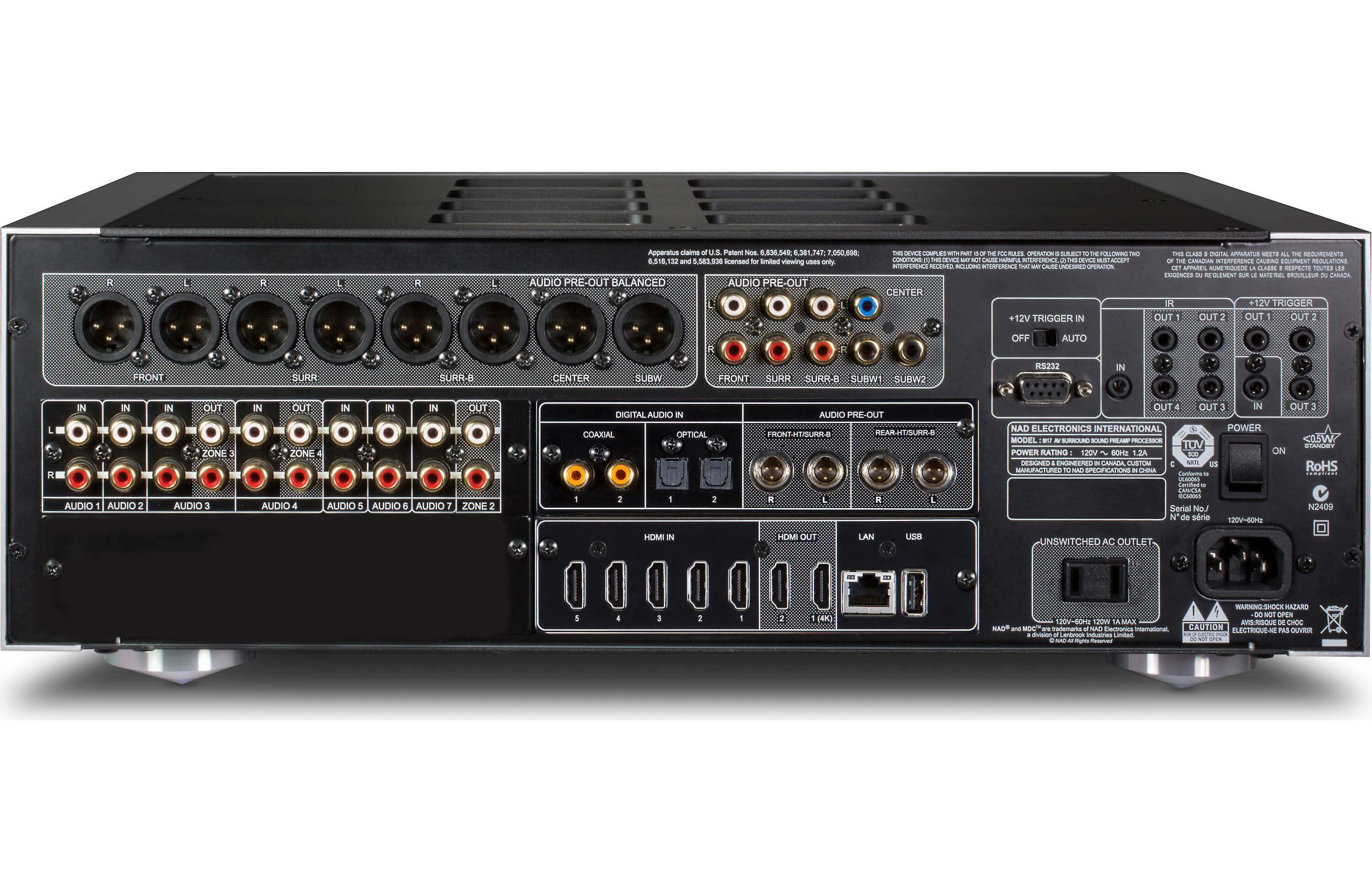

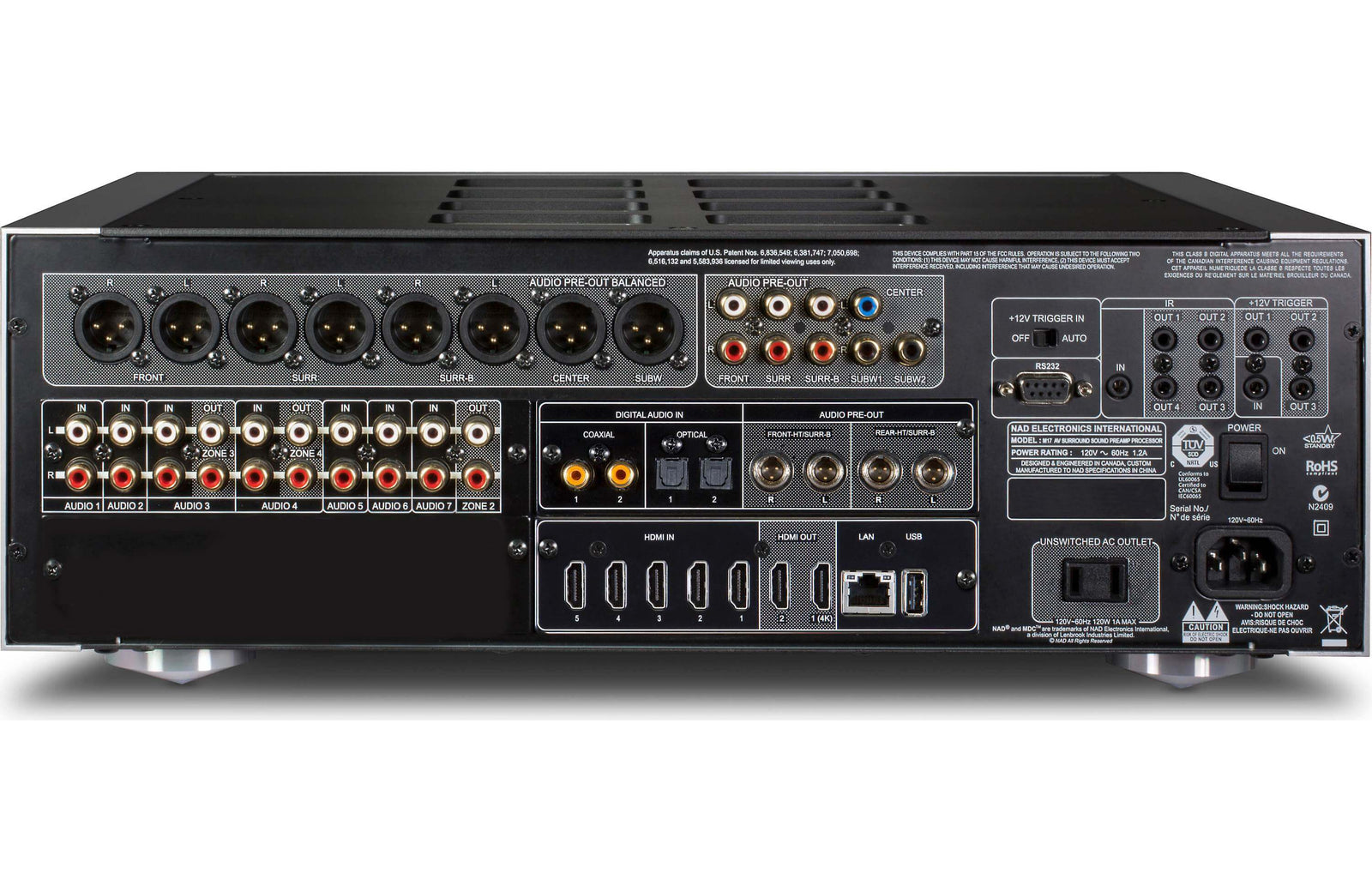

The latest HDMI features, including HDCP 2.2, 4:4:4 colour resolution, High Dynamic Range video support, and CEC/ARC, are all included. Digital inputs and outputs are available in both coaxial and optical formats to make it easy to attach all your digital sources. Digital inputs are converted to analogue for use in Zone 2, and you can choose to convert unused tape outputs for Zone 3 and Zone 4 use with independent source selection and volume control. With BluOS we have also made it easy to add more speakers for listening to music in additional rooms. IR repeaters, 12V triggers to automatically switch amplifiers on and off, and an RS-232 data port makes it easy to connect to highly advanced automated control systems, such as Crestron and Control4. Thoughtful features like discrete On and Off codes, direct access to inputs and FM station presets facilitates the integration of the M17 V2i into elaborate remote control systems. The T M17 V2i is more flexible than ever, with AirPlay 2 built-in for easy integration into the Apple ecosystem.
Customize with AV Presets

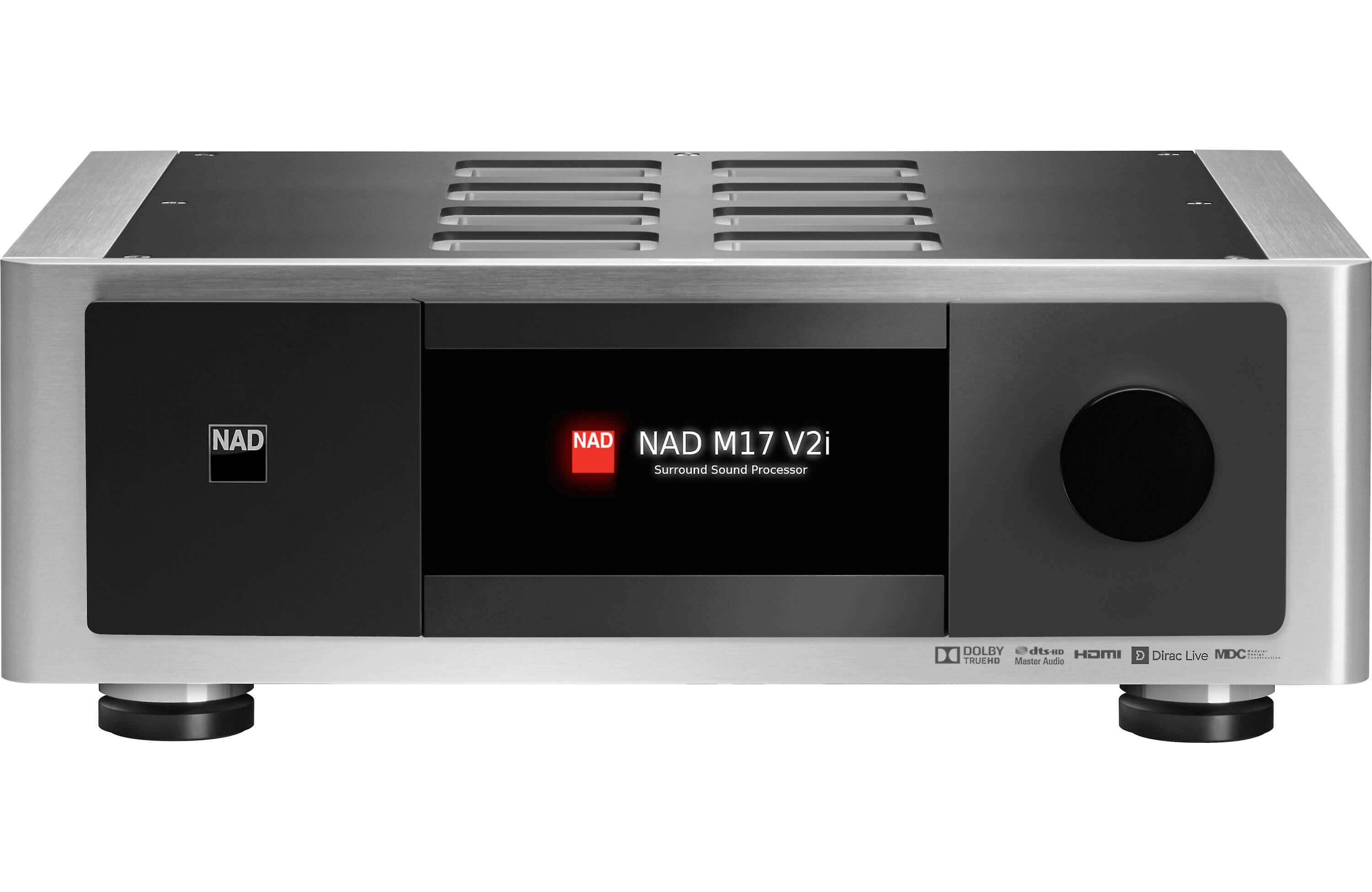

The M17 V2i s sleek TFT touch panel display makes setup and control easier than ever before. Unique features like AV presets and a completely flexible input setup allow unprecedented flexibility and ease of use. The M17 V2i offers five independent AV presets that store speaker level and tone control settings for instant recall, making it easy to custom tailor your system for different types of program material. Encoded surround modes like Dolby Digital and DTS are automatically selected if the program is so encoded. The M17 V2i also remembers your last used settings when switched in and out of Standby mode
Complete and Compact
The M17 V2i combines all the control and decoding functions in one compact chassis, giving up nothing to the convenience of the receiver, yet by separating the power amp stages gives a big jump in performance and flexibility. Match it with one or more of our M27 Seven Channel Power Amplifiers with the latest advancement in HybridDigital amplification. The M17 V2i is an excellent example of the NAD Design Team s expertise in quality in the digital decoding stages, the video processing section, and in the analogue preamp stages for the best overall performance. Along with the new touch screen and ergonomic refinements that simplify operation, the M17 V2i will be the dream command center of your home cinema
