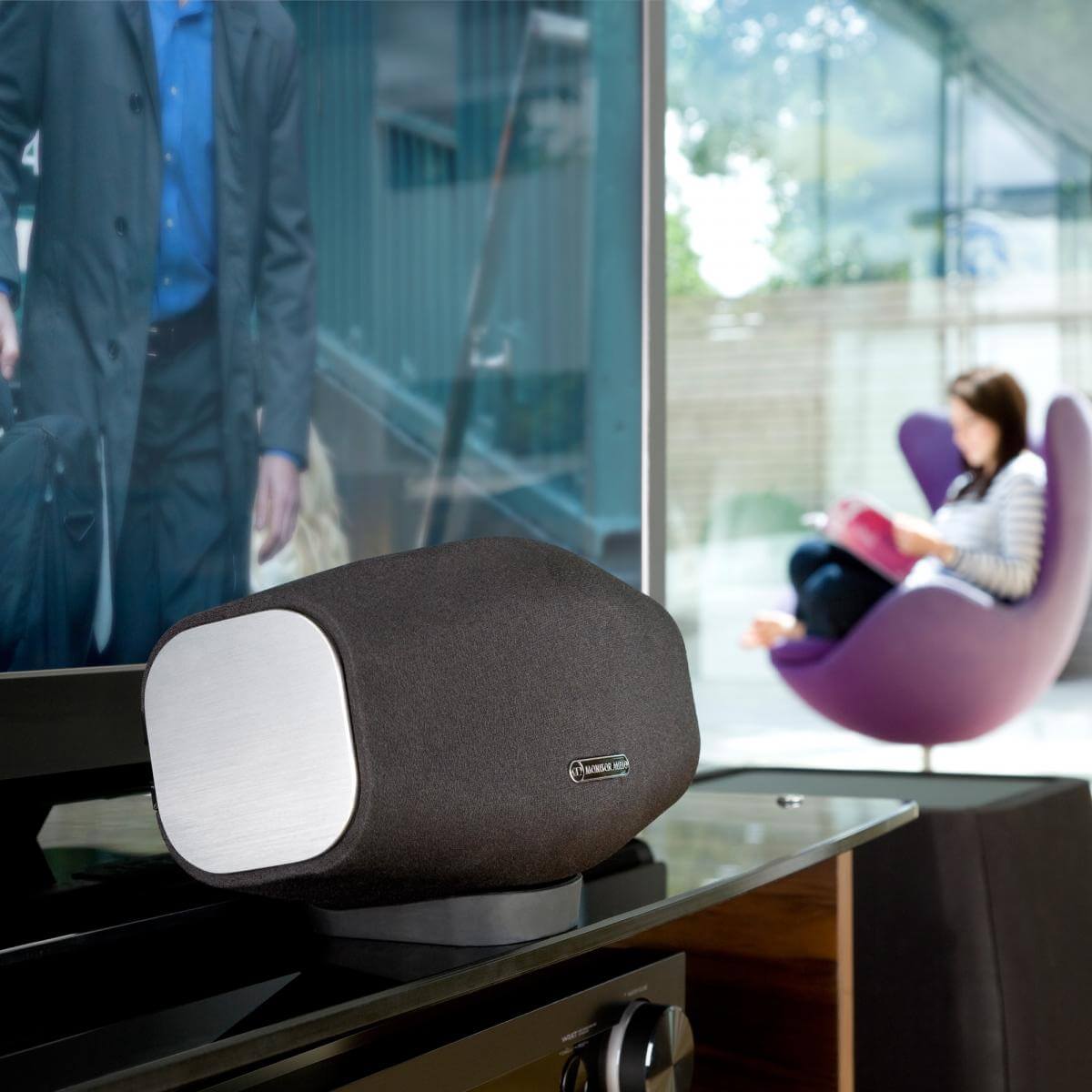

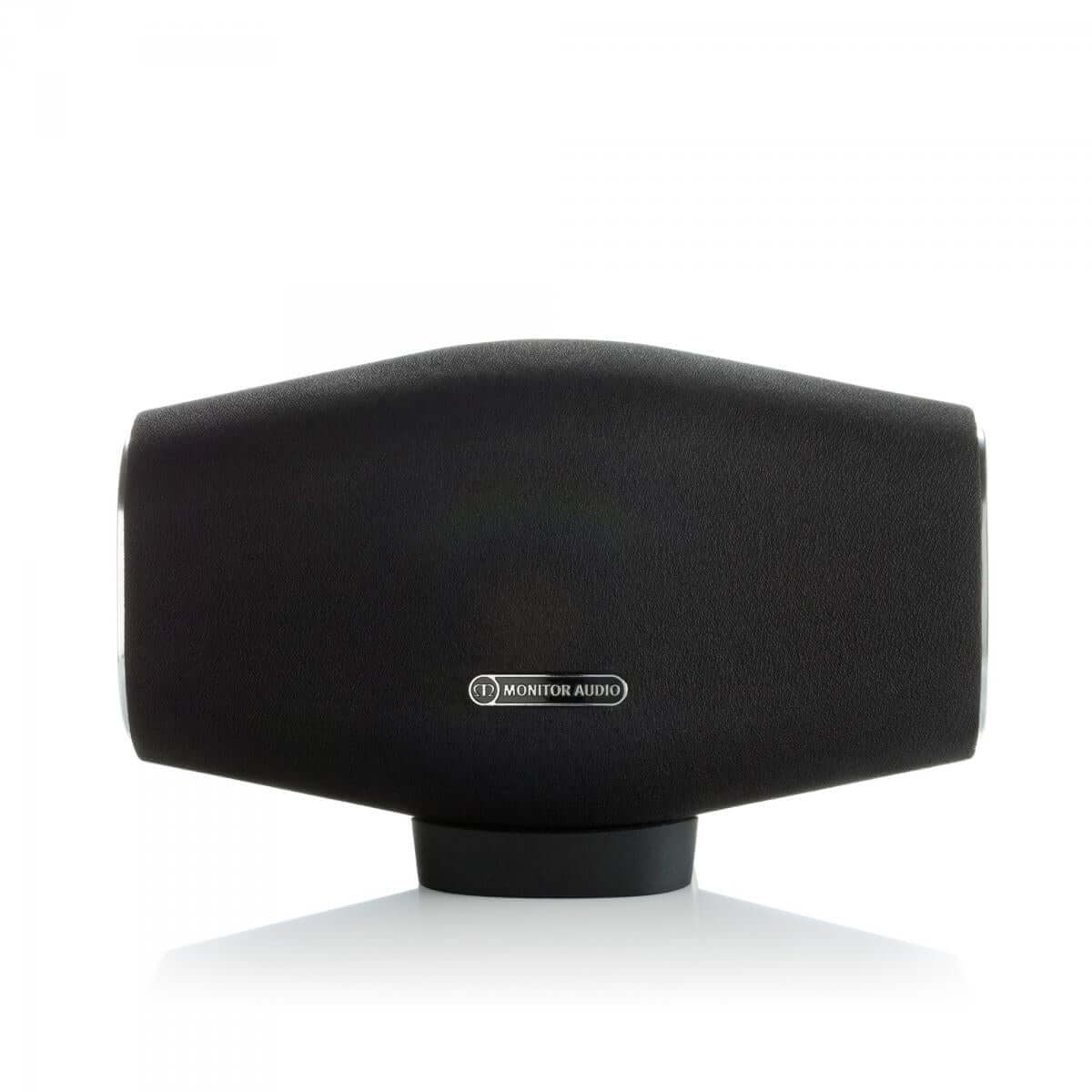

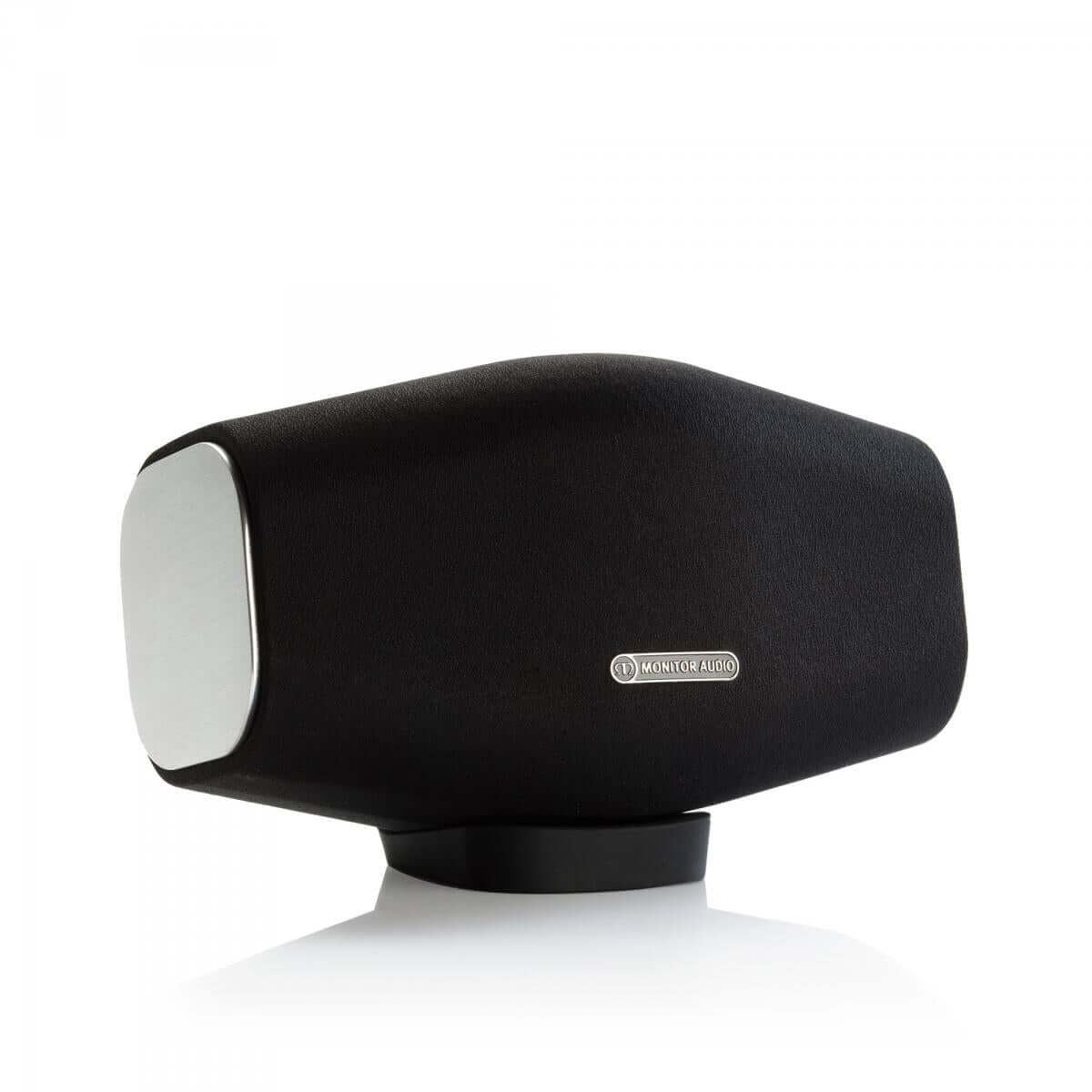

The compact two-way MASS Centre speaker utilises a 1-inch C-CAM and a 4-inch C-CAM mid-bass driver. It can be wall mounted using a single point fixing located on the rear panel or rack/shelf mounted using the stand included.
4 bass midrange driver featuring C-CAM cone technology.
Specially developed 1 C-CAM tweeter design featuring unique venting and rear loading chamber low resonance design to provide clean, pure sound.
Damped polymer moulded cabinet with internal ribbing.
The curved shape helps to eliminate un-wanted standing waves.
Single point fixing (1/4 UNC) for universal wall bracket installation (not provided).
Concealed, discreet cable termination inside end cap using binding post type connection.
Single bolt through driver and bracing system, for increased overall bracing and rigidity.
Single rear mounted port featuring HiVe technology for clean, powerful, punchy bass.
Black cloth finish with contrasting solid aluminium end caps.
Optional floor-stand with internal (pre-wired) cable management system.
Specs
Frequency Response
80Hz 30kHz
Sensitivity
84dB
System Configuration
2- way
Driver complement
1 x 4" C-CAM Bass/Mid-range Driver
1 x 25mm C-CAM tweeter
with vented loading system
Nominal Impedance
8 Ohms
Maximum SPL (each @1M)
104 dBA
Power Handling with amplifier crossover set to 100hz (RMS)
100 watts
Power Handling (individual)
40 watts
Recommended Amplifier Requirements
25-100 watts
Recommended High Pass Crossover Frequency
80-120Hz
Bass Alignment
Reflex Rear Ported
Overall Dimensions (H x W x D)
128 x 228 x 128 mm
51/16 x 813/16 x 51/16 Inches
Weight
1.65kg (3lb, 10oz)
