The MP500 amplifier is the perfect match for our Dynamo In Wall Subwoofers or Outdoor Living Foundation 8.1 system. Configurable as either a 2 channel Stereo or 1 channel bridged Mono amplifier, MP500’s 500 watts of available power, flexible inputs, and selectable DSP presets make for a powerful solution that doesn’t take up a lot of space.
The MP500 is a 2-channel, Multi-Purpose, DSP amplifier with up to 500 watts of power on tap. In 2-channel mode it outputs 140w x 2 @ 8 ohms or 250w x 2 @ 4 ohms and when in bridged mode it can output up to 500w x 1 @ 8 ohms. While MP500 can be used to power nearly any speaker, the selectable onboard DSP presets focus on optimizing all MartinLogan Outdoor products, such as the MartinLogan Outdoor Foundation System, and Custom Installation subwoofers. MartinLogan engineers also went the extra step to make sure that the MP500 could even drive dual subwoofers! These “Dual Subwoofer” DSP presets ensure powerful and reliable operation for MartinLogan Custom Install subwoofers. As new supported products are released, the MP500’s DSP is also easily updatable via PC by following the “Firmware Update” link above. With this and many other features, the MP500 is one of the most versatile custom installation amplifiers on the market!

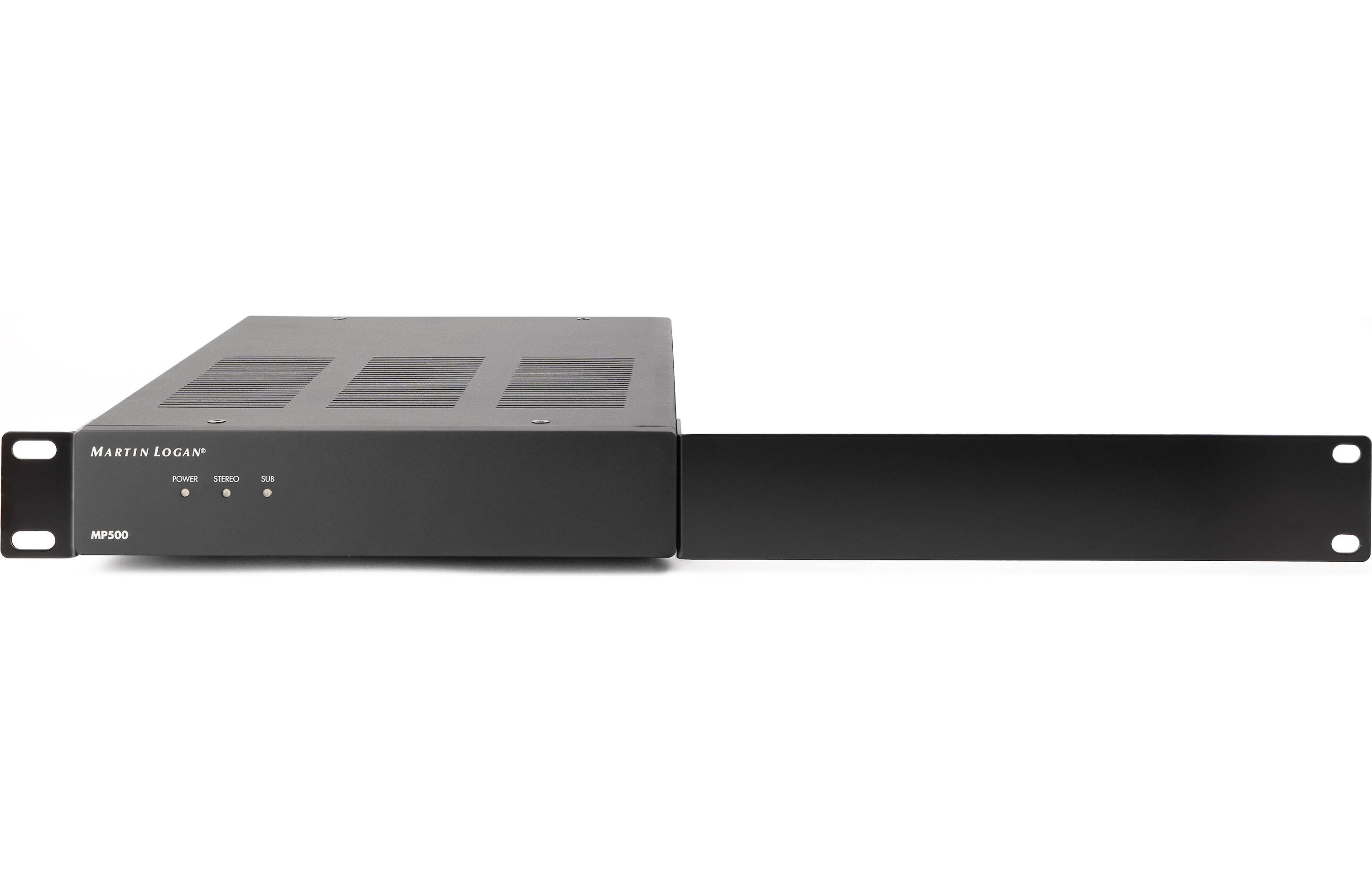

We understand rack space can be a challenge. When multiple amplifiers are required, an optional connector bracket is available to mount 2 MP500’s side by side in the same rack space. With a 1U height and half-rack width, MP500 makes efficient use of your valuable rack space allowing you to run up to 4 subwoofers in a single rack space!
MP500 includes both racks mount ears and feet to support cabinet installations.
MP500CB: Mounts 2 MP500's in a single 1U rack space.
Using multiple subwoofers, especially in a Home Theater, has many benefits. Multiple subs provide more even bass across the room, making sure that every seat gets an incredible performance. In addition to this, by spreading the bass across multiple subs, there are more woofers handling the bass workload. By sharing bass across multiple subwoofers, distortion (and potential stress on the components) is lowered, resulting in cleaner, more effortless sound.
Of course the most obvious benefit of increasing the subwoofer count is the higher maximum output potential, making sure that you have plenty of "room to spare" in the system to better allow for those dynamic movie explosions or dramatic musical passages. In a nutshell, the more subs the better! To that end, MP500 has onboard DSP presets optimized for both single and dual subwoofer configurations, meaning you can run up to 2 MartinLogan custom subwoofers off a single MP500, and with the optional connector bracket you can fit 2 MP500s in a single rack space bringing the potential to run 4 subs off a single rack space!
The Perfect Match
For MP500, MartinLogan engineers created performance optimized DSP presets for our Custom Installation subwoofers and 8 ohm Outdoor speakers, ensuring you get incredible sound and reliability. While most installations will be able to use the bass management within the AVR, Processor, or other device, we also understand there are situations where a separate low pass filter may be required. MartinLogan custom subwoofer DSP presets give you a low pass filter option (when using the Left/Right Input) to help support your custom installation.
Fan Cooled Yes
THD < 0.05%
Amplifier Frequency Range 20Hz-20kHz +1/-3dB
Output 2V Trigger Passthrough
Included Accessories Power Cord, Rack Mount Ears, and Hardware Pack
Continuous Watts x Channel @ Ohms: 140W x 2 @ 8ohms, 250W x 2 @ 4ohms, 500w x 1 @ 8ohms
Design Ultra-Class-DTM Multi-Purpose, Two-Channel Power Amplifier
Standby Power <.5 Watts

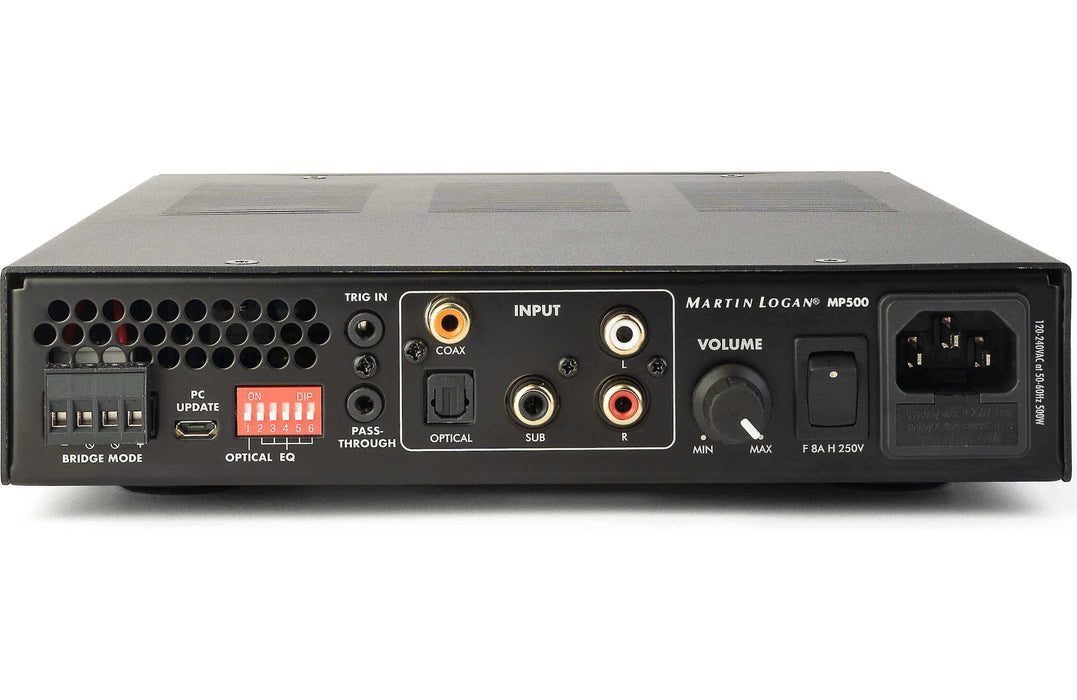

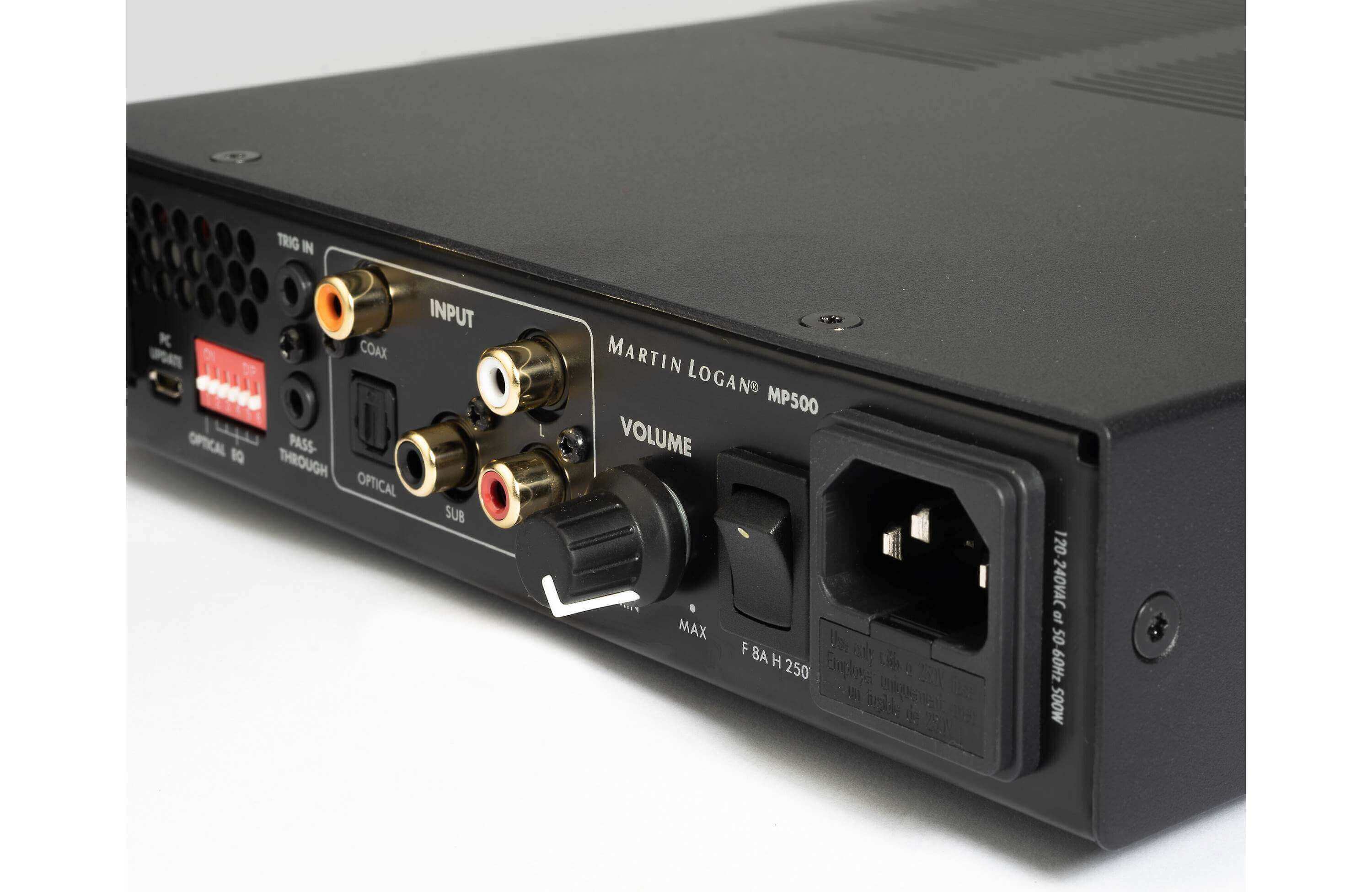

Controls (back panel): Main Power Switch (On/Off), Volume Control (Min/ Max), Preset Profile Selection (Dip Switches Position 2-6) (32 Presets), Coax or Optical Selection (Dip Switch Position 1)
Amplifier Up to 500 Watts (when Bridged)

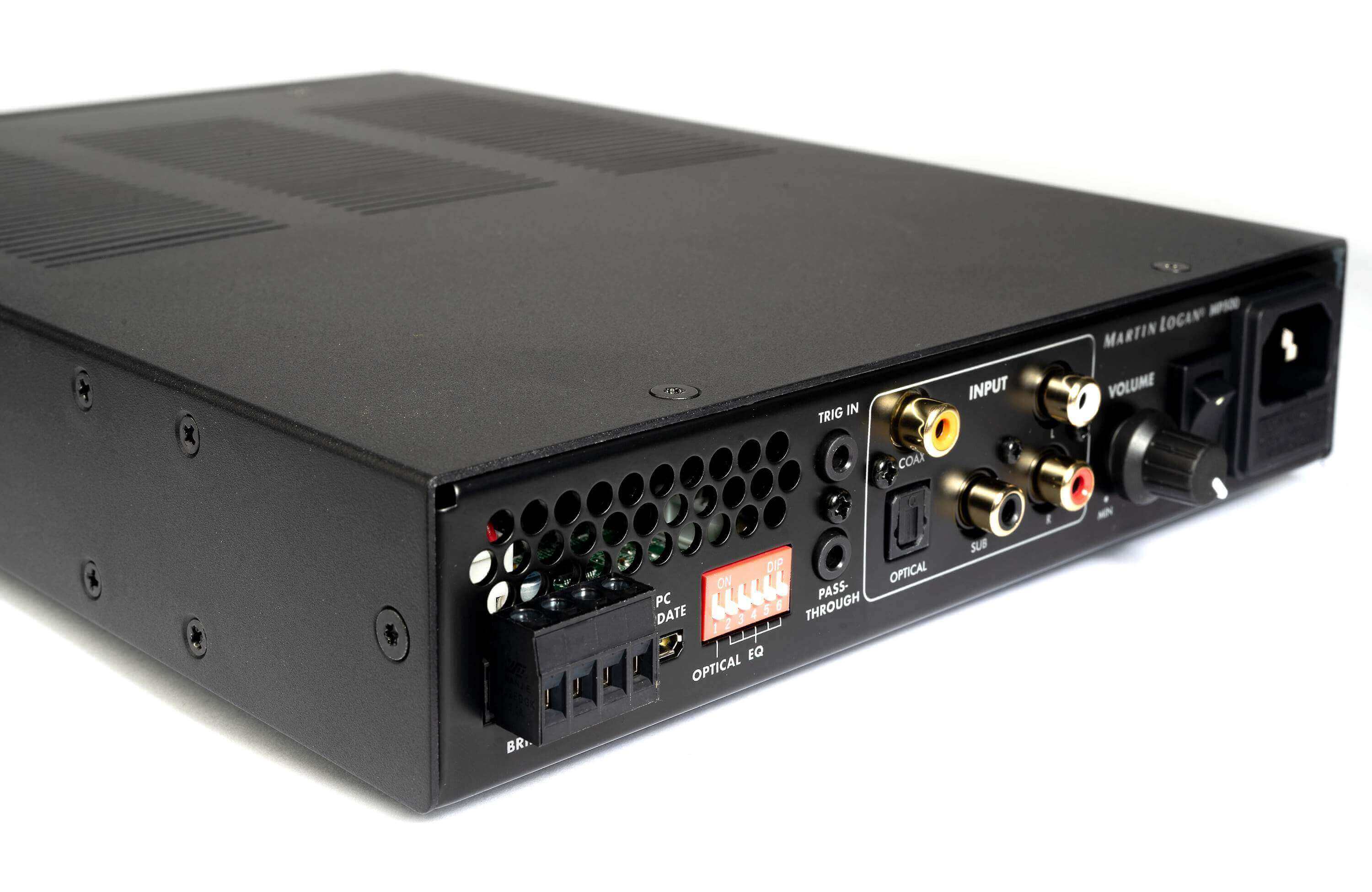

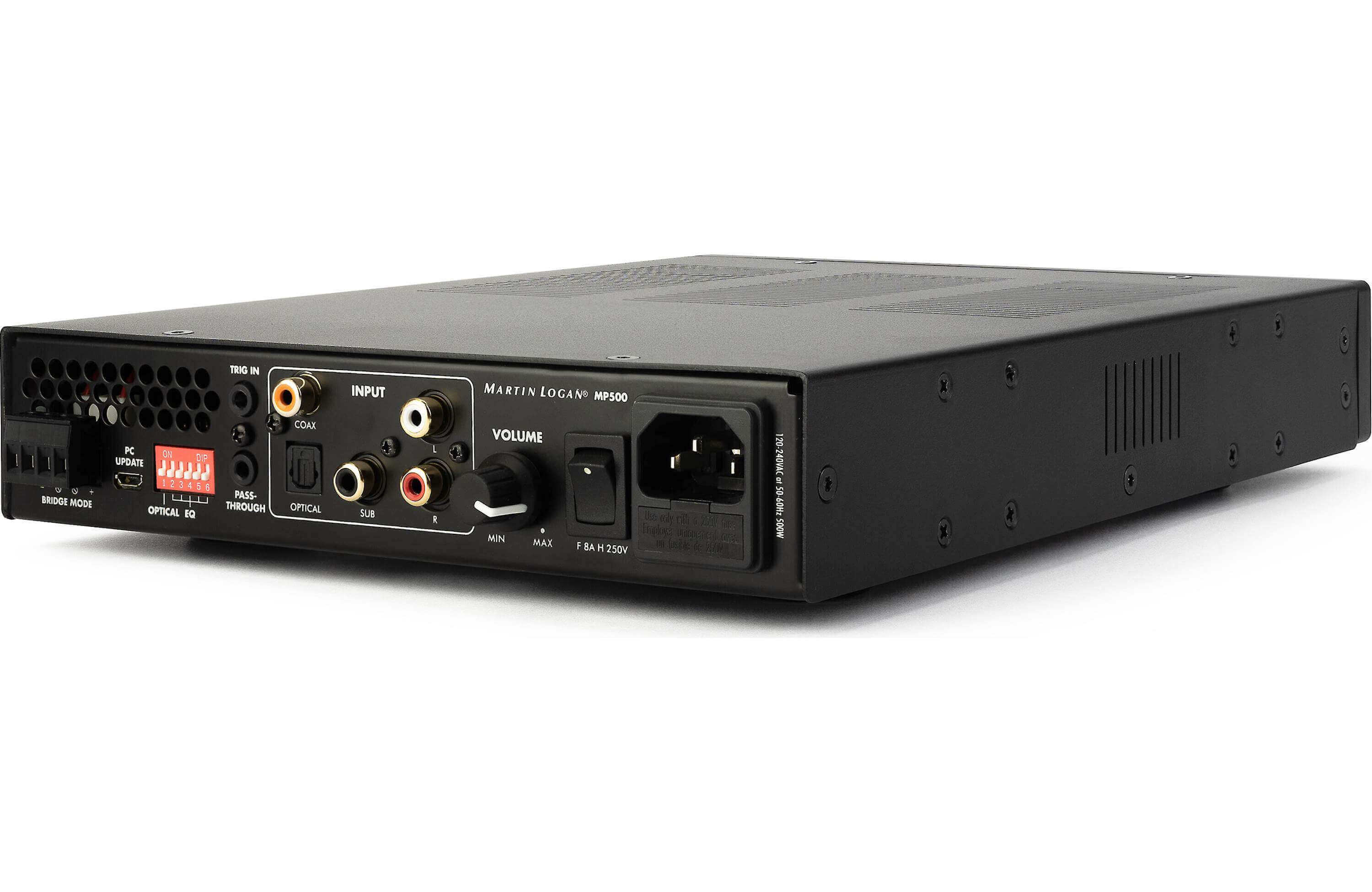

Inputs Stereo RCA, Sub RCA, 12V Trigger, Digital Optical, Digital Coax, MIcro USB (Firmware Updates)
Weight 7.22 lb (3.27 kg)
Dimensions 2.2” x 8.5” x 12.5” (5.6cm x 21.6cm x 31.75cm)
