Lumin U1 Digital Transport/Streamer

by Lumin
UPC:
Call for Availability
$7,500.00

SKU LuminU1Silver
Color: Silver

Product Qualifies for FREE Ground Shipping

Lumin U1 Digital Transport/Streamer

THE AUDIOPHILE STREAMING TRANSPORT
A LUMIN for DAC owners; LUMIN U1 focusses on pure digital.

WHY LUMIN U1
After years of requests from existing high-end DAC owners, the LUMIN team have taken the finest components from the flagship S1 model and developed them specifically for digital processing and output.

Using a new dedicated LUMIN U1 processor adds upsampling and downsampling for every supported format – all the way from 44.1kHz to DSD128 – providing maximum DAC compatibility and optimization.

Transport-only unit based on the award-winning LUMIN S1

  • 5 types of digital audio output including new USB
  • Includes DSD512 22.5Mhz 1-bit playback
  • PCM 44.1–768kHz 16–32-bit
  • 4 exceptionally low-phase-noise crystal clock oscillators
  • External dual-toroidal power supply
  • Resampling to every supported format up to DSD128 and PCM384kHz
  • Supports DoP (DSD over PCM) for Optical, Coaxial RCA, Coaxial BNC & AES/EUB SPDIF

All the usual LUMIN refinements

  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by TINMAN
  • LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.
Specs

U1 SPECIFICATION

  • DSD SUPPORT:

    • Up to DSD512 22.5MHz, 1-bit

  • PCM SUPPORT:

    • Up to 768kHz, 16–32-bit, Stereo

  • UPSAMPLING RATES & BIT DEPTHS:

    • DSD128 upsampling option for all files
    • PCM 384kHz upsampling option for all files

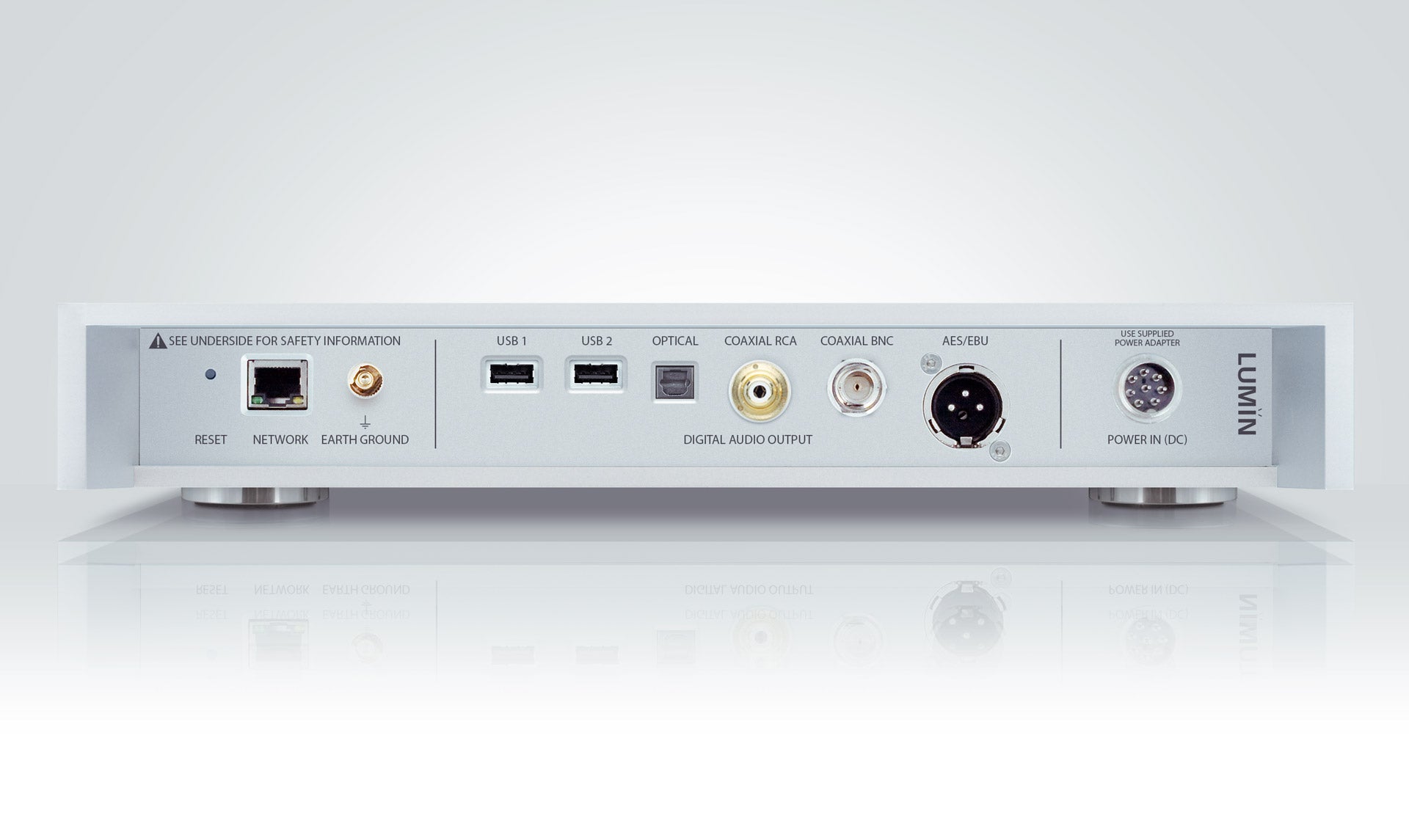

  • DIGITAL OUTPUT STAGE:

    • USB:

      • DSD512 22.5MHz, 1-bit, Stereo
      • PCM 44.1–768kHz, 16–32-bit, Stereo

    • OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:

      • DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
      • PCM 44.1kHz–192kHz, 16–24-bit

  • POWER SUPPLY:

    • External dual-toroidal
    • Available in 240V and 110V versions

  • PHYSICAL:

    • FINISH:

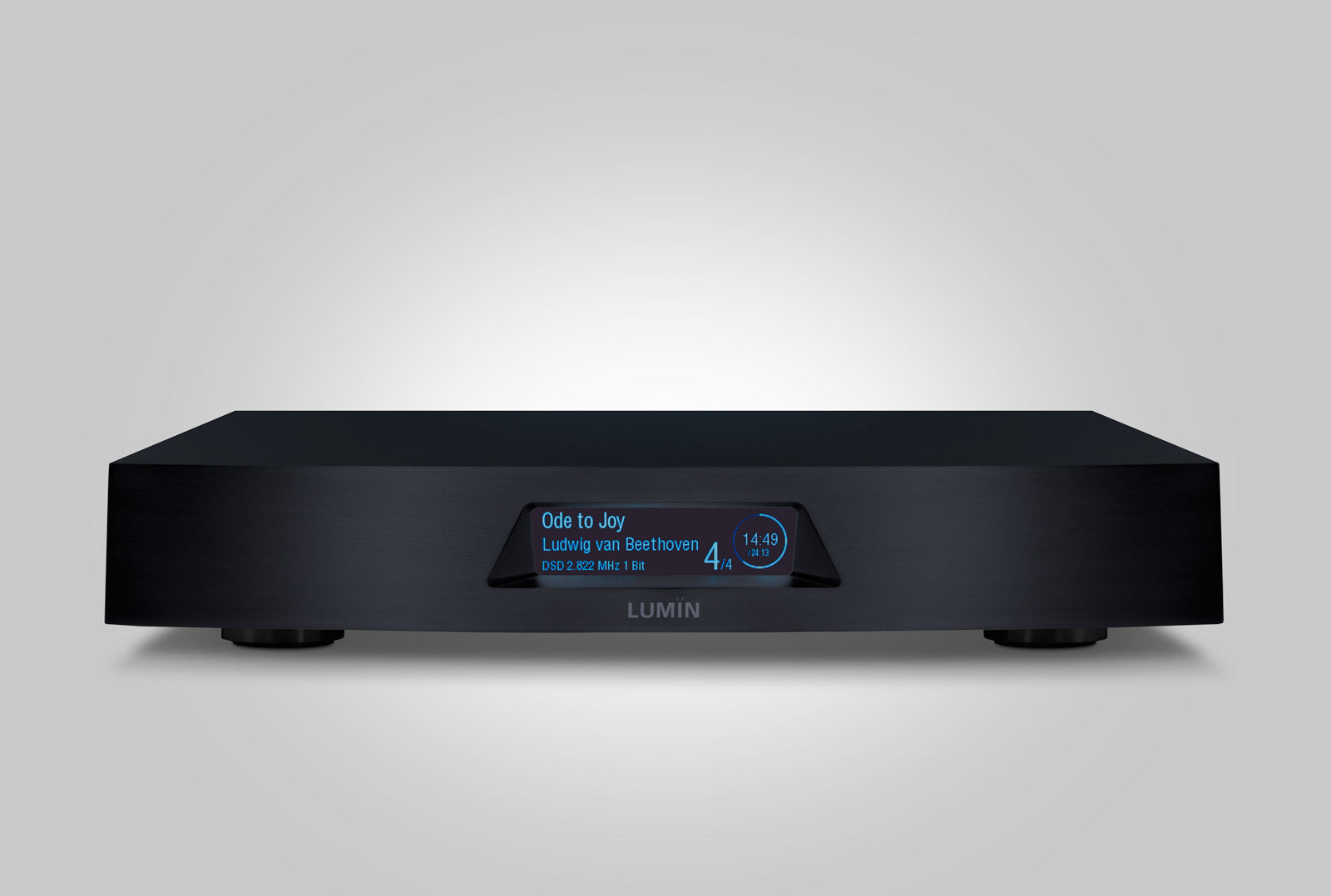

      • Raw brushed aluminium or black anodised brushed aluminium

      LUMIN (SOLID ALUMINIUM CHASSIS):

      • 350mm (W), 345mm (D), 60mm (H), 8kg

    • PSU:

      • 100mm (W), 315mm (D), 55mm (H), 2kg

SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS

  • STREAMING PROTOCOL:

    • UPnP AV protocol with audio streaming extension (OpenHome)
    • Roon Ready
    • TIDAL Connect
    • Spotify Connect
    • AirPlay-compatible
    • Gapless Playback
    • On-Device Playlist

  • APP FEATURES:

    • Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    • Tidal MQA icons to identify high-res music
    • Qobuz high-res icons to identify high-res music
    • Volume control
    • High-resolution artwork
    • Artwork caching
    • Search
    • Multiple tag handling
    • Composer tag support
    • Album-grouping in playlist
    • Automatic internet links to artists/album/songs
    • Saving and restoring of playlists (including Tidal and Qobuz)

  • SUPPORTED AUDIO FILE FORMATS:

    • DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    • PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    • Compressed (lossy) Audio: MP3, AAC (in M4A container)
    • MQA (Core decode)

  • INPUT:

    • Ethernet RJ45 network 1000Base-T
    • USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

  • SUPPORTED CONTROL DEVICES:

    • All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
    • Android devices. Android 4.0 (Ice Cream Sandwich) or later required

  • OTHER:

    • Leedh Processing lossless digital volume control
    • Programme of Continuous Development – Firmware-upgradable for further features and enhancements
