Simaudio 390 Moon Network Player and Preamplifier

Simaudio 390 Moon Network Player and Preamplifier

The gateway to great sound

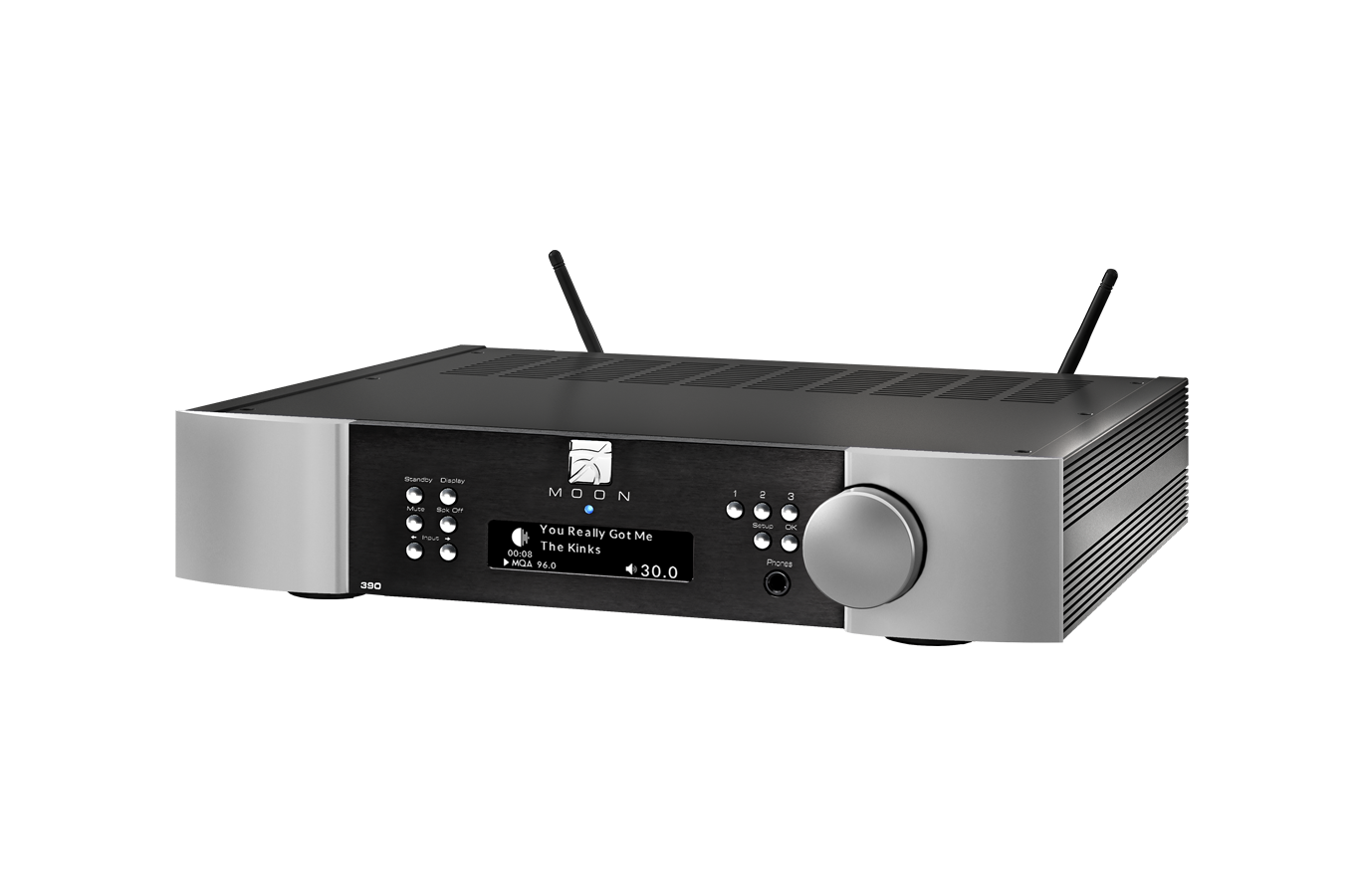

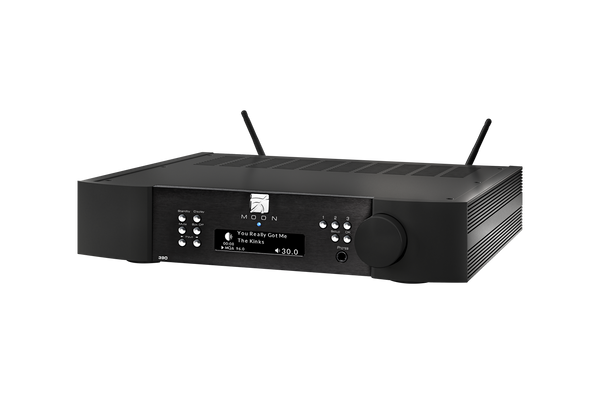

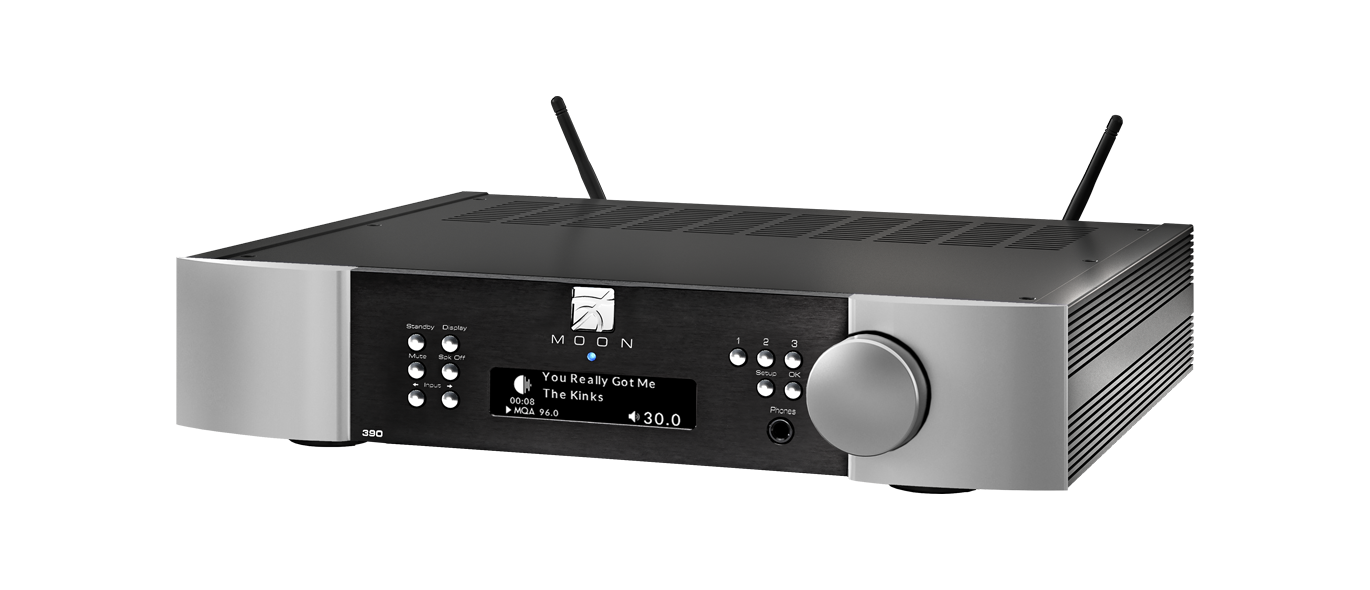

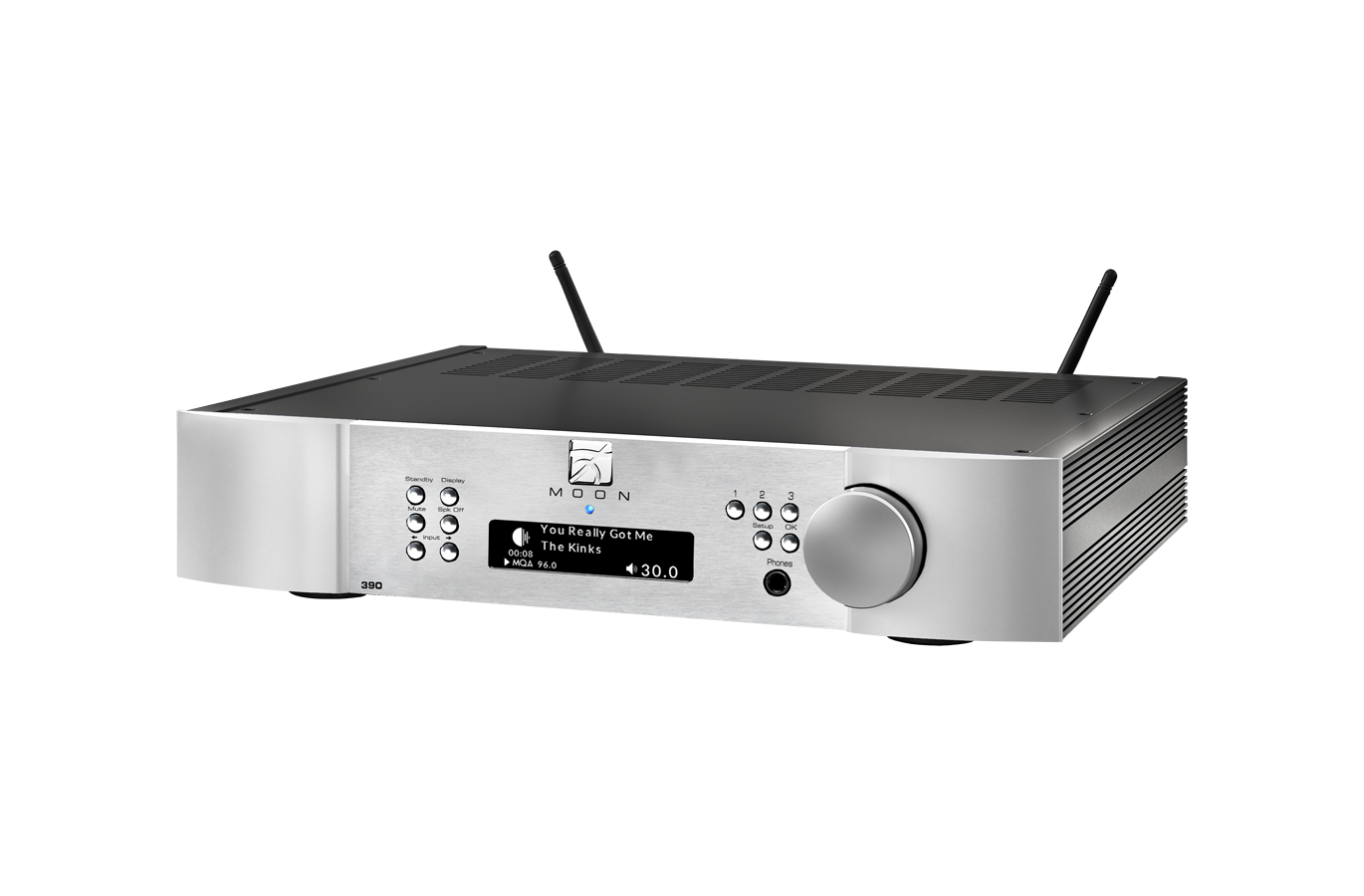

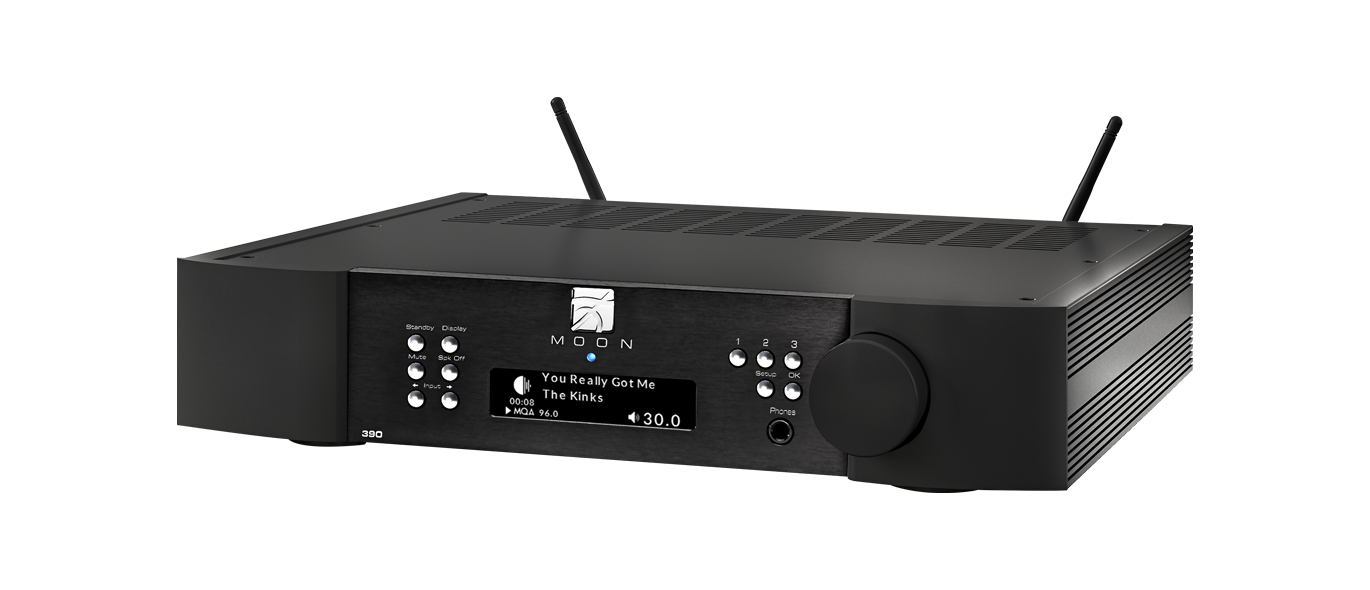

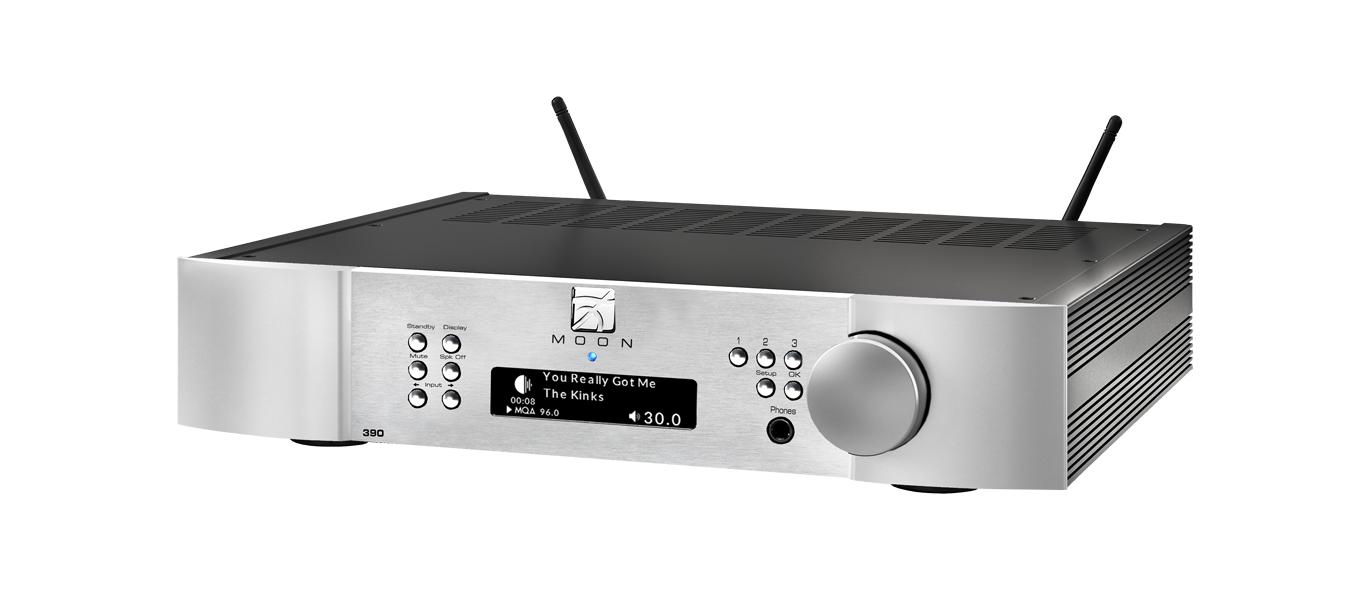

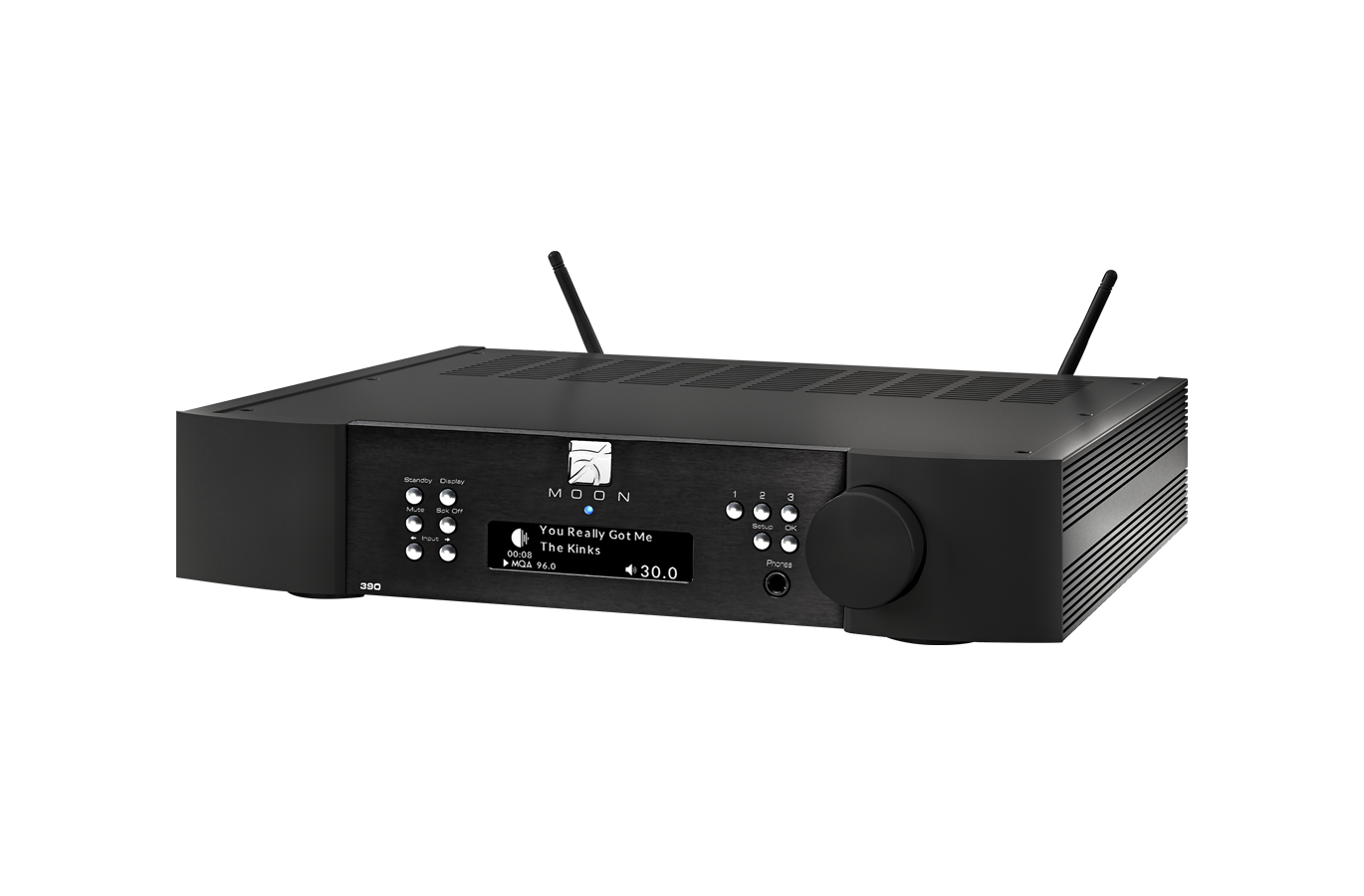

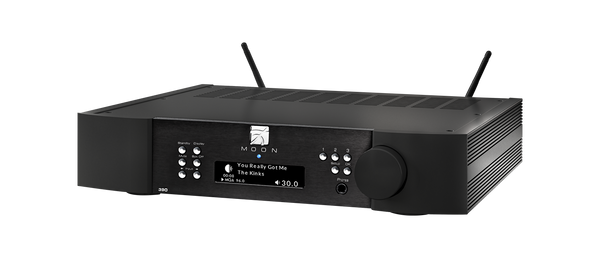

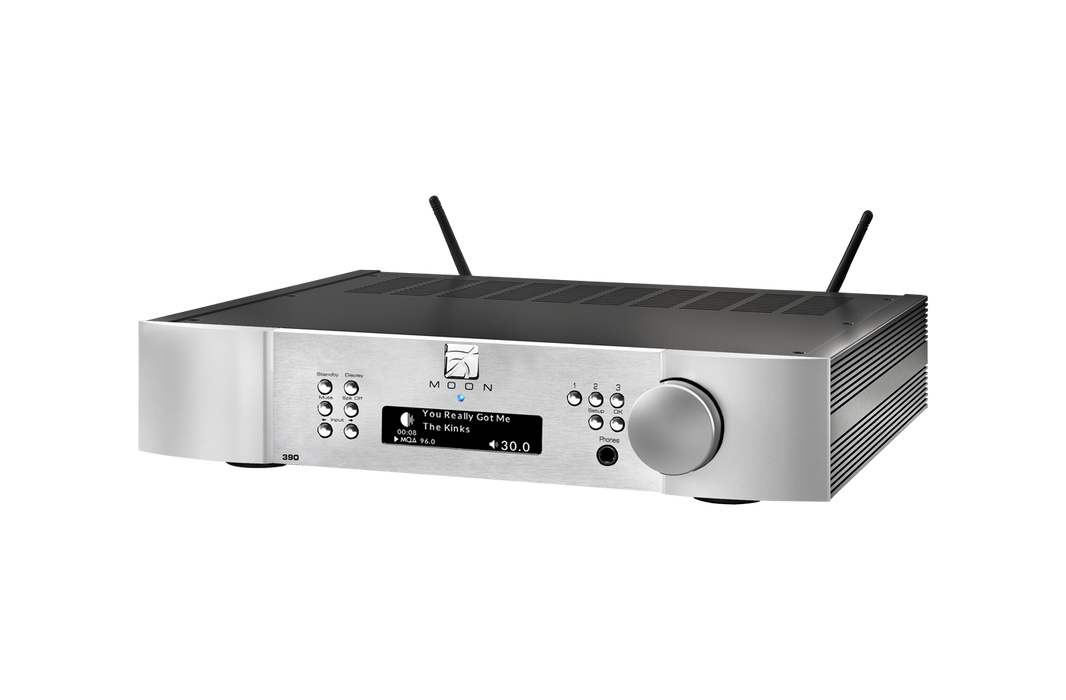

The MOON 390 Network Player / Preamplifier offers a complete high-end listening solution. Featuring a DAC, preamplifier, headphone amplifier, phono stage and network streaming capability, it is a truly flexible music system. Simply connect it to a power amplifier or active loudspeakers to hear an exceptional audio performance.

MiND 2 streaming module

MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. MiND 2 allows the playback of all the most common file formats, including DSD and MQA (via local files and TIDAL Master files). The MiND 2 also boasts a USB host port, permitting access to music on USB thumb drives. Finally, MiND 2 will also stream any digital or analog input of the 390 to other MiND 2 zones on the same network.

High-resolution audio streaming experience

The MOON 390 Network Player / Preamplifier is designed to deliver an outstanding high-resolution streaming experience through music services such as Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified. It is also Roon Ready and has Bluetooth aptX connectivity.

Combination of successful products for audiophile

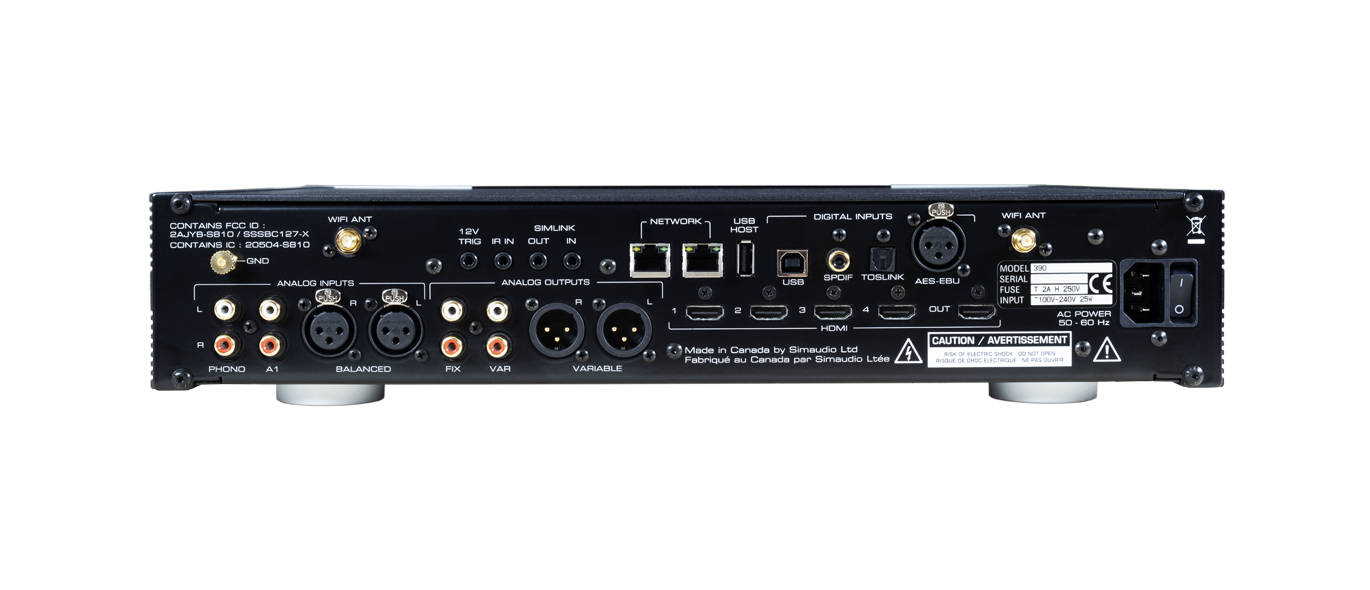

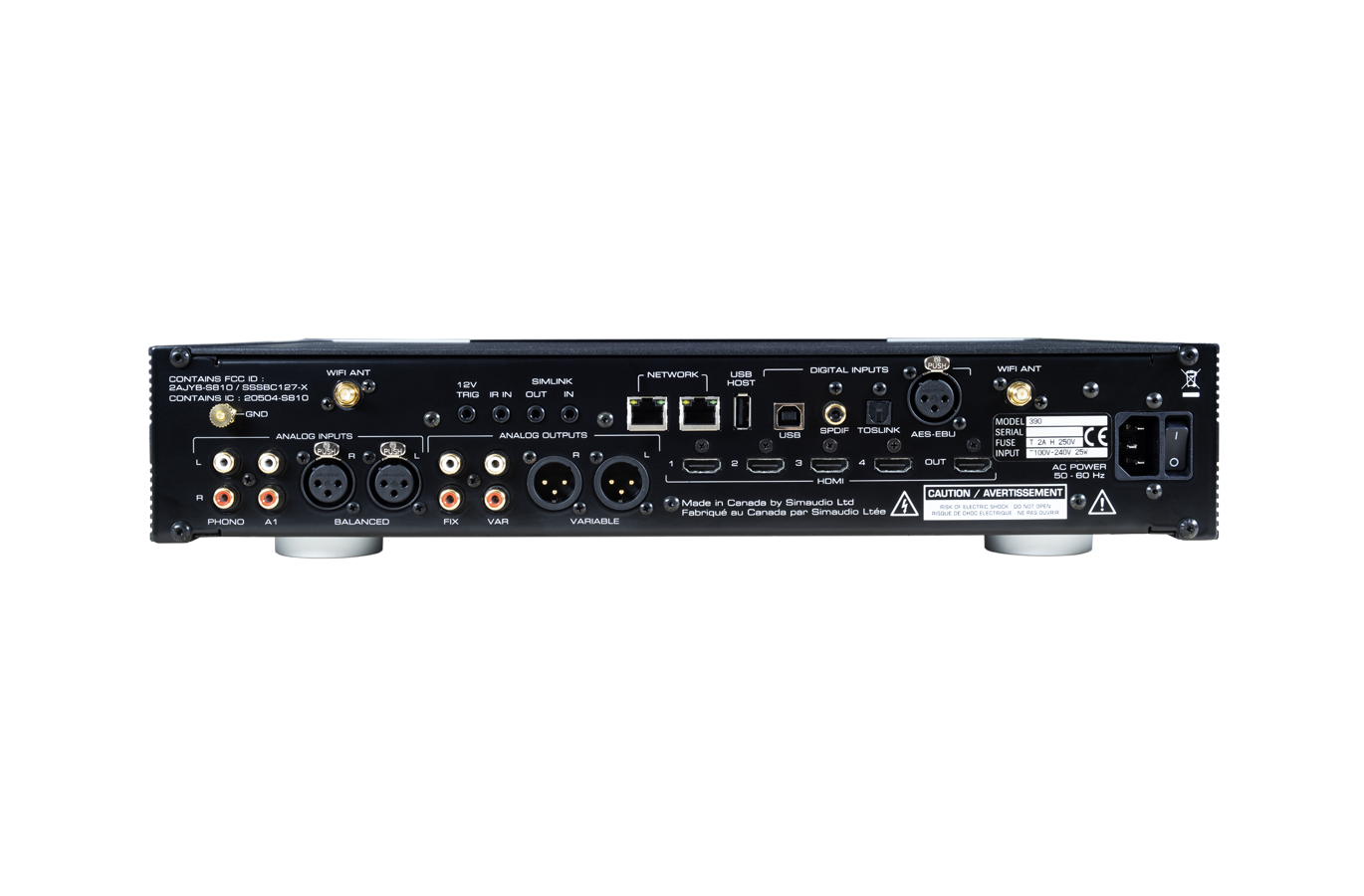

Simaudio has built upon its heritage of outstanding audio products by combining the functionality of the award-winning MOON 350P preamplifier and MOON 380D DAC with the latest high-end streaming architecture to create the MOON 390 Network Player / Preamplifier. With a host of analog and digital connection possibilities, no matter how you play your music, the MOON 390 will reveal astonishing levels of detail.

Design features

ROON Ready device

Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services

MQA and DSD decoding

Stream local source to other zones

Menu-configurable MM/MC phono stage

High End ESS DAC PRO chipset

Up to 32-bits / 384 kHz sampling rate (USB)

Multi-room synchronized playback

HDMI 2.0 switcher (4k, HDCP 2.2)

OLED screen

MHP (MOON Hybrid Power Universal Power Supply)

Specs

Analog input impedance 22 k
Max analog input 5 V RMS
Max gain 10 dB
Output impedance 50
Crosstalk @ 1 kHz -116 dB
Frequency response 10Hz - 200kHz -0.5 dB/-3 dB
Signal to Noise ratio 125 dB
Total Harmonic Distortion (THD+N) 0.0004 %
Intermodulation Distortion (IMD) 0.0003 %
Headphone output power (600 / 300 / 50 ) 100 mW / 200 mW / 0.8 W
Headphone output THD 0.005 %
Headphone output IMD 0.005 %
Power Consumption @ Idle 25 W
Power Consumption @ Standby 20 W
Power Consumption @ low power Standby 4 W
AC Power Requirements 100-240V / 50-60Hz
Shipping weight 22 lb / 10 kg
Dimensions (width x height x depth) 16.9 x 3.5 x 13.1 in, 42.9 x 8.9 x 33.3 cm
