Lumin U1 Digital Transport and Streamer and Lumin X1 Power Supply

by Lumin
UPC:
Call for Availability
$9,200.00

SKU LuminU1X1BundleBlack
Color: Black Lumin U1 and Black X1 PSU

Product Qualifies for FREE Ground Shipping

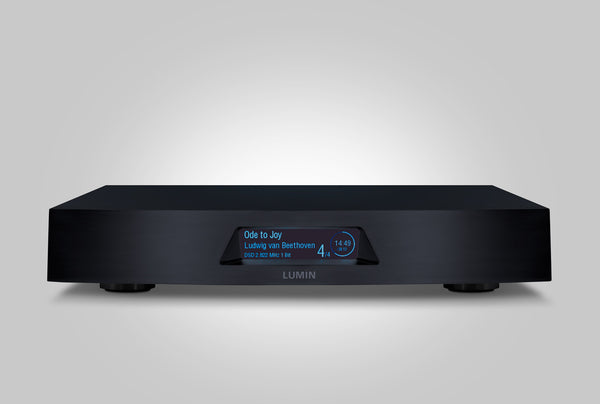

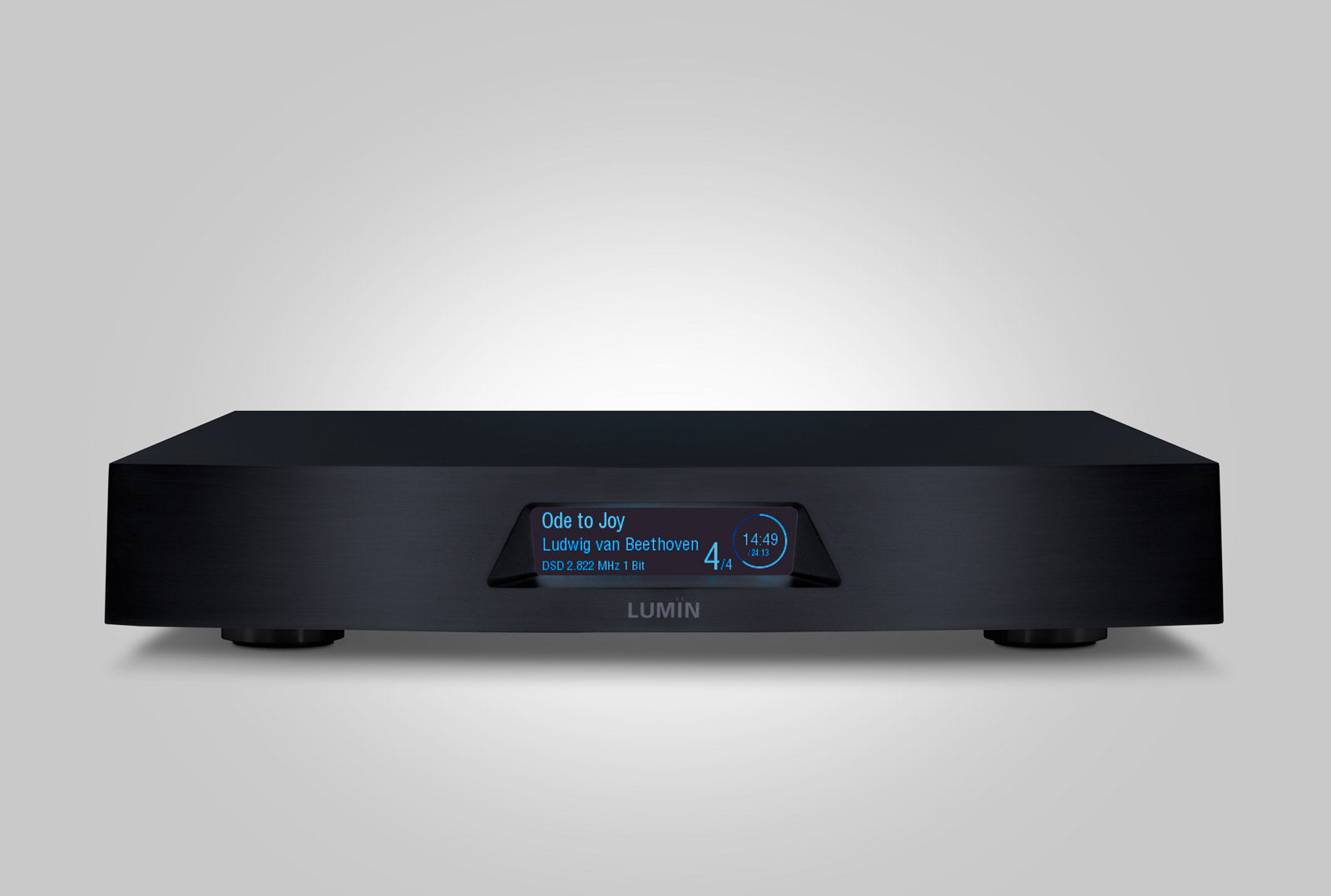

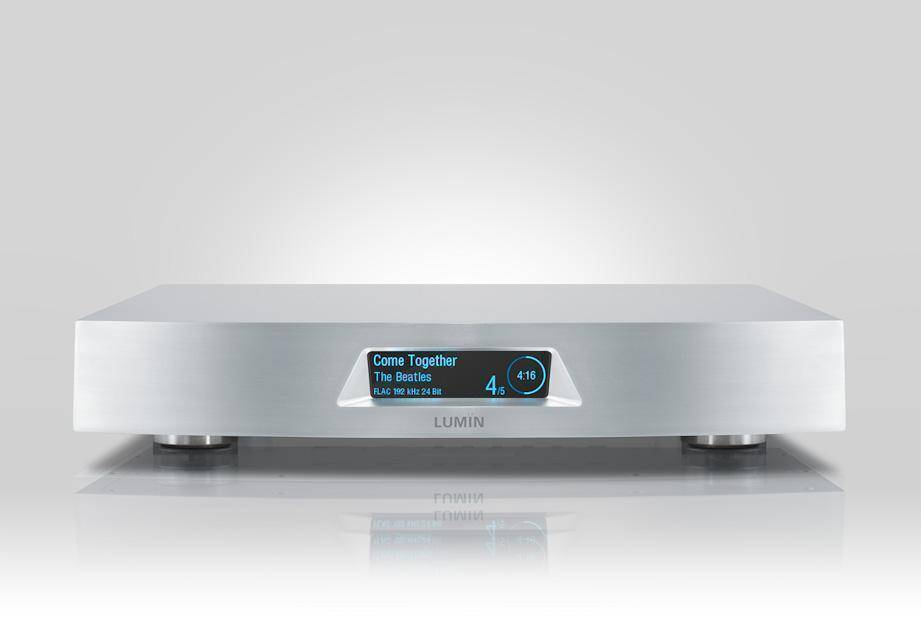

Lumin U1 Digital Transport and Streamer and Lumin X1 Power Supply

WHY LUMIN U1

After years of requests from existing high-end DAC owners, the LUMIN team have taken the finest components from the flagship S1 model and developed them specifically for digital processing and output.

Using a new dedicated LUMIN U1 processor adds upsampling and downsampling for every supported format all the way from 44.1kHz to DSD128 providing maximum DAC compatibility and optimization.

Transport-only unit based on the award-winning LUMIN S1

  • 5 types of digital audio output including new USB
  • Includes DSD512 22.5Mhz 1-bit playback
  • PCM 44.1 768kHz 16 32-bit
  • 4 exceptionally low-phase-noise crystal clock oscillators
  • External dual-toroidal power supply
  • Resampling to every supported format up to DSD128 and PCM384kHz
  • Supports DoP (DSD over PCM) for Optical, Coaxial RCA, Coaxial BNC & AES/EUB SPDIF

All the usual LUMIN refinements

  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay-compatible, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "the most convenient interface in existence" by Tinman
  • LUMIN programme of continuous development that has seen Roon, MQA, and Spotify support added in 2017 alone.

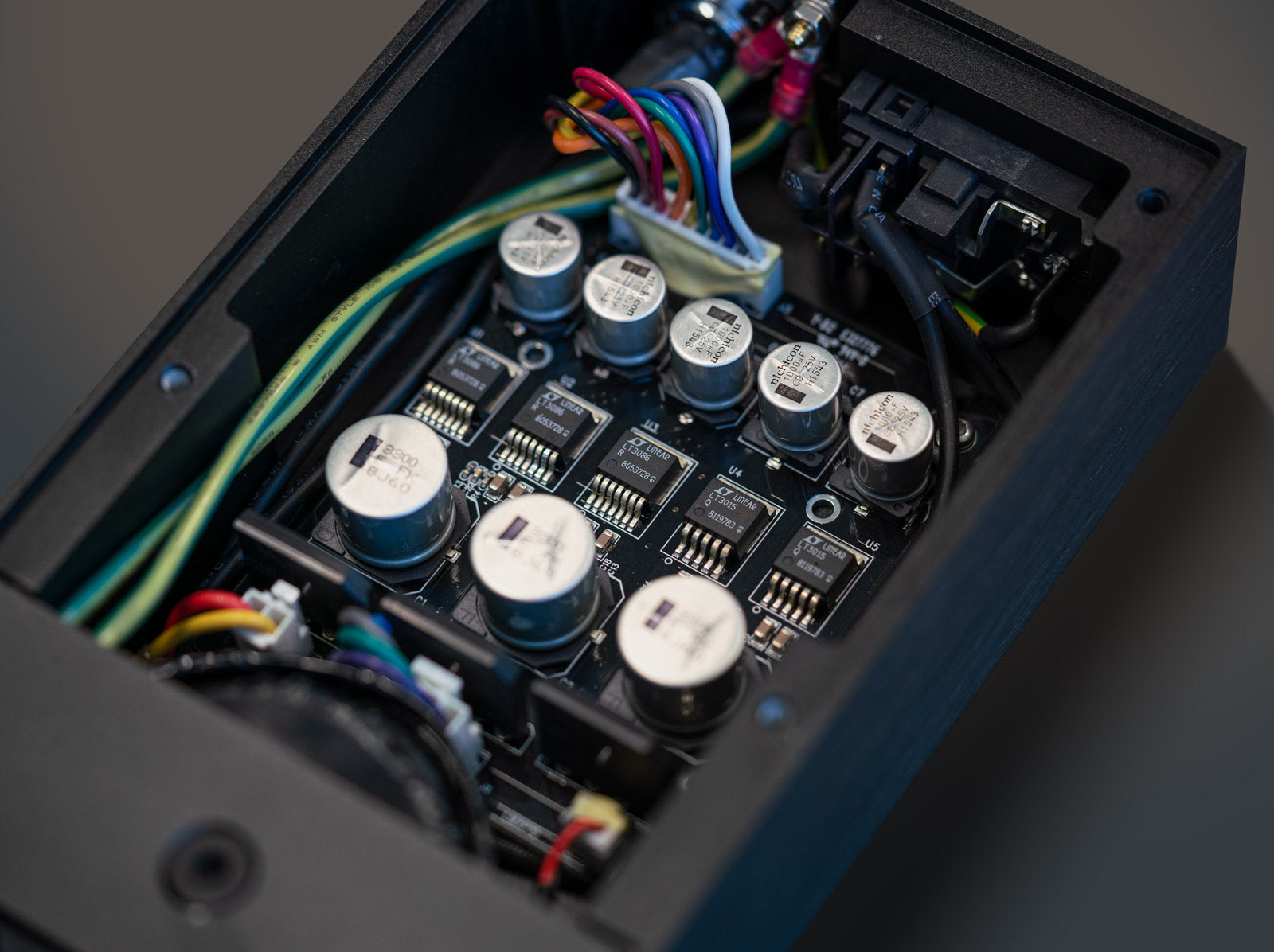

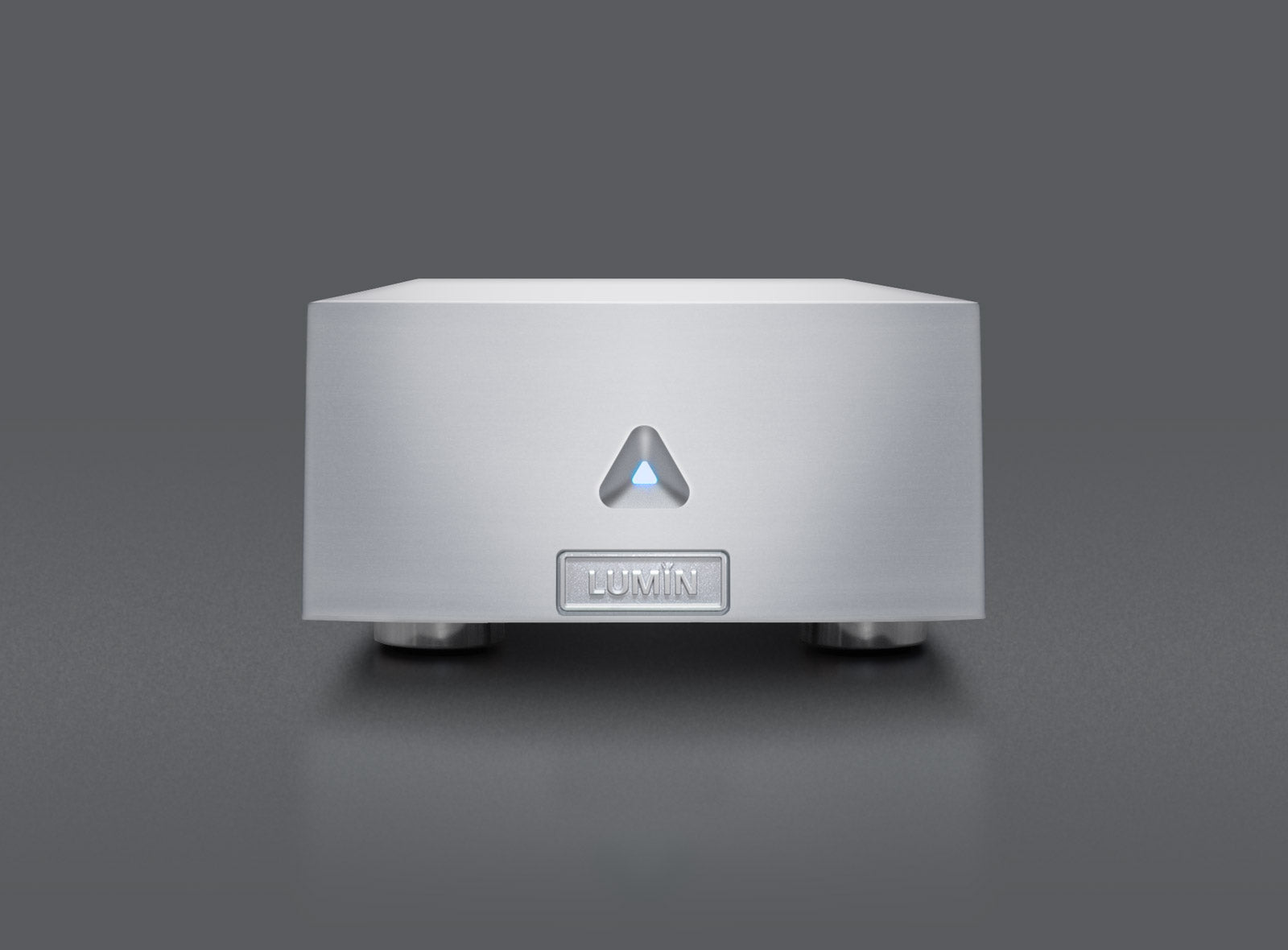

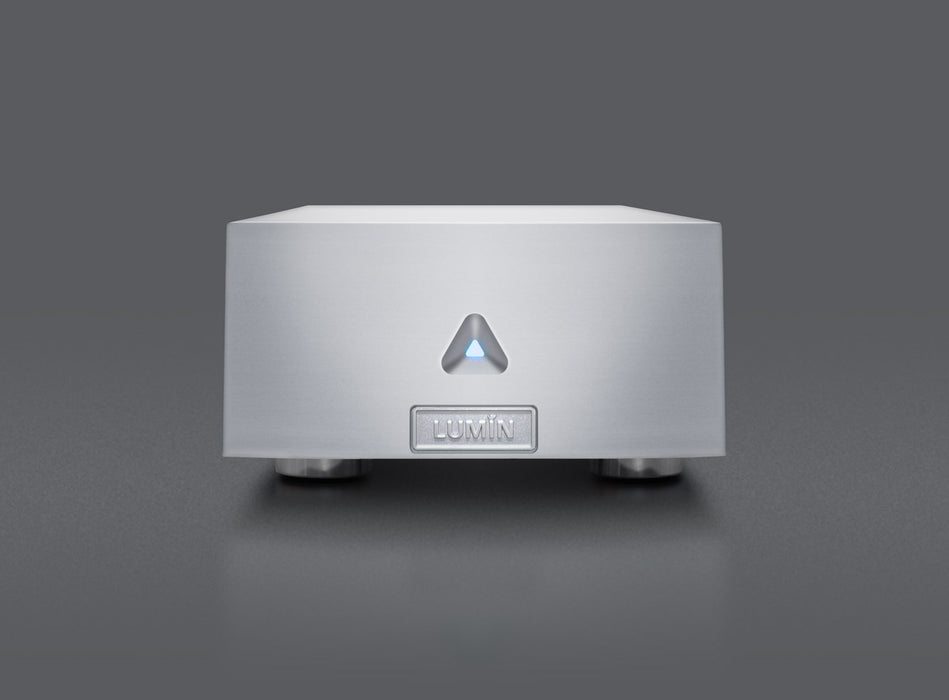

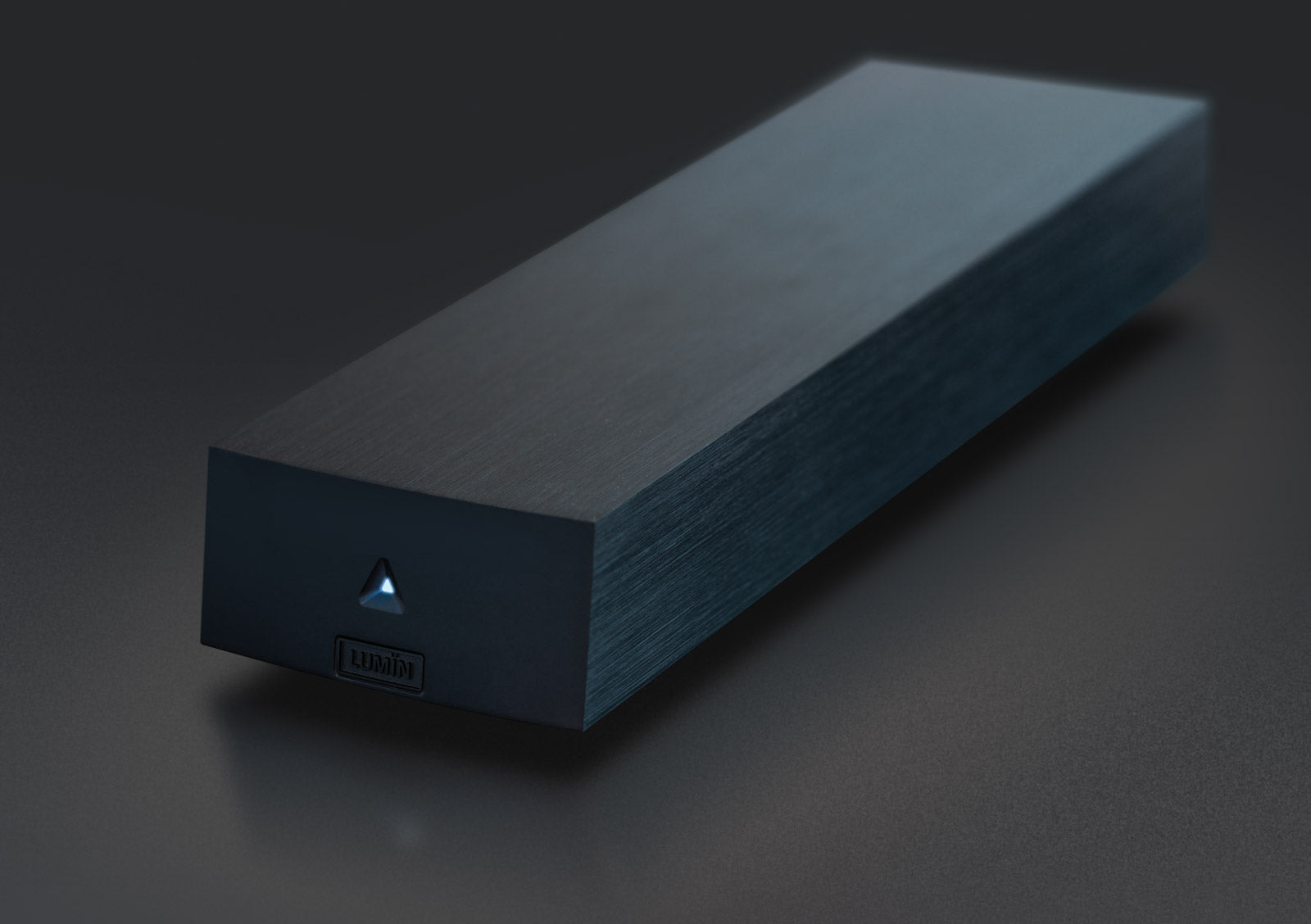

LUMIN X1 PSU

The perfect upgrade for your LUMIN

  • Solid billet construction using all the same techniques as your main chassis
  • Thick aluminium walls provide even more shielding
  • Available in anodised black and raw silver
  • Supplied with a custom cable for S1 / A1 / T1 / U1 compatibility
  • Separate digital and analogue circuitry
  • Low-noise Linear Regulator
  • The highest quality components used throughout

Specs

Sampling rate: Up to DSD512 22.5 MHz, PCM 768 kHz, 16-32 bit, Upsampling to DSD128 and 384kHz PCM

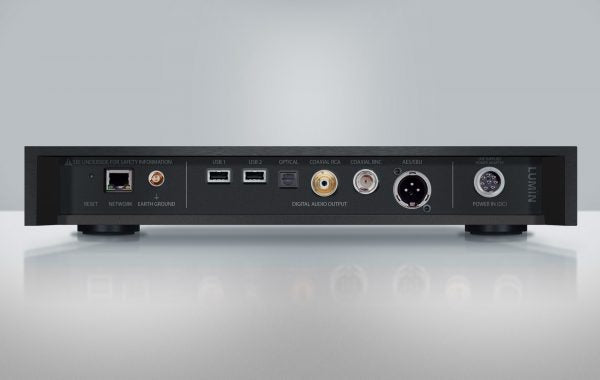

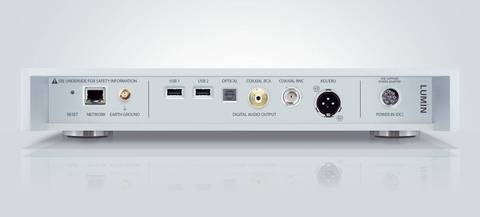

DIGITAL Outputs
USB:
DSD512 22.5 Mhz, PCM 44.1 khz 768 kHz, 16 32bit
Optical, Coaxial RCA, Coaxial BNC, AES/EBU: DSD (DoP) 2.8 MHz, PCM 44.1 kHz 192 kHz, 16 24bit

Power Supply: External dual-toroidal

Dimensions (WHD)
Unit:
13.78" x 2.4" x 13.6" (350 x 60 x 345 mm)
PSU: 3.94" x 2.16" x 12.4" (100 x 55 x 315 mm)

Weight
Unit: 17.63 lb
PSU: 4.4 lb

LUMIN X1 PSU UPGRADE SPECIFICATION:
PHYSICAL
FINISH: Raw brushed aluminum or black anodized brushed aluminum
DIMENSIONS: 106mm (W), 334mm (D), 60mm (H), 4kg
CABLE LENGTH: PSU to LUMIN DC Umbilical Cord: 1.5m
COMPATIBILITY: LUMIN S1 / A1 / T1 / U1
POWER: 110V - 120V AC 50/60HZ 0.2A or 220V - 240V AC 50/60HZ 0.2A
