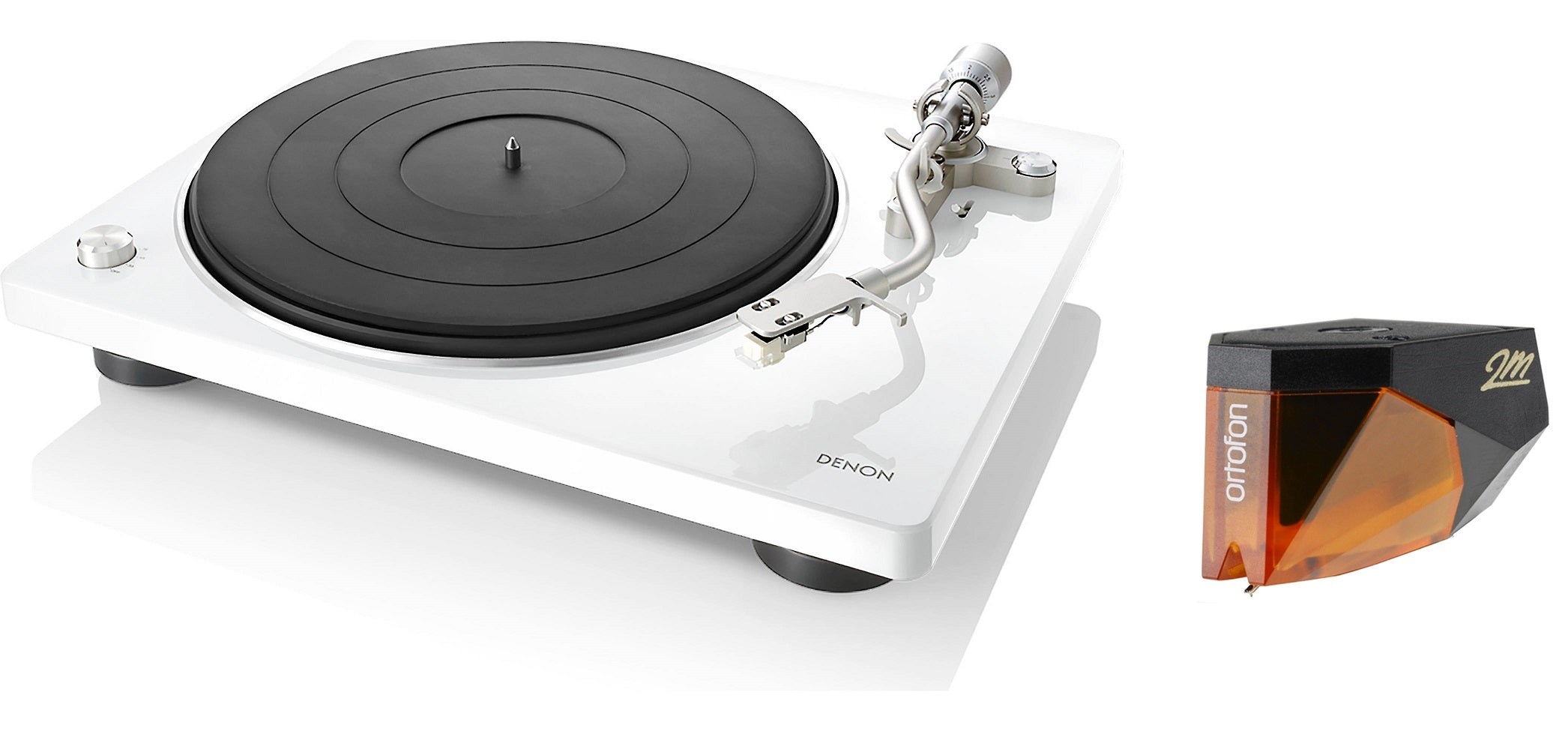

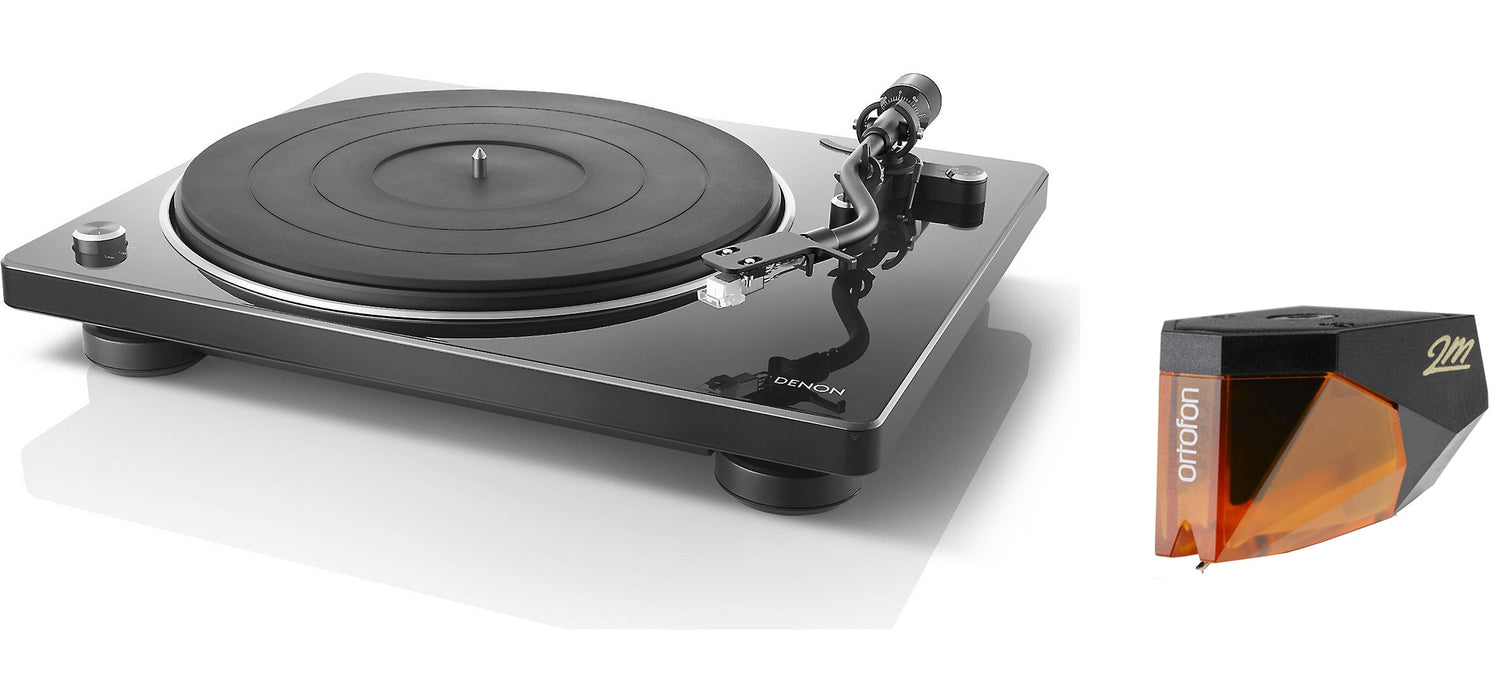

Denon DP-400 Turntable with Ortofon 2M Bronze Phono Cartridge Bundle
Product Qualifies for FREE Ground Shipping
Denon DP-400 Turntable with Ortofon 2M Bronze Phono Cartridge Bundle
This Turntable Bundle consists of the following:
QTY: 1 Denon DP-400 Hi-Fi Turntable with Speed Auto Sensor
QTY: 1 Ortofon 2m Bronze Moving Magnet Phono Cartridge
**Phono Cartridge comes professionally mounted and calibrated
Overview
Rediscover your passion for vinyl with the Denon DP-400 Hi-Fi turntable with speed auto sensor. Strong construction and elegant design blends seamlessly into the existing Denon Design Series. The curved, horizontal tracking angled tonearm lifts automatically and stops the platter when vinyl reaches the end of playback. Weighted, belt-driven platter supports 33 1/3 rpm, 45 rpm or 78 rpm records with precision that’s faithful to the original recording. Integrated phono equalizer creates an open, enveloping sound stage for your cherished albums with detailed, accurate reproduction. Includes MM cartridge and supports MC cartridges. Exclusive, removable dust cover doubles as a display stand.
SPECIALLY ENGINEERED TONEARM
Features a carefully engineered curved, horizontal tracking angled tonearm with auto-lift and playback stop. When the vinyl reaches the end of playback, the tonearm auto-lifts 10 seconds prior to the groove end and returns to its seated position, preserving the excellent condition of your album. Curved tonearm design also reduces harmonic distortion, ensuring a crystal clear sonic signal every time you listen.
Easy Setup and Operation
Takes minutes to unbox and quickly operate for novice and seasoned vinyl fans. Plug DP-400 into your favorite amplifier or system, including the Denon Design Series, and immediately begin reconnecting with your vinyl collection — it’s that easy.
Exclusive, Removable Dual-purpose Dust Cover
Removable dust cover features a modern design, elevating the overall aesthetic of DP-400 while eliminating vibration issues that affect music quality associated with attached covers. Doubling as a display stand for your album cover, place the dust cover upright on the included base and show it proudly to friends
Phono Equalizer
Built-in phono equalizer creates an open, enveloping sound stage that enlivens your vinyl collection while staying true to the original recording. Connect it directly to a mini component or integrated amp that lacks a phono terminal for seamless use.
Cartridge Options
Includes an MM cartridge for more precise listening and added musical detail. As a producer of the longest-selling cartridge in market, enjoy the Denon DP-400 turntable with confidence. If you prefer listening via an MC cartridge, easily swap out the existing MM cartridge to fit your audio preferences. Enjoy iconic Denon sound quality however you choose to listen.
Weighted, Belt-driven Platter with Auto Sensor
Integrated auto sensor accurately controls the platter, preventing unwanted speed fluctuations during playback — enjoy audio reproduction exactly as the artist intended.
Compact Size
At just 415 mm in width, DP-400 is constructed to fit seamlessly into your existing Hi-Fi system. Though compact in size, it still delivers the powerful, detailed sound you expect from Denon.
Sophisticated Design Series Aesthetic
Blending seamlessly with the popular Denon Design Series, DP-400 features a sophisticated form factor and solid construction. Durable aluminum materials offer a modern aesthetic. Pair it with the rest of the Denon Design Series to complete your elegantly designed Hi-Fi system.
100+ Years of Firsts in Audio Technology
Founded in 1910, Denon has a deep heritage of "firsts" in audio technology — from Japan's first audio electronics manufacturer, to producing the world's first commercial CDs. This focused investment in audio R&D ensures you get the latest technology and highest quality with every listening experience.
Specs
Denon DP-400 Turntable Specifications:- Equalizer off: 2.5mV
- Equalizer on: 150mV
- In standby mode: 0.5W or less
Ortofon 2M Bronze Specifications:
Technical data
Output voltage at 1000 Hz, 5cm/sec. - 5 mV
Channel balance at 1 kHz - 1 dB
Channel separation at 1 kHz - 26 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-29.000 Hz
Frequency response - 20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 22 µm/mN
Stylus type - Nude Fine Line
Stylus tip radius - r/R 8/40 µm
Tracking force range - 1,4-1,7g (14-17 mN)
Tracking force, recommended - 1,5 g (15 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,2 kOhm
Internal inductance - 630 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Bronze
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Bronze (interchangeable with 2M Black)
How to replace M2,0 mm screws on 2M Bronze Verso
1. Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
2. Using Torx 8 key, unscrew the black screw from the Verso top plate.
3. Remove the top plate from the cartridge body by pulling the screws off.
4. Remove the two countersunk screws from the top plate.
5. Insert the two M2,0 mm screws in the top plate.
6. Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
7. Mount the black screw in the top plate and tighten with appropriate force.
8. Mount the cartridge on the tonearm using the enclosed tool.
9. Mount the stylus with the stylus protection guard on the cartridge body.
2M Bronze accessories included the package:
1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
1 x Stylus pressure gauge
2M Bronze Verso accessories included the package:
1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
1 x Stylus pressure gauge
