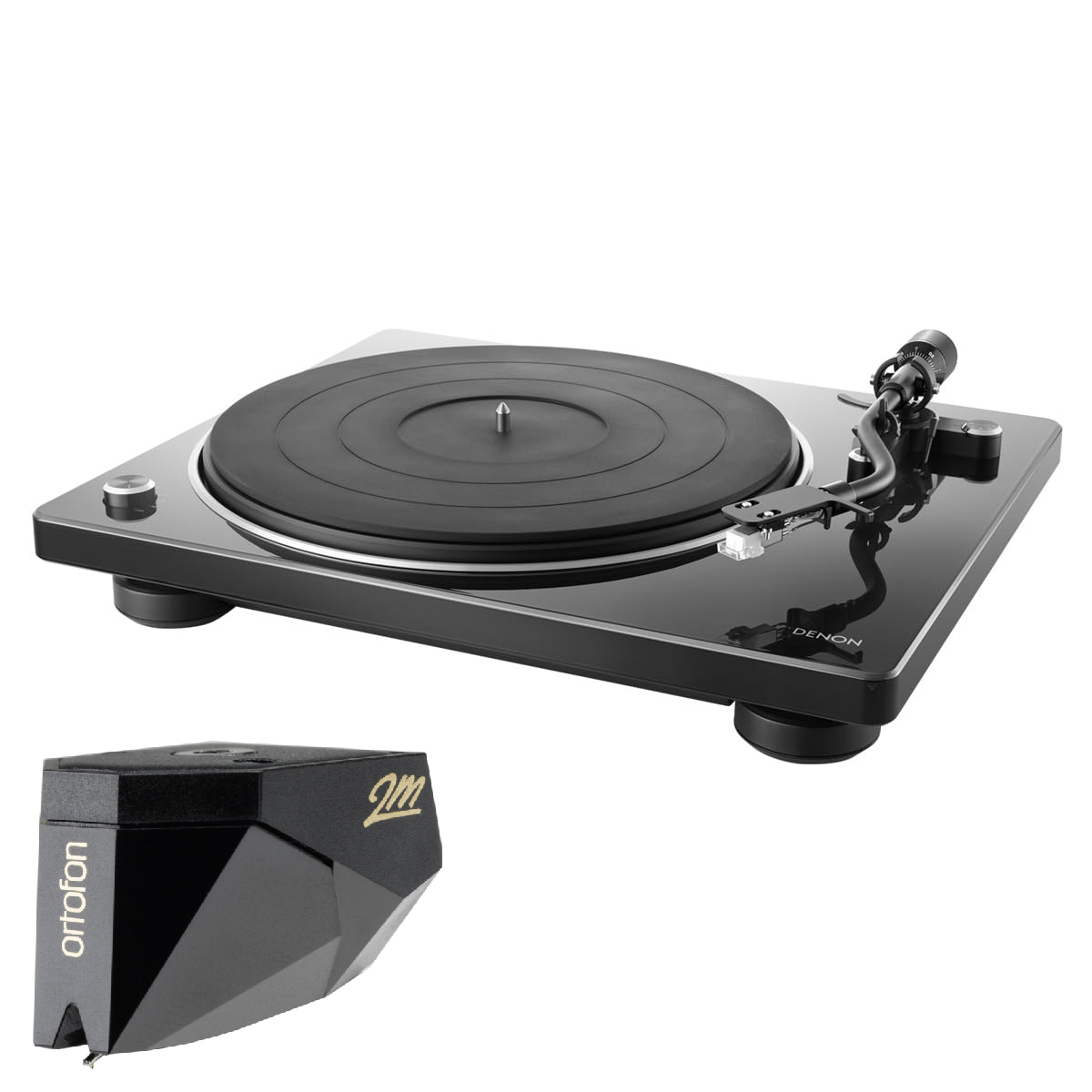

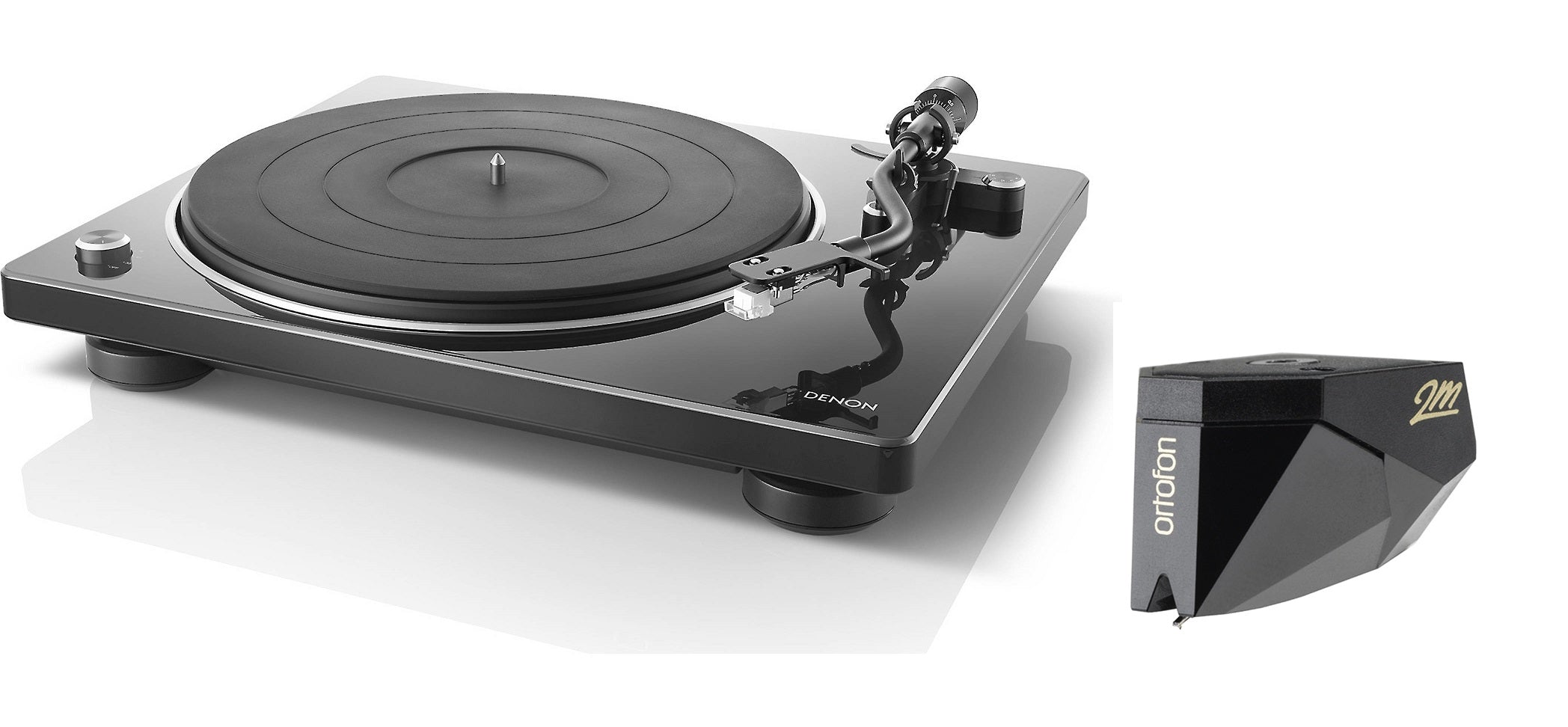

Denon DP-400 Turntable with Ortofon 2M Black Phono Cartridge Bundle

by Denon
UPC: 883795004497
Save 21%
$1,324.00
$1,039.99

SKU DP-400Black2MBlackBundle

Denon DP-400 Turntable with Ortofon 2M Bronze Phono Cartridge Bundle


This Turntable Bundle consists of the following:

QTY: 1 Denon DP-400 Hi-Fi Turntable with Speed Auto Sensor

QTY: 1 Ortofon 2M Black Moving Magnet Phono Cartridge

**Phono Cartridge comes professionally mounted and calibrated
Specs
Denon DP-400 Turntable Specifications:

  • Drive type: Belt drive
  • Motor: DC servo motor
  • RPM speeds: 33 1/3, 45, 78 RPM
  • Wow & flutter: 0.1% WRMS
  • S/N ratio: 62dB
  • Tonearm: Static balanced type
  • Tonearm effective length: 220mm
  • Overhang: 16mm
  • Stylus pressure range: 0 - 4.0g (0-39.2mN), 1 gradation is 0.1g (0.98mN)
  • Compatible cartridge weight: 5.0 - 13.0g, (59.2mN - 127.5mN)
  • Cartridge: MM type
  • Output voltage
    • Equalizer off: 2.5mV
    • Equalizer on: 150mV
  • Optimum stylus pressure: 2.0g (19.6mN)
  • Power supply: AC 100 - 230V, 50/60Hz
  • Power consumption: 10W
    • In standby mode: 0.5W or less
  • Dimensions (W x H x D): 16.2" x 5.2" x 13.7"
  • Weight: 12.4 lbs.


  • Ortofon 2M Black Specifications:

    Technical data

    Output voltage at 1000 Hz, 5cm/sec. - 5 mV
    Channel balance at 1 kHz - 1 dB
    Channel separation at 1 kHz - 26 dB
    Channel separation at 15 kHz - 15 dB
    Frequency range at - 3dB - 20-31.000 Hz
    Frequency response - 20-20.000 + 2 / - 0 dB
    Tracking ability at 315Hz at recommended tracking force - 80 µm
    Compliance, dynamic, lateral - 22 µm/mN
    Stylus type - Nude Shibata
    Stylus tip radius - r/R 6/50 µm
    Tracking force range - 1,4-1,7g (14-17 mN)
    Tracking force, recommended - 1,5 g (15 mN)

    Tracking angle - 20°
    Internal impedance, DC resistance - 1,2 kOhm
    Internal inductance - 630 mH
    Recommended load resistance - 47 kOhm
    Recommended load capacitance - 150-300 pF
    Cartridge colour, body/stylus - Black/Black
    Cartridge weight - 7,2 g
    Replacement stylus unit - 2M Black (interchangeable with 2M Bronze)

    How to replace M2,0 mm screws on 2M Black Verso

    1. Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
    2. Using Torx 8 key, unscrew the black screw from the Verso top plate.
    3. Remove the top plate from the cartridge body by pulling the screws off.
    4. Remove the two countersunk screws from the top plate.
    5. Insert the two M2,0 mm screws in the top plate.
    6. Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
    7. Mount the black screw in the top plate and tighten with appropriate force.
    8. Mount the cartridge on the tonearm using the enclosed tool.
    9. Mount the stylus with the stylus protection guard on the cartridge body.

    2M Black accessories included the package:

    Stylus brush, carbon fibre
    1 x Screwdriver
    2 x Screw M2,5 x 5
    2 x Screw M2,5 x 7
    1 x Stylus pressure gauge

    2M Black Verso accessories included the package:

    1 x Stylus brush, carbon fibre
    1 x Allen key Torx 6
    1 x Allen key Torx 8
    2 x Screw M2,0 x 6
    1 x Stylus pressure gauge
    1 x Socket spanner
