Denon DP-300F Turntable with Ortofon 2M Blue Phono Cartridge Bundle
Denon DP-300F Turntable with Ortofon 2M Red Phono Cartridge Bundle

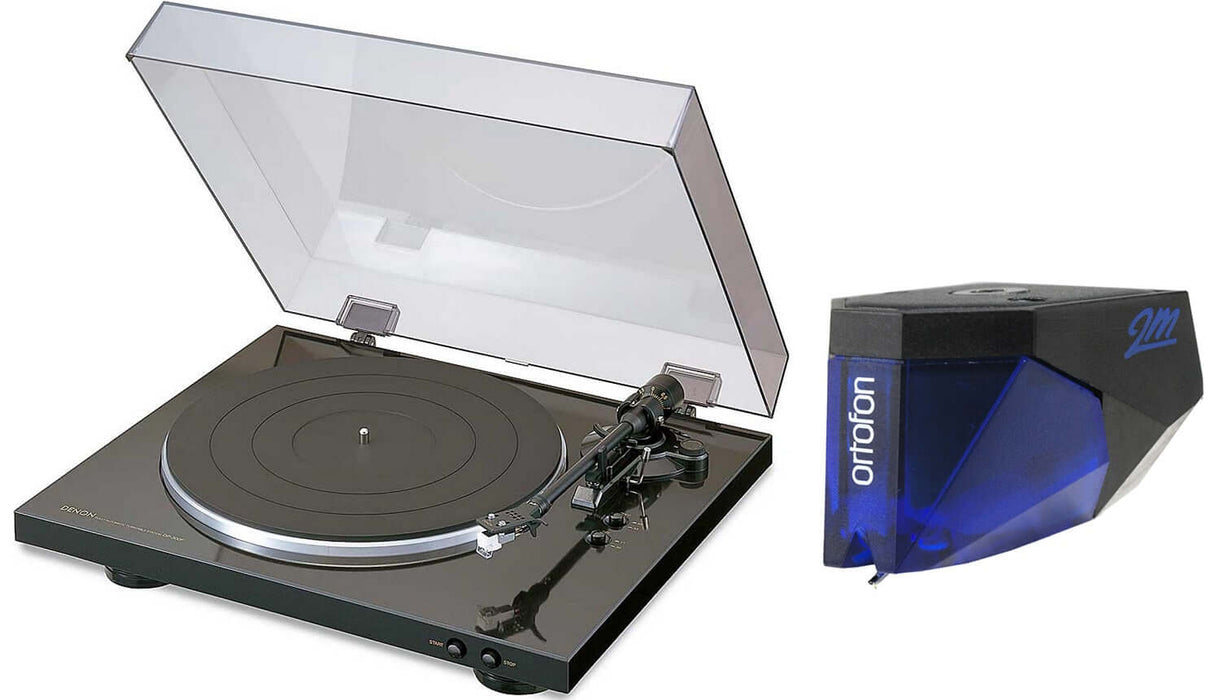

This Turntable Bundle consists of the following:

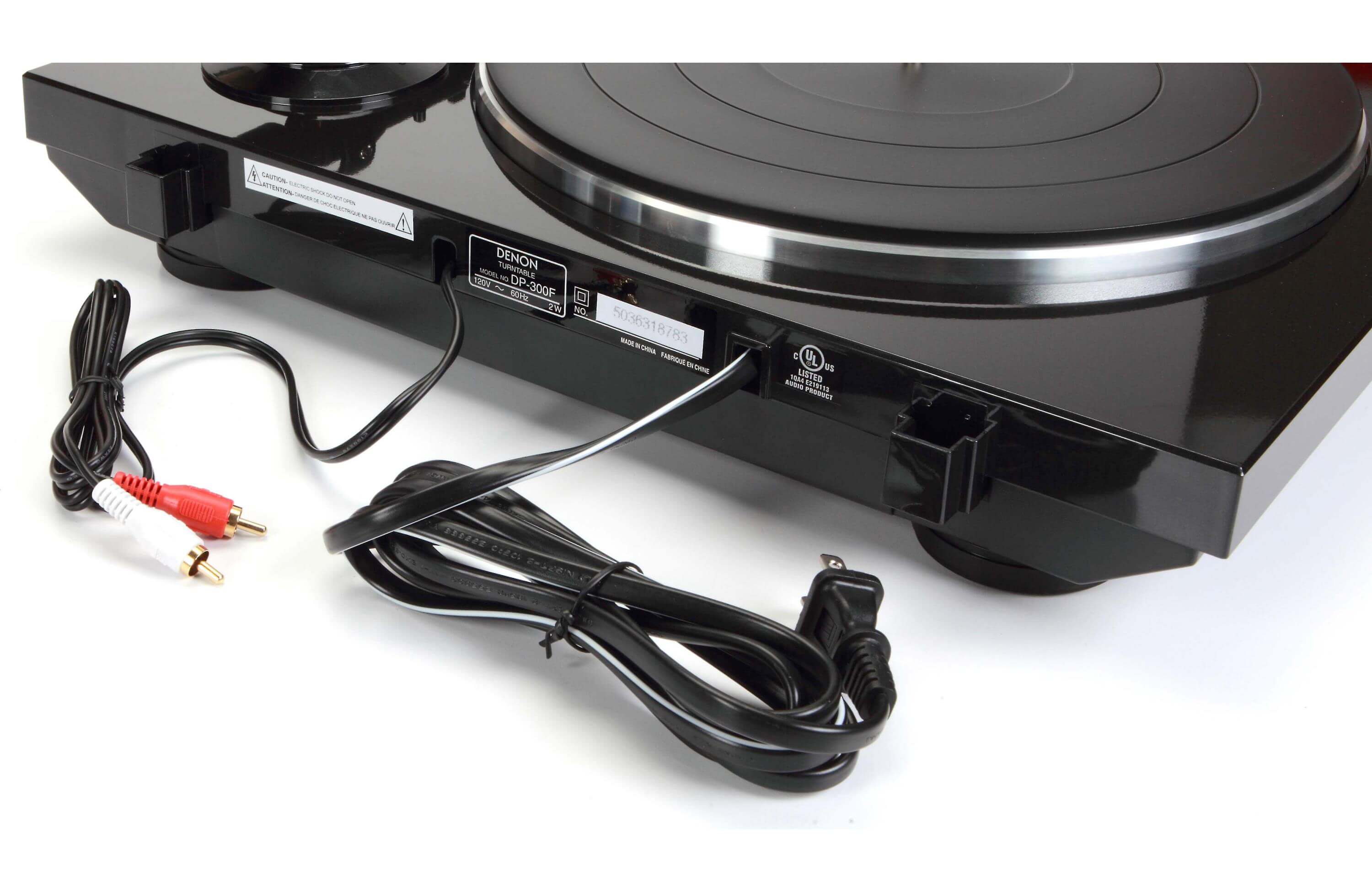

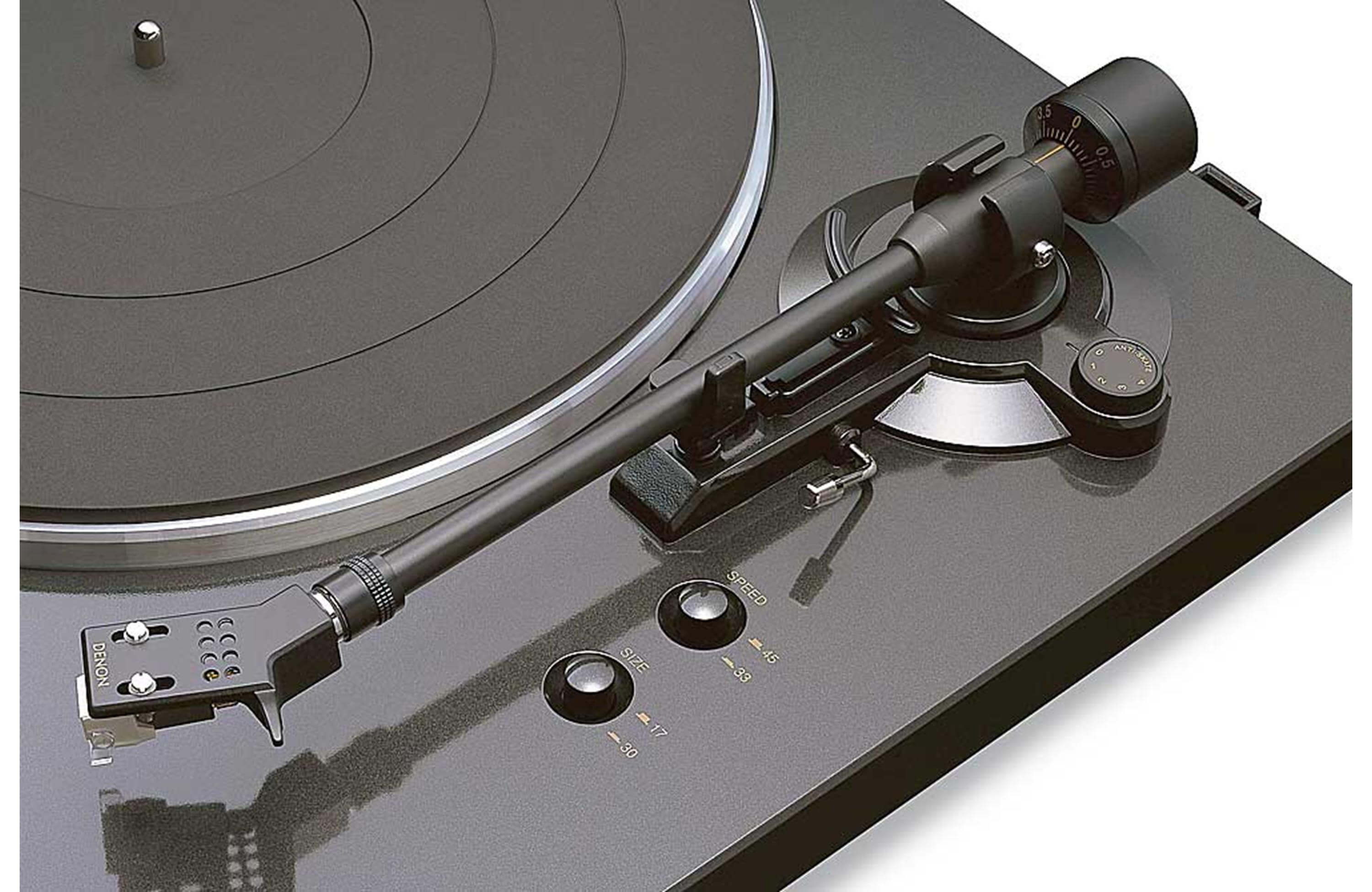

QTY: 1 Denon DP-300F Fully Automatic Turntable
QTY: 1 Ortofon 2m Blue Moving Magnet Phono Cartridge
**Phono Cartridge comes professionally mounted and calibrated
SpecsDenon DP-300F Turntable Specifications:
Ortofon 2M Blue Specifications:
Output voltage at 1000 Hz, 5cm/sec. - 5,5 mV
Channel balance at 1 kHz - 1,5 dB
Channel separation at 1 kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at - 3dB - 20-25.000 Hz
Frequency response - 20-20.000 Hz + 2 / - 1 dB
Tracking ability at 315Hz at recommended tracking force - 80 µm
Compliance, dynamic, lateral - 20 µm/mN
Stylus type - Nude Elliptical
Stylus tip radius - r/R 8/18 µm
Tracking force range - 1,6-2,0g (16-20 mN)
Tracking force, recommended - 1,8 g (18 mN)
Tracking angle - 20°
Internal impedance, DC resistance - 1,3 kOhm
Internal inductance - 700 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 150-300 pF
Cartridge colour, body/stylus - Black/Blue
Cartridge weight - 7,2 g
Replacement stylus unit - 2M Blue (interchangeable with 2M Red and 2M Silver)
How to replace M2,0 mm screws on 2M Blue Verso 1. Remove the stylus with the stylus protection guard from the cartridge body to avoid any damage to the diamond.
2. Using Torx 8 key, unscrew the black screw from the Verso top plate.
3. Remove the top plate from the cartridge body by pulling the screws off.
4. Remove the two countersunk screws from the top plate.
5. Insert the two M2,0 mm screws in the top plate.
6. Mount the top plate on the cartridge body. Hold the top plate with screw-threads hanging down and turn the cartridge body 180 degrees. Mount from above.
7. Mount the black screw in the top plate and tighten with appropriate force.
8. Mount the cartridge on the tonearm using the enclosed tool.
9. Mount the stylus with the stylus protection guard on the cartridge body.
2M Blue accessories included the package:
1 x Stylus brush
1 x Screwdriver
2 x Screw M2,5 x 5
2 x Screw M2,5 x 7
2M Blue Verso accessories included the package:
1 x Stylus brush
1 x Allen key Torx 6
1 x Allen key Torx 8
2 x Screw M2,0 x 6
