702 S3's Carbon Dome tweeter is housed in an all-new Solid Body Tweeter assembly, while with its new downward-firing port configuration and trio of Aerofoil Profile bass cones, it delivers bass that’s both profoundly deep and endlessly articulate.
Goosebumps guaranteed

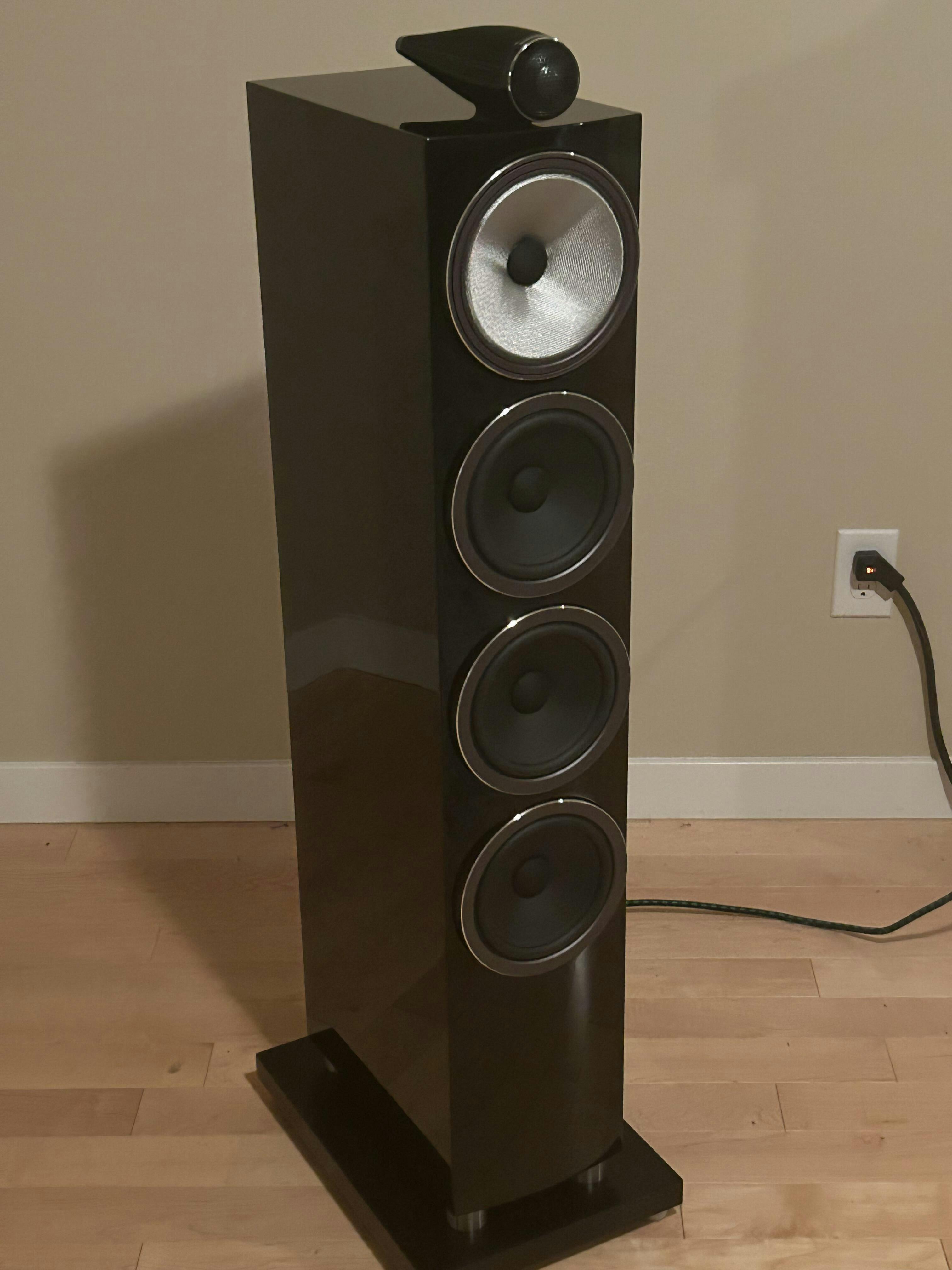

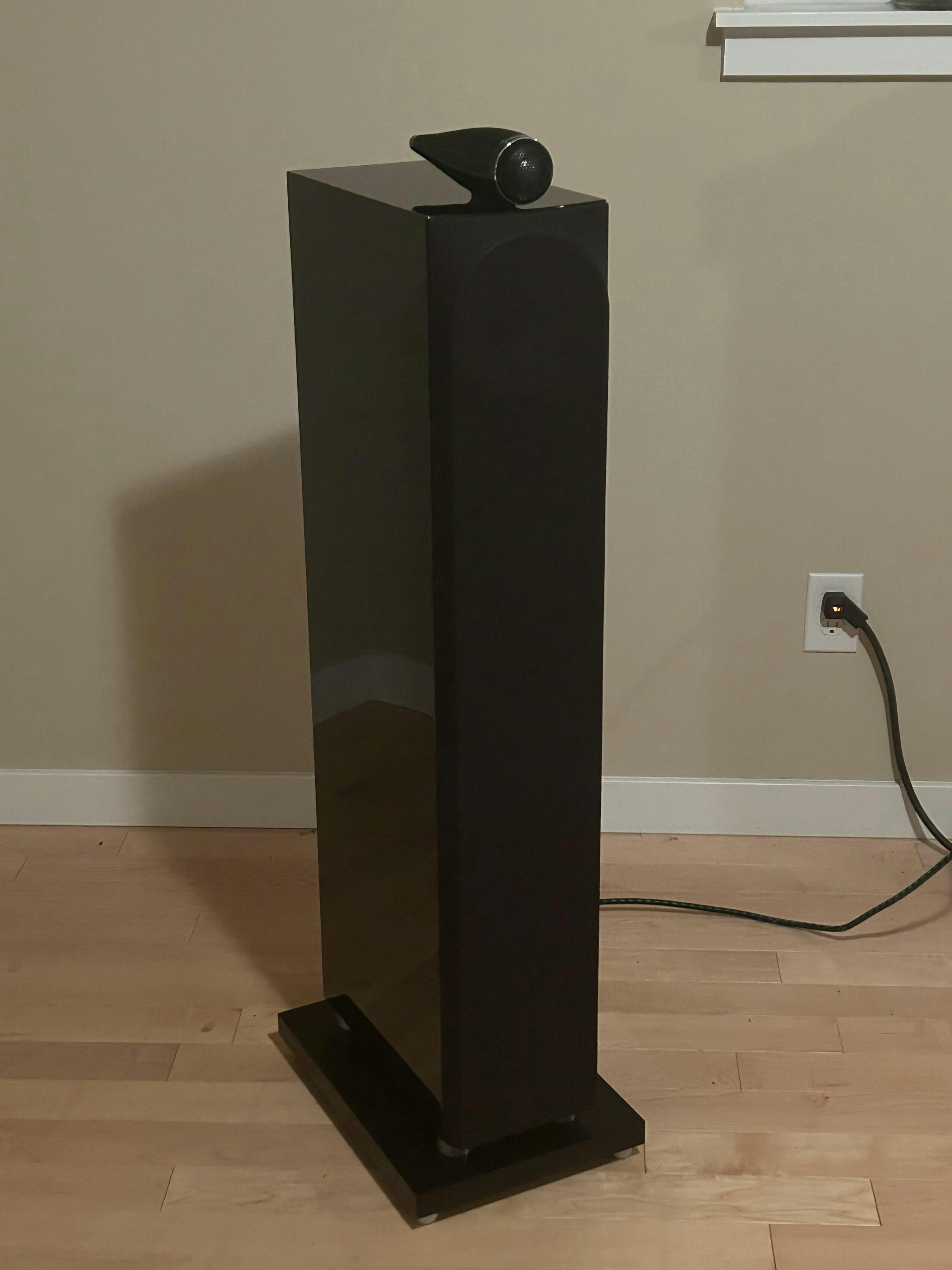

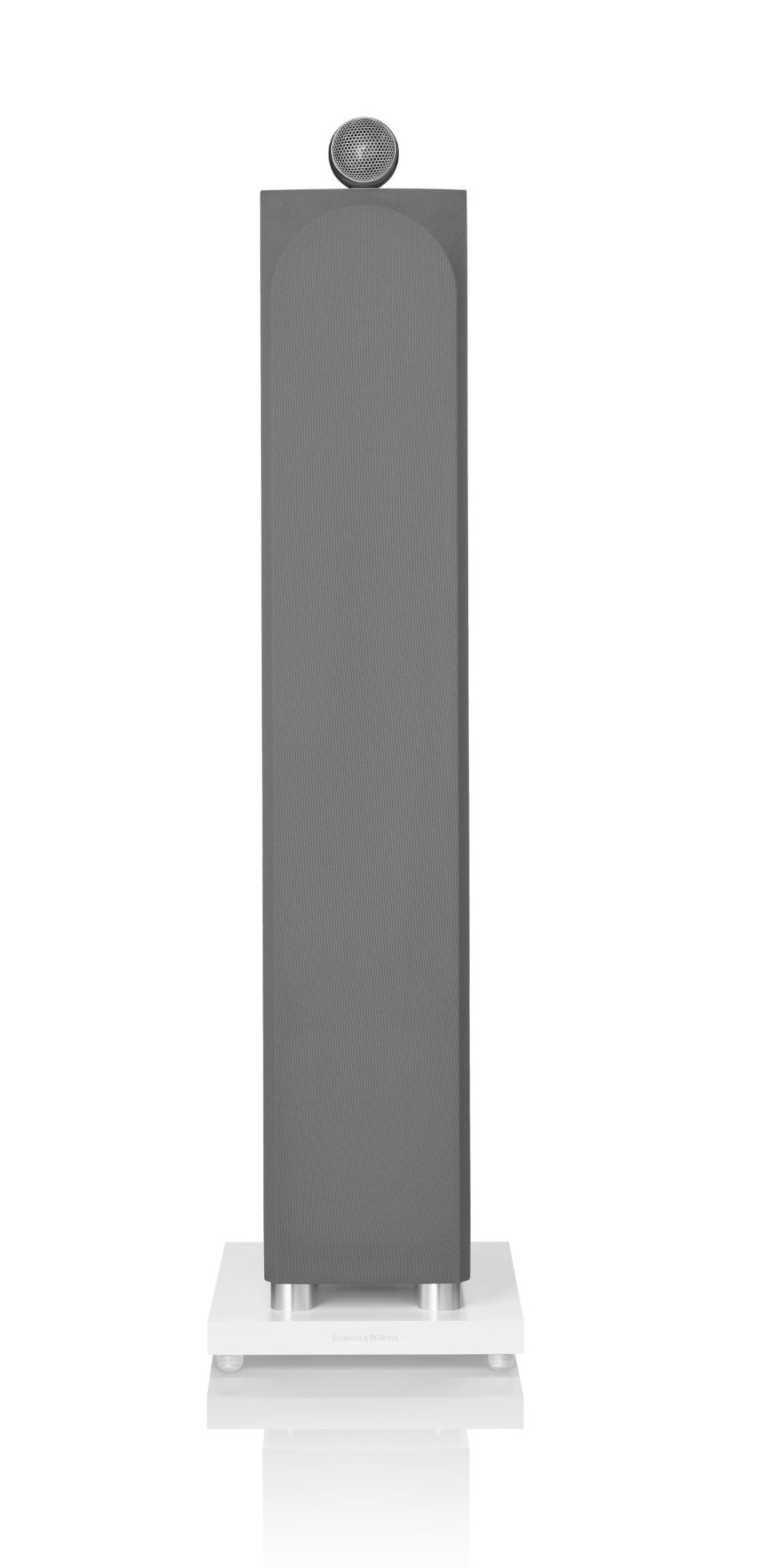

Our flagship, the 702 S3, is a state-of-the-art floor-standing speaker that defines new standards for performance in its class. If you want the best, this is it.
A house for high frequencies

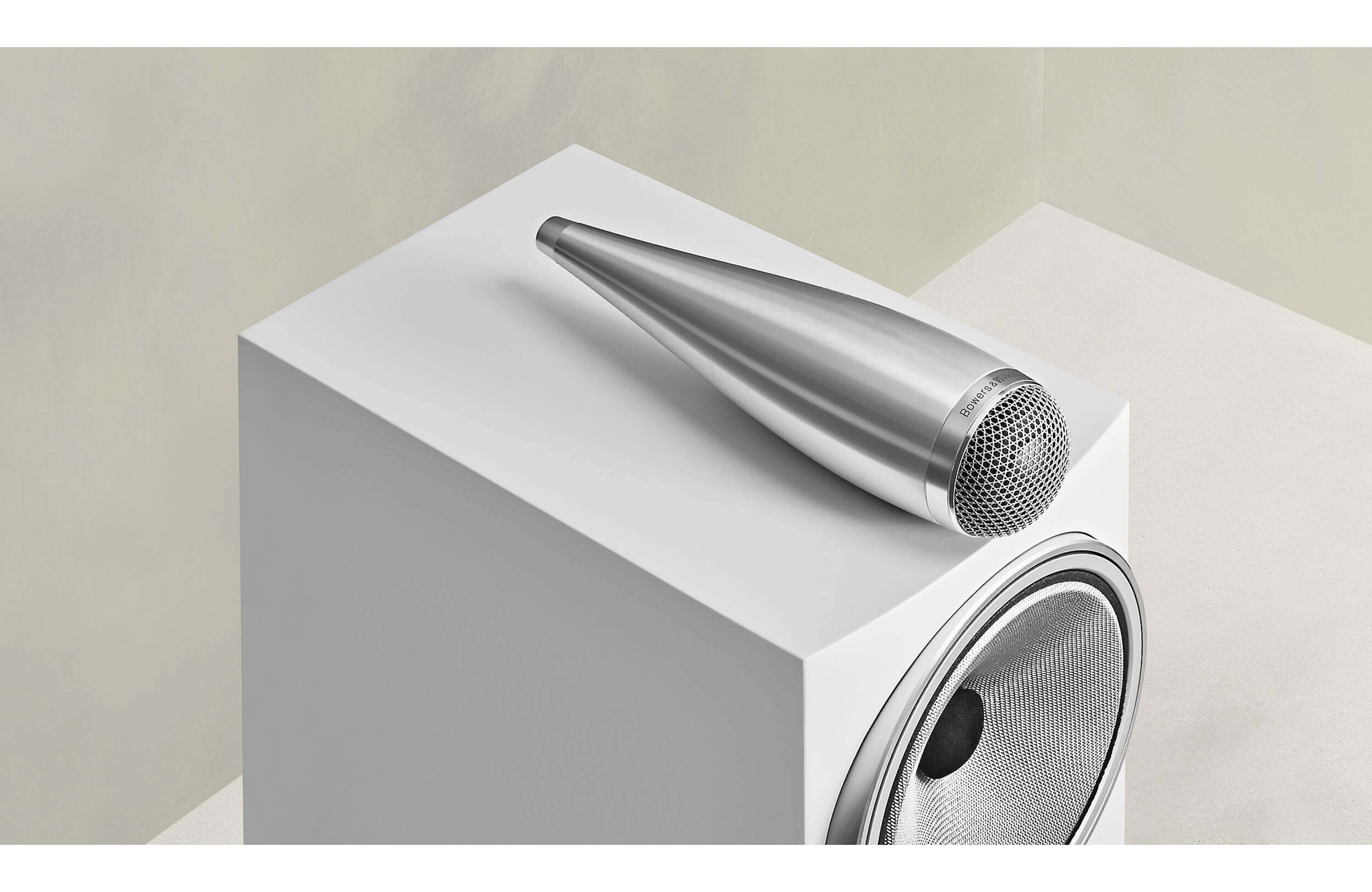

The 700 Series features the latest generation of our iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tube-loading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Clean and clear
Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.
A triumph of science
Developed using advanced computer modelling techniques, the Aerofoil™ Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.
Size & weight
Dimensions
Height: 1010 mm cabinet only
1138 mm including tweeter and plinth
Width: 192 mm cabinet only
290 mm including plinth
Depth: 354 mm cabinet only
391 mm including grille and terminals
410 mm including plinth
Net weight
33.46kg
Technical details
Technical features
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top
Continuum™ cone FST™ midrange
Decoupled midrange
Aerofoil™ Profile bass cones
Flowport™
Description
3-way vented-box system
Drive units
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange
3x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range
28Hz - 33kHz
Frequency response
46Hz - 28kHz ±3dB
Sensitivity
90dB spl (2.83Vrms, 1m)
Harmonic distortion
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz - 28kHz
<0.5% 110Hz - 20kHz
Nominal impedance
8Ω (minimum 3.1Ω)
Recommended amplifier power
30W - 300W into 8Ω on unclipped programme
Max recommended cable impedance
0.1Ω
Finishes
Cabinet finishes

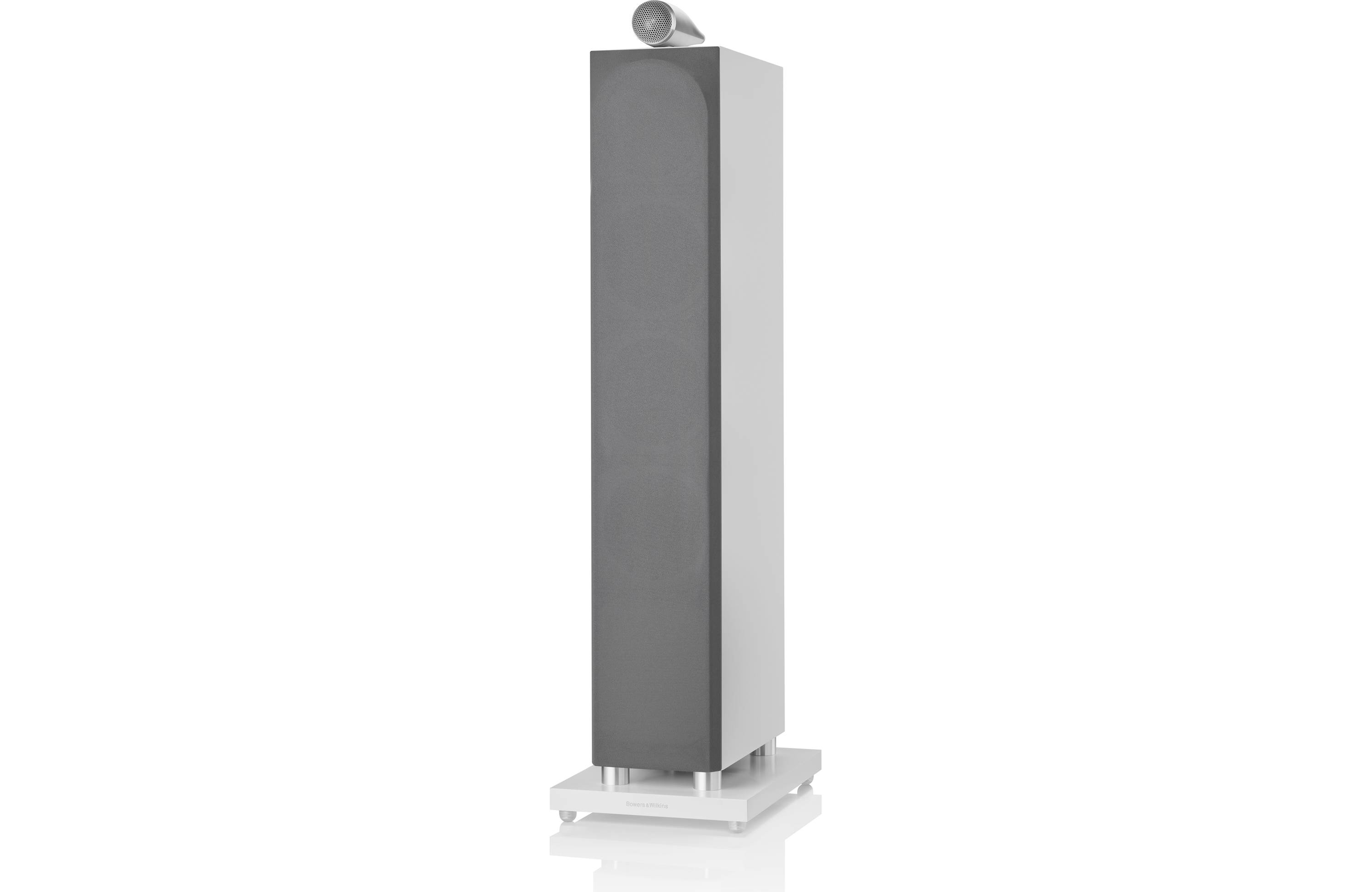

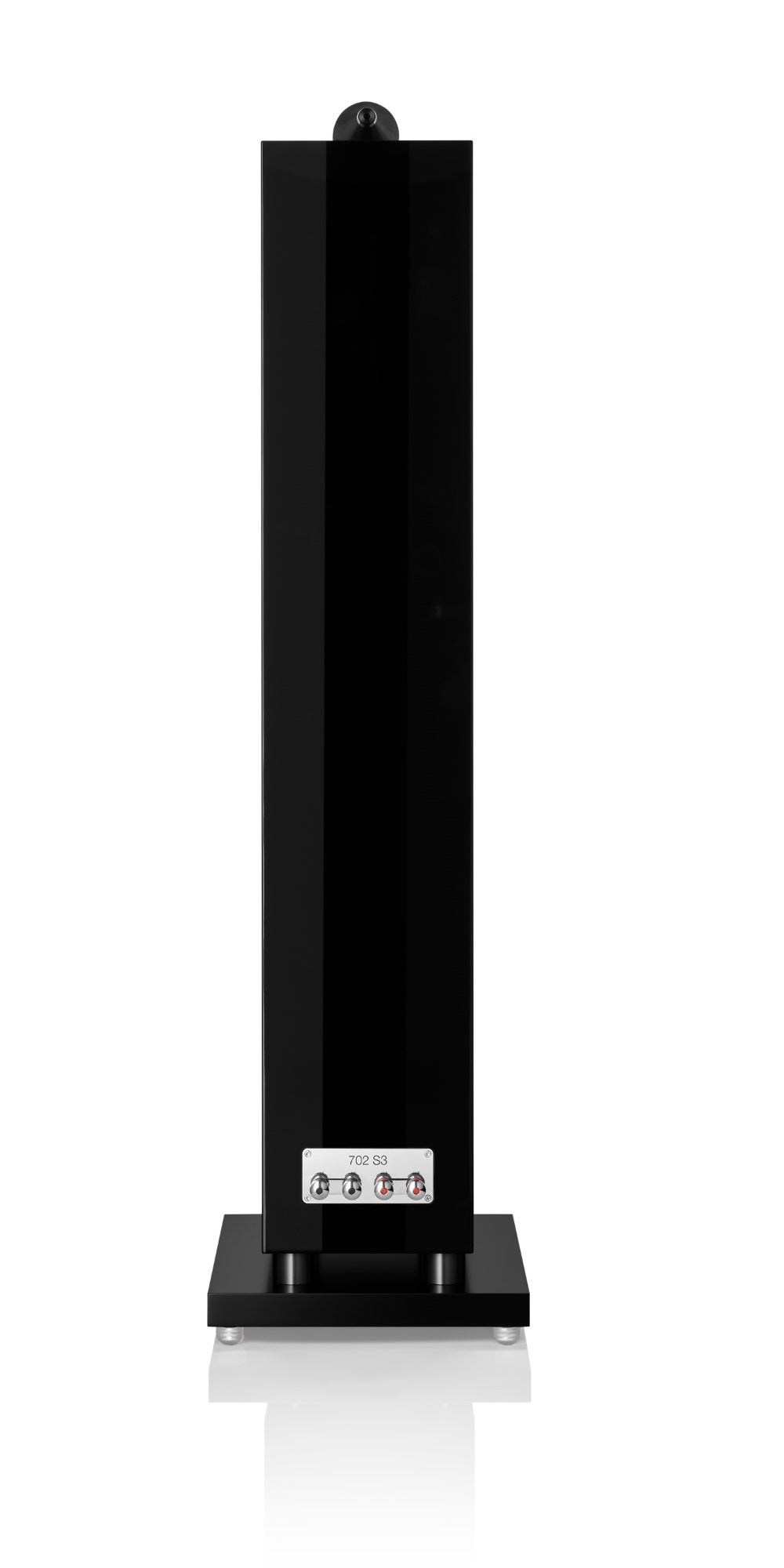

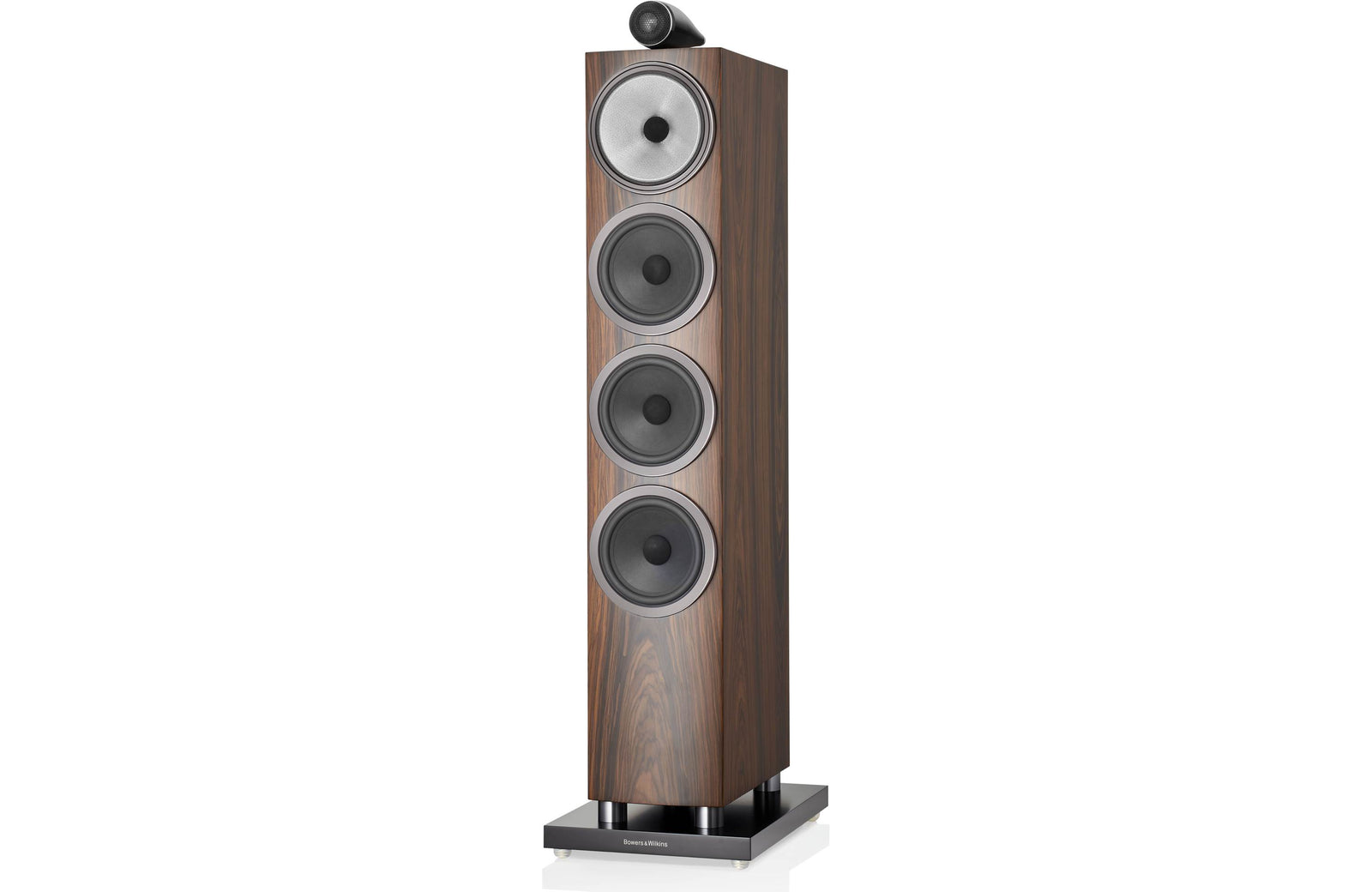

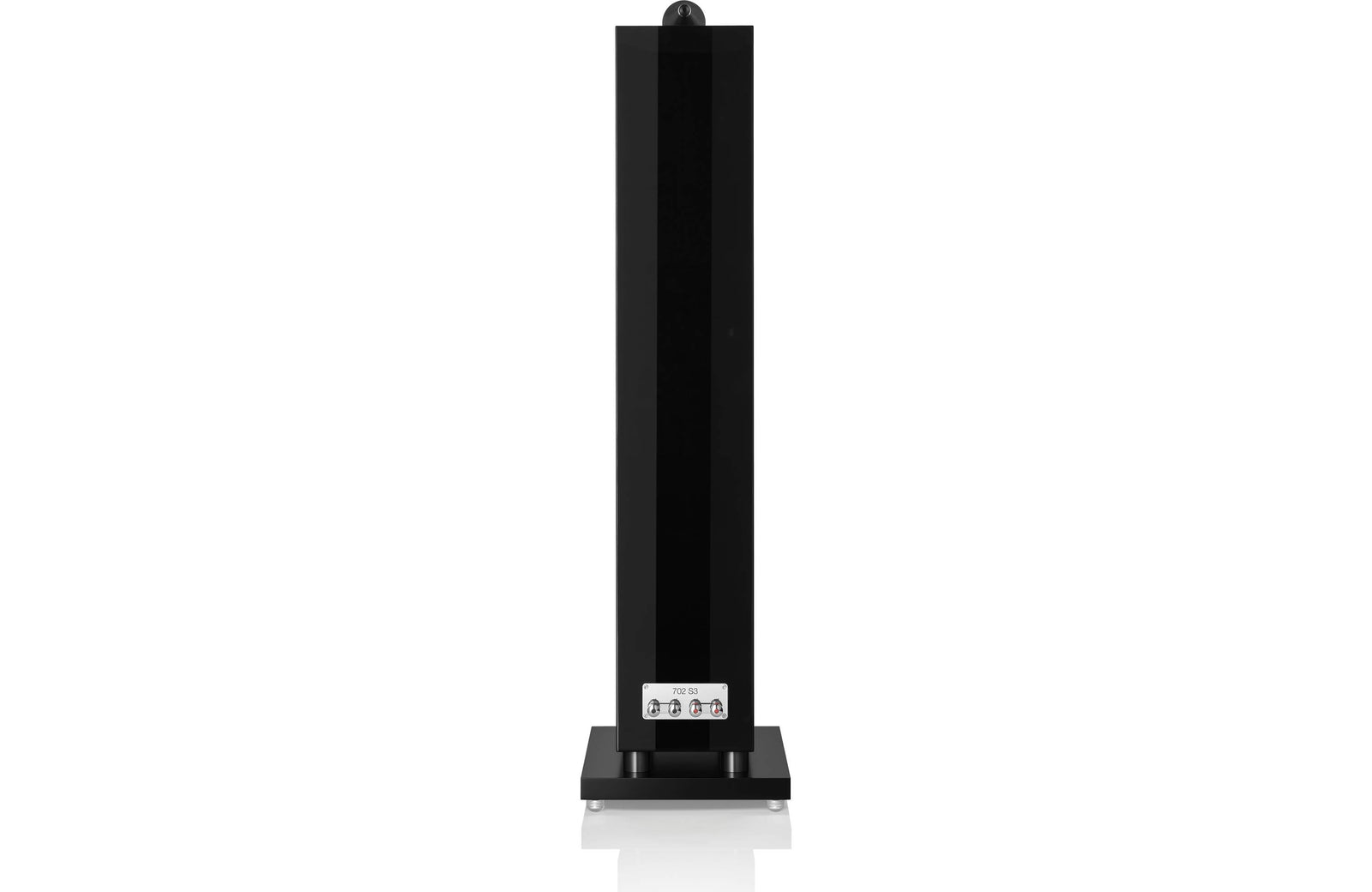

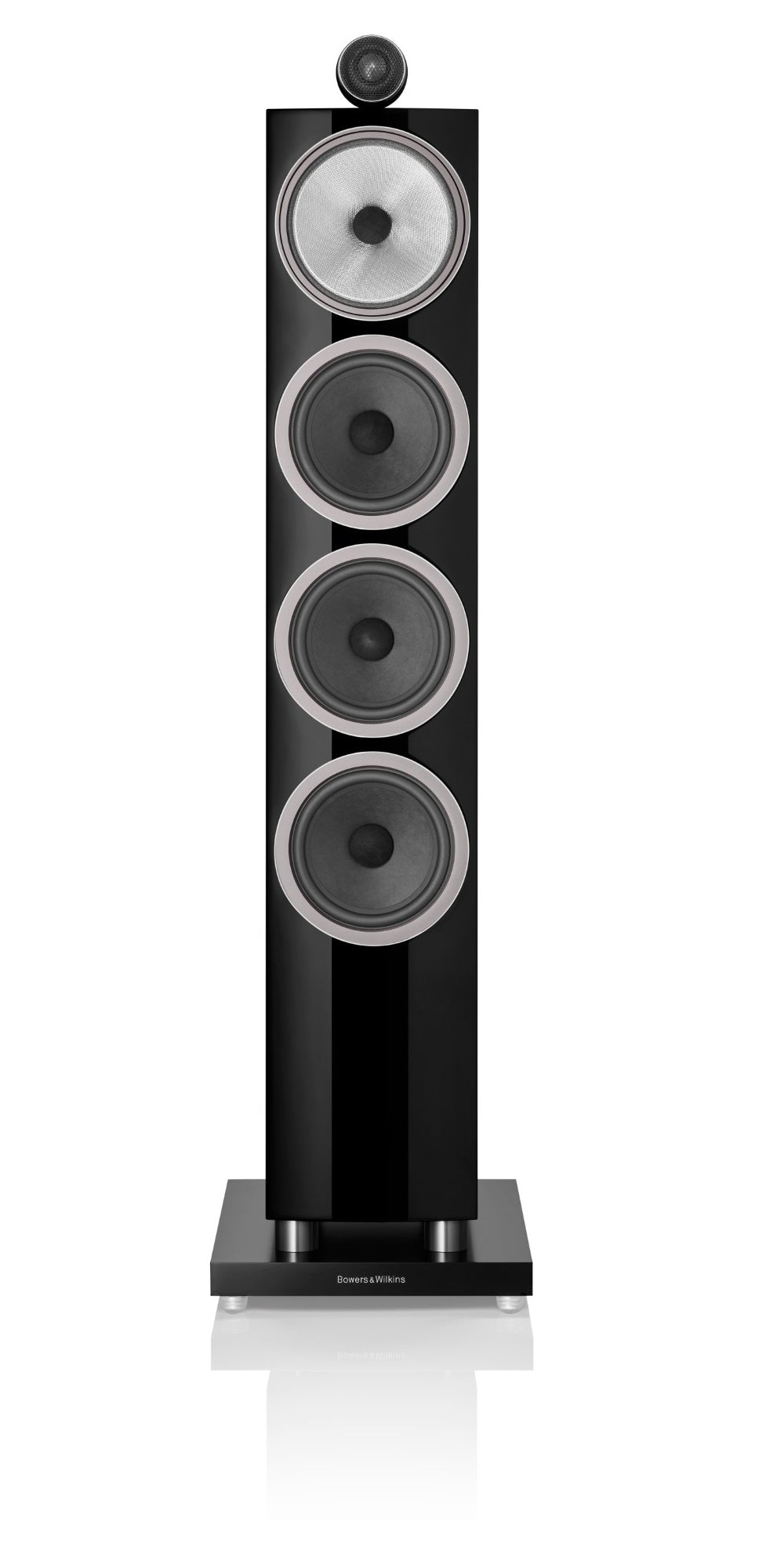

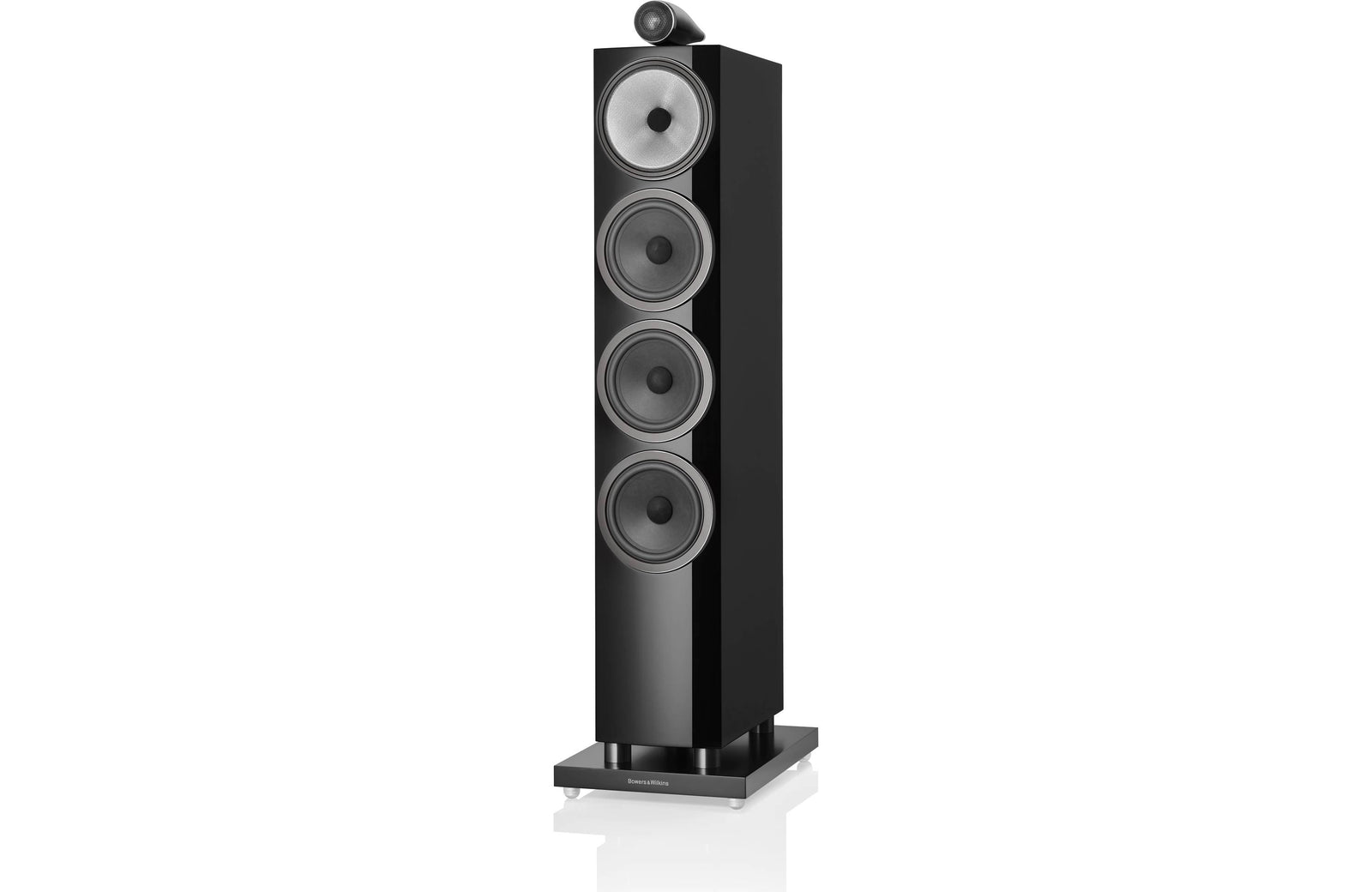

Gloss Black

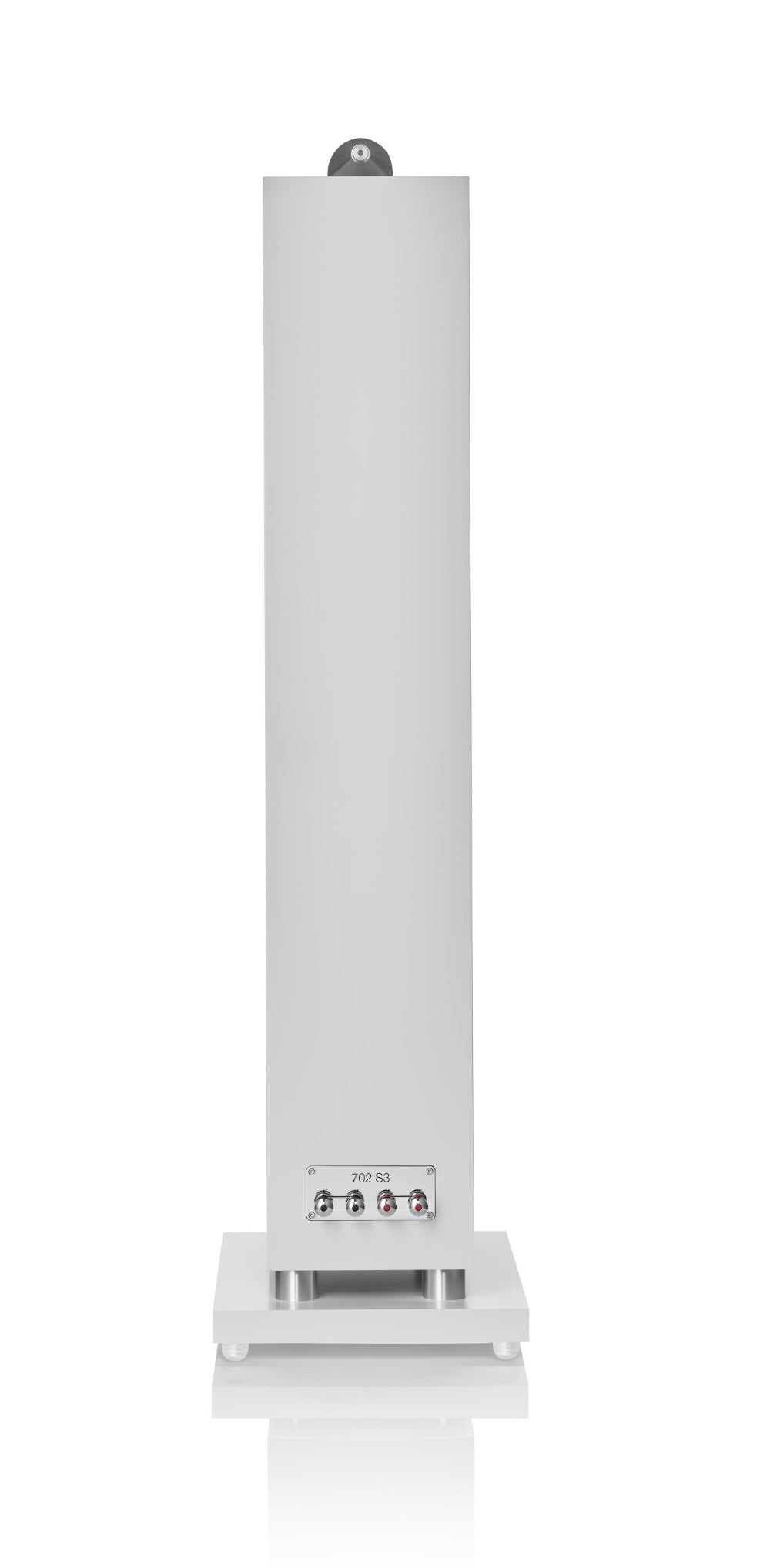

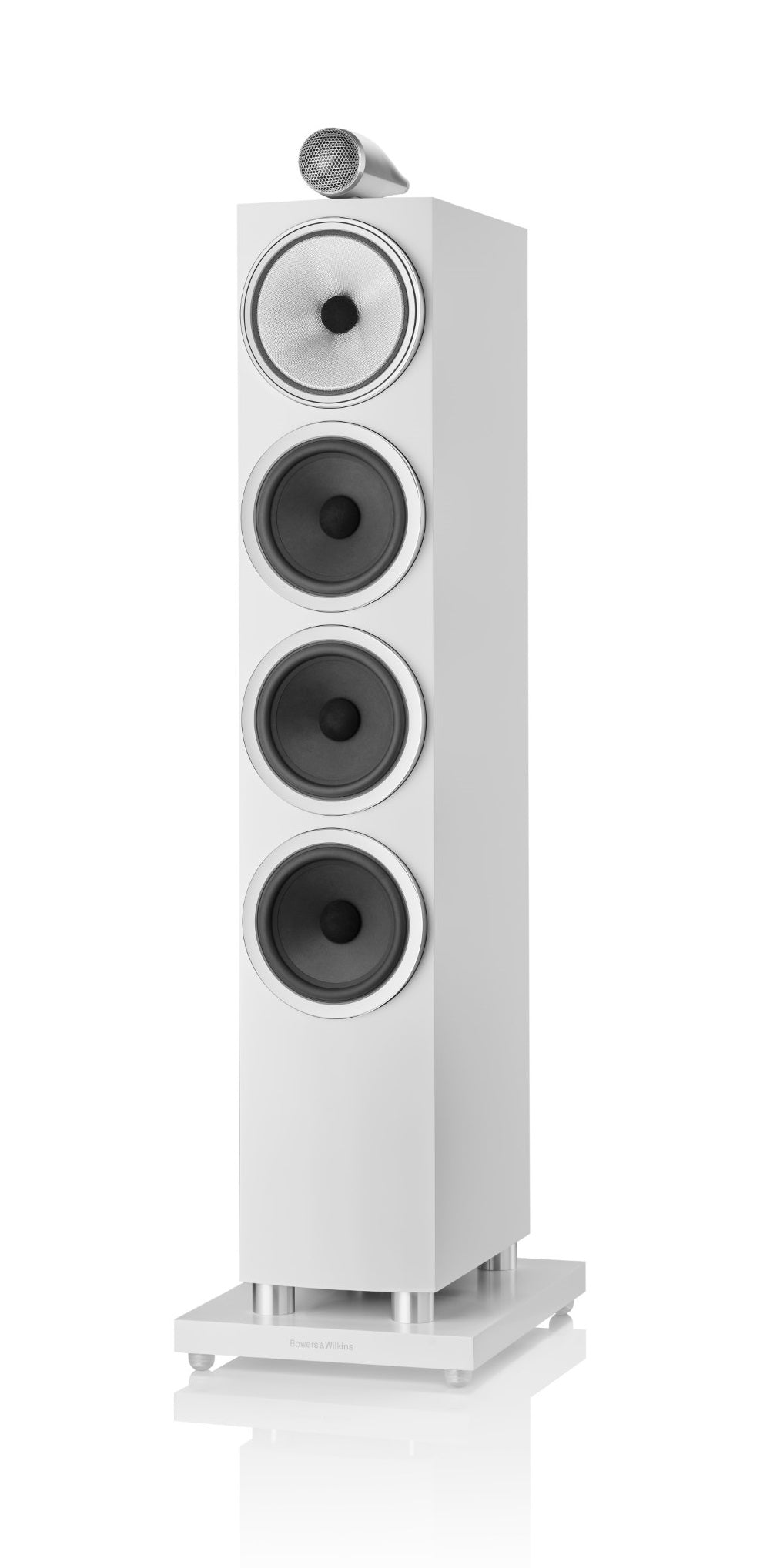

Satin White

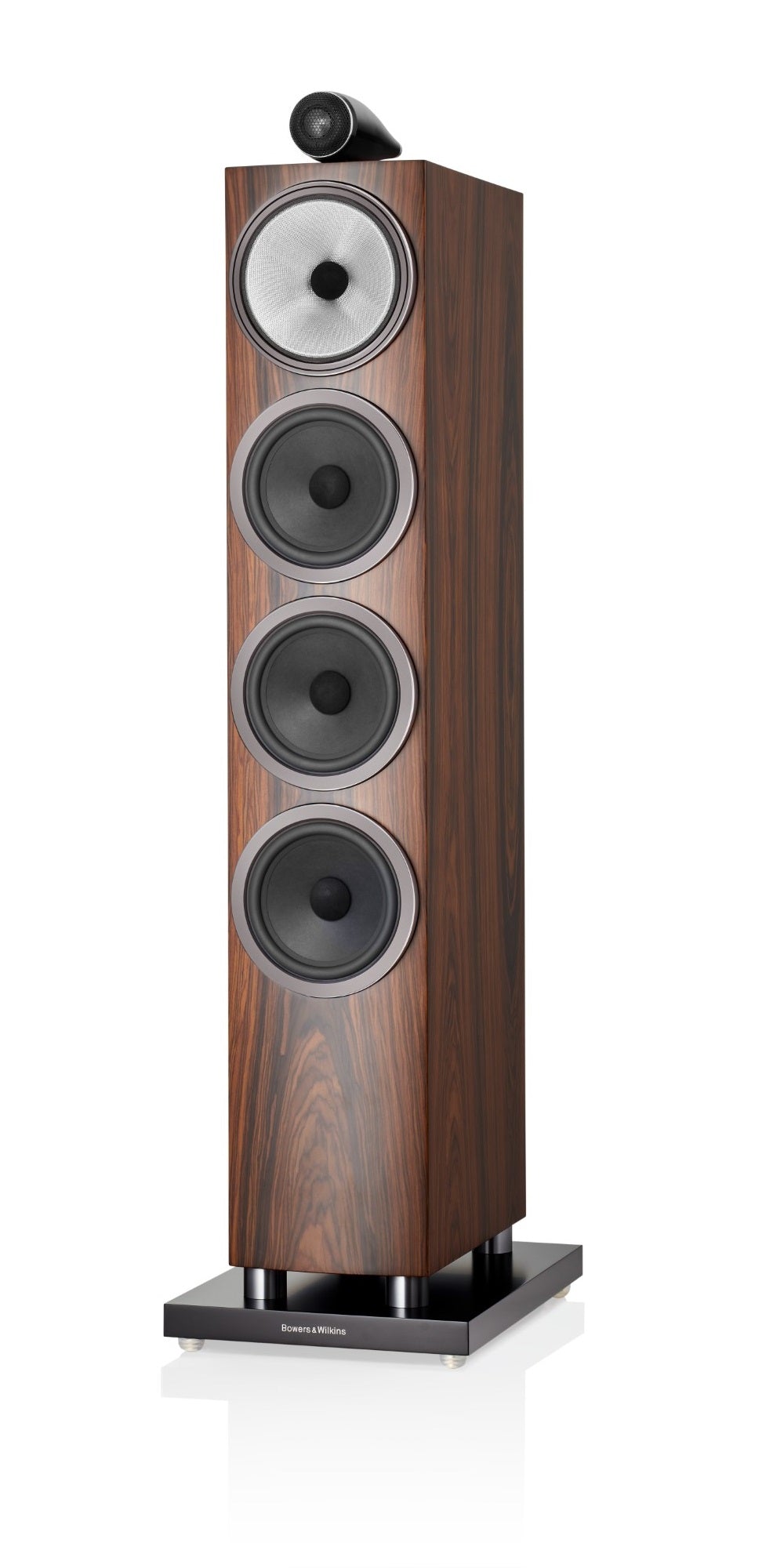

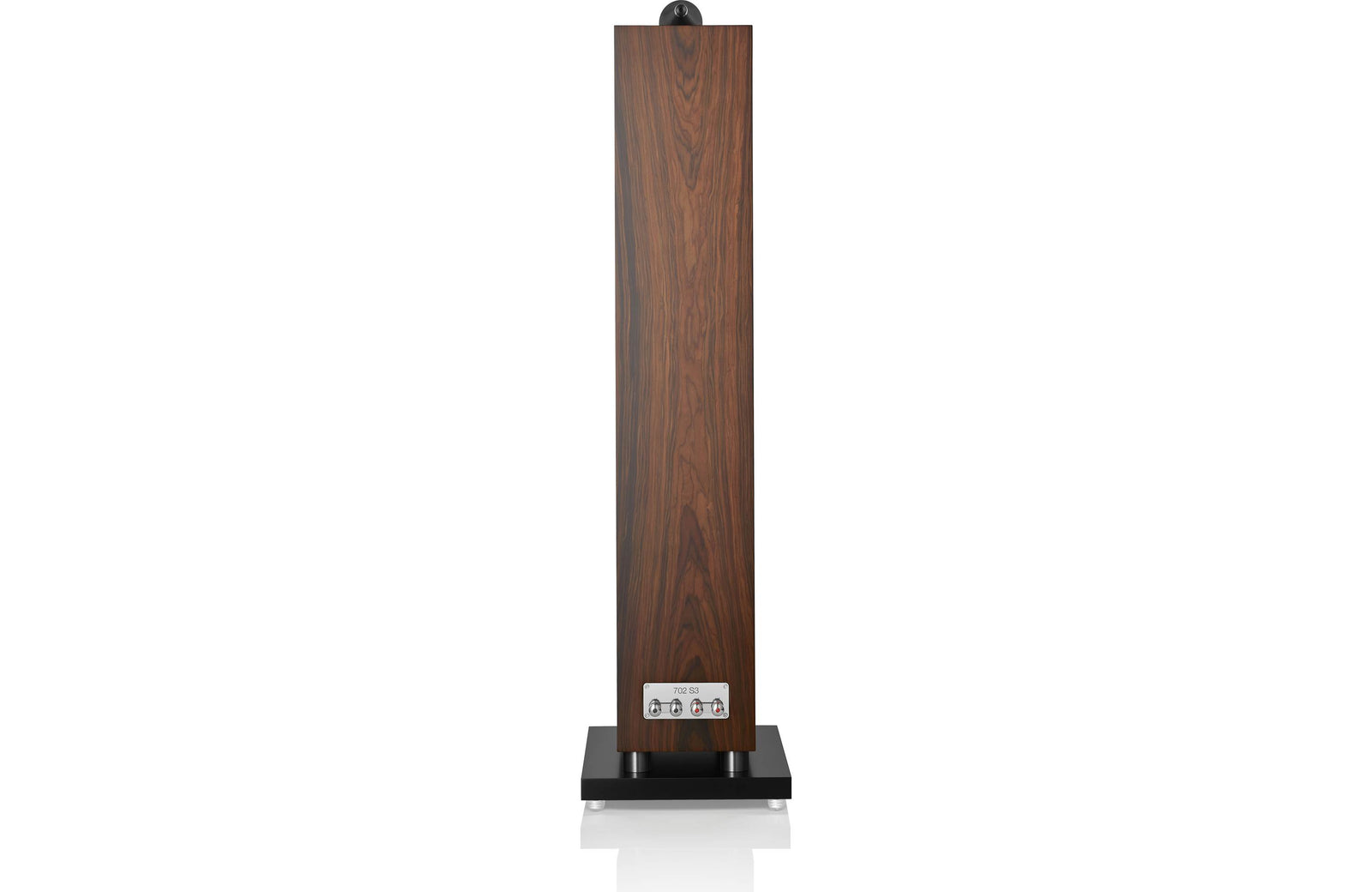

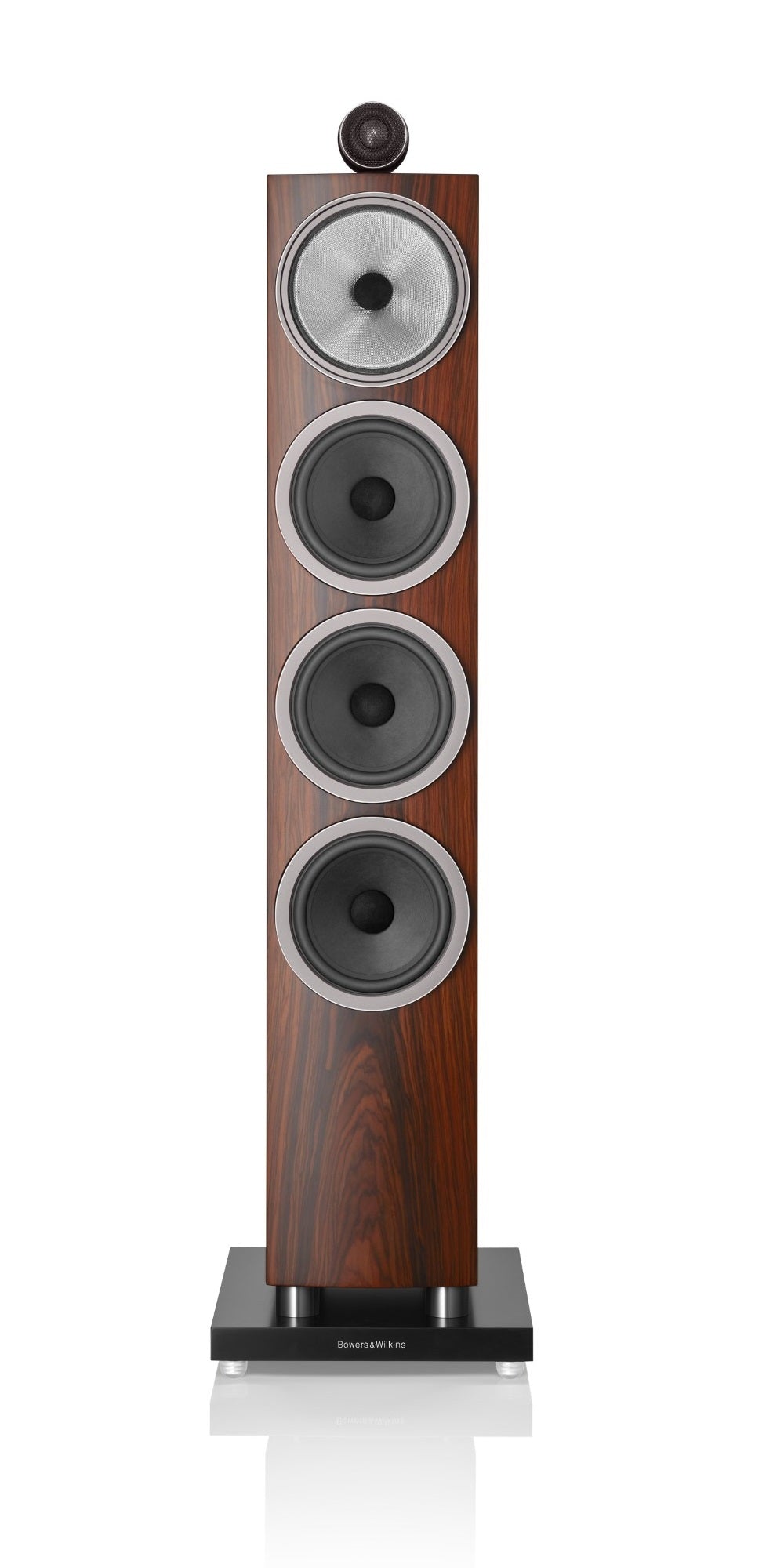

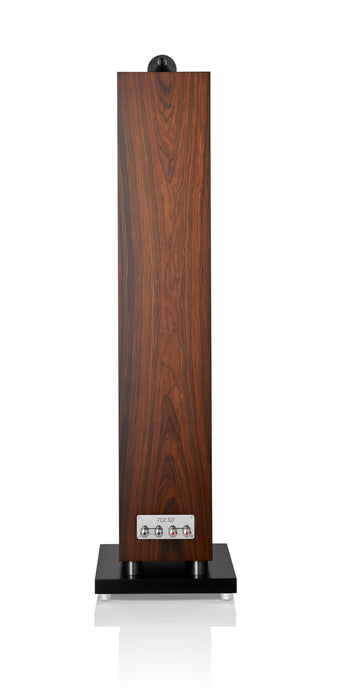

Mocha

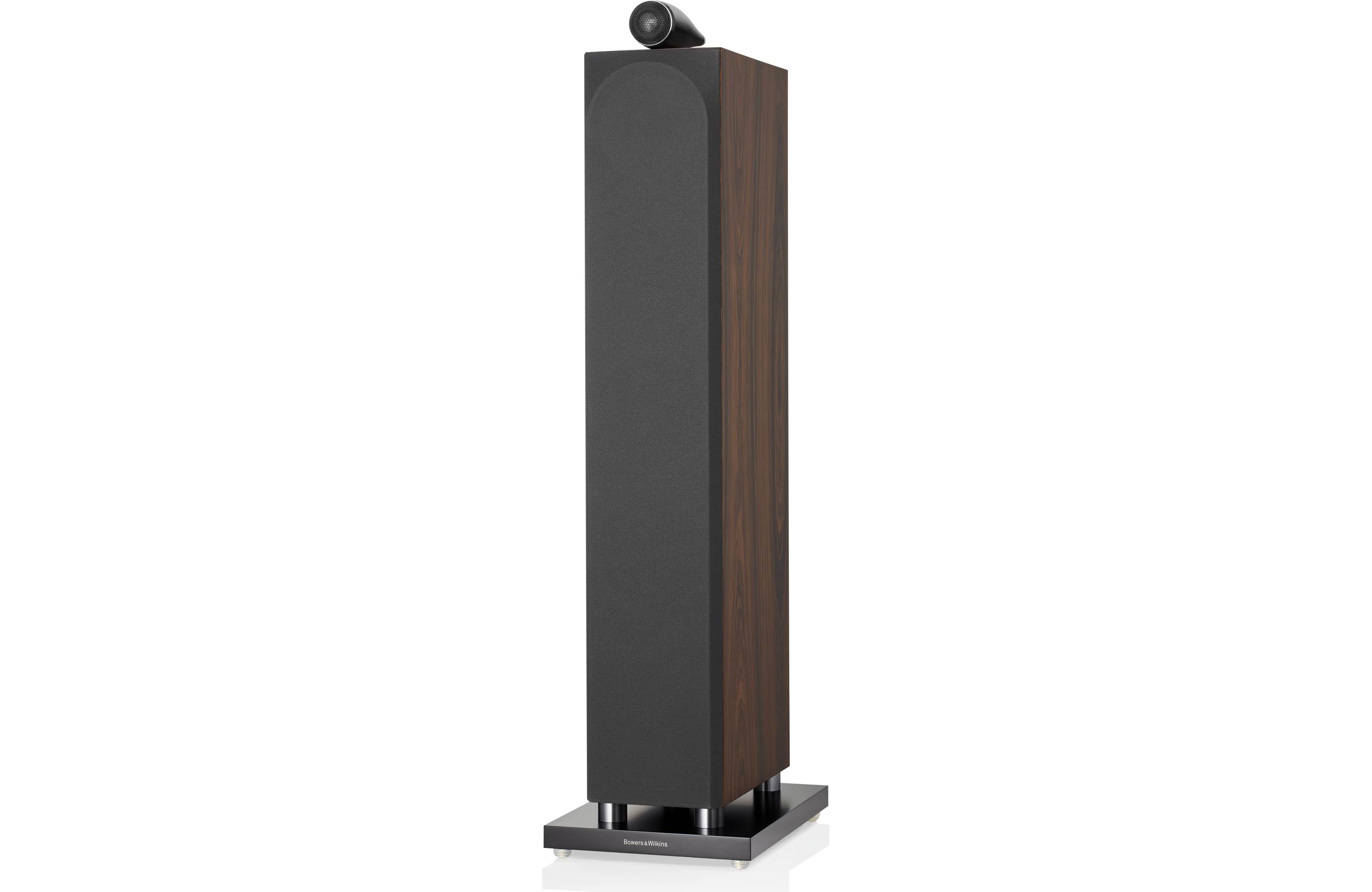

Grille finishes

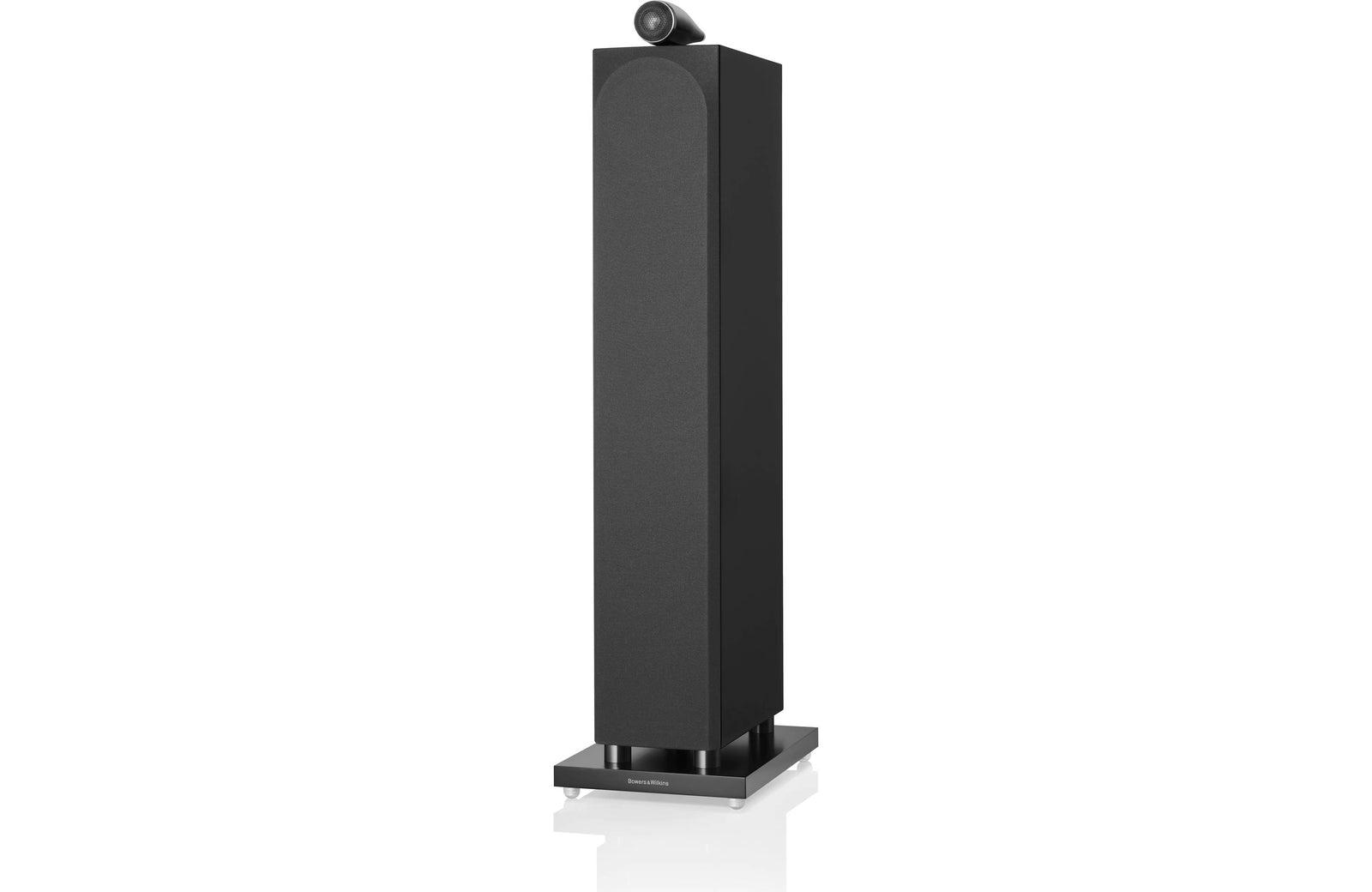

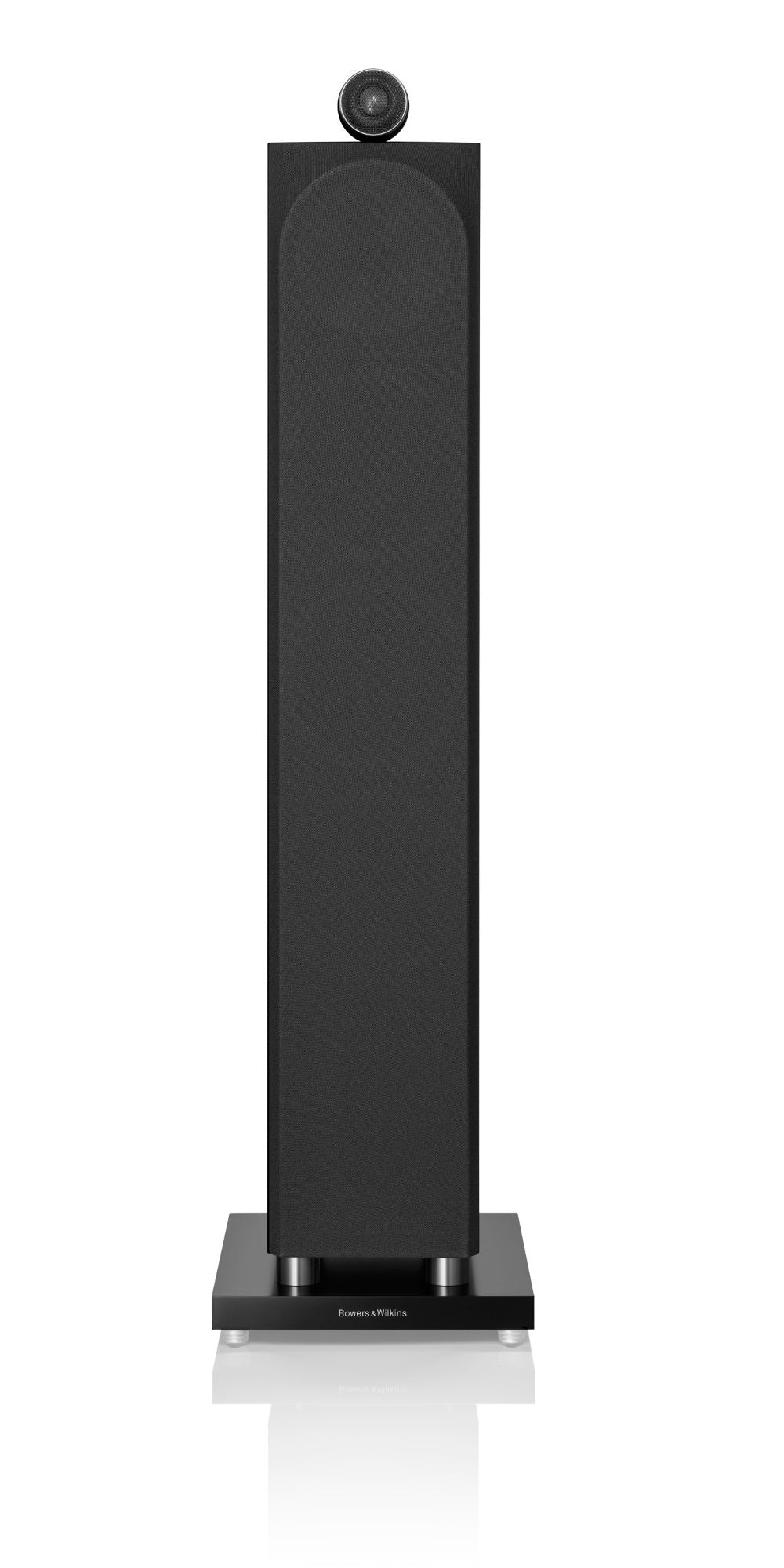

Black

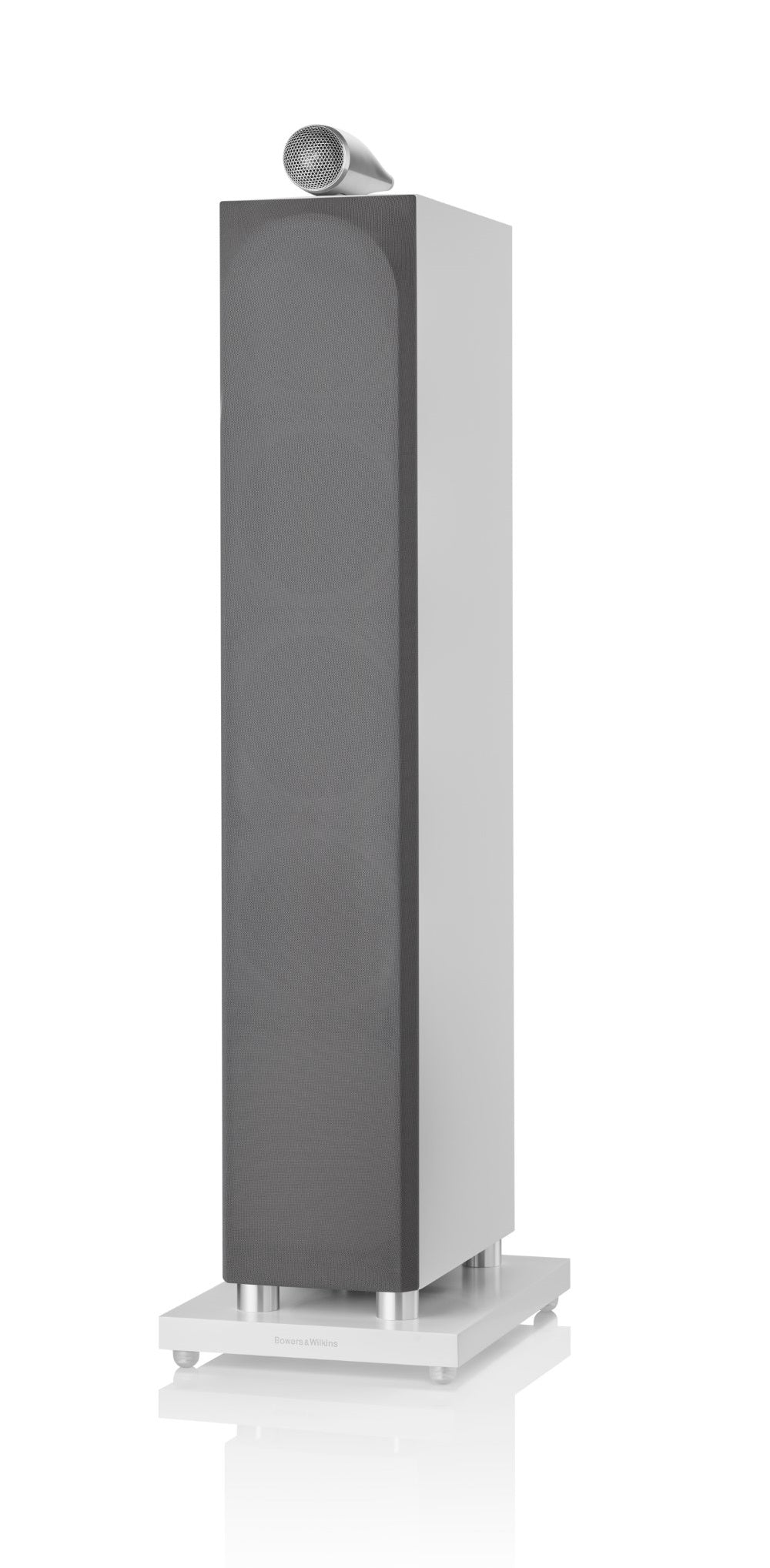

Grey (Satin White only)
