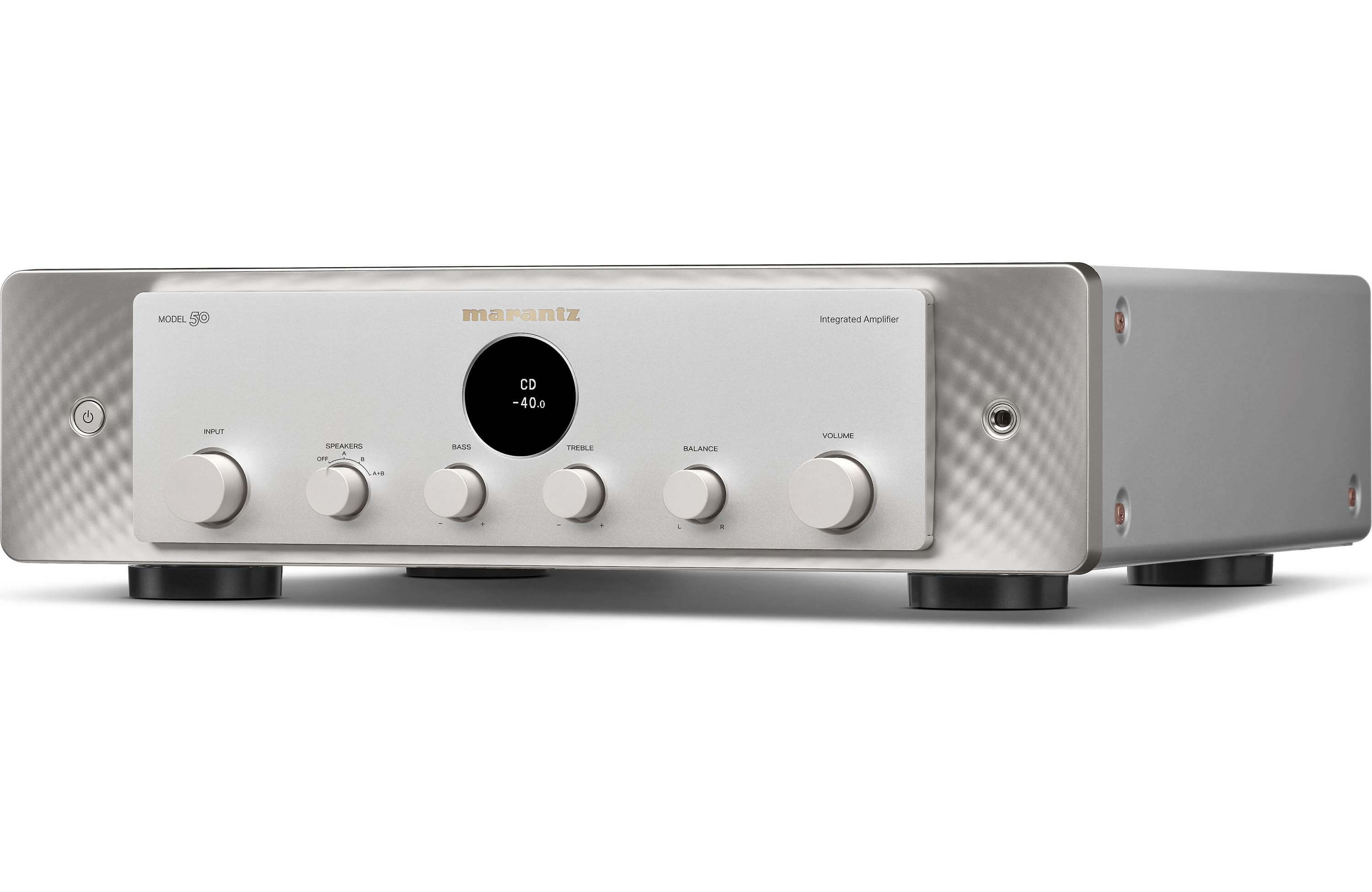

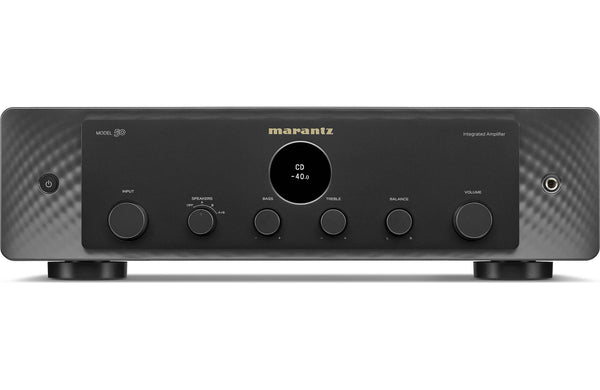

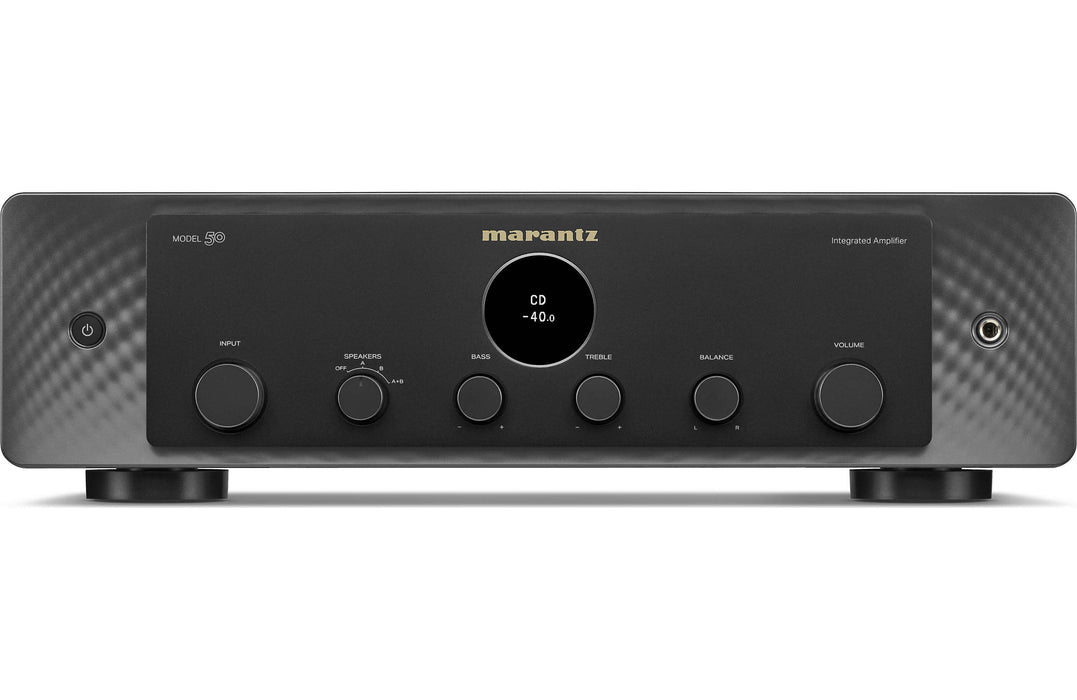

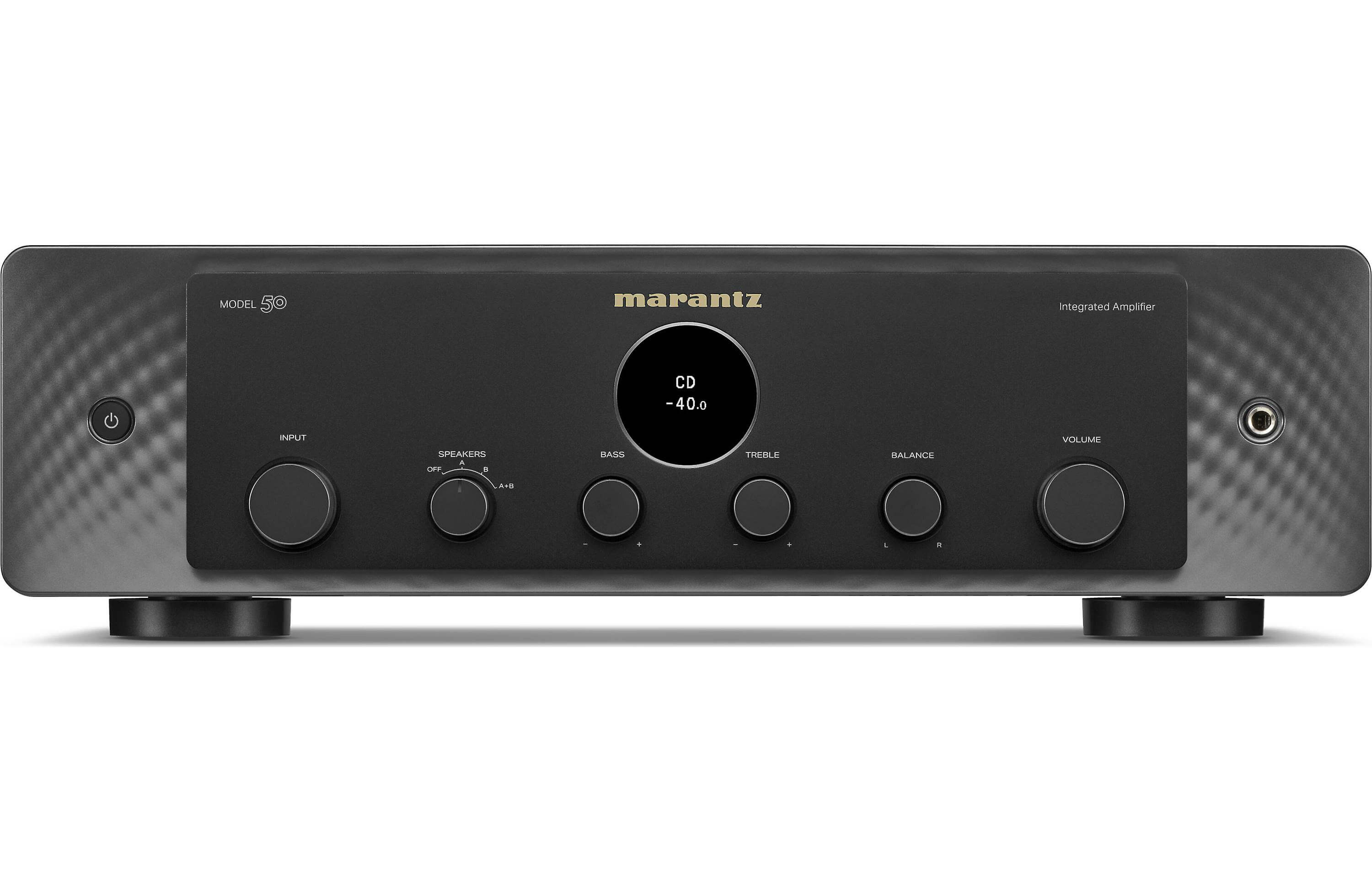

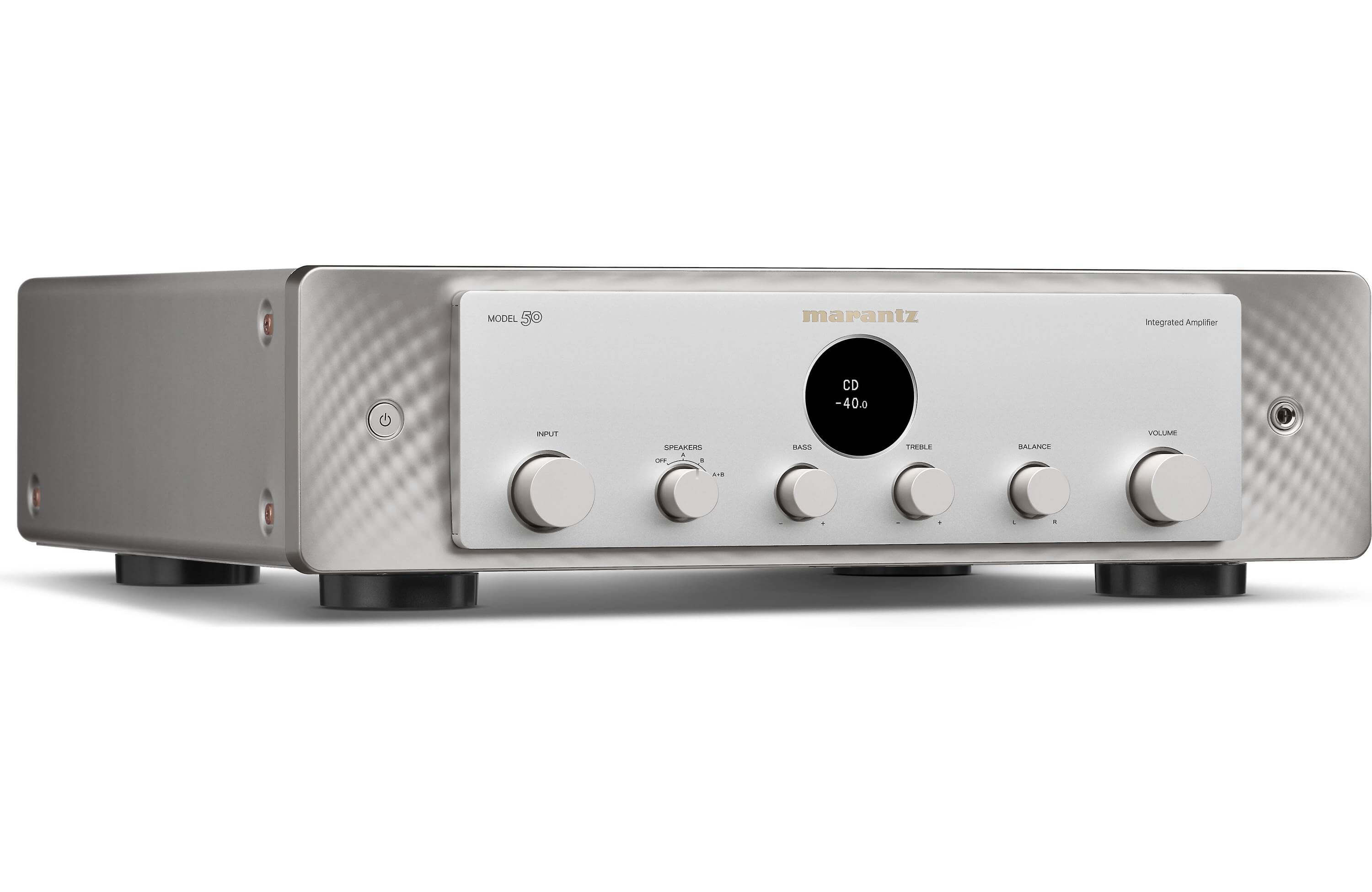

Marantz Model 50 Premium Integrated Amplifier with Custom HDAM

by Marantz
UPC: 747192141110
$1,800.00

SKU Model50Black
Color: Black

Product Qualifies for FREE Ground Shipping

Marantz Model 50 Premium Integrated Amplifier with Custom HDAM

PREMIUM INTEGRATED STEREO AMPLIFIER WITH 70W AND CUSTOM HDAM
MODEL 50 is the ideal integrated amplifier. With 70 watts per channel of unique Marantz current- feedback power and HDAM SA-3 circuitry, this amplifier drives loudspeakers with total control.

Key Features
Powerful And Precise Class A/B Amplifier
Even difficult to drive loudspeakers will sound effortless with the high- current, dual-device amplifier in MODEL 50.

Six Analog Inputs
With a collection of available analog inputs, MODEL 50 can accept audio from myriad source components and includes upgraded connectors for CD and phono.

Moving Magnet Phono
The built-in MM phono stage works with your turntable to amplify the nuance and tone in your records. Using a new circuit without distortion-inducing coupling capacitors.

Stereo Preamp Out
MODEL 50’s stereo preamp outputs add valuable flexibility to your audio system setup. Connect a subwoofer, add channels to your home theater, or multiply listening zones—the possibilities are endless.

Powerful, Yet Precise
With a precisely engineered Class A/B amplifier, MODEL 50 will drive your loudspeakers with authority yet reveal details you never knew existed.

Analog Purity and Simplicity
Analog is paramount in the design of MODEL 50. The decision to exclude digital audio ensures completely intuitive operation and eliminates the risk of interference from complex digital circuitry.

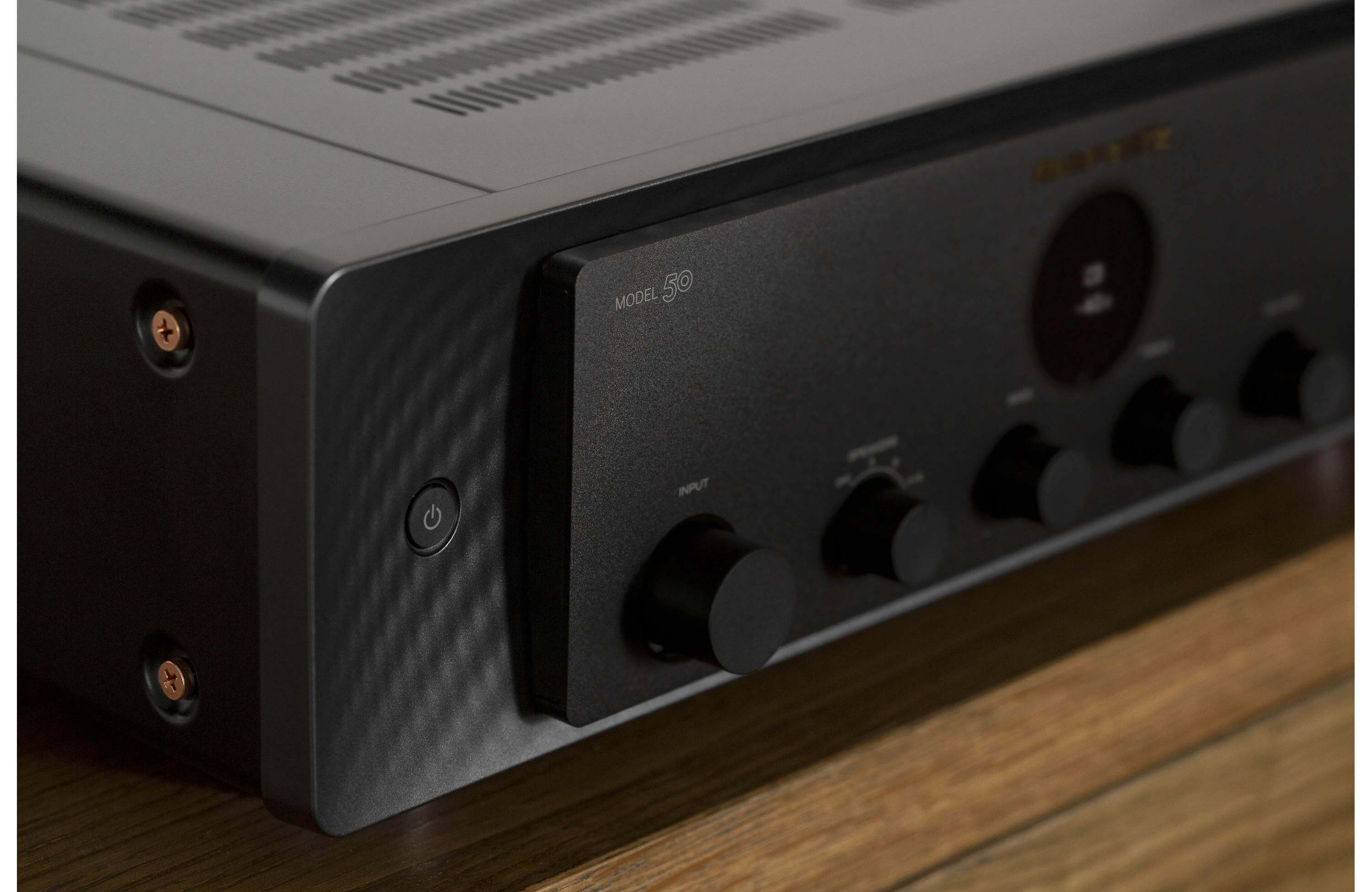

Exquisite Style
We designed MODEL 50 to be thoroughly modern, yet timeless. Hallmark aesthetic cues like symmetry, warmth, and tactile satisfaction push the boundaries of audio equipment design inspired by icons of our past.

Specs

Features
Channels 2
Current Feedback Topology Yes
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / o / -
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
HDAM version SA3, SA2

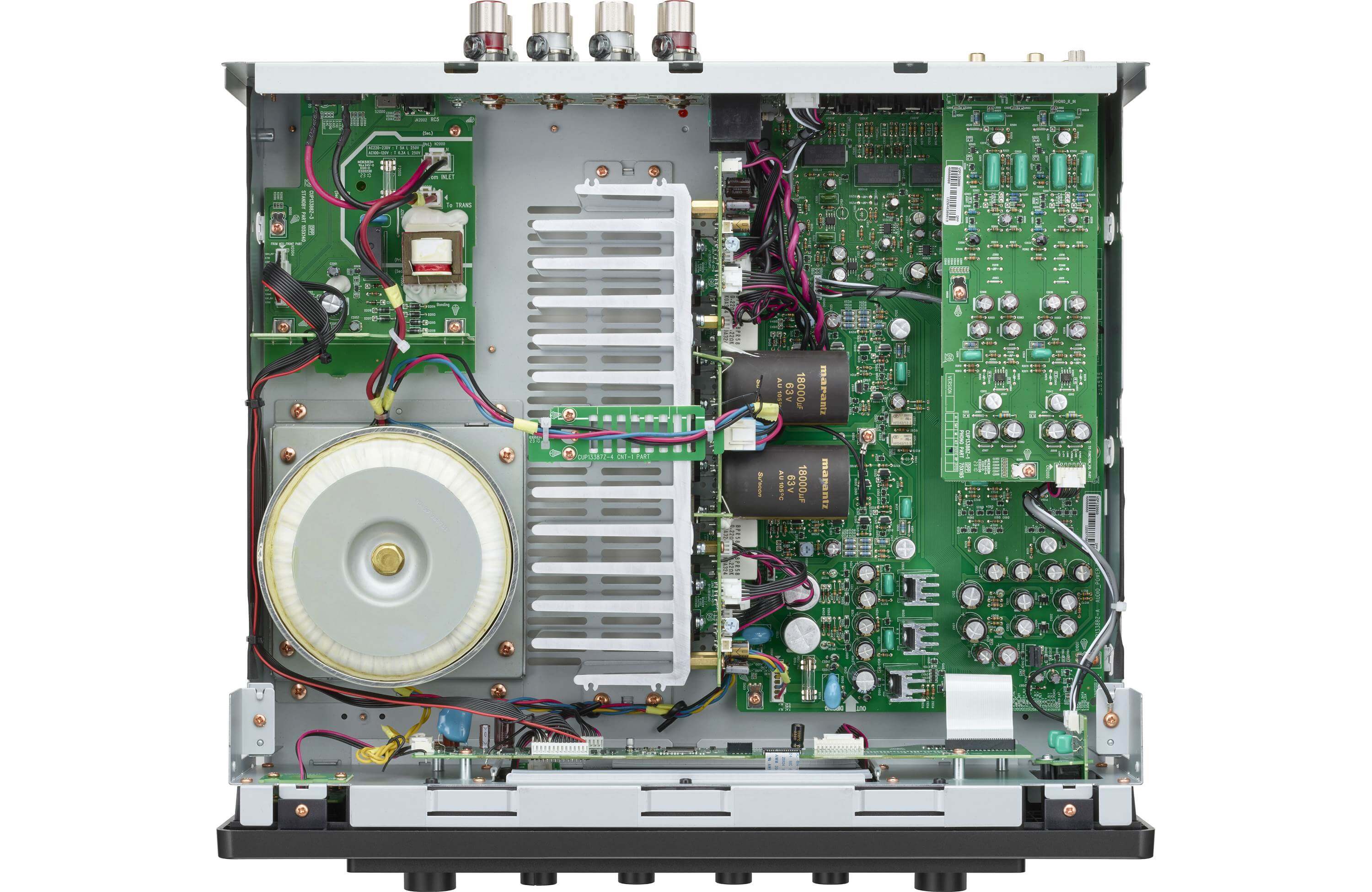

Power Transformer: Toroidal / El Yes / -
High Grade Audio Components Yes
Customised Components Yes
Symmetric PCB Layout Yes
Aluminium extrusion heat sink Yes
Balance / Bass / Treble / Loudness Yes / Yes / Yes / -

Others
Linear Drive Power Supply Yes
Liniear volume control Yes
Schottky diodes Yes
Input buffer amp (all inputs / CD only) - / Yes
Solid Heat Sinks Yes
System block shielding: Copper / metal / none - / - / Yes
Double Layer Bottom Plate triple
Low noise OLED display Yes
Source Direct Yes
Power Amp direct Yes

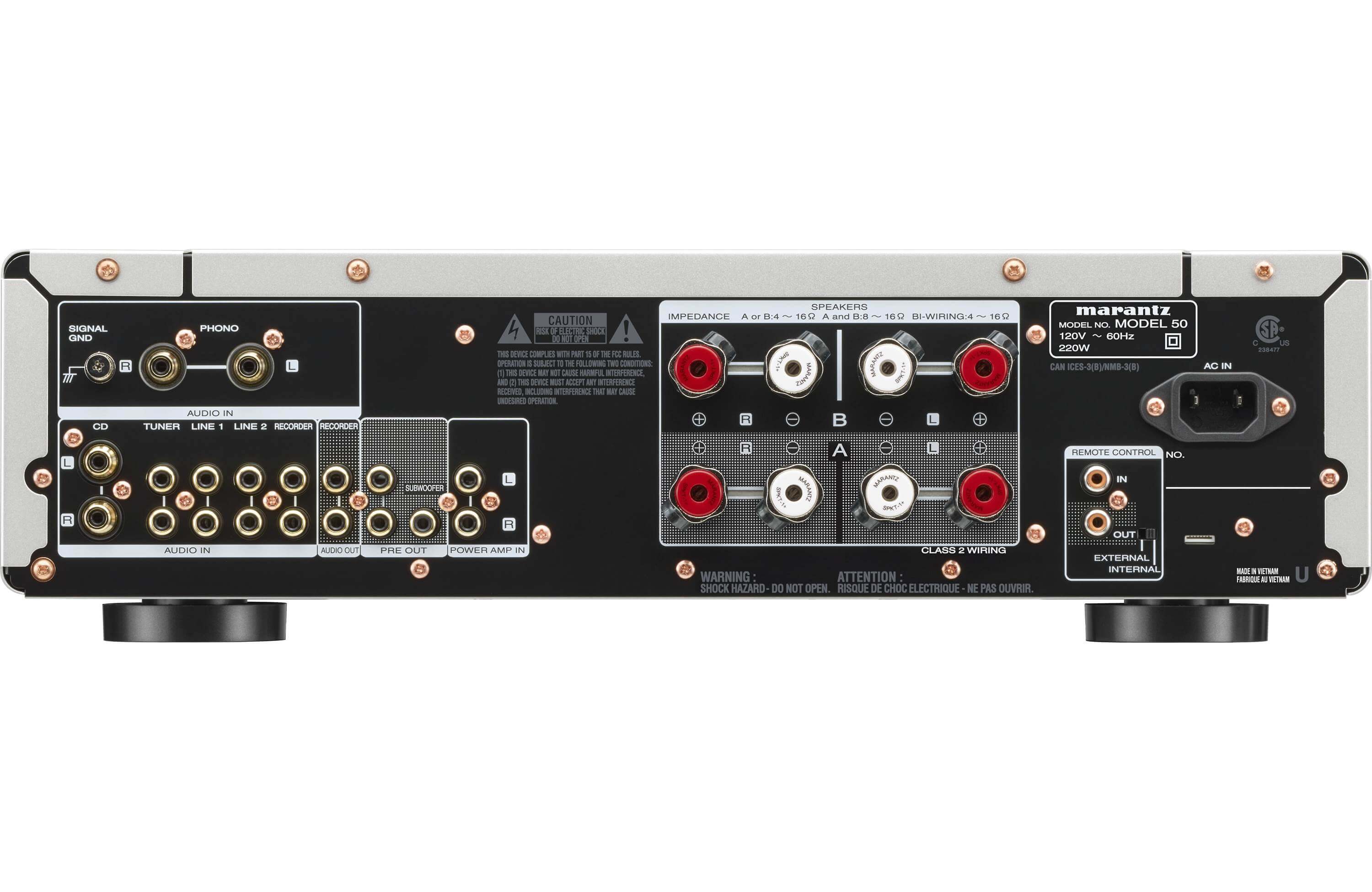

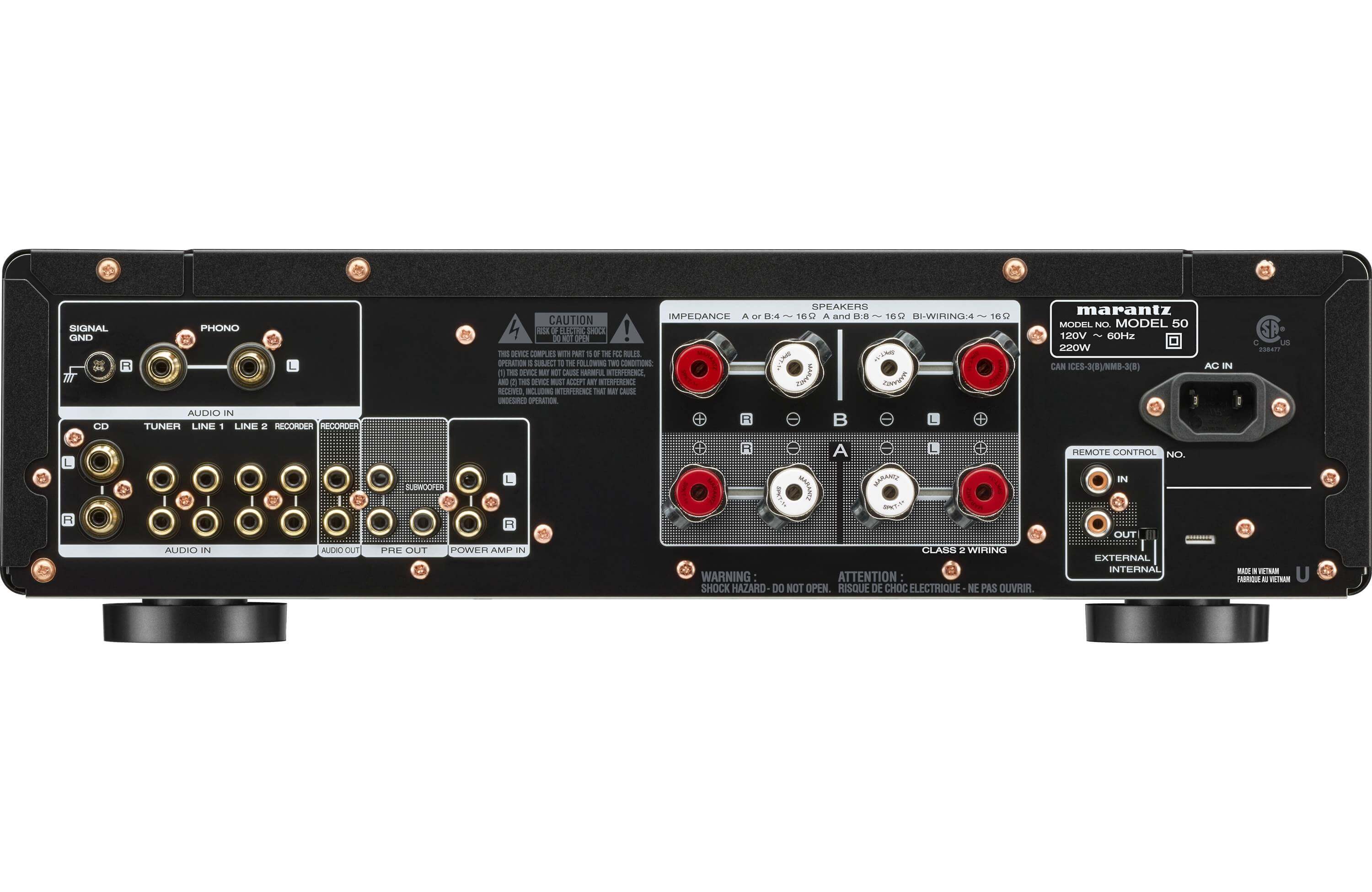

Inputs/Outputs
Audio Inputs 6
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
Phono Input: MM / MC Yes / -
Audio Outputs 1
Balanced In / Out - / -
Pre-out / Main-in Yes + subwoofer / -
Power Amp Direct IN Yes
Gold Plated Cinch Yes

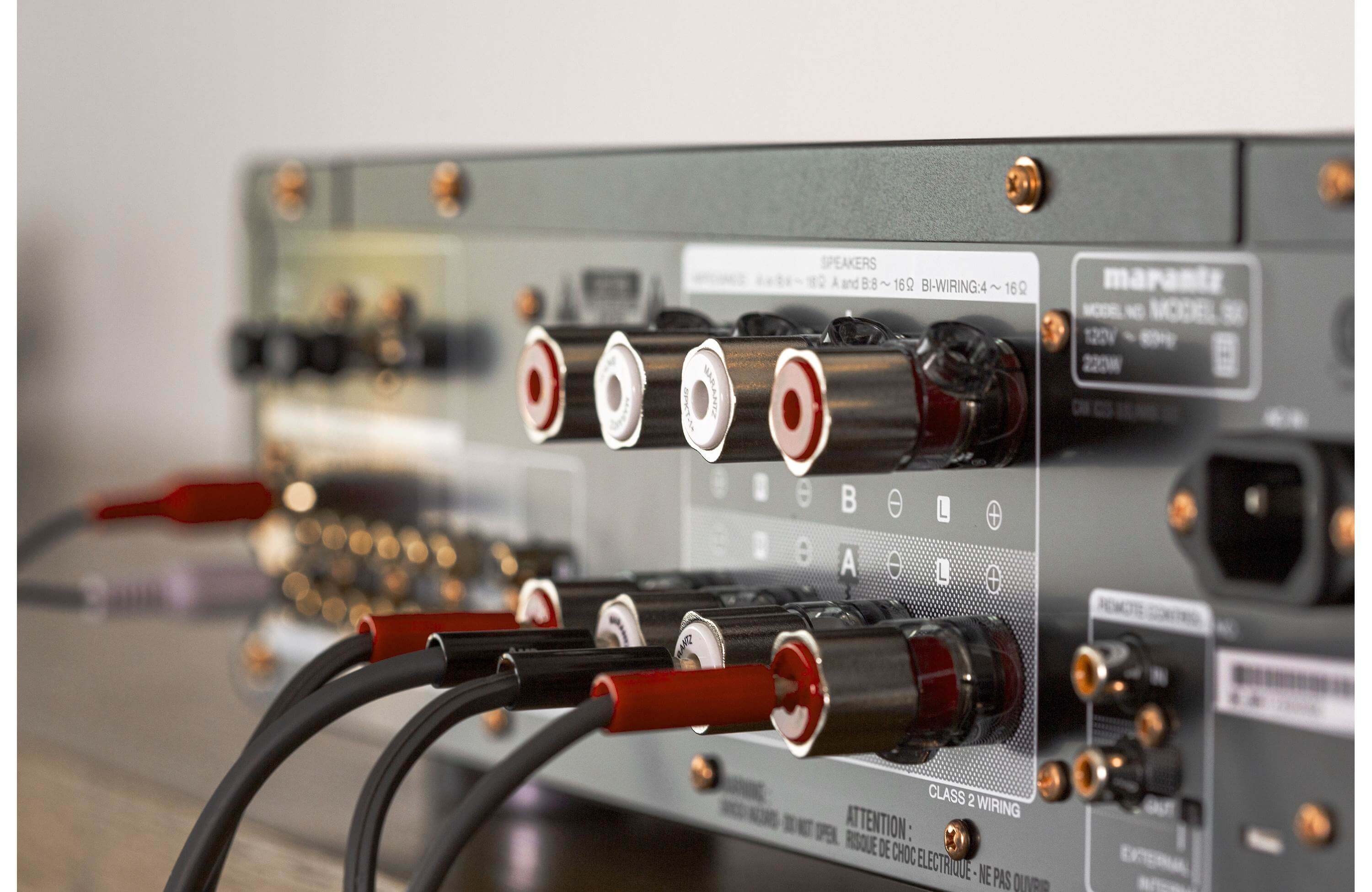

Speaker A / B Yes
Speaker Terminals Marantz SPKT-1+
Number of terminals 4
D-Bus Yes
Headphone Out Yes

Specifications
Power Output (8 / 4 Ohm RMS) 70 W / 100 W
Frequency Response 5 Hz–100 kHz
Total Harmonic Distortion 0.02 %
Damping Factor 100
Input Sensitivity: MM 1.4 mV / 47 kΩ
Signal to Noise Ratio: MM/MC 87 dB / -
Input Sensitivity: High level 185 mV / 16 kΩ
Signal to Noise Ratio: High level 116 dB (2 V input)
Input Sensitivity: Power Amp Direct IN 1.5 V / 15 kΩ
Signal to Noise Ratio: Power Amp Direct IN 125 dB
Treble Control ± 10 dB at 15 kHz
Bass Control ± 10 dB at 50 Hz

Available Colors: Gold / Silver / Black / Silver-Gold - / - / Yes / Yes

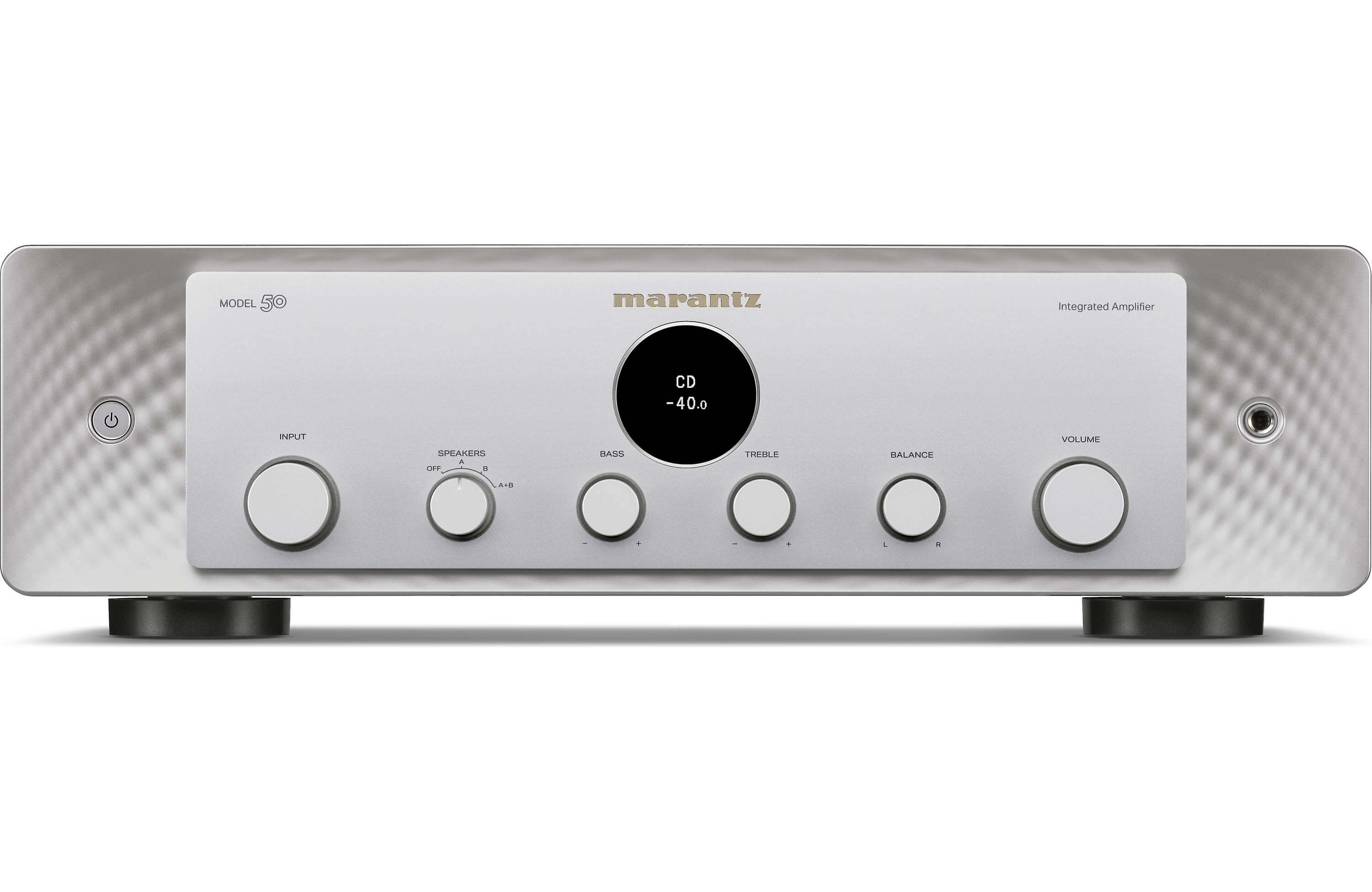

Metal Front Panel Yes
Power Consumption in W 220
Standby Consumption in W 0.3
Auto Power off Yes
Detachable Power Cable Yes

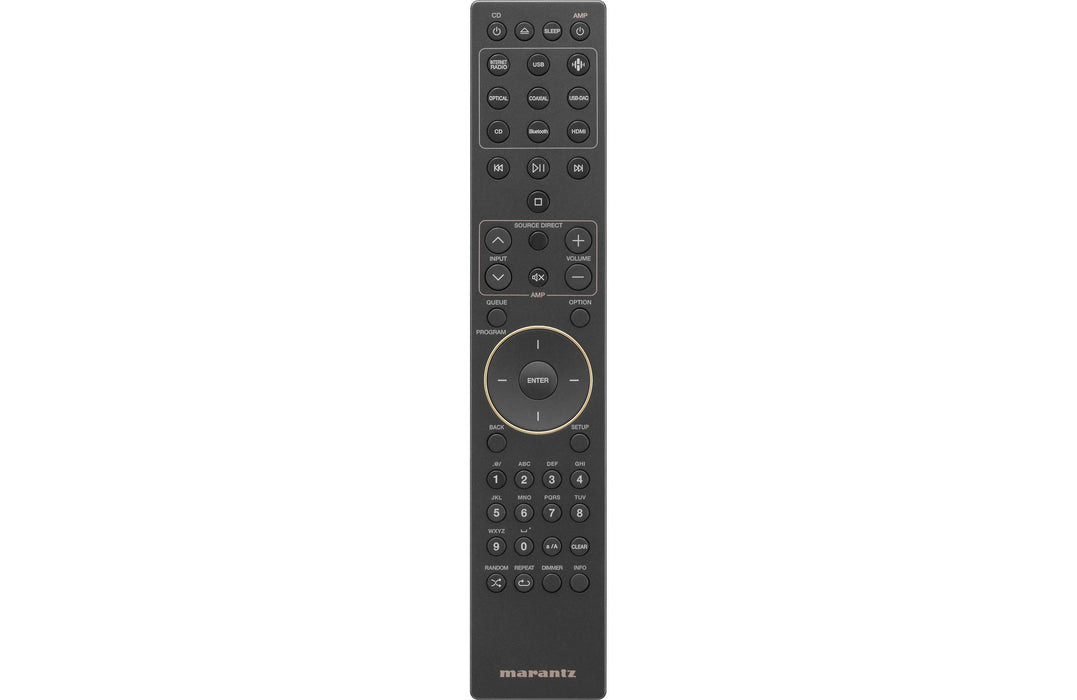

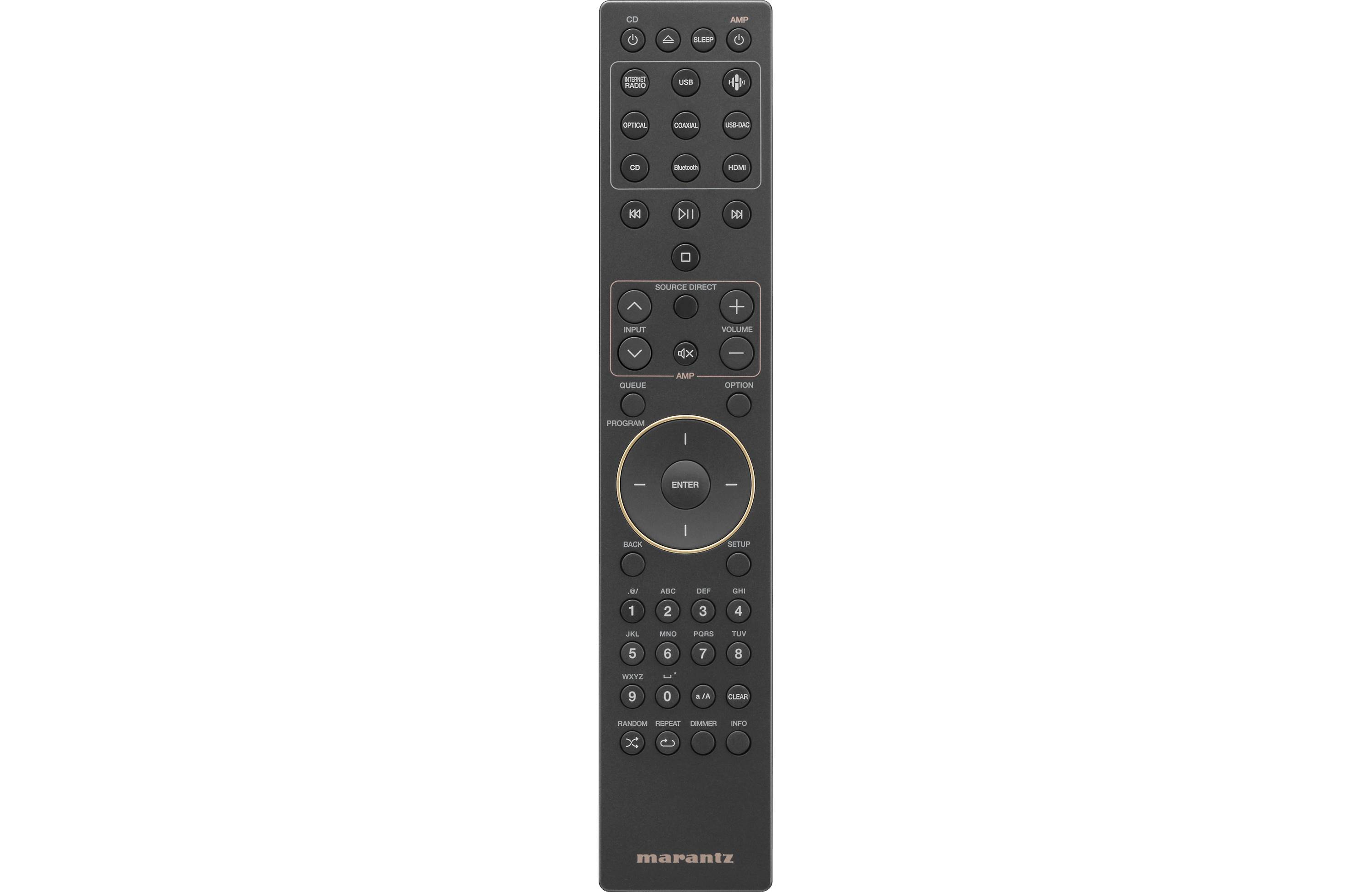

Remote Control RC003PMND
System Remote Function Yes
Maximum Dimensions (W x D x H) in mm 442 x 431 x 130
Weight in kg 14.2
Carton Maximum Dimensions (W x D x H) in mm 527 x 517 x 255
Carton Weight (inc. product) in kg 17.5
