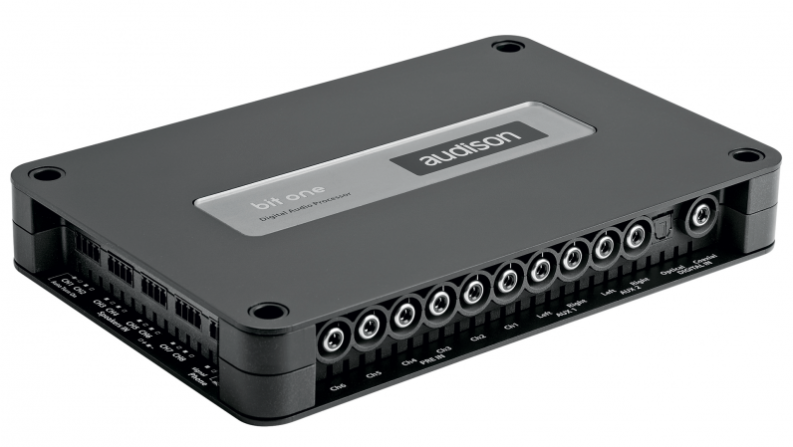

Despite its compact size, the bit One is equipped with a powerful 266 MHz / 32 bit floating point DSP microprocessor, working in real time on all the functions of the most complete systems. Managed and configured by a simple and intuitive computer software, it is possible to make adjustments to improve the signal through each phase of its path; from input to output.
Eight input channels for four different signal typologies (amplified, pre-amplified, coaxial electric and TOSLINK optical digital) and six different sources managed through a remote control, making the bit One a unique interface suitable for any need.
Eight analog and/or digital output channels ensure a wide expandability for any audio system configuration.
Auto tuning by Audison bit Tune and communication with bit Drive portal.
De-equalization function to “flatten” any equalization applied by default by OEM sources.

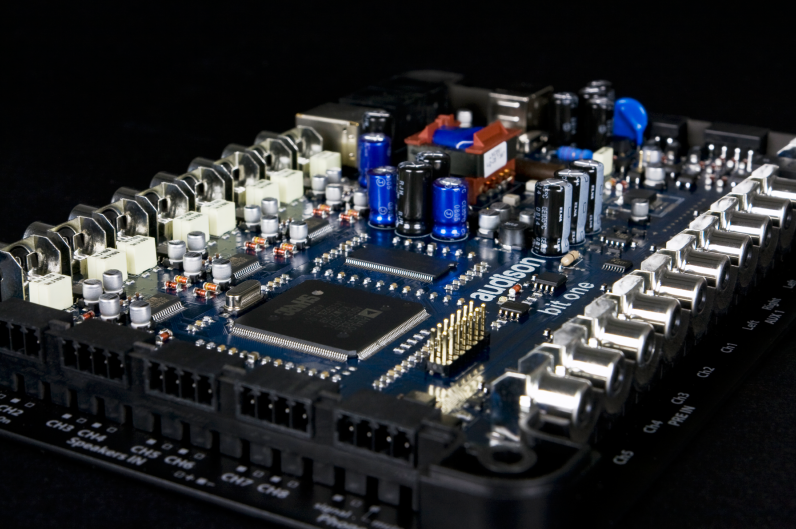

ANALOG DEVICE SHARK™ DSP
Analog Device SHARC™ series chip with floating point precision, to reach the highest audio quality.
Analog Inputs 8 high lev. + 6 pre in
Digital Inputs 2
Analog Outputs 8
Digital Outputs 8
Equalizers for each Outputs 31-band graphic equalizer (1/3 Oct.; ±12dB)
Crossover Filter Type Full / Hi-Pass / Low Pass / Band Pass
Filter mode and slope Linkwitz @ 12 / 24 / 36 / 48 dB
Butterworth @ 6 / 12 / 18 / 24 / 30 / 36 / 42 / 48 dB
