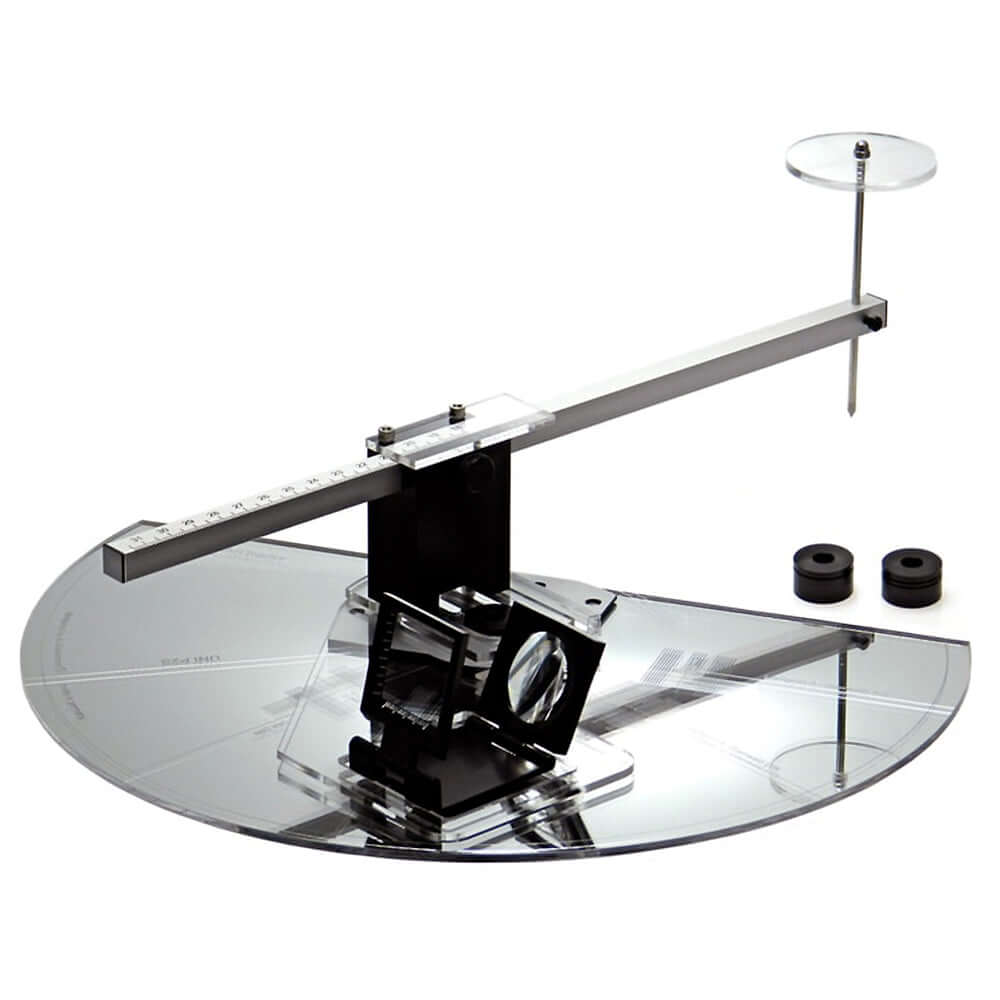

Acoustical Systems The SMARTractor Phono Alignment Tool

For the serious audiophile who is interested in aligning – if only periodically -their analogue front-end to the utmost precision does look for precision which comes handy and which is easy to operate.

To answer this request we have designed the SMARTractor – a direct off-spring of our UNI-Protractor.

The SMARTractor brings the same unparalleled precise tangential alignment for which the UNI-Protractor earned it’s laurels – PLUS the 0.05mm precise mounting distance measurement of the UNI-P2S.

Acoustical Systems The SMARTractor Phono Alignment Tool

The SMARTractor comes with 5 (five) tangential curves combined in 1 (one) template.

  • the SMARTractor’s template is made from 3mm (= same thickness as 180 gr LP) strong premium grade german XT mirrored acrylic supplied by Evonik.
  • no-error-possible single-point alignment with 3mm deep parallax (for ALL helping lines) – an extreme precise, easy and fast alignment.
  • super easy to use with 1-point fixed setting for every tangential curve.
    all alignment lines are cnc-laser cut hairlines.

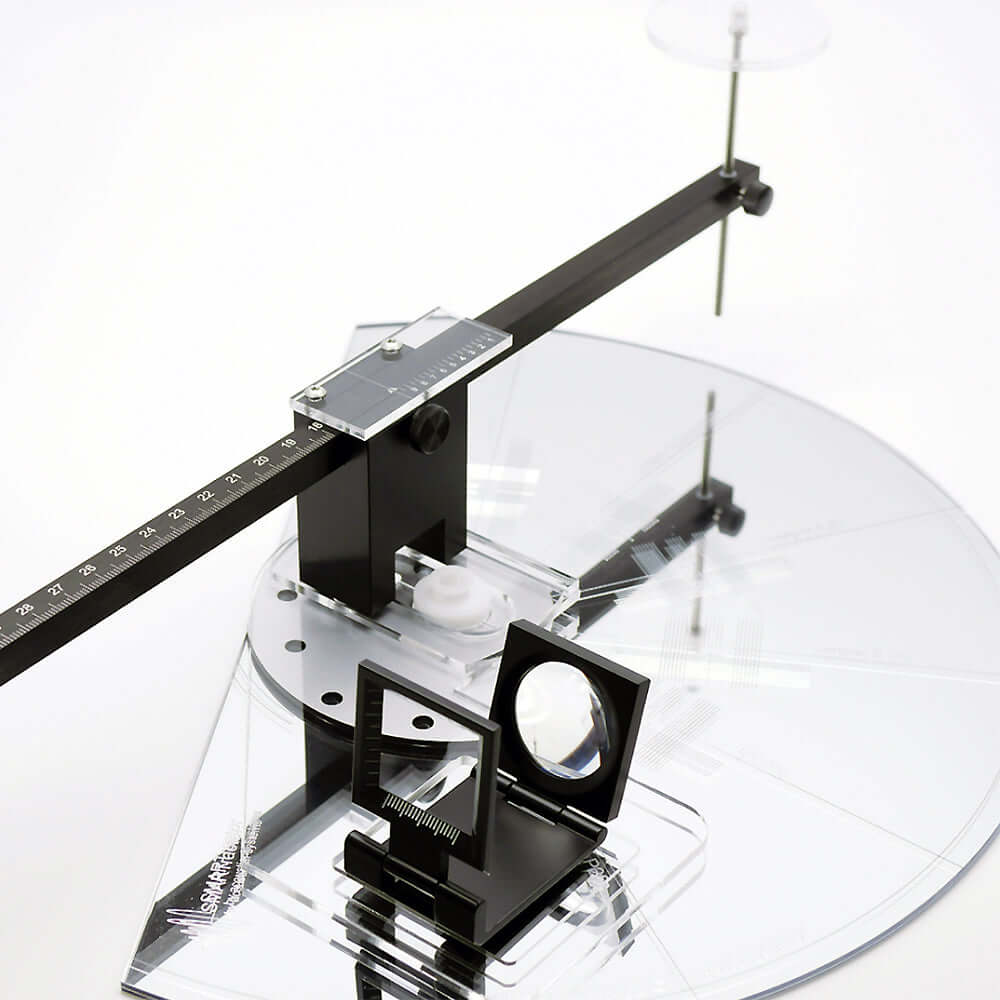

  • incorporates real glass aluminum-frame magnifier with automatic focus jig for unrivaled precise magnified view during alignment.
  • all 5 tangential alignments are based on true triangular positioning and thus are independent of effective length and thus suitable for ALL pivot tonearms, no matter what their effective length or mounting position.

The SMARTractor further comes with in-built direct mounting distance – P2S -measurement with 0.05mm accuracy.
