Accuphase E-800 Class A Precision Integrated Stereo Amplifier Store Demo

by Accuphase
UPC:
Save 20%
$19,975.00
$15,980.00

SKU AccuphaseE-800StoreDemo

Product Qualifies for FREE Ground Shipping

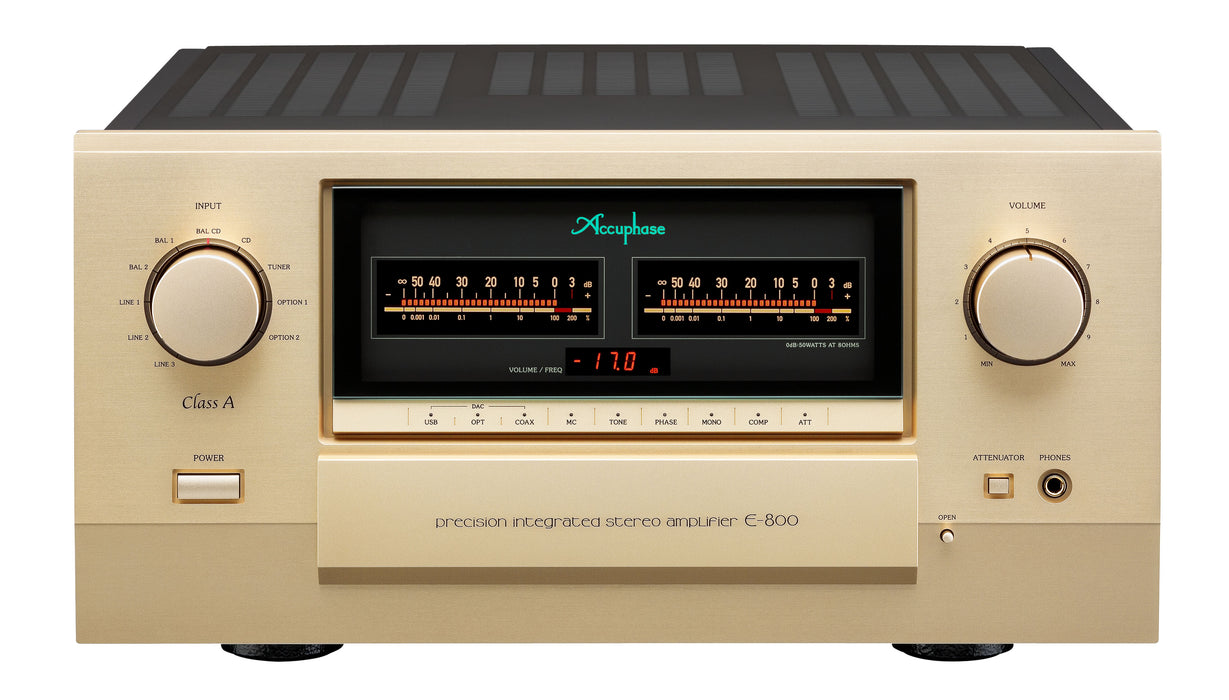

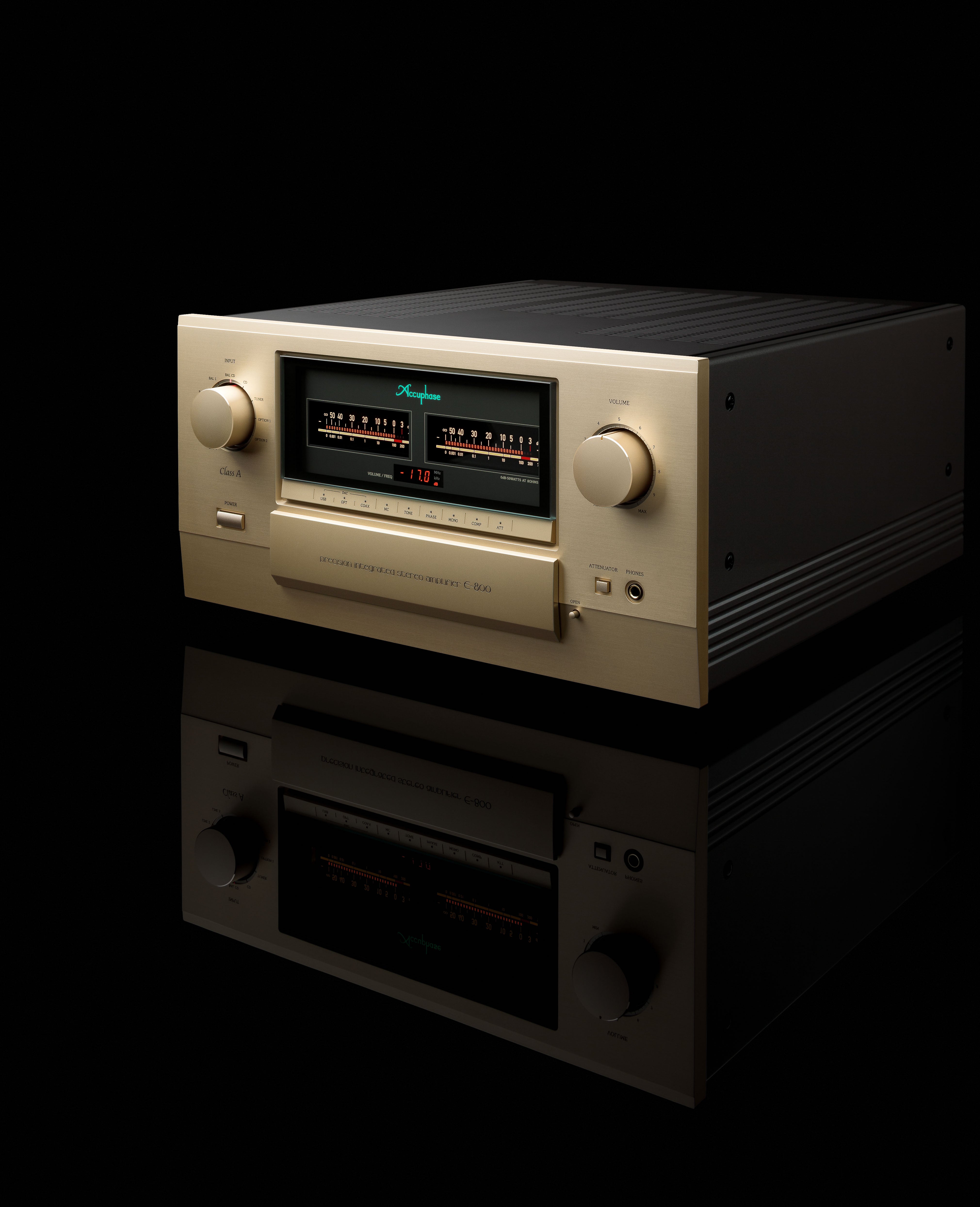

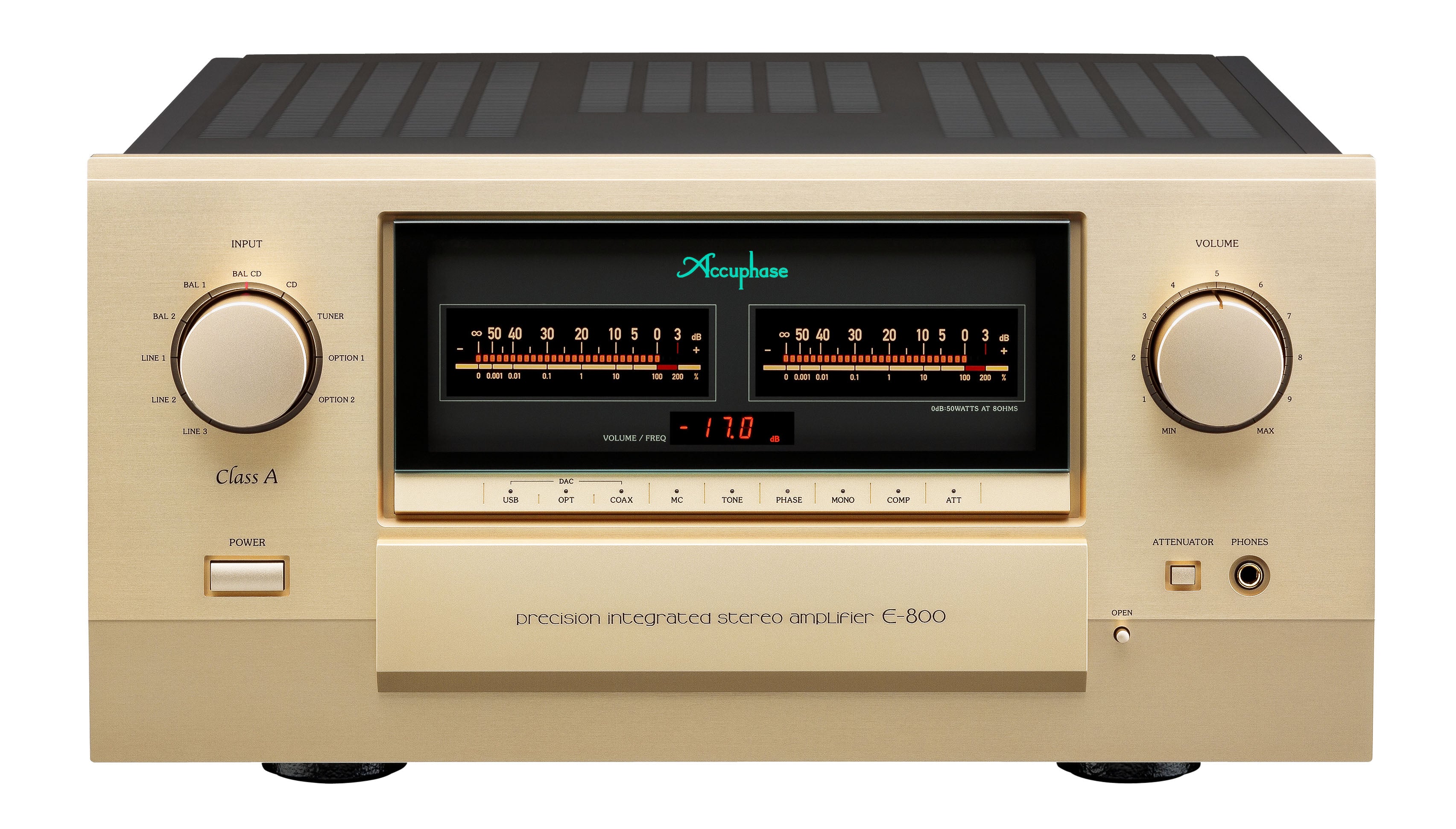

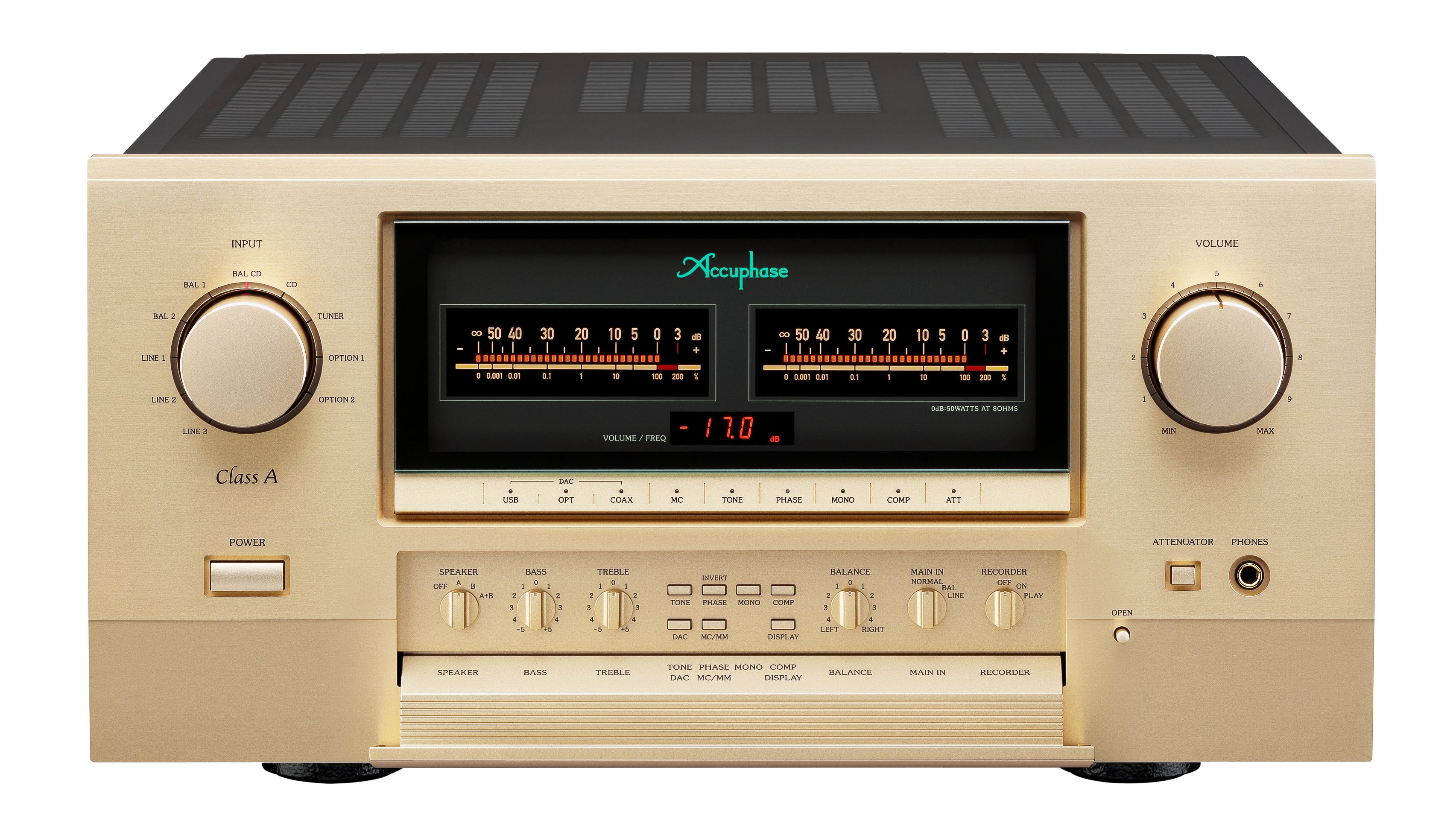

Accuphase E-800 Class A Precision Integrated Stereo Amplifier Store Demo

The E-800 is positioned above the E-650 as the new flagship model in the integrated amplifier lineup of Accuphase. The preamplifier section features the impeccable Balanced AAVA type volume control, while the power amplifier section is configured as an instrumentation amplifier using a six-fold parallel push-pull configuration of power MOS-FETs driven in pure Class A. The resulting quality is on a par with high-class separate type amplifiers. Operating as a simple and smart system, the E-800 realizes acoustic excellence that reaches to the very heart of the music.

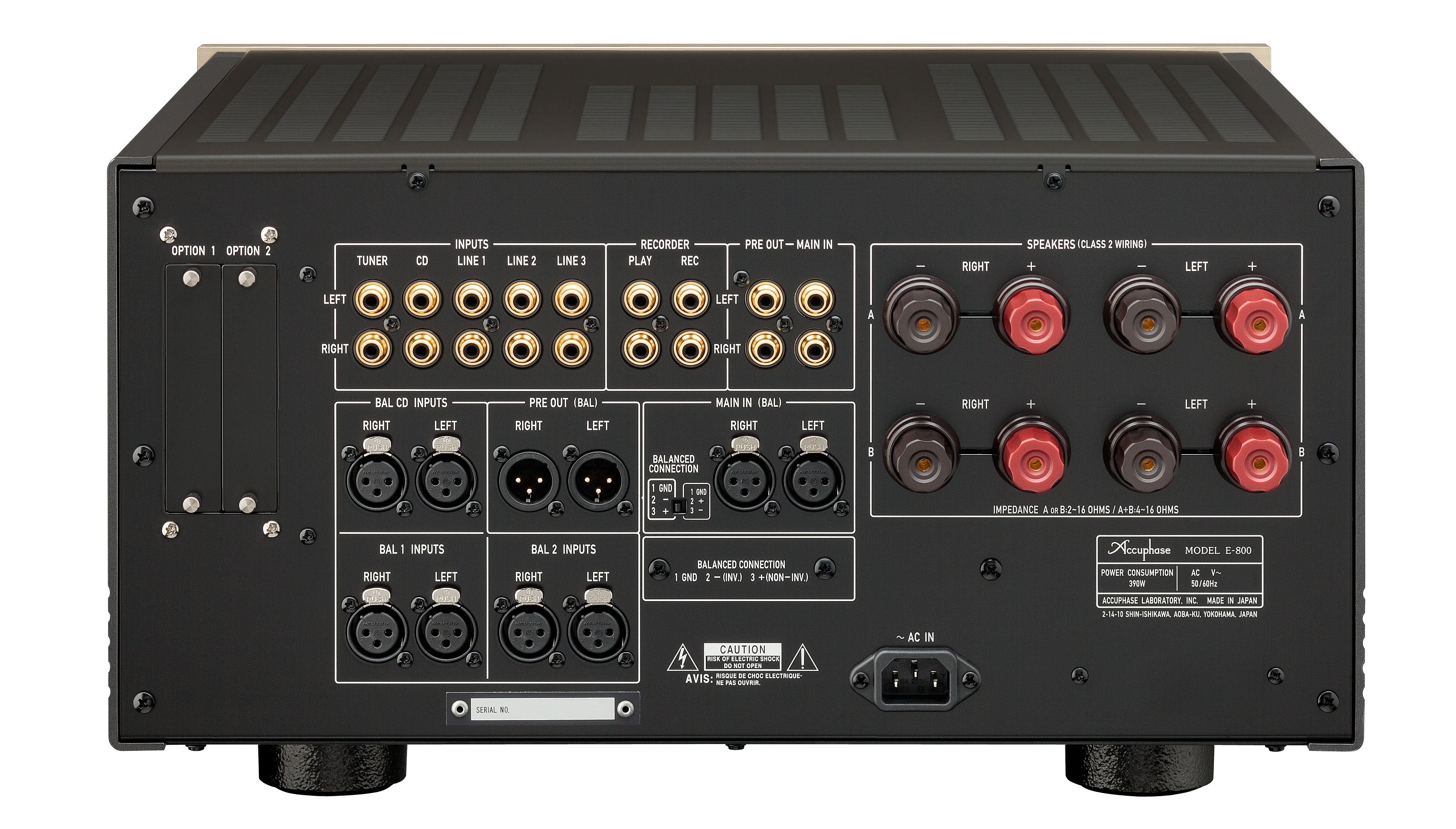

  • Integrated amplifier with fully balanced configuration extending from input to output
  • Balanced AAVA type volume control
  • Power amplification stage configured as instrumentation amplifier
  • Six-fold parallel push-pull configuration of power MOS-FETs driven in Class A
  • Linear power progression of 50 watts into 8 ohms, 100 watts into 4 ohms, and 200 watts into 2 ohms
  • 300 W output into 1-ohm load (music signals)
  • High damping factor of 1000

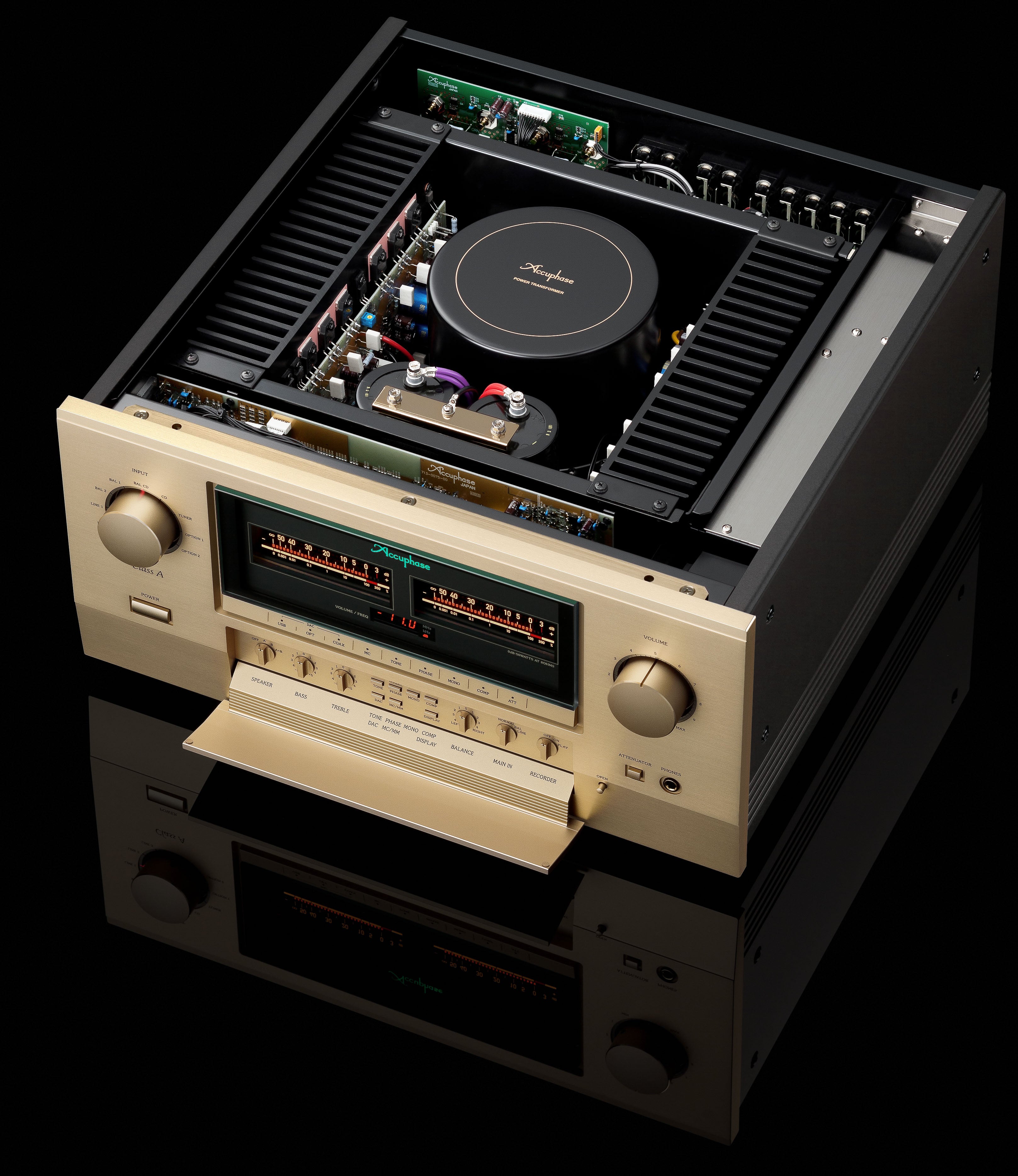

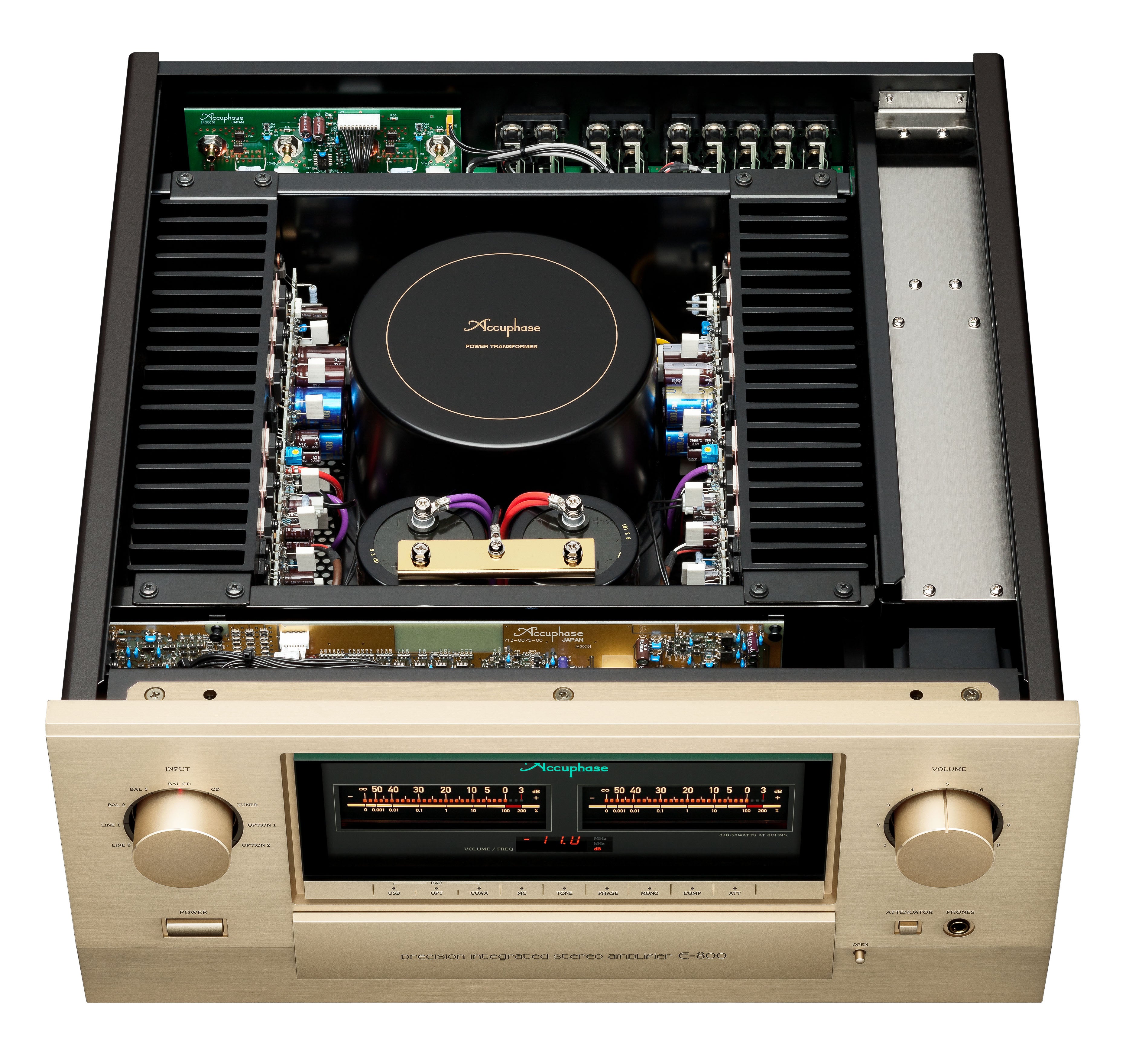

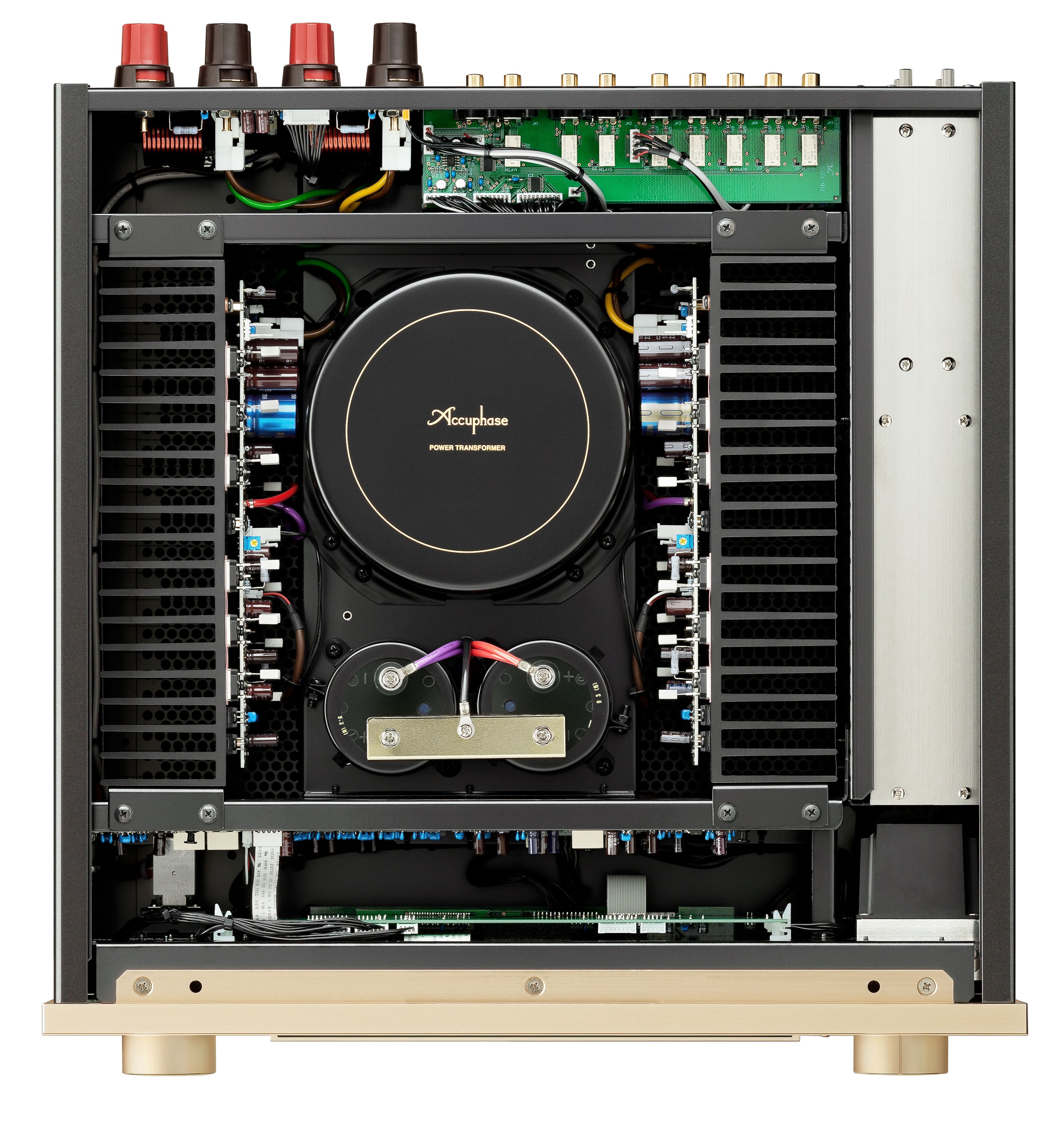

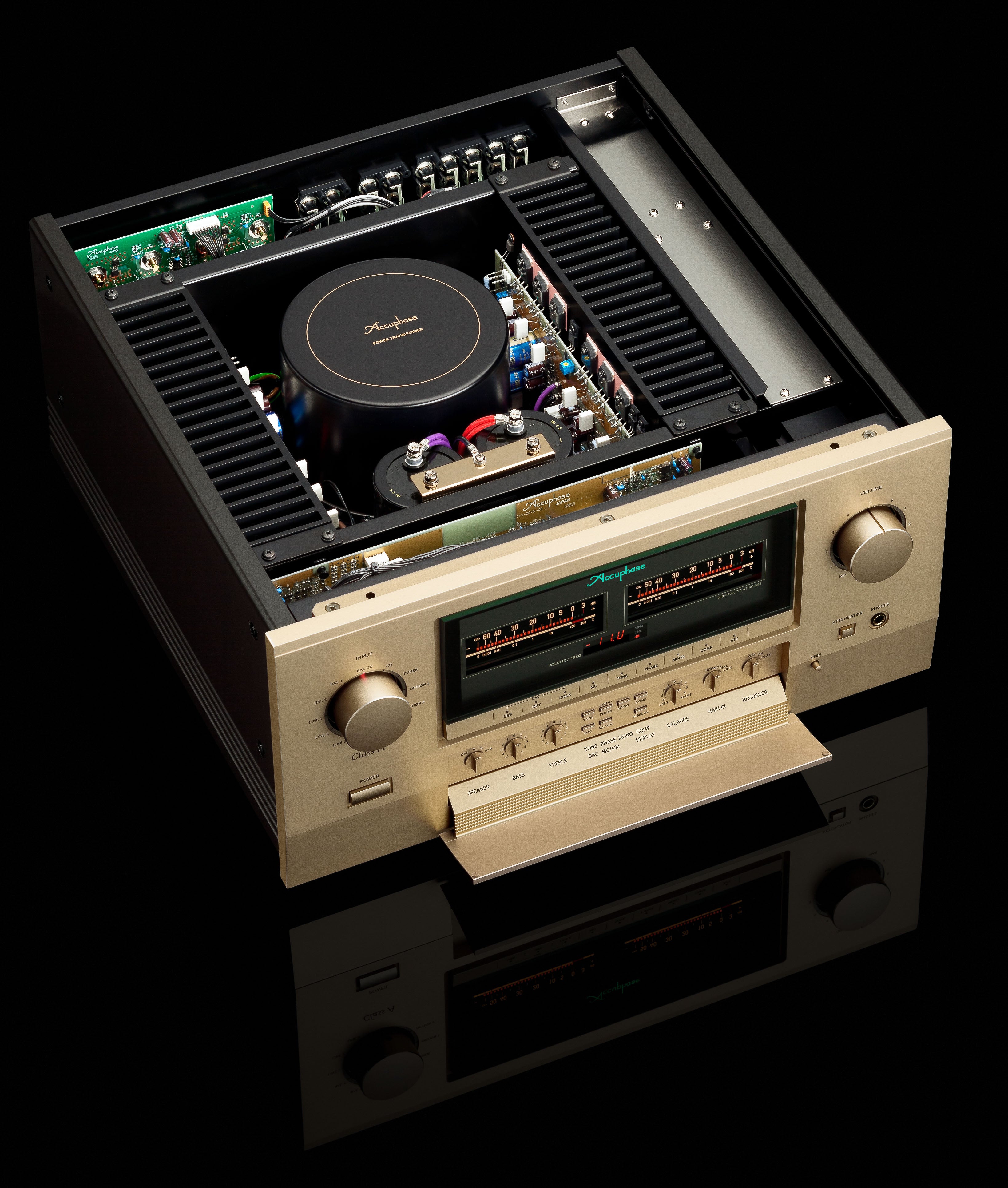

  • Strong power supply with massive high-efficiency toroidal transformer and large filtering capacitors
  • Protection circuitry using MOS-FET switches
      Specs

      Continuous average output power: 50 W / ch (into 8 ohms, both channels driven, 20 – 20,000 Hz, THD 0.05%)

      Frequency response (1 W output): 3 Hz – 150 kHz +0, -3.0 dB

      Damping factor: 1000 (EIA, 8 ohm load, 50 Hz)

      Input sensitivity: 0.126 mV (DISC MC), 2.5 mV (DISC MM), 100 mV (BALANCED, LINE), 796 mV (MAIN IN)

      S / N ratio: 104 dB (BALANCED, LINE), 119 dB (MAIN IN)
