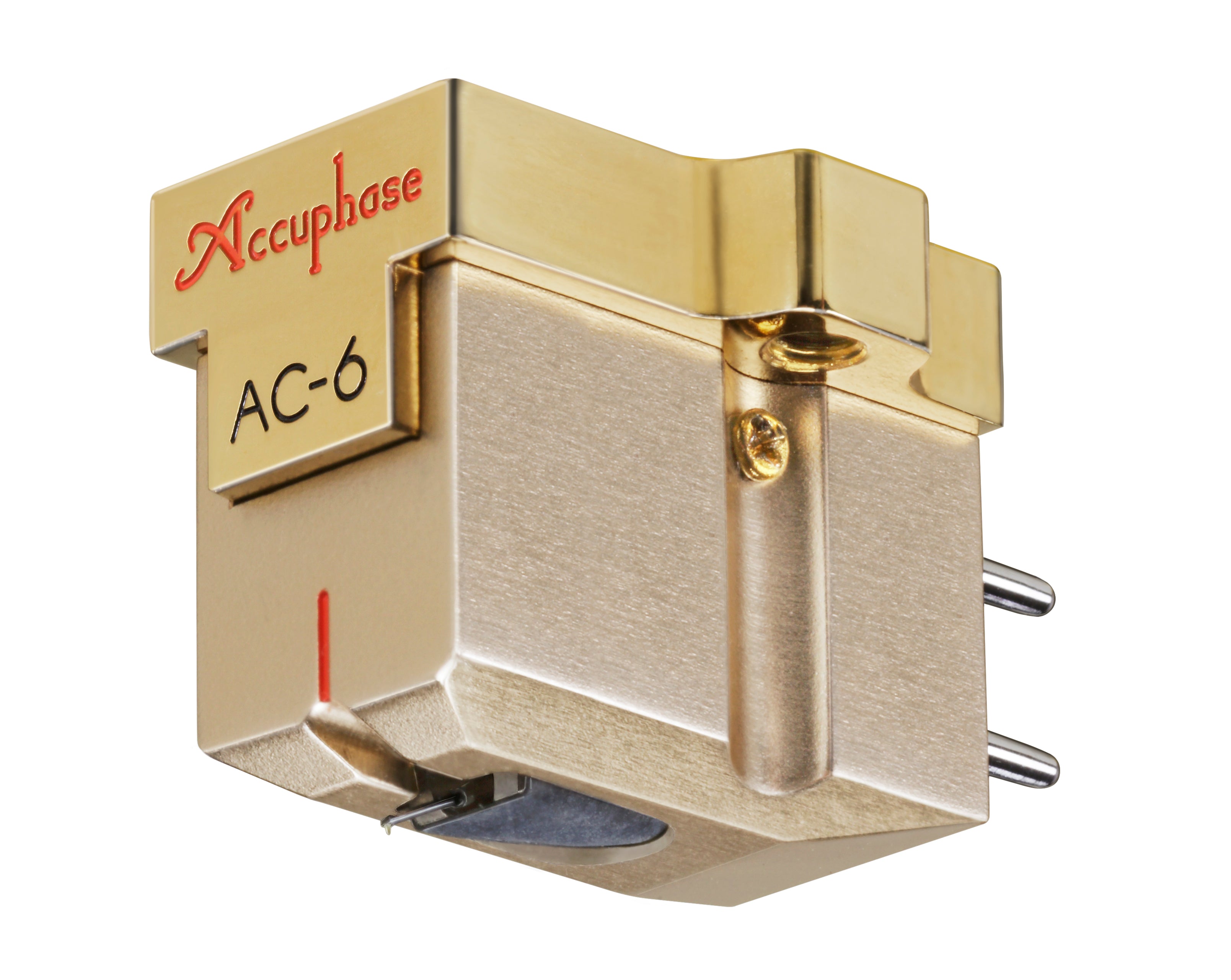

Accuphase AC-6 Moving Coil Phono Cartridge


SKU AccuphaseAC-6
  • Accuphase AC-6 Moving Coil Phono Cartridge

    The AC-6 is a new addition to the highly acclaimed Accuphase lineup of phono cartridges. This MC cartridge features latest technology in terms of materials and construction. The semi line contact stylus extracts minute vibrations that are transmitted instantaneously to the magnetic circuit by the boron cantilever with high propagation speed. The magnetic circuit is mounted on a strong titanium base, ensuring accurate conversion into a music signal. Every single aspect of the cartridge has been finely honed to deliver optimum performance, ushering the listener into the wonderful world of analog records.

    • Base section made of stiff extruded titanium further hardened by gold ion plating
    • Cartridge body made of extruded aluminum with gold-colored alumite coating
    • Solid boron cantilever with high propagation speed faithfully transmits the stylus
    • Semi line contact stylus shape accurately traces even minute groove
    • Magnetic circuit with strong grade N50 permanent neodymium magnet

    Cartridge type: Moving coil

    Frequency response: 10 Hz to 50 kHz

    Rated output voltage: 0.4 mV (1 kHz)

    Impedance: 1.8 ohms (DCR)

    Recommended tracking force: 1.9 to 2.2 g (centered on 2.0 g)

    Channel balance: Within 0.5 dB (1 kHz)

    Channel separation: 30 dB or better (1 kHz)

    Compliance: 8 × 10 –6 cm/dyne at 100 Hz (CBS STR100)

    Recommended load impedance with amplifier: 100 ohms or more, with step-up transformer: no limitations

    Stylus: Semi line contact type (3 mm × 30 mm)

    Cantilever: Solid boron, 0.3 mm dia.

    Core material: Special magnetic material

    Magnet: Neodymium N50

    Coil: OFC, 50 mm dia.

    Terminal pins: High-gloss rhodium plated

    Mass: 13.5 g
