Music Hall Mini Phono Preamplifier
THE MUSIC HALL MINI IS A SOLID STATE MOVING MAGNET PHONO PREAMP FOR USE WITH MOVING MAGNET AND HIGH OUTPUT MOVING COIL CARTRIDGES.
RIAA compliant
The mini is designed to amplify an RIAA equalized phono signal to a high level signal.
Made in USA
The music hall mini is cheap, cheerful, and built in the USA.
—
RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
Feature list
- RIAA equalization +/- 1.5 dB, 20Hz to 20kHz
- steel chassis

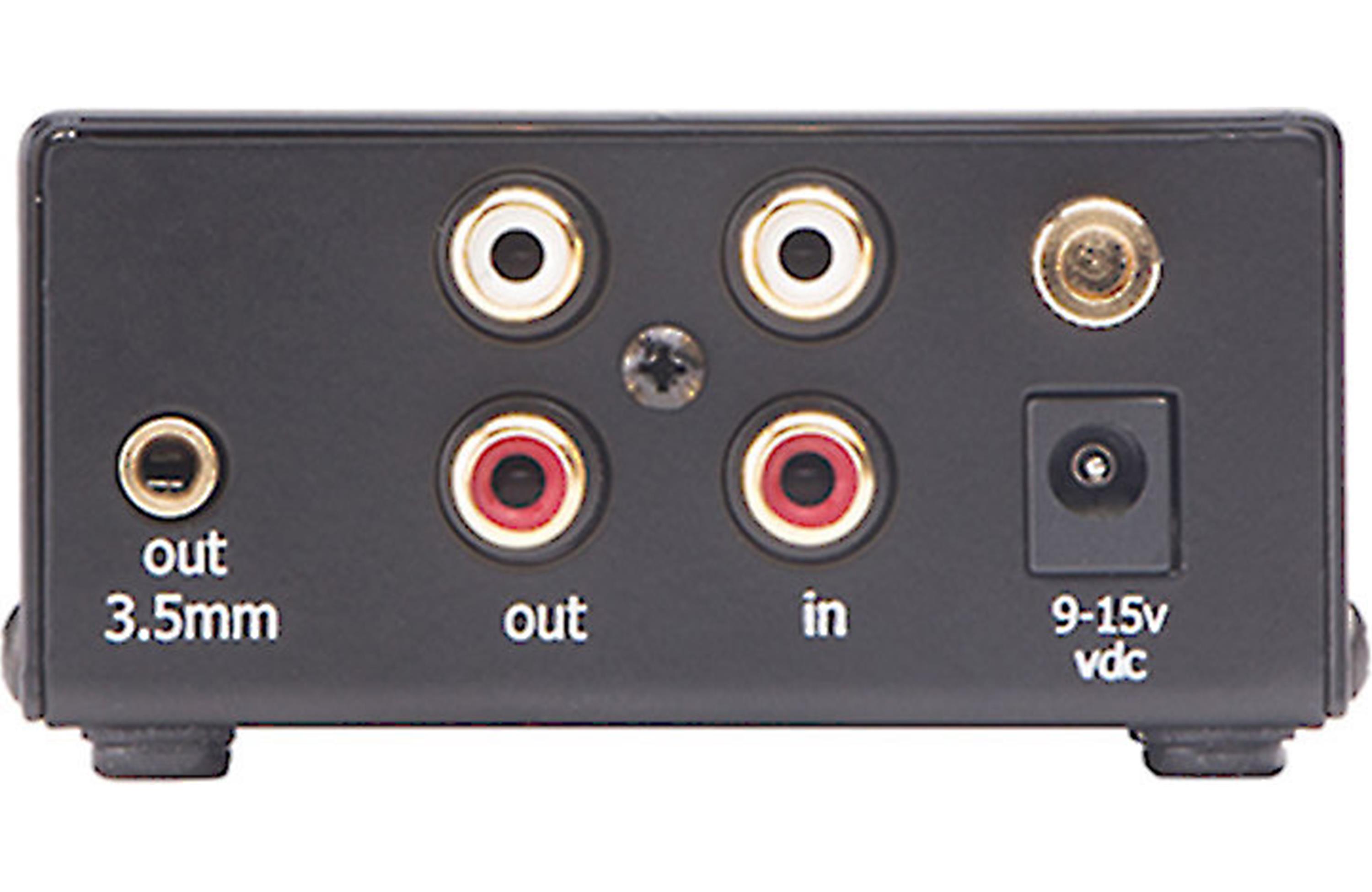

- i/o connectors: rca, 3.5mm trs stereo
Specs
Specifications
I/ O Connectors: RCA, 1/8″ TRS Stereo
Input Sensitivity: 42 dB gain 1kHz, 47k Ohms
Input Capacitance: 120pf
Sensitivity: 5mV for 635mV output
Input Impedance: 50k Ohms
Output Impedance: 1K Ohms
Frequency Response: + / – .5 dB 20 Hz – 20 kHz
(Conforms to RIAA Equalization Curve)
THD .01% @ 1 kHz
S/N Ratio: >83 dB unweighted
PWR: 9 – 15 VDC
Size: 3.25 x 2 x 1.5
Weight: 1 lb
