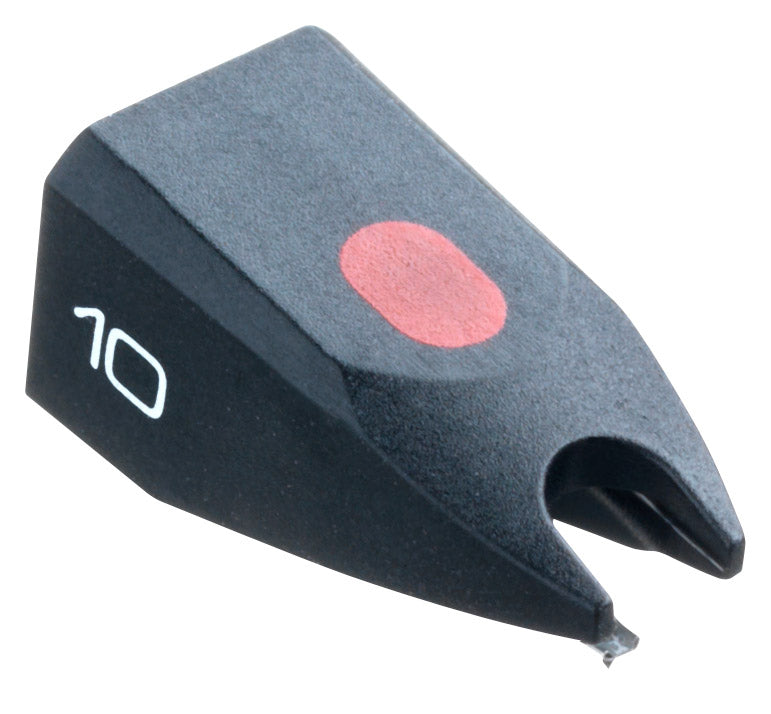

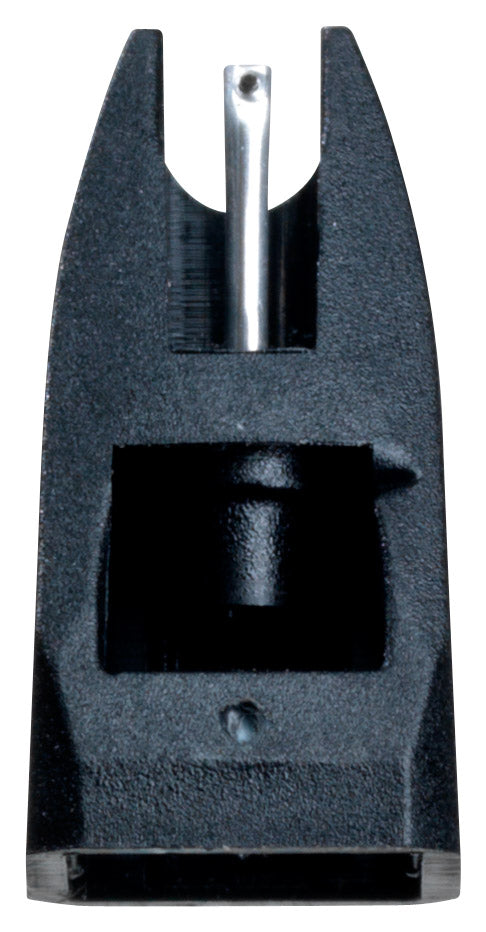

Ortofon Stylus 10 Replacement stylus for Super OM 10

by Ortofon
UPC: 5705796130065
$63.99

SKU Stylus10
RETURN POLICY
  • NO RETURNS ON ALL PHONO CATRIDGE PURCHASES

    • Ortofon Stylus 10 Replacement stylus for Super OM 10

    Technical Specifications:

    Frequency range: 20-24.000 Hz
    Frequency response: 20-20.000 Hz + 3 / - 1 dB
    Tracking ability at 315Hz at recommended tracking force*): 70 m
    Compliance, dynamic, lateral: 20 m/mN
    Stylus type: Elliptical
    Stylus tip radius: r/R 8/18 m

    *) Typical value

    Tracking force range: 1.25-1.75 g (12.5-17.5 mN)
    Tracking force, recommended: 1.5 g (15 mN)
    Tracking angle: 20
    Stylus colour: Black

    Recommended for following cartridges: Super OM 10, OM 10, OMP-mount 10, OMBulk 10, OMT 10, LM 10, Concorde 10, Concorde EC 10, Concorde STD, TM 10H, LMB 12, SMB 12, LMA 12
