Lumin U2 Mini Digital Transport and Music Streamer

by Lumin
UPC:
$2,400.00

SKU LuminU2MiniBlack
Color: Black

Product Qualifies for FREE Ground Shipping

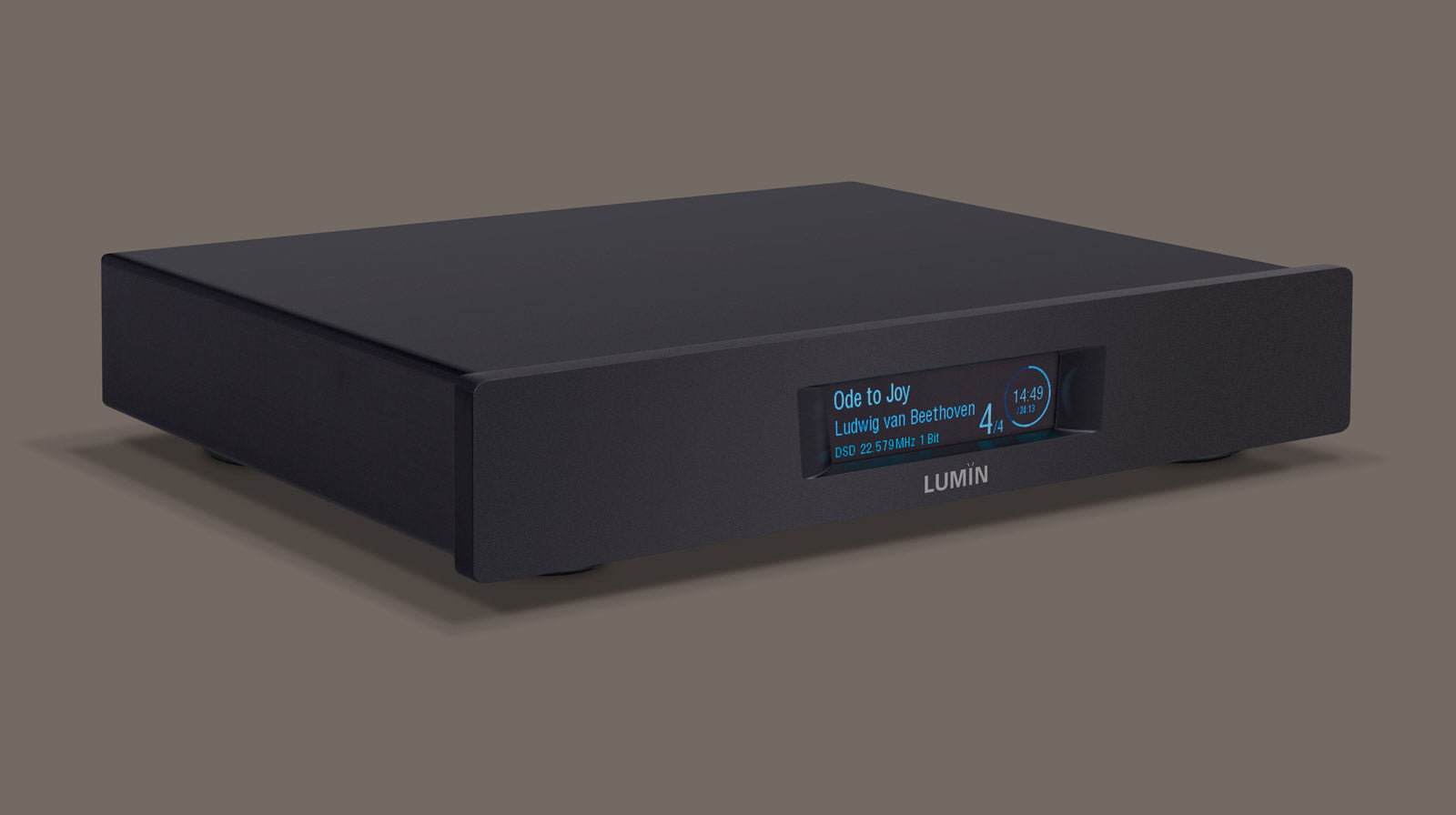

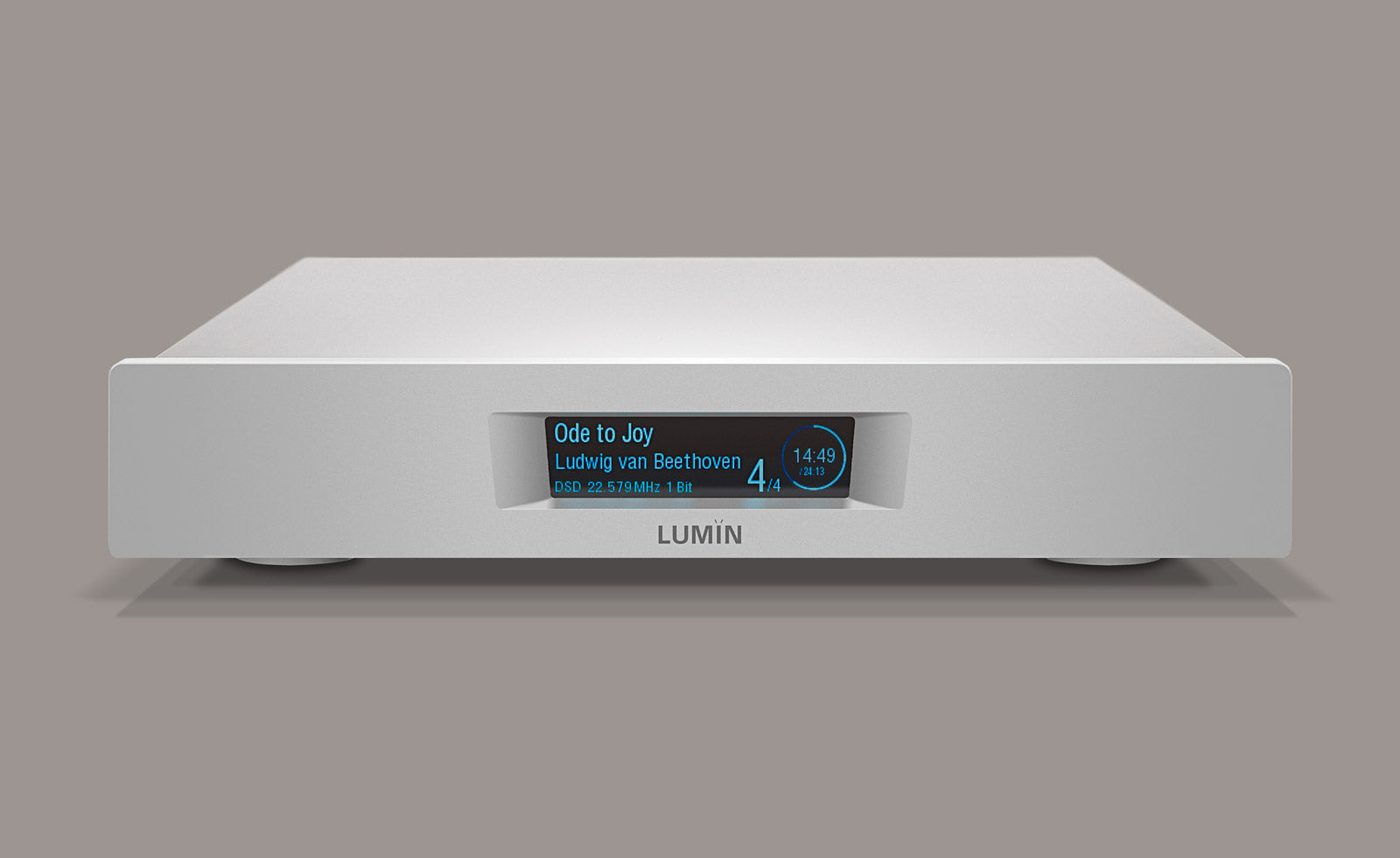

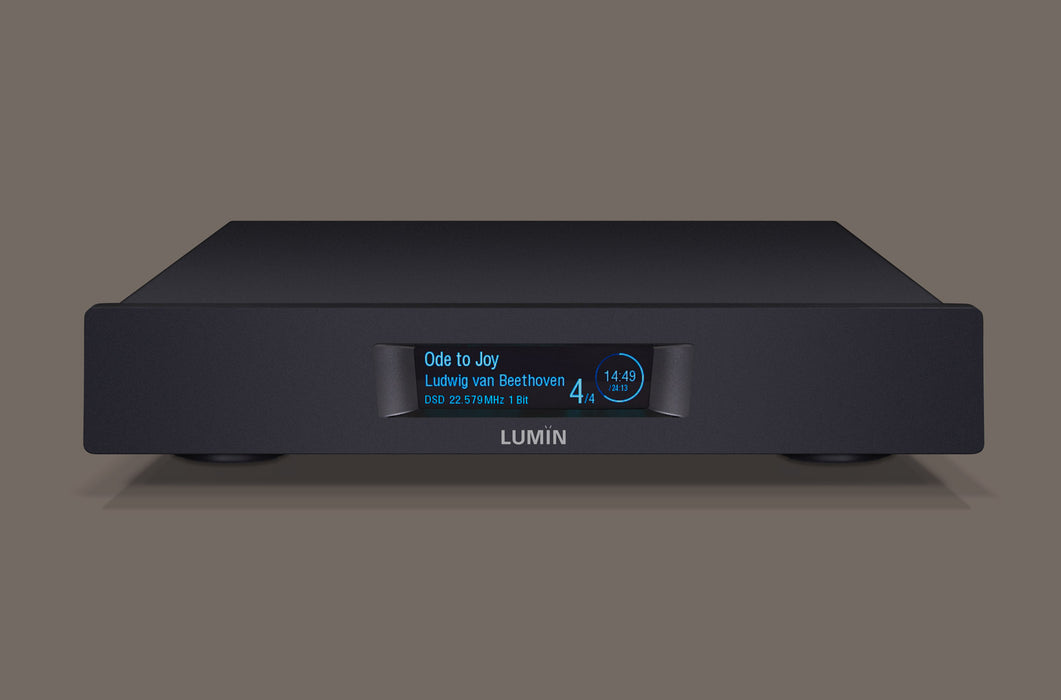

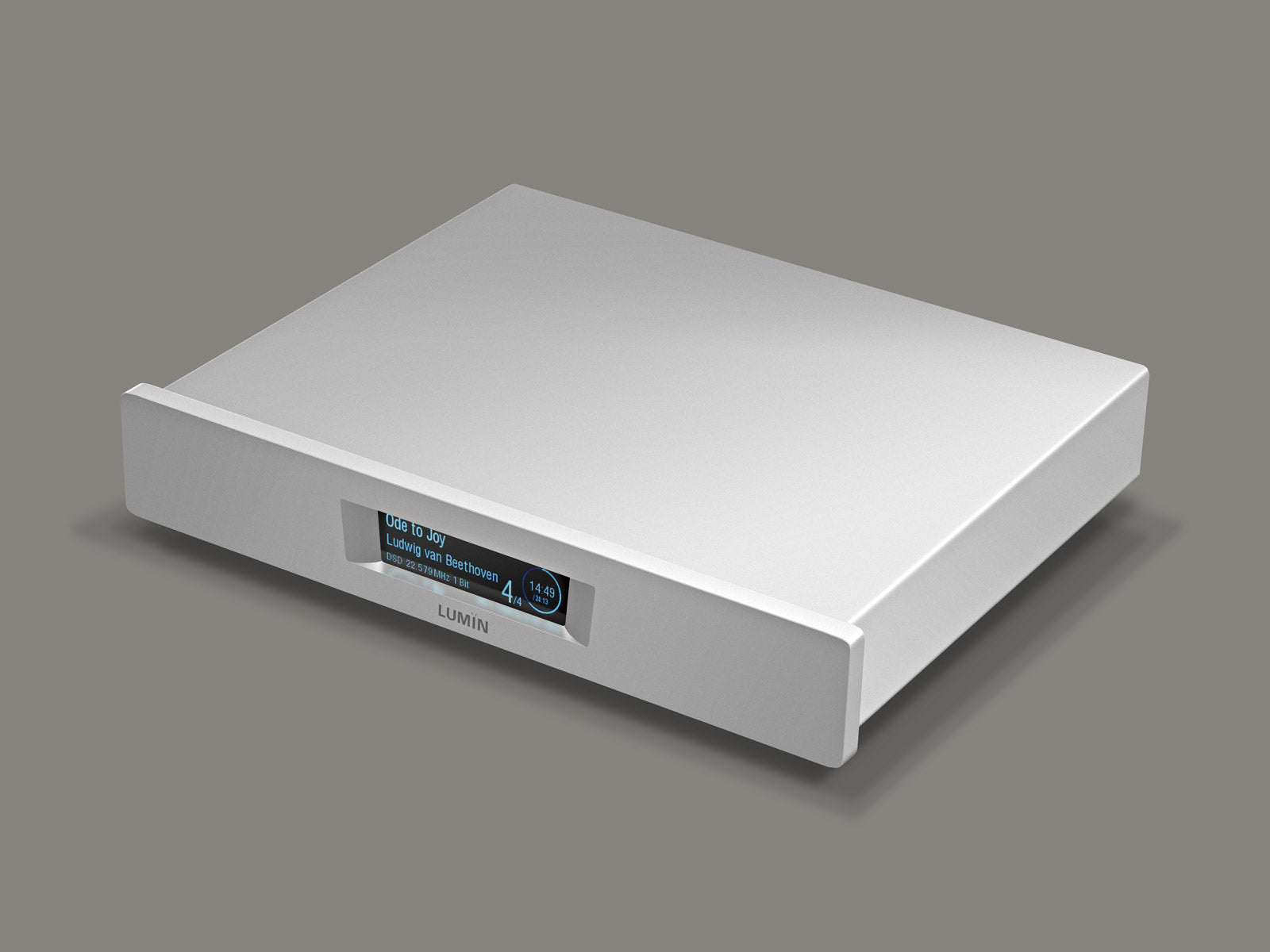

Lumin U2 Mini Digital Transport and Music Streamer

 WHY LUMIN U2 MINI

Following in the footsteps of one of our most popular models, LUMIN U2 Mini introduces our all-new processing system, delivering greater flexibility and future-proofing.

Capable of upsampling and downsampling all the way from 44.1kHz to 384kHz/DSD256 and supporting playback of DSD512, LUMIN U2 MINI is the perfect streaming partner for your DAC.

Main features

  • Transport-only LUMIN for combination with an external DAC
  • The first LUMIN to feature our all-new processing system
  • Faster processor provides greater resampling flexibility - upsampling and downsampling to every supported format up to DSD256/PCM348 to hit your DAC's sweetspot
  • Increased capacity for future updates
  • New surface finish taken from the high-end P1
  • Quad native clock system for precision timing

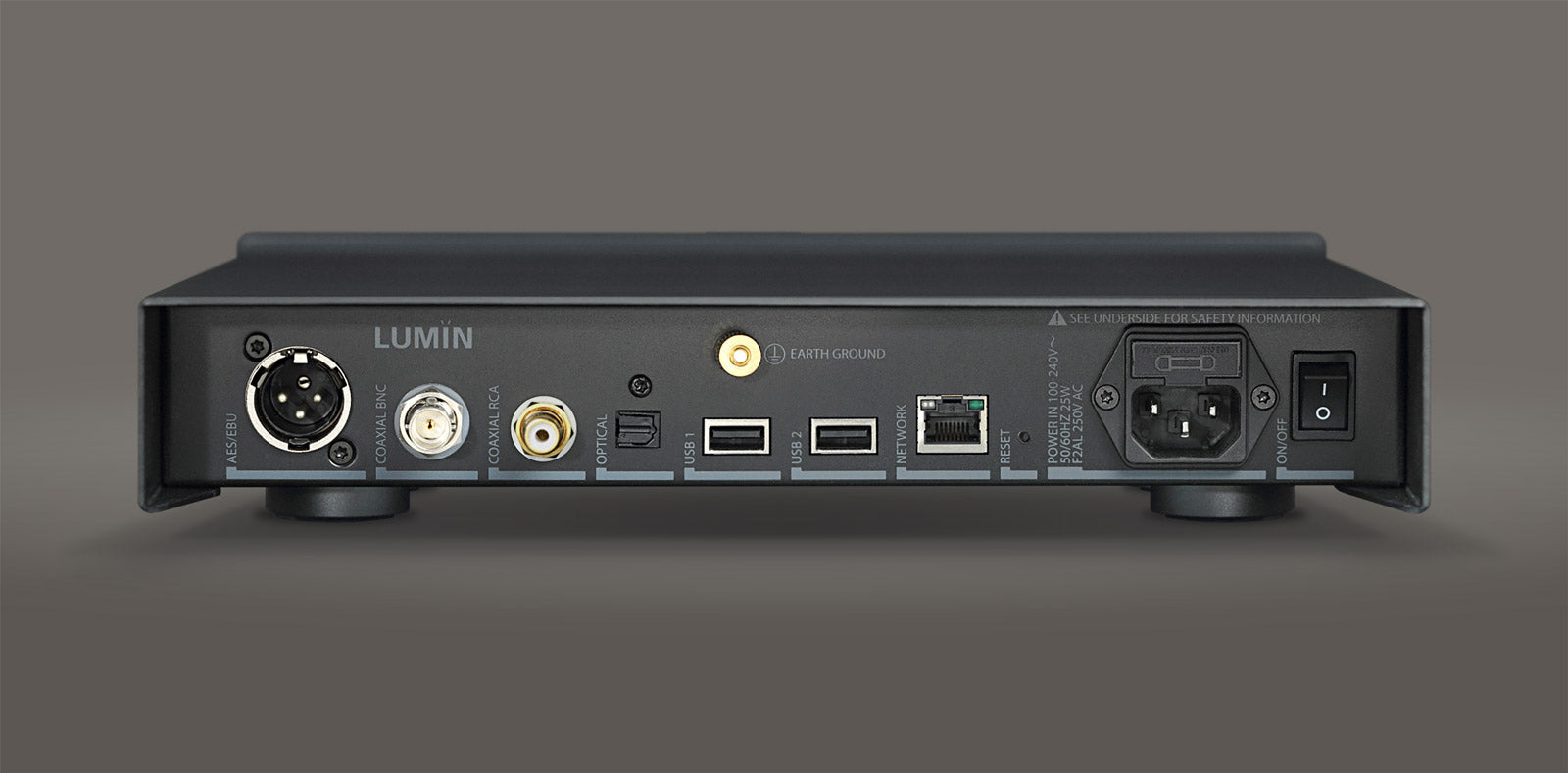

  • 5 types of digital audio output including USB
  • MQA Decoding
  • Roon Ready
  • Leedh Processing volume control

Builds on the massive success of U1 Mini
Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding U1 Mini reviews.

Key hardware features carried over from U1 Mini include the quad clocking system and 5 different digital outputs with USB now capable of up to DSD512!

The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.

All the usual LUMIN refinements

  • From MQA to DSD, FLAC to WAV, LUMIN can play all the high-resolution formats you could ever want
  • Native support for TIDAL, Qobuz, Spotify and AirPlay, giving you access to tens of millions of songs
  • The unique and intuitive LUMIN App described as "fantastically intuitive and easy to use" by What Hi-Fi
  • LUMIN programme of continuous development that has seen Apple Silicon Mac support, TIDAL Connect, FLAC Lossless Radio and TIDAL Suggested/Related tracks added in 2021 alone.
    Specs



    U2 MINI SPECIFICATION
    NETWORK PLAYBACK:
    Up to DSD512
    Up to 768kHz, 16–32-bit, Stereo
    MQA Decoding
    UPSAMPLING RATES & BIT DEPTHS:
    DSD256 upsampling option for all files
    PCM 384kHz upsampling option for all files
    DIGITAL OUTPUT STAGE:
    USB:
    Native DSD512 support
    PCM 44.1–768kHz, 16–32-bit, Stereo
    OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
    DSD64 (DoP64, DSD over PCM)
    PCM 44.1kHz–192kHz, 16–24-bit
    POWER SUPPLY:
    Internal shielded 100–240V AC auto-ranging
    PHYSICAL:
    FINISH:
    Raw aluminium or black anodised aluminium
    SIZE AND WEIGHT:
    300mm (W), 244mm (D), 60mm (H), 2.5kg
    PACKAGING:
    470mm (W), 340mm (D), 170mm (H), 4.5kg
    SPECIFICATION FOR CURRENT-GEN LUMIN STREAMERS
    STREAMING PROTOCOL:
    UPnP AV protocol with audio streaming extension (OpenHome)
    Roon Ready
    TIDAL Connect
    Spotify Connect
    Flac lossless Radio stations
    AirPlay-compatible
    Gapless Playback
    On-Device Playlist
    APP FEATURES:
    Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
    Tidal MQA icons to identify high-res music
    Qobuz high-res icons to identify high-res music
    Volume control
    High-resolution artwork
    Artwork caching
    Search
    Multiple tag handling
    Composer tag support
    Album-grouping in playlist
    Automatic internet links to artists/album/songs
    Saving and restoring of playlists (including Tidal and Qobuz)
    SUPPORTED AUDIO FILE FORMATS:
    DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
    PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
    Compressed (lossy) Audio: MP3
    MQA
    INPUT:
    Ethernet RJ45 network 1000Base-T
    Shared USB ports can also be used for storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)
    SUPPORTED CONTROL DEVICES:
    All models of Apple iPad (v2 or later). iOS 8.0 or later required. Full Retina Display support.
    Android devices. Android 4.0 (Ice Cream Sandwich) or later required.
    Apple Mac with Apple Silicone
    OTHER:
    Leedh Processing lossless digital volume control
    Compatible with LUMIN Infrared Control Package
    Programme of Continuous Development – Firmware-upgradable for further features and enhancements
