THE PERFORMANCE SWEET SPOT
The first LUMIN with a DAC to feature our all-new processing system. Providing increased capacity and resampling flexibility.
WHY LUMIN T3
LUMIN T3 combines our new-for-2022 processing system, solid CNC-panel construction and X1 technology to deliver maximum price/performance.
All-new processing system
Precision analogue output stage
CNC chassis construction
Builds on the massive success of LUMIN T2
Completely new processing hardware and software deliver improved features and increased resampling flexibility while retaining all the musicality that was noted in so many outstanding T2 reviews.
Among the key hardware features carried over from T2 are the Dual ES9028Pro SABRE DACs featuring dual-mono operation.
The new model is also finished in a new silky surfacing process taken from our high-end P1 that is less susceptible to finger marks and easier to clean.
All the usual LUMIN refinements
Advanced streaming services & technologies
Every LUMIN player comes with support for a wide range of popular streaming services including Roon, TIDAL, Qobuz, Spotify, FLAC Radio Stations and more...
Up to DSD512 22.6MHz, 1-bit
Up to 384kHz, 16–32-bit, Stereo
ANALOG OUTPUT STAGE:

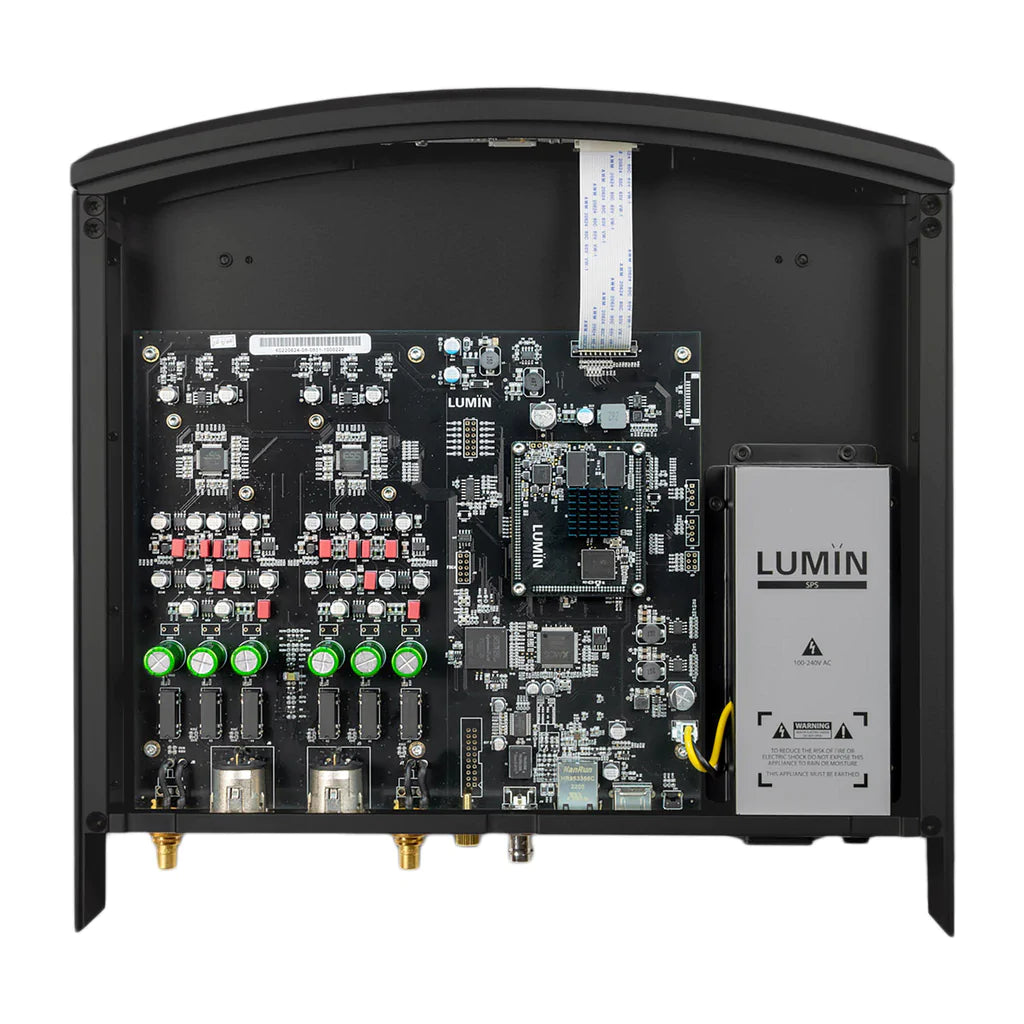

Dual ESS SABRE32 ES9028Pro DAC chips
Fully balanced layout with high-quality components
Completely redesigned analogue buffer includes audio grade output capacitor and ultra-low-noise and high dynamic range
Discreet clock system for precision timing
Precision 32-bit internal digital volume
UPSAMPLING RATES & BIT DEPTHS:
DSD256 upsampling option for all files
PCM 384kHz upsampling option for all files
DIGITAL OUTPUT STAGE:
Native DSD512 support
PCM 44.1–384kHz, 16–32-bit, Stereo
PCM 44.1kHz–192kHz, 16–24-bit
DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
Internal 100–240V AC auto-ranging
Shielded power supply compartment for reduced interference with delicate electronics
Black anodized aluminum
Raw anodized aluminum
350mm (W), 350mm (D), 60.5mm (H), 6kg
SPECIFICATION FOR ALL LUMIN MUSIC STREAMERS
UPnP AV protocol with audio streaming extension (OpenHome)
Native support for TIDAL, MQA, Qobuz and TuneIn Radio.
Tidal MQA icons to identify high-res music
Qobuz high-res icons to identify high-res music
Multiple tag handling
Composer tag support
Album-grouping in playlist
Automatic internet links to artists/album/songs
Saving and restoring of playlists (including Tidal and Qobuz)
SUPPORTED AUDIO FILE FORMATS:
DSD Lossless: DSF (DSD), DIFF (DSD), DoP (DSD)
PCM Lossless: FLAC, Apple Lossless (ALAC), WAV, AIFF
Compressed (lossy) Audio: MP3
Ethernet RJ45 network 1000Base-T
USB storage, flash drive, USB hard disk (Single-partition FAT32, exFAT and NTFS only)

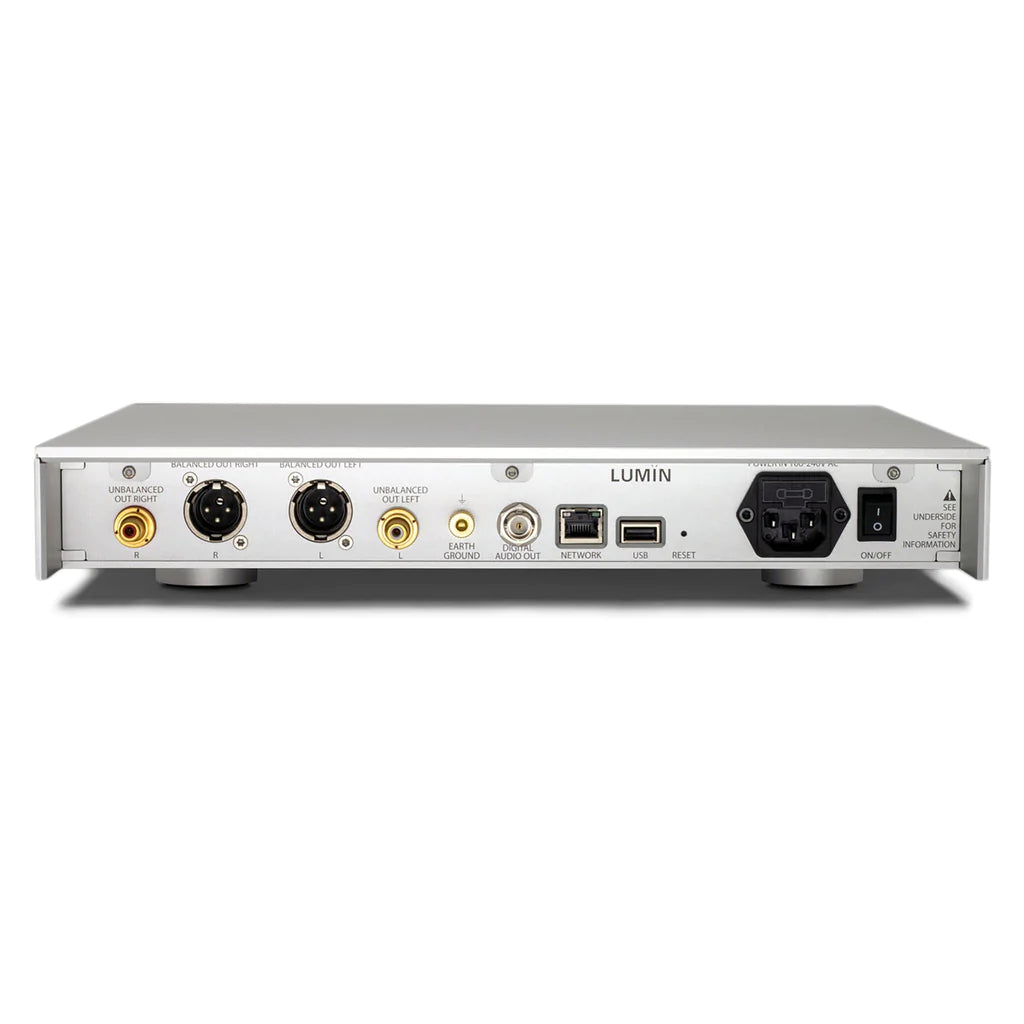

ANALOGUE AUDIO OUTPUTS:
XLR balanced, 6Vrms, pin 2 Hot
RCA unbalanced, 3Vrms
SUPPORTED CONTROL DEVICES:
All models of Apple iPad (v2 or later). iOS 9.0 or later required. Full Retina Display support.
Android devices. Android 4.0 (Ice Cream Sandwich) or later required
Leedh Processing lossless digital volume control
Programme of Continuous Development – Firmware-upgradable for further features and enhancements
