Lehmann Audio Linear Headphone Amplifier

UPC: 4250701322185
Call for Availability

SKU LinearBlack
Color: Black

Product Qualifies for FREE Ground Shipping



Dynamic headphones are much more different than most people realize. For the same sound pressure level the power needed with different headphone models can vary up to a factor of about 500! Impedances can be different to a factor of more than 20! Trennlinie

This is the reason why different headphone models have very individual requirements to the headphone amplifier driving them in terms of voltage and current. Everybody who once has connected a high quality headphone to any given standard headphone output knows about this problem.

In my opinion, the Linear belongs to the reference class of its kind. It creates a relaxed, open, neutral and detailed acoustic image.
Studio Magazine

Since the launch of the Linear in 2004 there is a high end headphone amplifier to realize even the highest demands to reference quality headphone music reproduction. The selectable gain (0 dB, 10 dB, 20 dB) of the Linear effectively optimizes the output level of the zero global feedback Class A output stage. Practically all high quality dynamic headphones available will show their best possible performance, no matter if you have an easy to drive low impedance pair of headphones or an ineffective pair of 600 ohms studio cans. Top notch components and a highly sophisticated circuit design

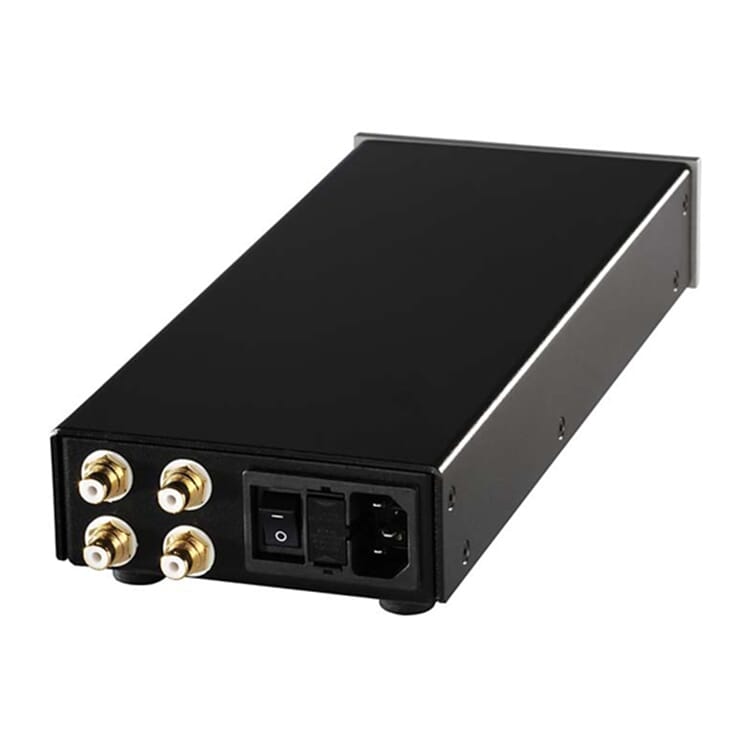

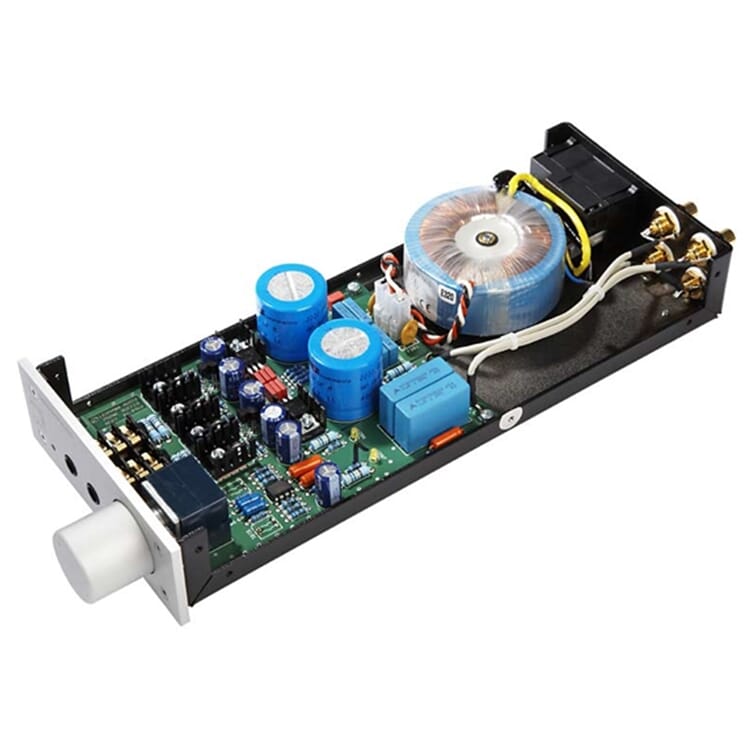

Carefully selected top notch components and a highly sophisticated circuit design guarantee top performance listening pleasure. For stereo setups with just one source like a CD player or a turntable with a phono stage the Linear is the simplest and most effective active preamp one can think of. All audio connectors including the two Neutrik phone jacks come with gold plated connectors. No external Y-adapter is needed!

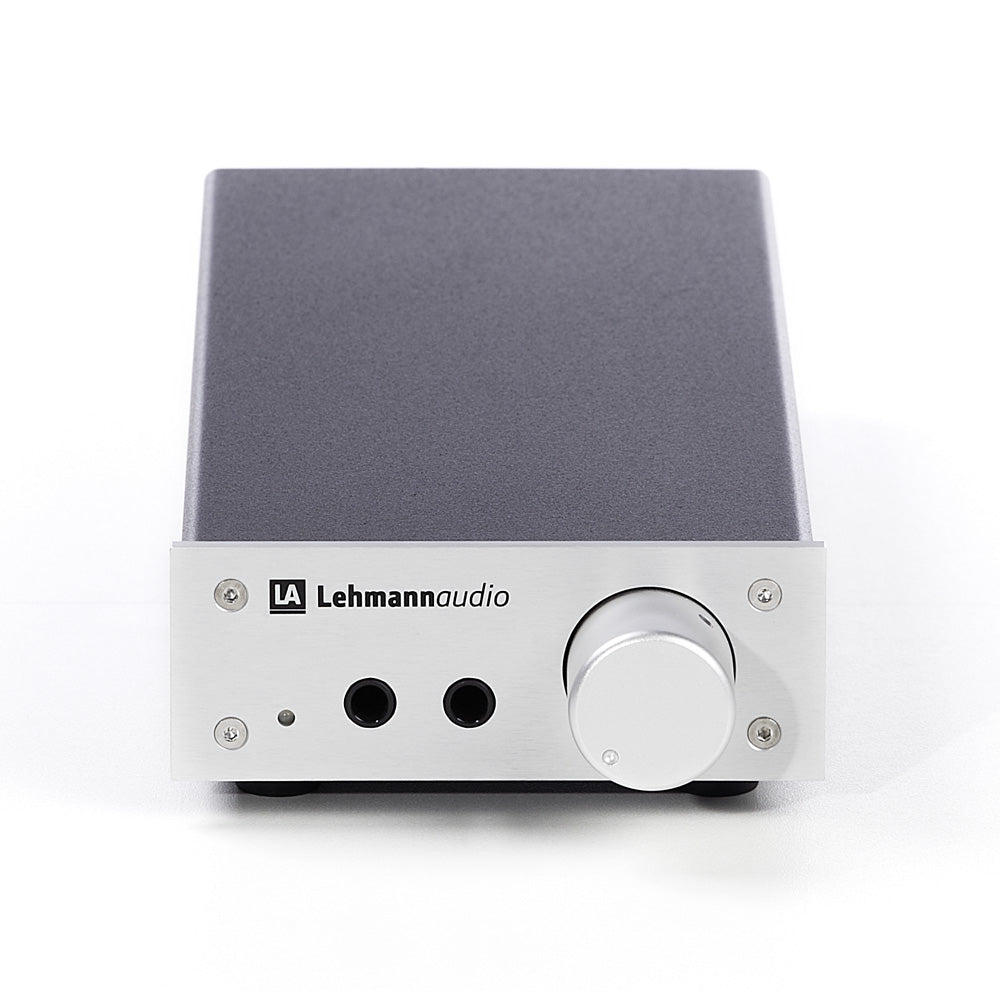

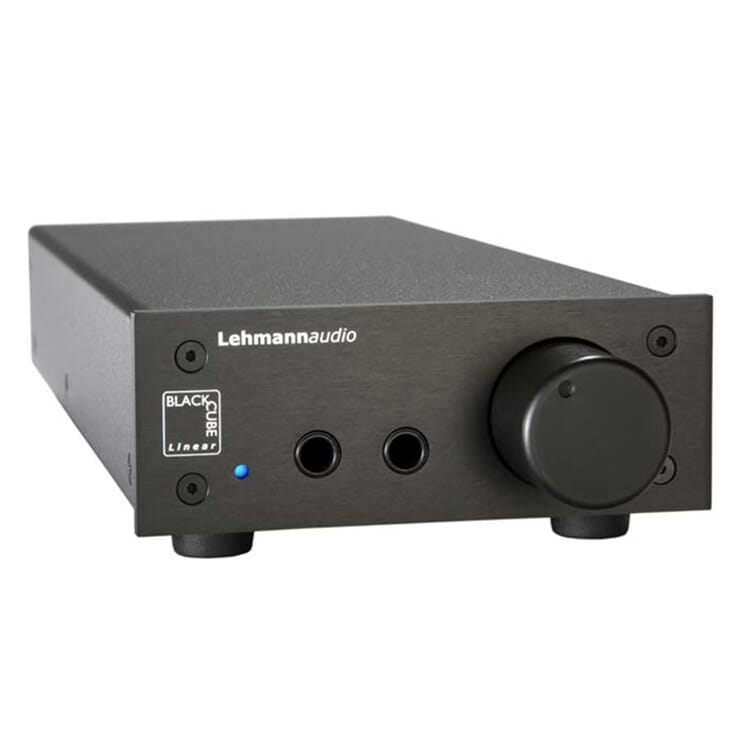

The faceplate and the massive milled aluminium knob for the smooth running 27 mm ALPS high grade volume control are available in anodized black or silver.

To get the best out of your headphone you will have to try the Linear.
Gain selectable 0db, 10dB, 20dB
Zero global feedback Class-A output stage
Compatible with virtually all dynamic headphones
>95dB S/N at 0dB gain
200mW @ 300 Ohms, 400mw @ 60 Ohms
Internal power supply
Gold plated connectors
Special order only
EAN 4250701322185 (Silver)
EAN 4250701322161 (Black)
