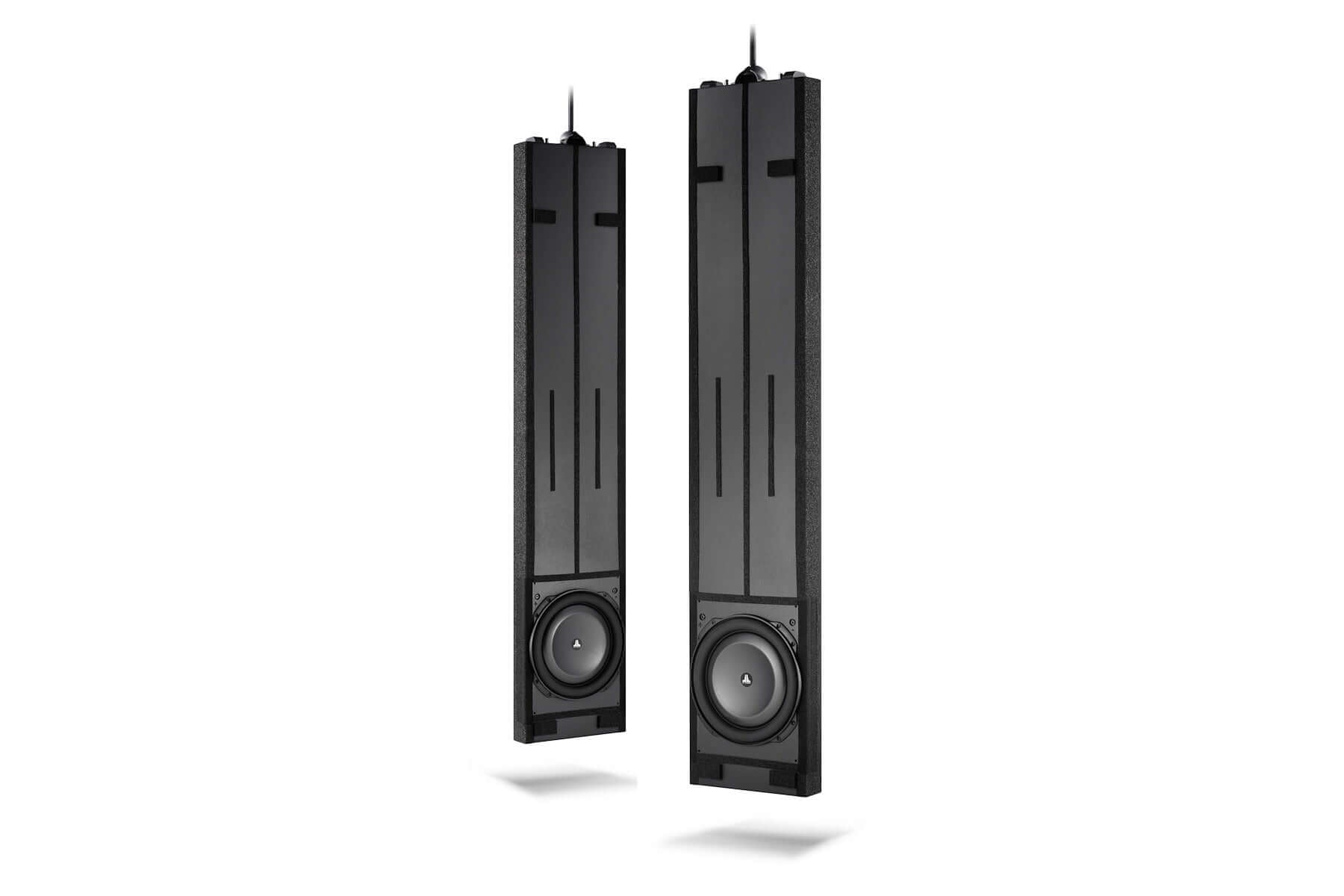

JL Audio Fathom IWS-SYS-2 Dual 13.5-Inch In-Wall Powered Subwoofer System

UPC:
Call for Availability
$9,650.00
The same minds that engineered JL Audio's reference-grade Fathom and Gotham powered subwoofers have created an amazing in-wall subwoofer solution, centered on a pair of purpose-engineered, thin-line drivers with patented technology.

Housing these exotic drivers are two critically engineered enclosures with a unique floating mount design to minimize wall excitation. The enclosures feature extensive architectural features aimed at improving rigidity while keeping a very low profile and minimal wall thickness.

A paintable, fine steel-mesh grille, also designed to control vibration, is included for each enclosure in the system.

The IWS System Two is driven by a rack-mountable, purpose-tuned amplifier, capable of delivering up to 2 kW of clean power, and armed with serious processing features, including our acclaimed Automatic Room Optimization system.

There is no need to lower your expectations when selecting this remarkable in-wall solution... it's a real Fathom .

The IWS System Two is available to fit a variety of 2" x 4" and 2" x 6" wall studs. Consult your Authorized JL Audio Dealer for specific application information.

Enclosure Finish: Flat Black (hidden from view when installed)

Grille finish: Primer White (paintable)

Enclosure Construction: CNC-Cut Birch Plywood
Specs
General Specifications

  • Enclosure Type Sealed
  • Enclosure Finish Black Texture-Coated
  • Frequency Response (Anechoic) 26 Hz - 101 Hz ( 1.5 dB) -3dB at 25 Hz / 112 Hz -10dB at 22 Hz / 150 Hz
  • Effective Piston Area (Sd) 196.51 sq in / 0.1268 sq m
  • Effective Displacement 294.6 cu in / 4.82 L
  • Amplifier Power 2000 W RMS short-term


  • 2 x 4-inch Wall Stud Enclosure Physical Specifications

  • Width (W) 13.75 in / 349 mm
  • Height (H) 70 in / 1,778 mm
  • Depth (D) 2.94 in / 75 mm


  • 2 x 6-inch Wall Stud Enclosure Physical Specifications

  • Width (W) 13.75 in / 349 mm
  • Height (H) 55 in / 1,397 mm
  • Depth (D) 4.70 in / 119 mm


  • Amplifier Physical Specifications

  • Width (W) 17.4 in / 442 mm
  • Height (H) 3.5 in / 89 mm
  • Depth (D) 17.9 in / 455 mm
  • Net Weight 35 lb / 15.9 kg


  • Grille Physical Specifications

  • Grille Width (W) 20 in / 508 mm
  • Grille Height (H) 17.25 in / 438 mm
  • Wall Opening Width (W) 17.25 in / 438 mm
  • Wall Opening Height (H) 14.5 in / 368 mm
