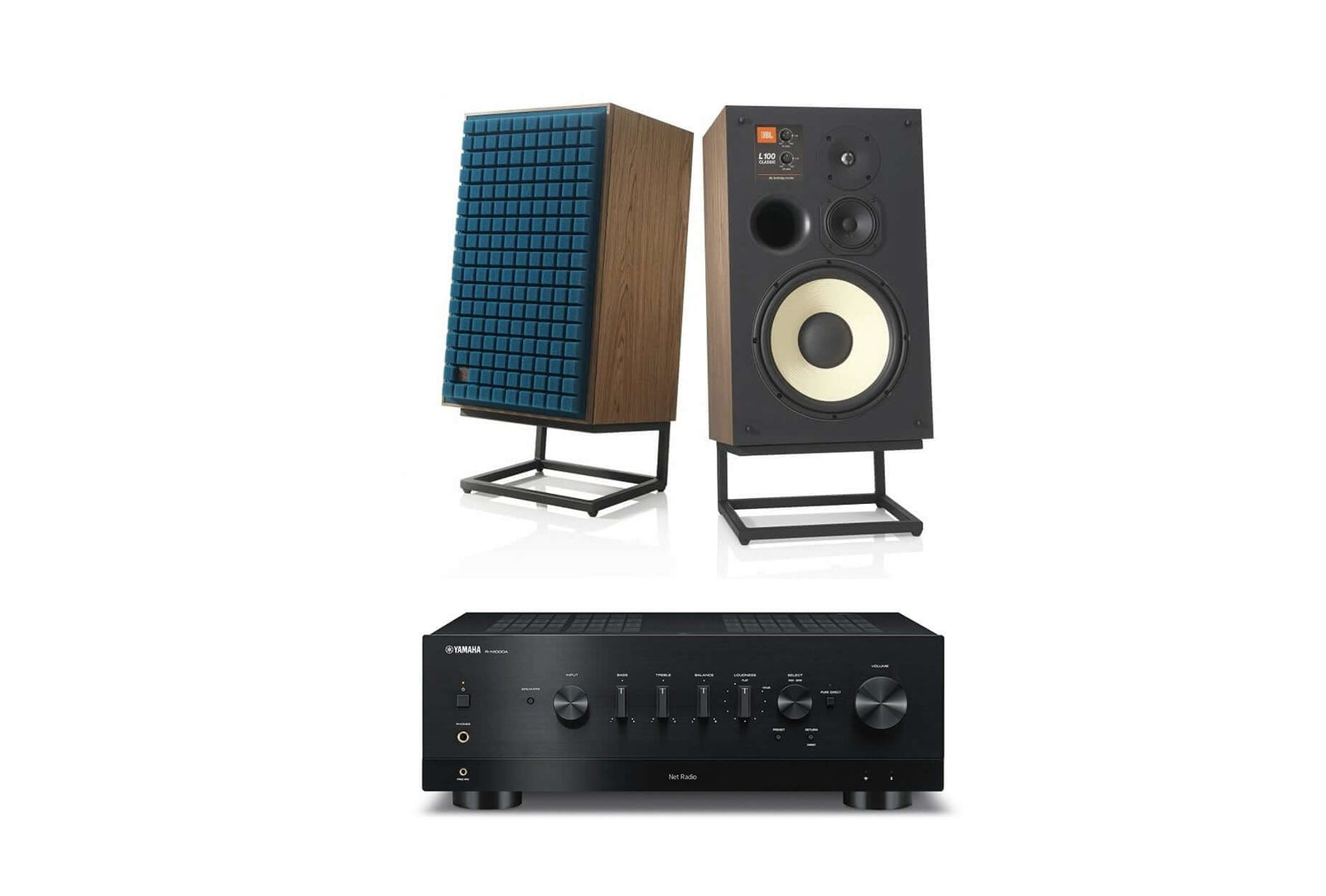

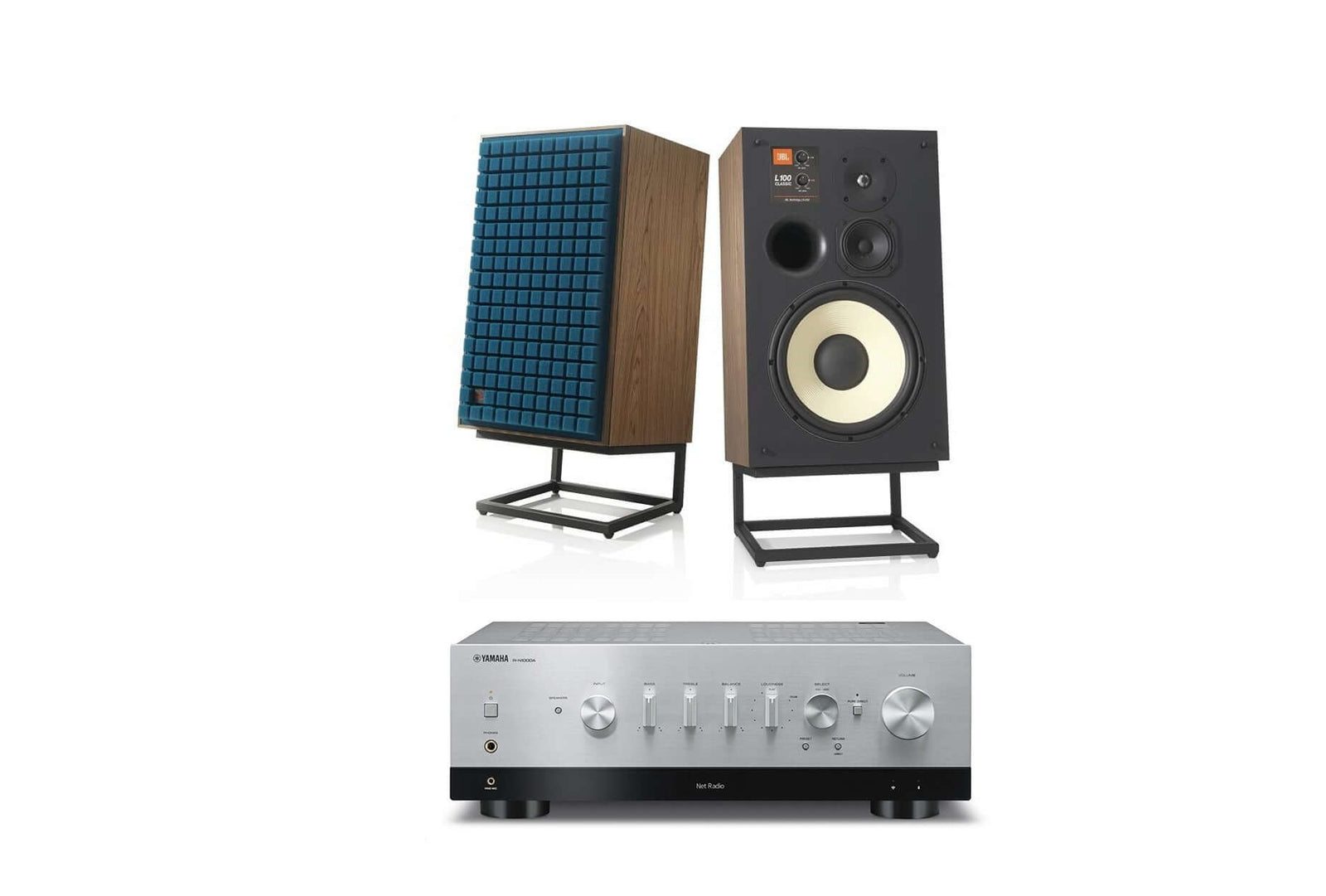

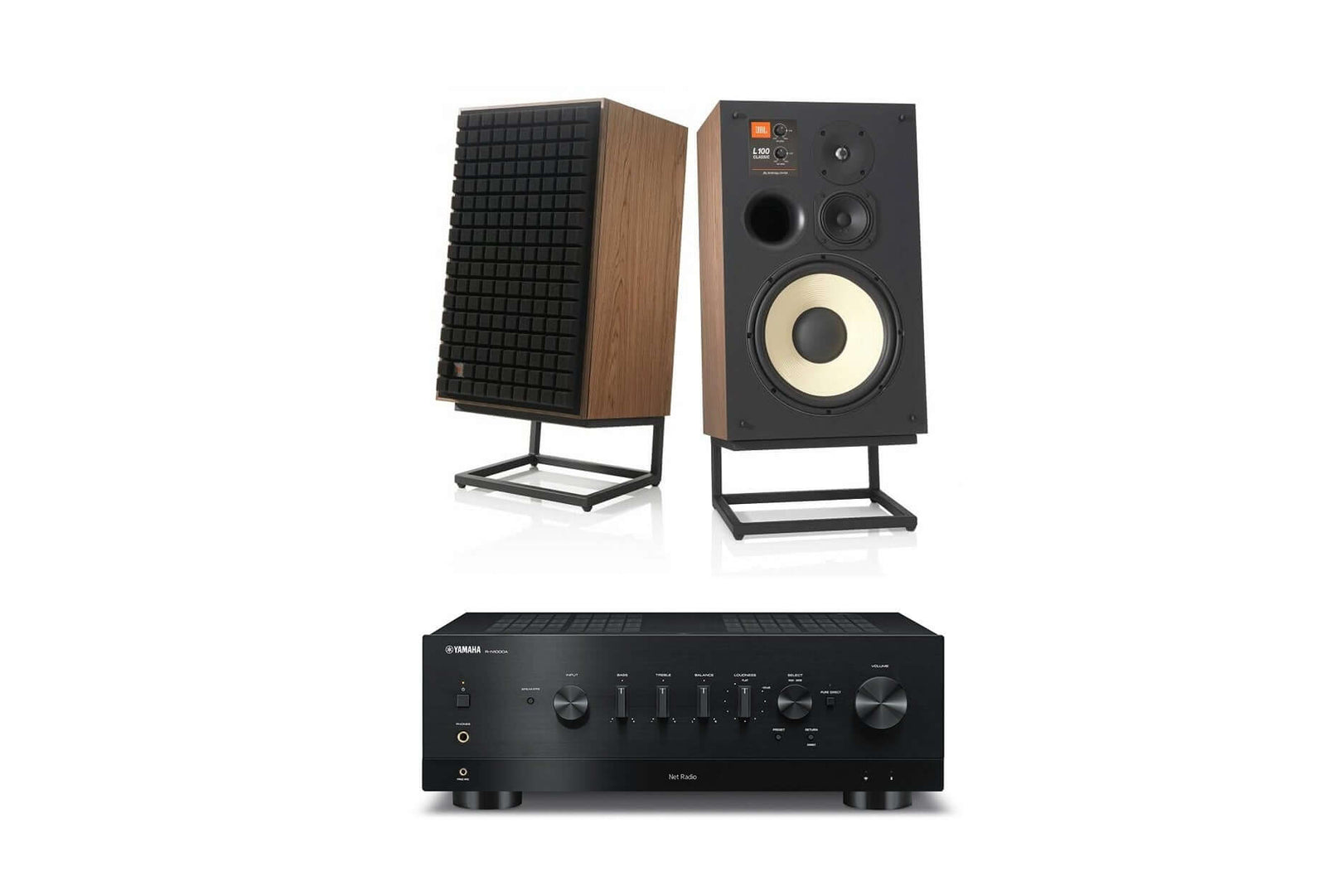

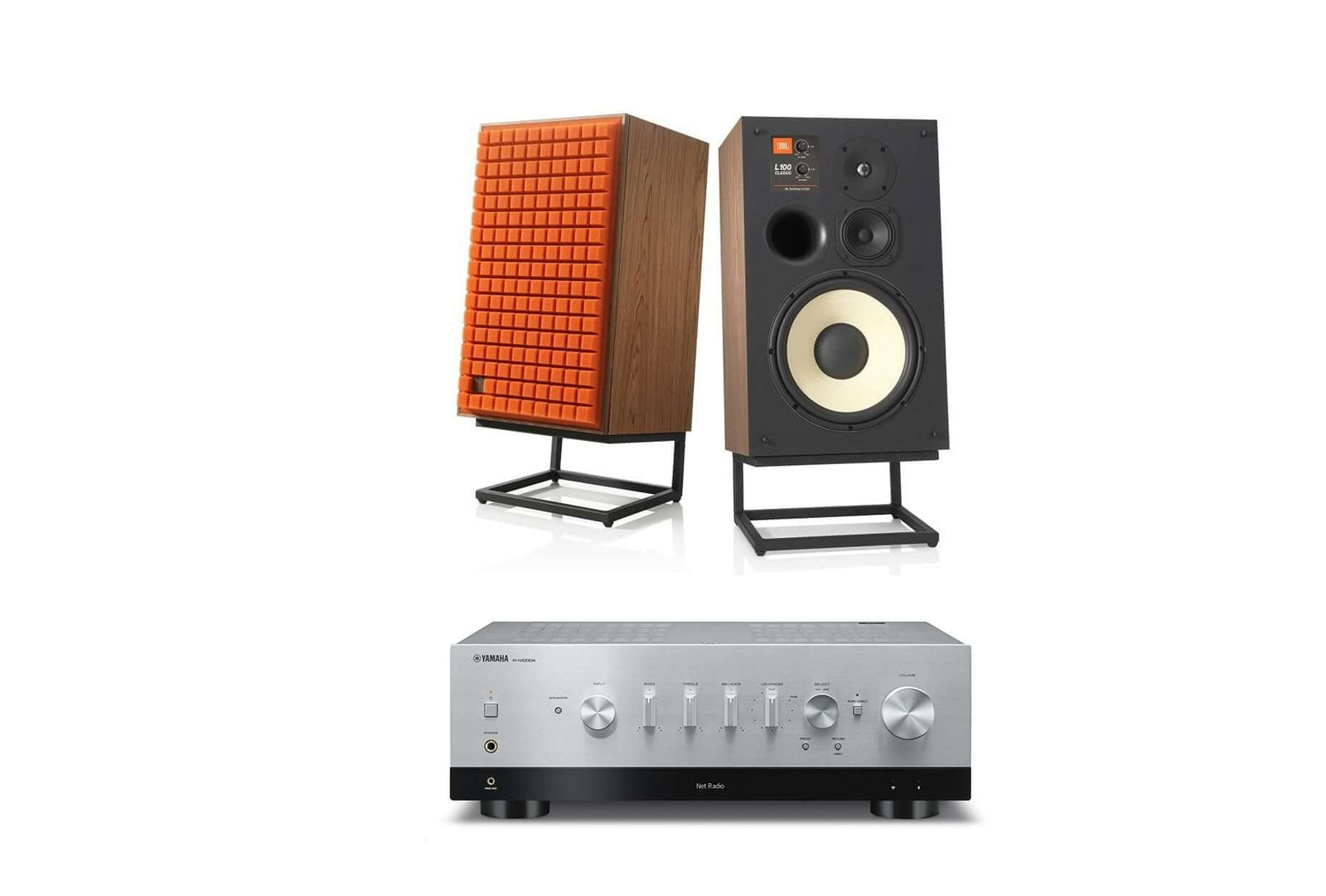

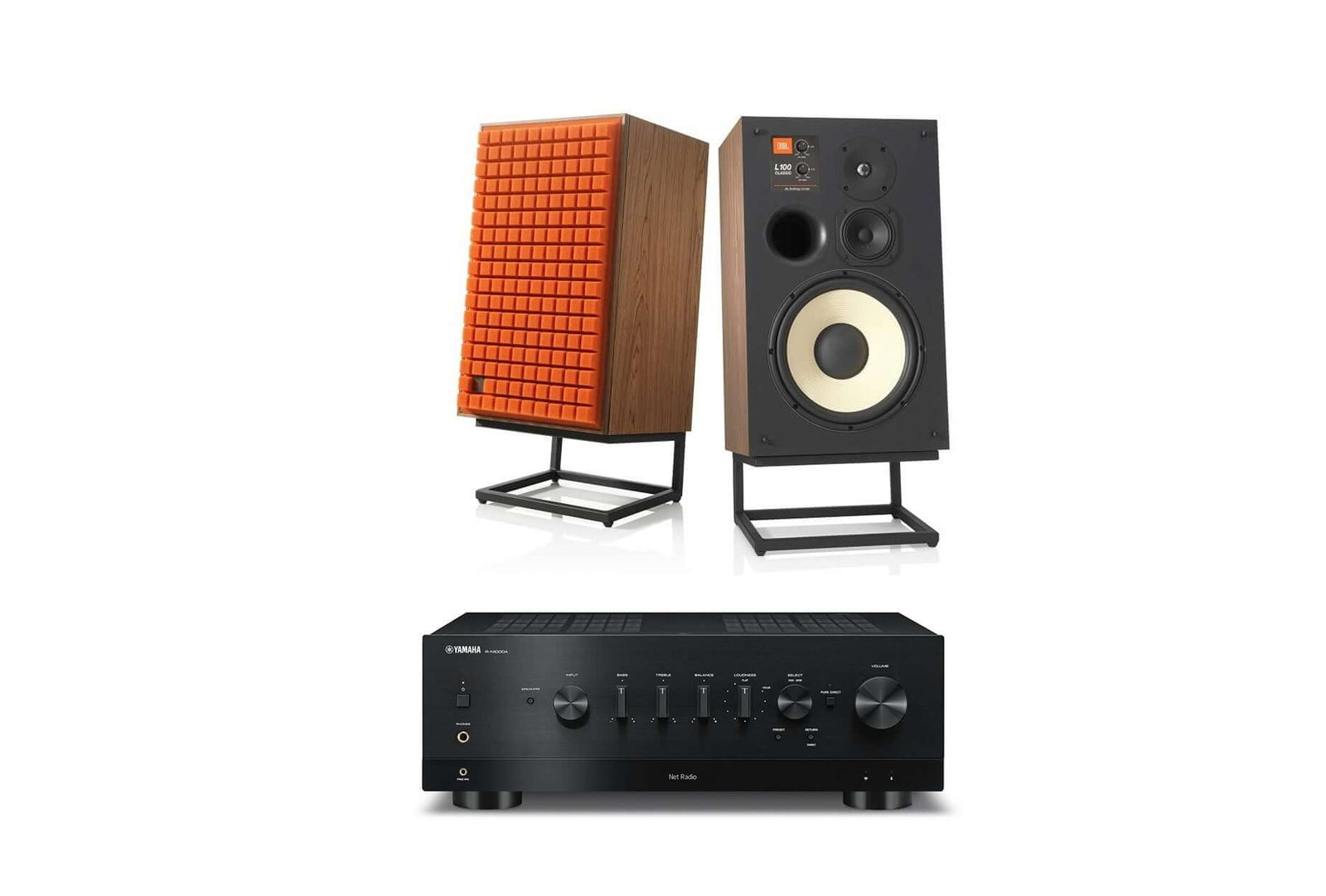

JBL L100 Classic 12" 3-Way Bookshelf Speaker Pair with Yamaha R-N1000A Stereo Receiver Bundle

by JBL
UPC: 050036357173
Save 21%
Original price $6,199.95
Current price $4,899.99

SKU L100ClassicBlackR-N1000ABlack
Color: Walnut with Black Grill and Black Yamaha R-N1000A

Product Qualifies for FREE Ground Shipping

JBL L100 Classic 12" 3-Way Bookshelf Speaker Pair with Yamaha R-N1000A Stereo Receiver Bundle





JBL L100 Classic

In 1970, JBL released the iconic L100 Loudspeaker. Over the years, the L100 became the bestselling loudspeaker in JBL s history.
In 2018, we are proud to bring you the JBL L100 Classic, a modern take on a time-honored legend. The Classic features vintage styling, including a retro-inspired design and iconic Quadrex foam grille, along with newly developed acoustic technology and designs for elite performance.
The 1-inch titanium dome tweeter is mated to a waveguide with an acoustic lens for optimum integration with the 5-inch pure-pulp cone midrange driver directly below it. Powerful bass is provided by a 12-inch cast-frame, white pure-pulp cone woofer in a bass-reflex enclosure, tuned via a single front-firing port tube.
The high-frequency and mid-frequency L-pad attenuators on the front baffle preserve the classic features of this iconic legend.

Main Features:

  • Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange or blue
  • Genuine satin walnut wood veneer enclosure with black painted front and rear panels
  • 12-inch white cone, pure pulp woofer with cast frame
  • 5-inch pure pulp cone midrange
  • 1-inch titanium dome tweeter
  • Bass-reflex design with front-firing port
  • High-frequency and mid-frequency L-pad attenuators
  • Yamaha R-N1000A

    The Yamaha R-N1000A delivers crafted sound for your listening lifestyle. Authentic Hi-Fi quality with high-resolution music streaming compatibility and HDMI connection. It offers effortless ideal room acoustic adjustment with YPAO™.

    • Authentic Hi-Fi quality with Top-ART mechanical structure and high-quality audio parts
    • ESS SABRE ES9080Q Ultra DAC for superior S/N performance
    • YPAO-R.S.C. (Reflected Sound Control) and precision EQ for ideal listening environment
    • HDMI ARC terminal for excellent TV sound
    • MusicCast lets you stream from your favorite music services
    • High-performance USB DAC function supports DSD 11.2 MHz native playback and 384 kHz playback
    • Custom speaker terminals cut from pure brass for highly secure connection
    • Phono input terminals to enjoy your vinyl record collection

      JBL L100 Classic Specifications:

      Description 3-way Bookshelf Loudspeaker
      Low-frequency Transducer 12-inch (300mm) pure pulp cone woofer (JW300PW-8)
      Mid-frequency Transducer 5.25-inch (125mm) polymer-coated pure pulp cone (105H-1)
      High-frequency Transducer 1-inch (25mm) titanium dome with soft surround (JT025TI1-4)
      Frequency Response 40Hz 40kHz (-6dB)
      Sensitivity 90dB (2.83V/1m)
      Power Handling 25 - 200 Watts RMS
      Crossover Frequencies 450Hz, 3.5kHz
      Impedance 4 Ohms
      Controls Attenuators for MF and HF drivers
      Connectors Five-way gold-plated binding posts
      Dimensions (H x W x D) 25.06 x 15.34 x 14.625 inches (636.52 x 389.64 x 371.48mm)
      Weight 58.5 lbs (26.7 kg)
      Finish Genuine walnut veneer enclosure with Quadrex foam grille in a choice of black, burnt orange or dark blue

      Yamaha R-N1000A Specifications:

      Receiver / Integrated Amplifier
      Network section File Format MP3, WMA, MPEG-4 AAC, WAV, FLAC, AIFF, DSD
      Wi-Fi Yes
      Bluetooth Yes (SBC / AAC)
      AirPlay Yes
      Rated Output Power [20 Hz-20 kHz 0.07 % THD] 100 W+100 W (8 ohms) 120 W + 120 W (6 ohms)
      High Dynamic Power/Channel (8/6/4/2 ohms) 140 / 170 / 220 / 290 W
      Frequency Response 10 Hz-100 kHz 0±1.0 dB, 20-20 kHz 0±0.5 (Pure Direct ON)
      Signal-to-Noise Ratio (CD) 100 dB (Pure Direct ON)
      Audio In / Out Phono, CD, line1, line2 / Pre out, Subwoofer out
      Digital Input Optical1, Optical2, Coaxial
      HDMI(ARC) Yes
      Phono Input Yes
      USB Input USB DAC (USB B-type)
      Ethernet Yes
      Headphone Out Yes
      Subwoofer Out Yes
      Control (Trigger) Out Yes
      FM 50dB Quieting Sensitivity (IHF, 1 kHz, 100% Mod., Mono) 3 µV (20.8 dBf)
      FM Signal-to-Noise Ratio (Mono/Stereo) 69 dB / 68 dB
      Pure Direct Yes
      ToP-ART Yes
      Standby Power Consumption 0.1 W (Network standby on/ Wi-Fi connection 1.8 W)
      Dimensions (W x H x D) 17-1/8" x 6" x 15-1/2" (with antenna up: 17-1/8" x 9-1/8" x 15-1/2")
      Weight 27.1 lbs
