Martin Logan EM-IW ElectroMotion In-Wall Speaker Open Box (Each)

UPC: 877929006853
Save 24%
$499.99
$379.99

SKU EM-IWOB
OPEN BOX
  • 100% WORKING CONDITION
  • THOROUGHLY INSPECTED
  • ORGINAL OR REPLACEMENT PACKAGING + ALL ACCESSORIES
  • Martin Logan EM-IW ElectroMotion In-Wall Speaker Open Box (Each)

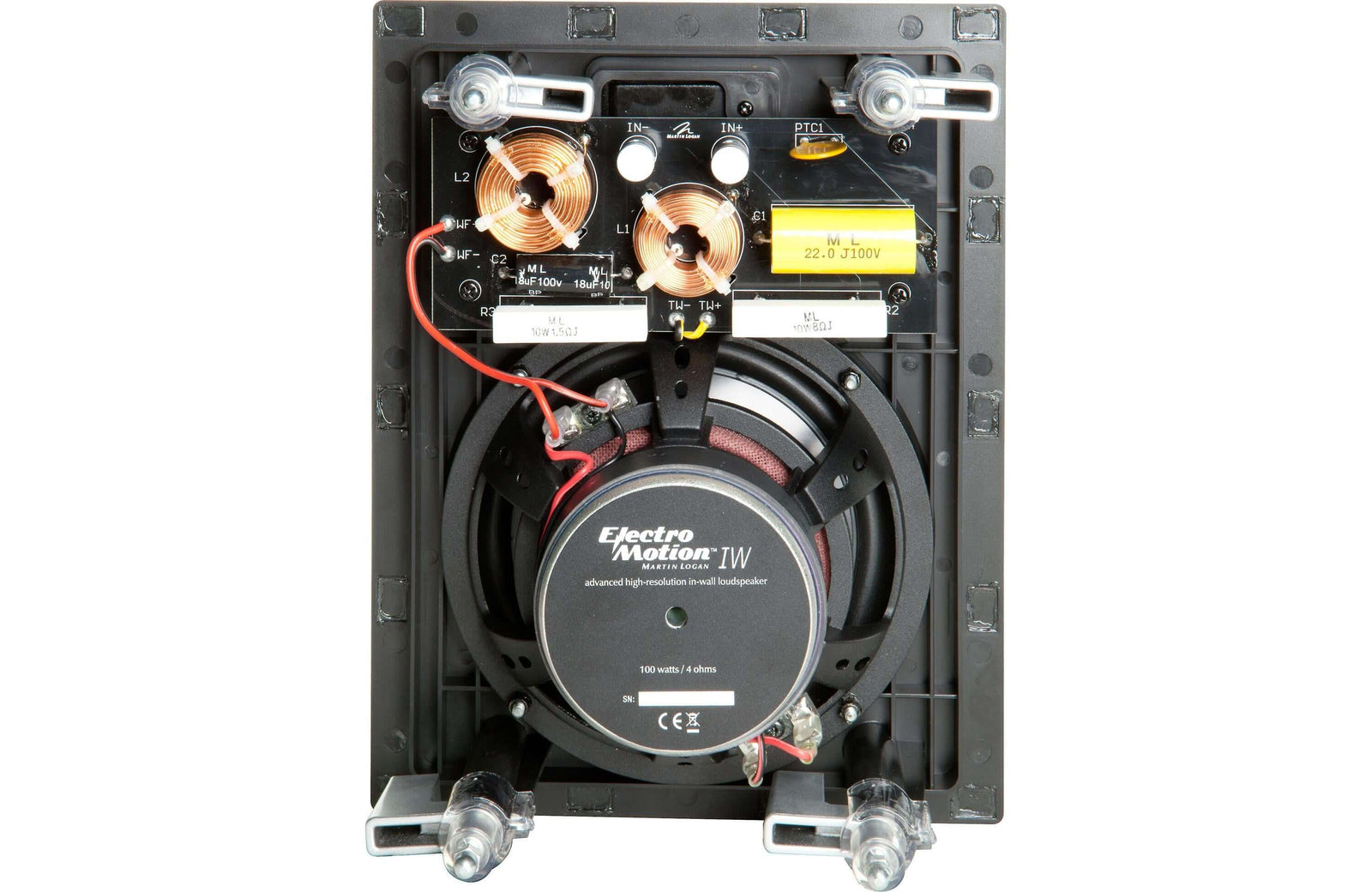

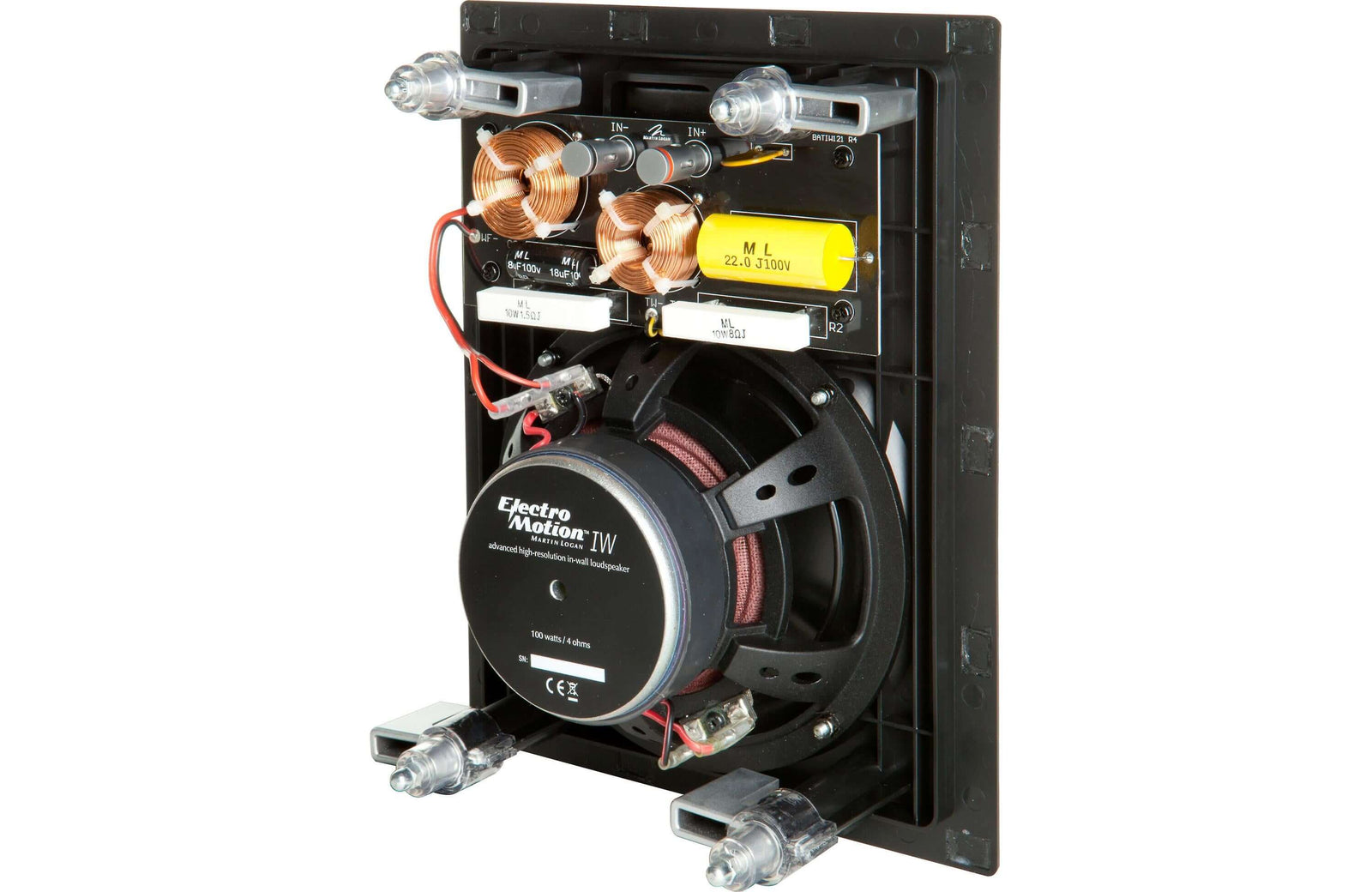

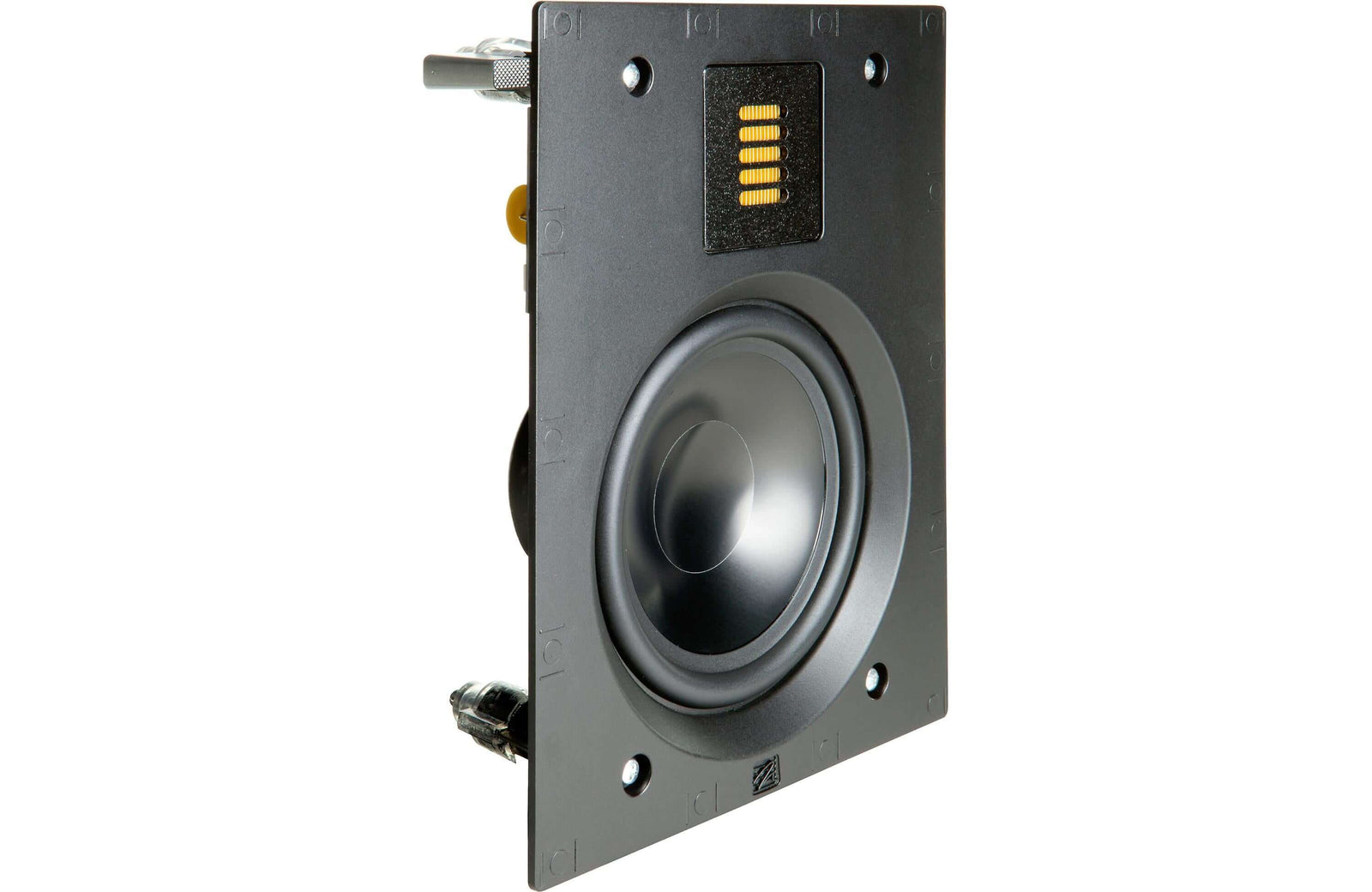

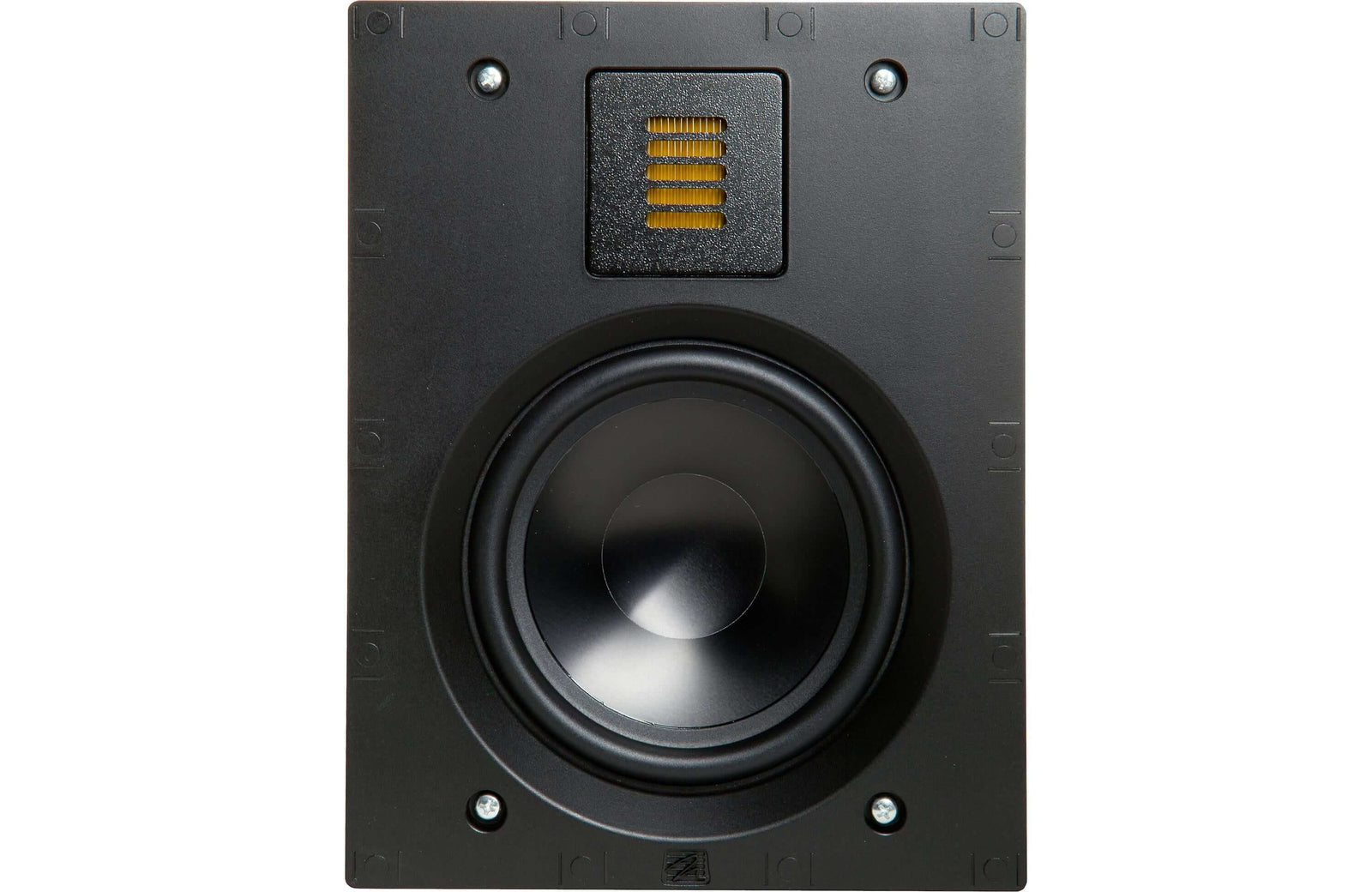

    The EM-IW features our exotic Folded Motion tweeter and a 6.5-inch aluminum cone woofer with cast aluminum basket that provides powerful low-frequency bass extension. This stealthy inwall speaker blends seamlessly into any home thanks to it's ultra-low profile, micro perforated grille with no visible bezel.

    Folded Motion™ Tweeter
    MartinLogan's exquisite Folded Motion tweeter boasts a radiating surface 8-times larger than a typical 1" dome tweeter. The Folded Motion tweeter works by moving air (which creates sound) perpendicular to the folded ridges of the diaphragm, similar to how an accordion works.

    This extremely low mass diaphragm "squeezes" air and requires almost 90% less excursion than the typical 1" dome tweeter, which drastically minimizes distortion while providing a lightning fast response time. The increased surface area also provides a wide, yet controlled sound dispersion to create a realistic and carefully etched sound stage.

    Stealthy Grilles

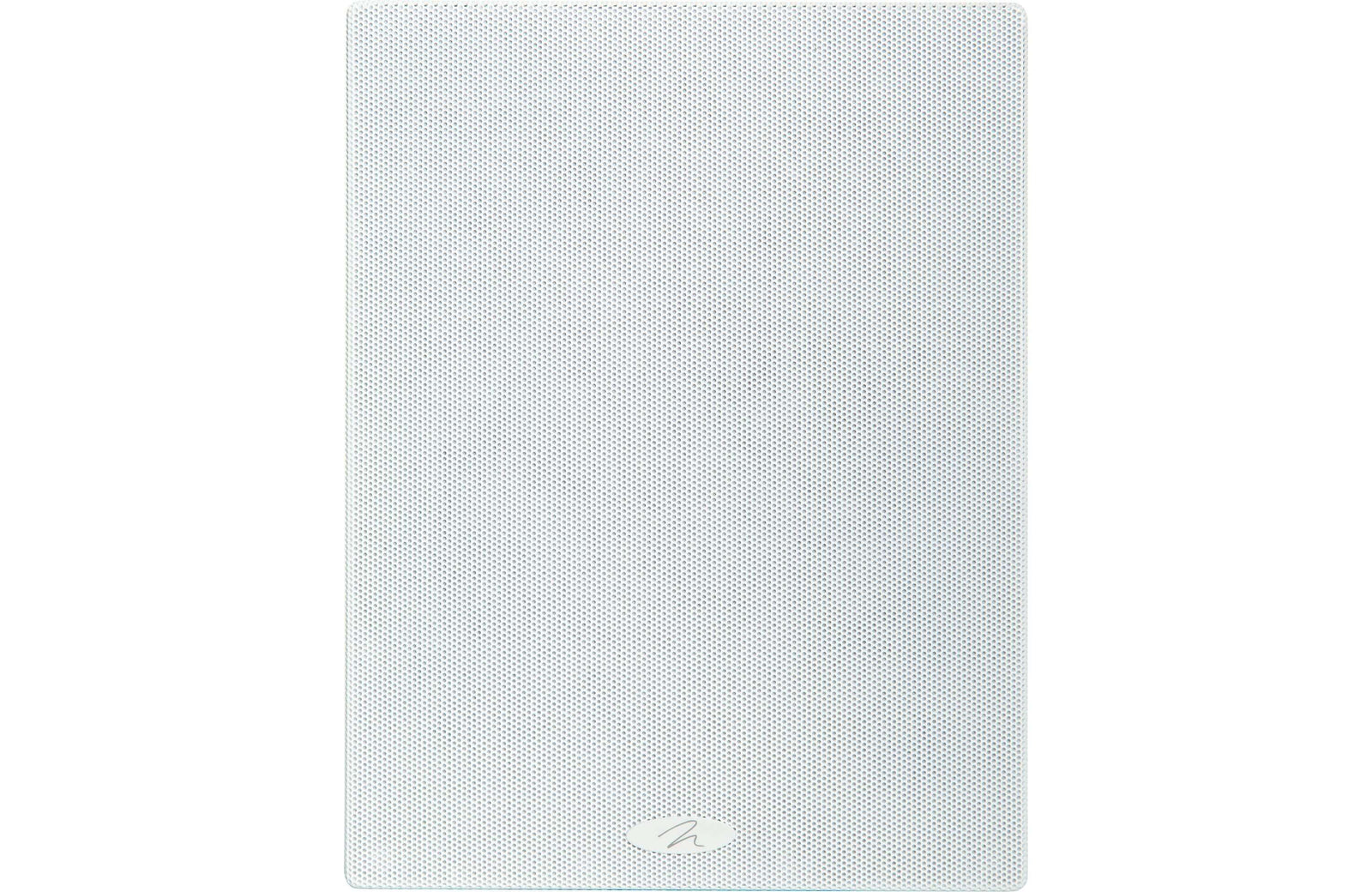

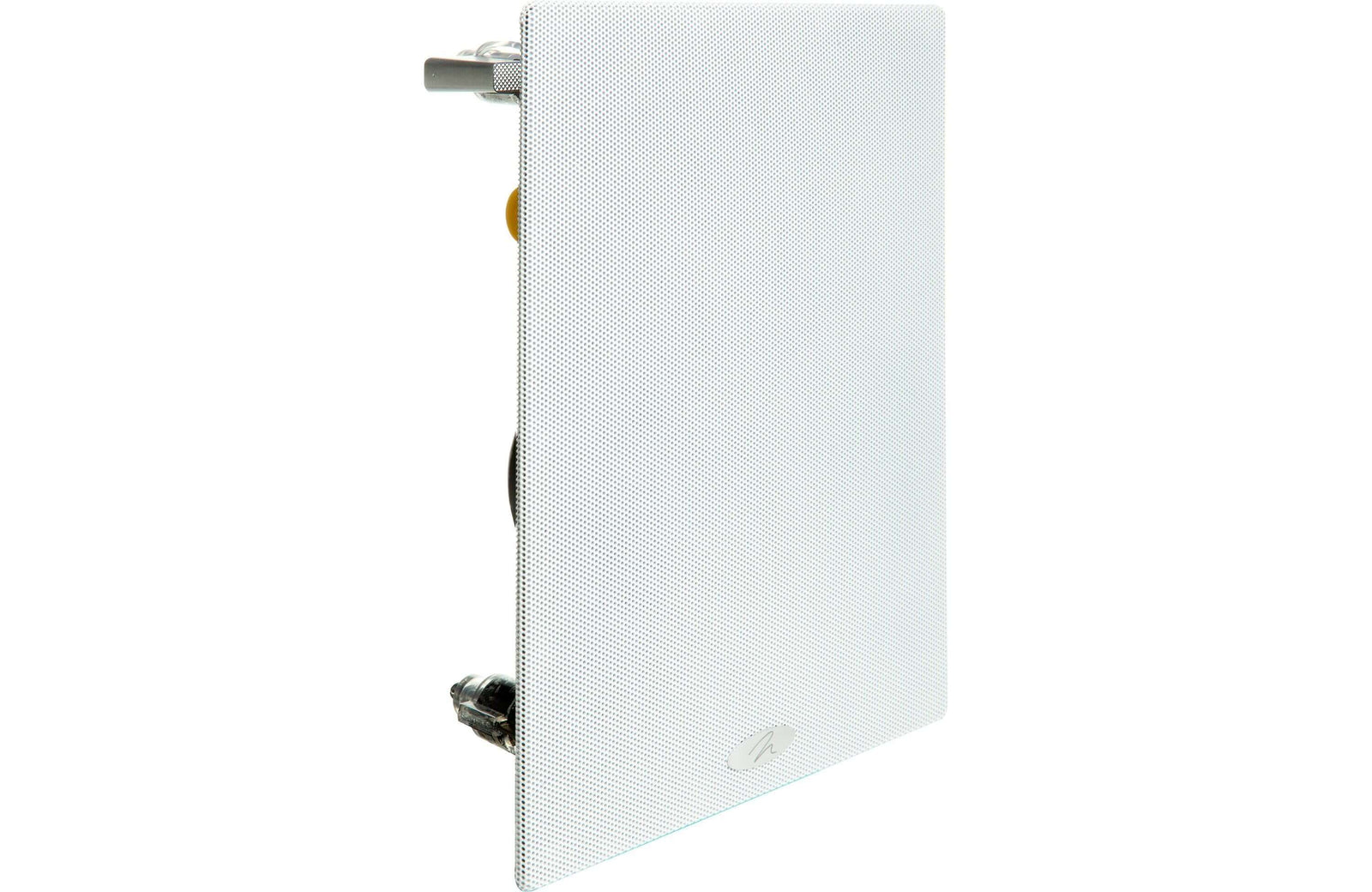

    MartinLogan's new architectural speakers feature ultra-low profile, paintable micro perforated grilles with no visible bezel for near invisible integration into any wall or ceiling. A magnetic system secures grilles easily into place, reducing the risk of warping or damage during installation.

    Specs
    EM-IW Specifications:
    Application
    In-Wall

    MSRP (US)
    $499 Each

    Frequency Response
    47–25kHz ±3dB

    Dispersion
    80° x 80°

    Sensitivity
    90 dB/2.83 volts/meter

    Nominal Impedance
    4 Ohms. Compatible with 4, 6 or 8 ohm rated amplifiers.

    Recommended Amplifier Power
    20-200 watts per channel

    Crossover Frequency
    2,500 Hz

    High Frequency Transducer
    1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.

    Low Frequency Driver
    6.5" (16.5cm) aluminum cone with cast aluminum basket. Concave dust cap.

    Weight
    5.5lbs. (2.5kg) Each

    Overall Dimensions
    11" (27.9cm) Height
    8.5" (21.6cm) Width
    3.925" (10cm) Depth

    Cut-Out Dimensions
    10.25" (26cm) Height
    7.875" (20cm) Width

    Depth Required Behind Wall Surface
    3.8" (9.7cm)

    Projection From Wall Surface
    .125" (.3cm)
