Focal 100 IW LCR5 2-Way In-Wall Loudspeaker (Each)

by Focal
UPC: 191561619401
$299.00

SKU 100IWLCR5

Product Qualifies for FREE Ground Shipping

Focal 100 IW LCR5 2-Way In-Wall Loudspeaker (Each)

Musicality at home
In-wall 2-way d’Appolito loudspeakers

The 100 IWLCR5 loudspeakers which are dedicated to home audio can be highlighted for their acoustics performances and compact design. These products are aimed at small to medium sized rooms and for three types of use: distributed systems (hallways, living rooms…), stereo systems (bedrooms, kitchens…) and Home Cinema systems (in dedicated rooms or living rooms).

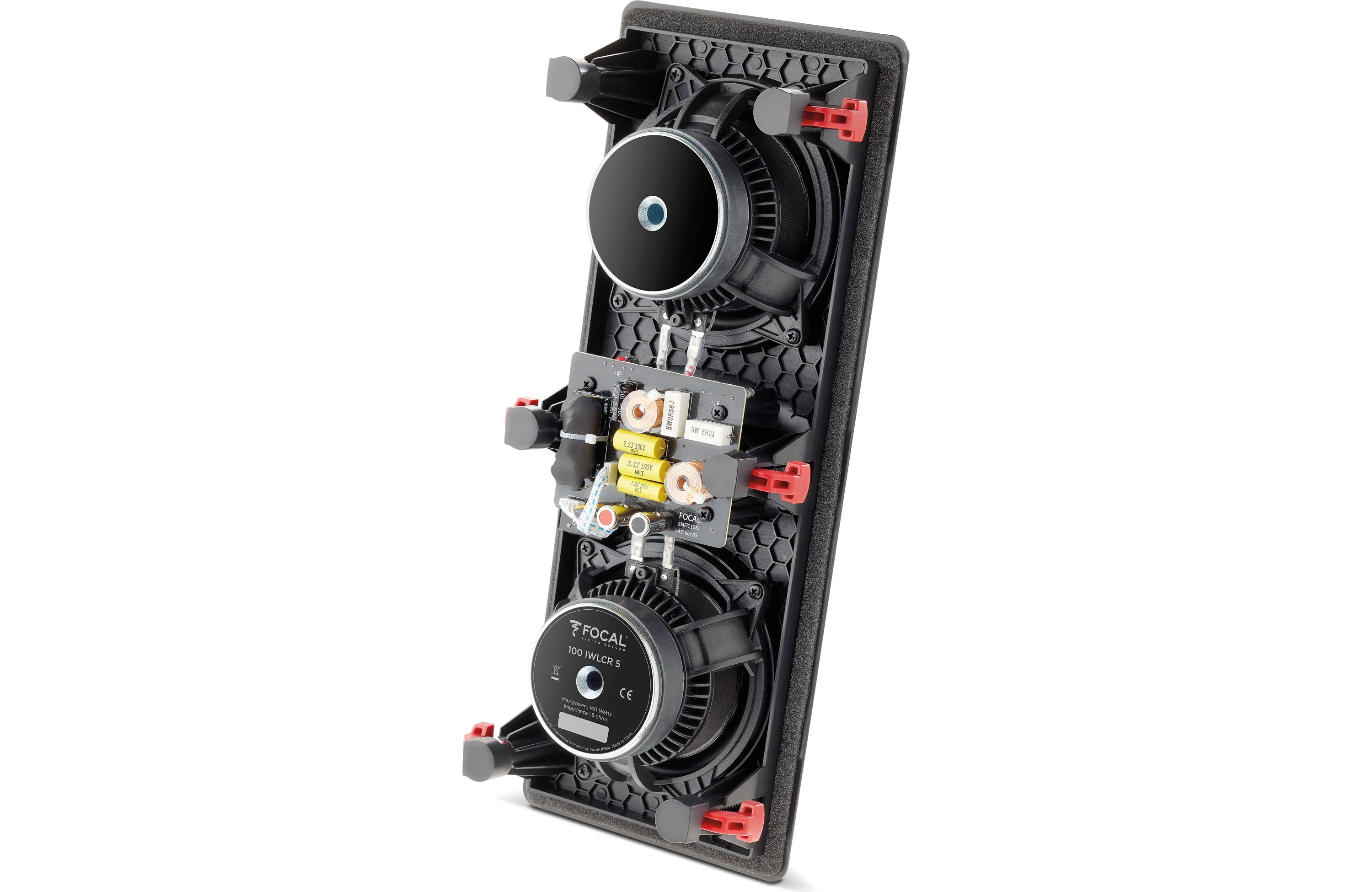

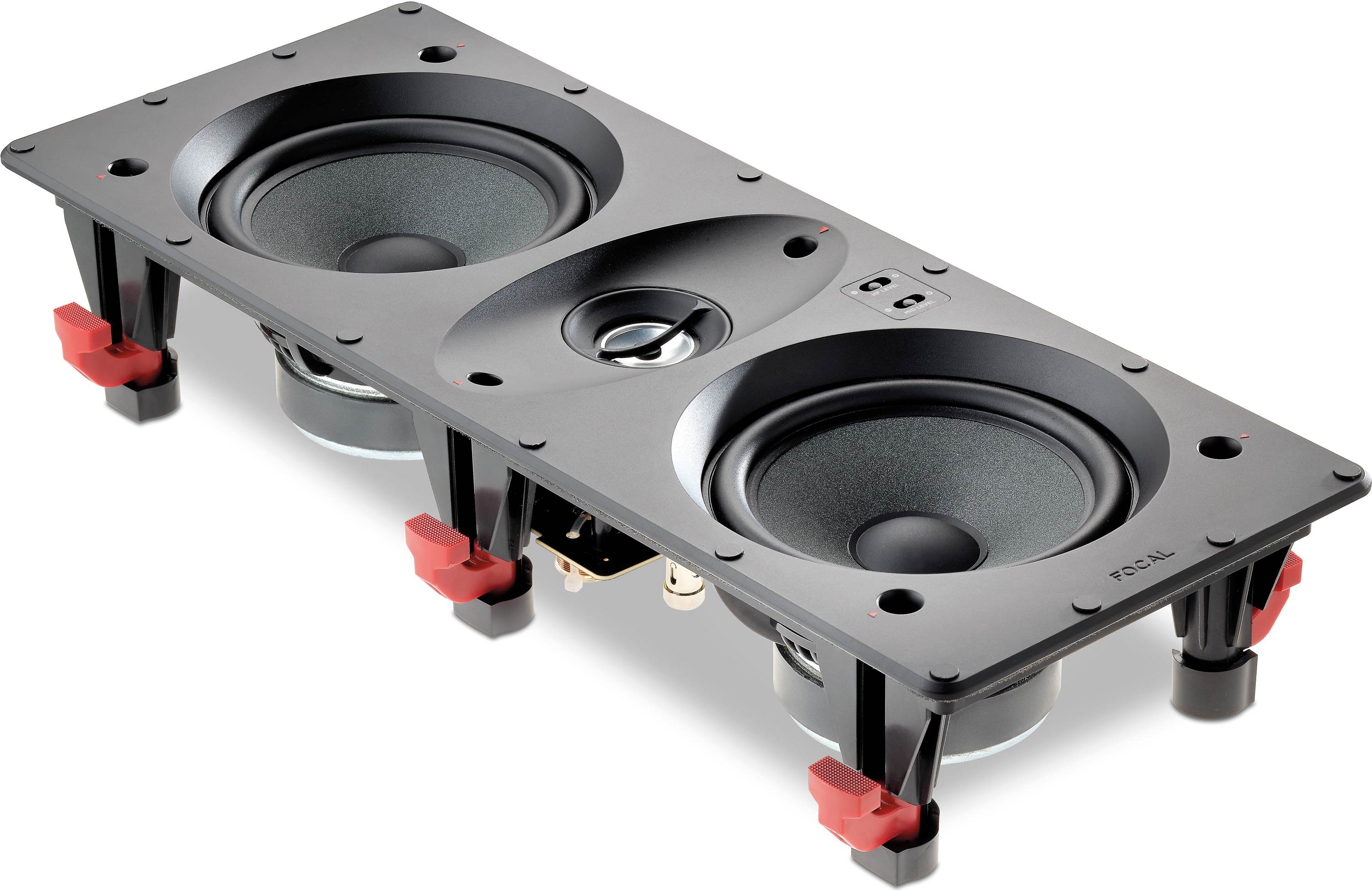

This in-wall loudspeaker has a new aluminum inverted dome adjustable tweeter, more compact, improving the sound dispersion. It is also equipped with a new Polyglass cone (51/8” – 13 cm).  This LCR (Left, Center, Right) loudspeaker can be used horizontally, as a center channel for a Home Cinema systems. It has a three position switch which allows choosing the left, center or right channels to adjust the levels according to the acoustic environment.

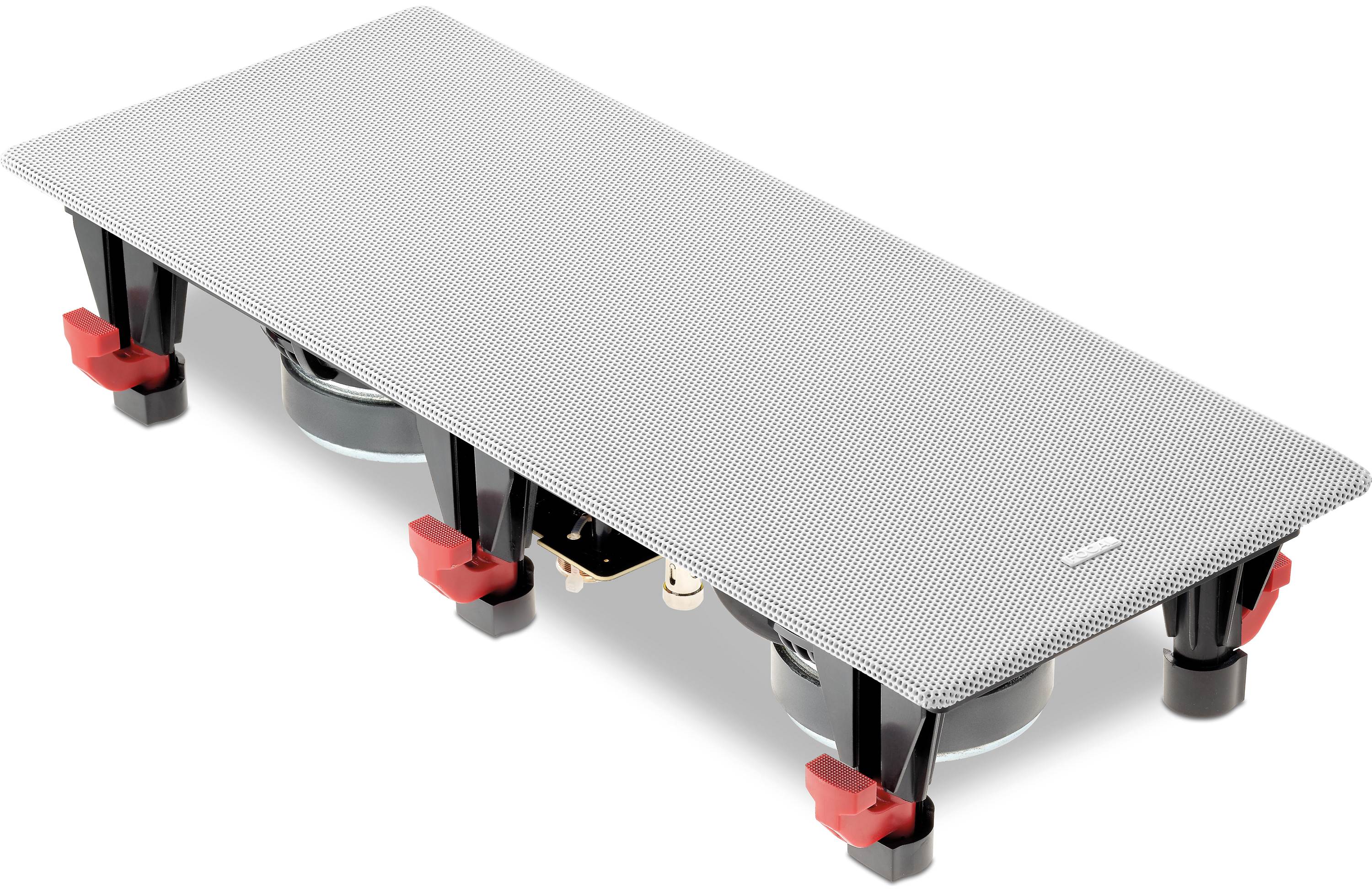

This product can be installed everywhere thanks to a compact design with the speaker driver’s basket and chassis being redesigned as one only piece, frameless square and circular front grilles. Let yourself be surprised by the technology behind this product, an efficient design and ideal features for an easy use at this price.
Accessories required for installation are sold separately (pre-mounting kit and fire rated back box)

Perfect acoustics

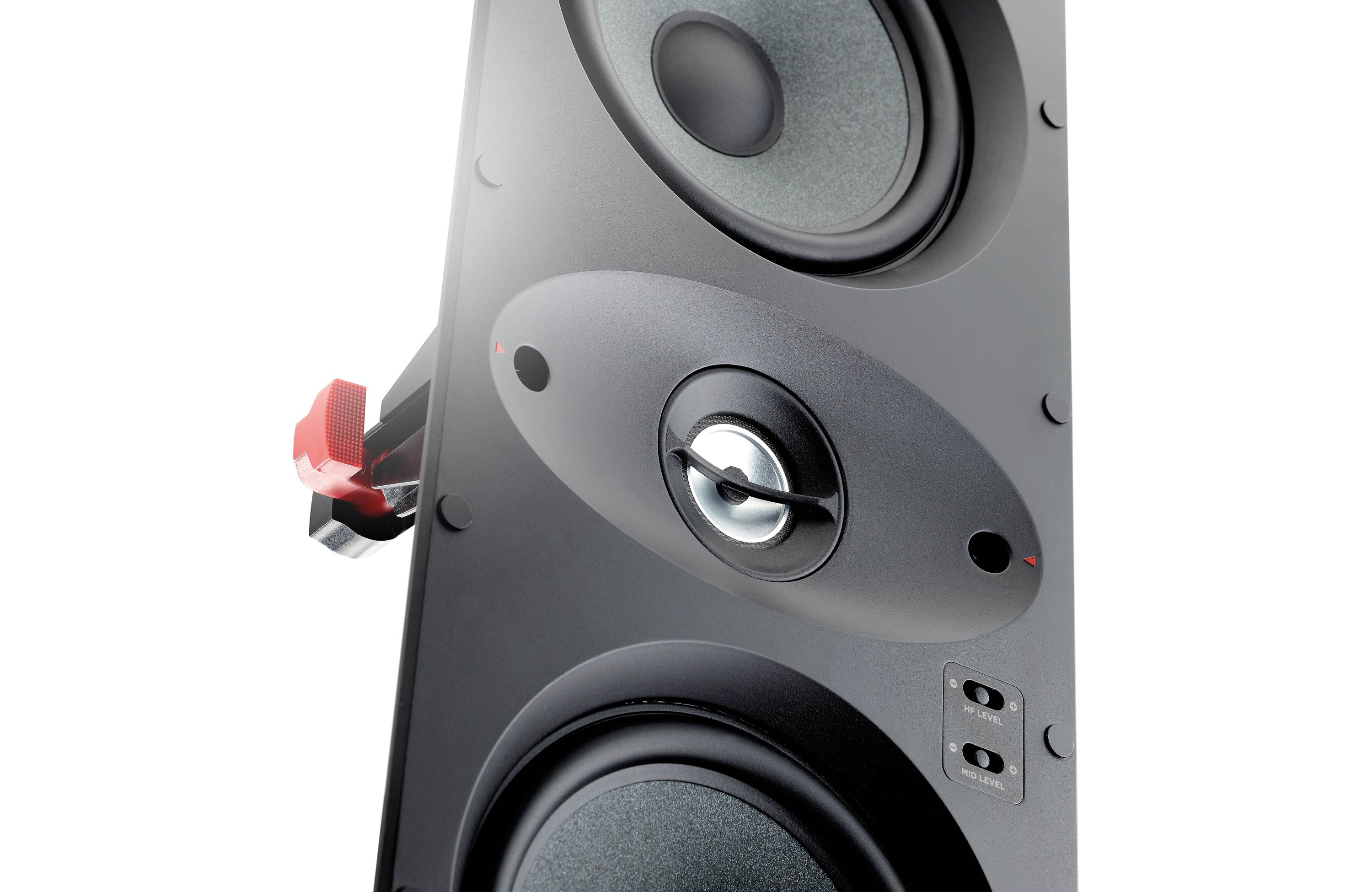

100 IW6 and 100 IWLCR5 have adjustable tweeter level offer three position switch (-3dB, 0 dB, +3 dB) to adjust the treble according to the acoustic environment (reverberation on windows or on tiles for example). Two loudspeakers can be connected to the same amplifier.
Hi-fi or Home Cinema
All the products from the 100 Series can be used to reinforce classic Hi-Fi systems, particularly the loudspeakers from the Chorus 700 series, for those looking for discreet, high-quality Home Cinema system.
Tropicalization
installation in humid environments
Tropicalization is used on Polyglass membranes to allow an installation in humid environments, such as bathrooms for example.
Easy installation
Installation is an important criterion: the three mounting brackets with optimized grips ensure a quick and easy installation. This system prevents screws from falling out when dismantling the product. The installation time is kept to a minimum. The 100 Series products have a shallow mounting depth which makes the installation much easier.
Specs

Type D'appolito In-wall 2-way
Drivers 2x5" (13cm) Polyglass Midbass
1" (25mm) AI inverted dome Tweeter
Sensitivity (2.83V/1m) 90,5dB
Frequency response (+/-3dB) 55Hz-23kHz
Low frequency point (-6dB) 43Hz
Nominal impedance 8Ώ
Minimal impedance 3.8Ώ
Recommended amplifier power 25-120W
External dimensions (Ø/Depth) 17 5/16"x 6 13/16"x3 3/8" (440x173x86mm)
Cut-Out diameter 16 5/16"x5 13/16" (415x147mm)
Depth from wall 31/4" (83mm)
Net weight (with front grille) 3.89lbs (2.90kg)
Packing dimensions (WxDxH) 19 3/16"x8 11/16"x4 11/16" (487x220x119mm)
Total weight (with packaging) 7.6lbs (3.45kg)
