Bowers & Wilkins CWM 664 Custom Installation 2-Way In-Wall Speaker (Pair)

UPC: 714346310432


Product Qualifies for FREE Ground Shipping

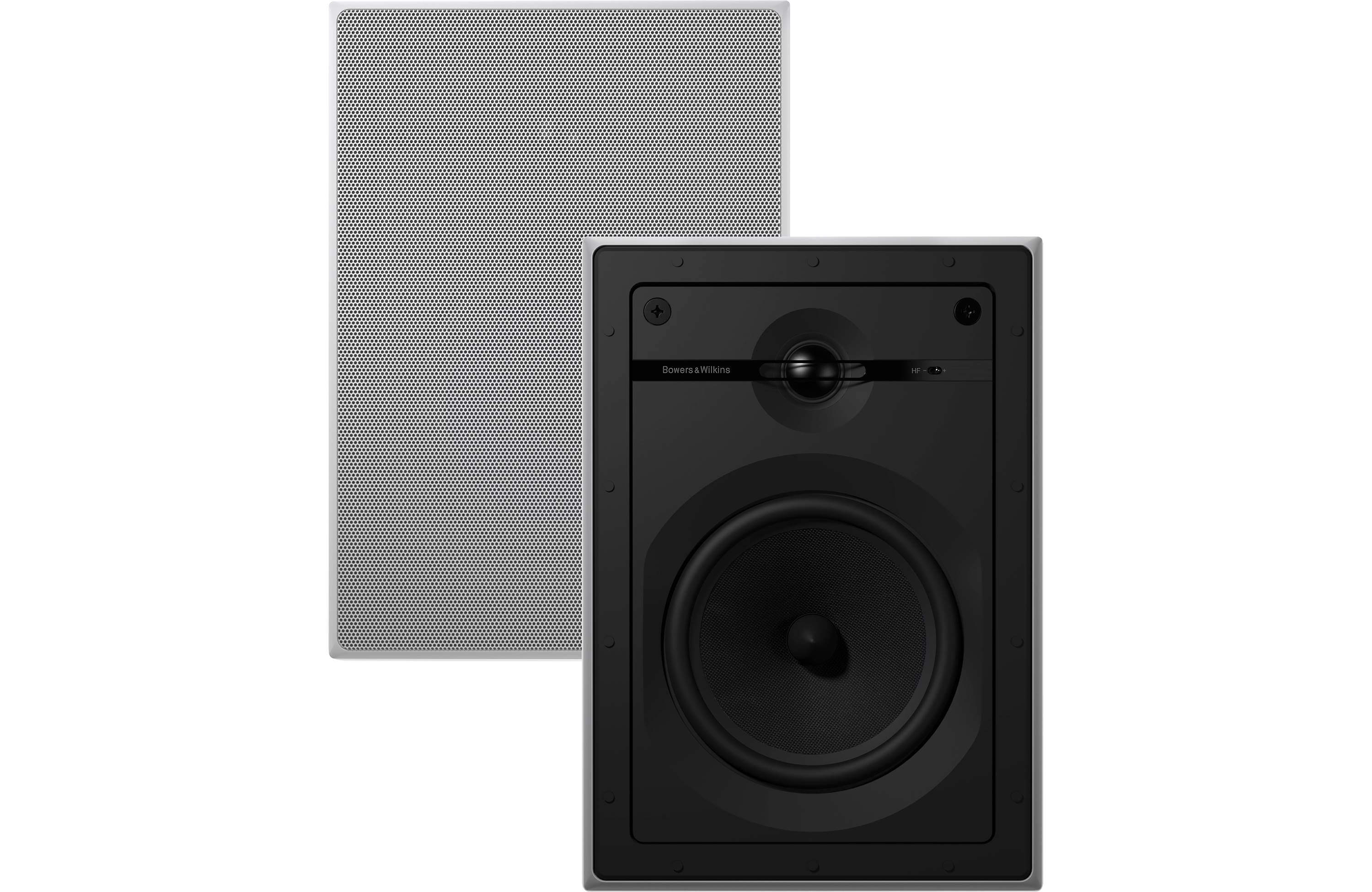

Bowers & Wilkins CWM 664 Custom Installation 2-Way In-Wall Speaker (Pair)

A compact 2-way in-wall speaker with a soft-dome tweeter and 6-in black glassfiber bass/midrange driver.

The CWM664 is an in-wall speaker distinguished by its 25mm (1in) soft dome
tweeter. It brings smoother and more detailed high frequency performance
to a package that also includes a woven glass fibre 150mm (6in) bass/
midrange driver and three-position high frequency switch to fine tune the
sound. Installation is catered for by a simple and effective QuickDog™ fixing
system. The CWM664 is an elegantly engineered and cost effective route to
high quality in-wall sound.


Description  2-way in-wall system
Drive units 1x ø25mm (1in) Nautilus™ tube loaded aluminium
dome tweeter
1x ø150mm (6in) black glassfibre cone bass/midrange
Frequency Range (-6dB) 45Hz – 35kHz
Maximum Amp Power 25 – 130w
Sensitivity SPL (2.83V, 1m) 87.5dB
Impedance Nominal (min) 8Ω (4.5Ω)
Frame height  315mm (12.4in)
Frame width  221mm (8.7in)
Cut-out height  279mm (11in)
Cut-out width  183mm (7.2in)
Depth behind surface  95mm (3.7in)
Protrusion  4mm (0.2in)
Pre-mount Kit  PMK W6
Back Box BB 6W
