Superior Sound, Smallest Cutout
The smallest-diameter full-range 3-way driver array delivers full-size speaker performance in a speaker the size of a small inset lighting fixture. Let there be sound!
Vanishing 500-LS Features:

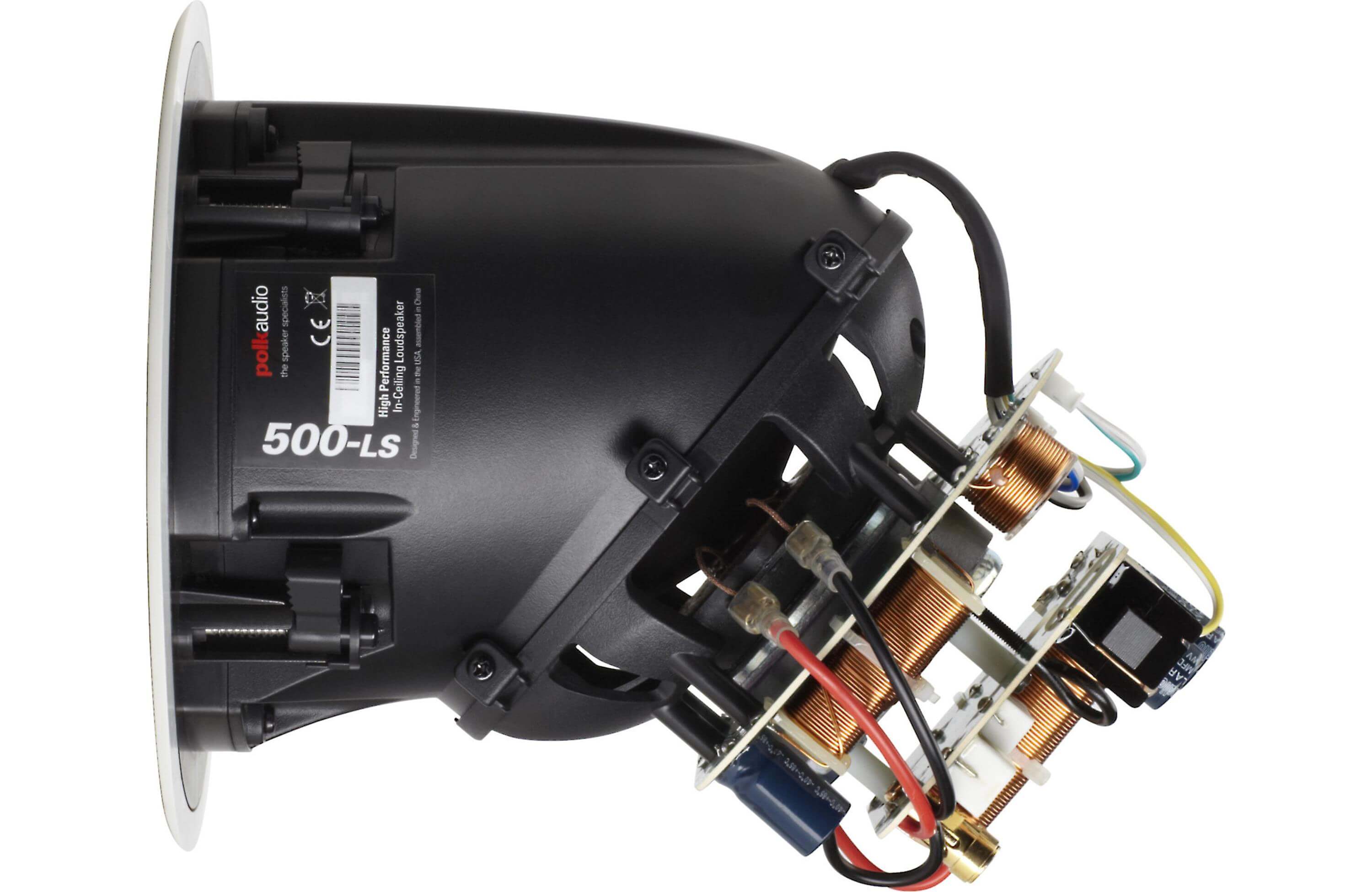

Extra deep well design with a Cassini oval woofer mounted above and behind the main driver & tweeter array, for broad coverage and dynamic full-range audio performance in a small diameter built-in.

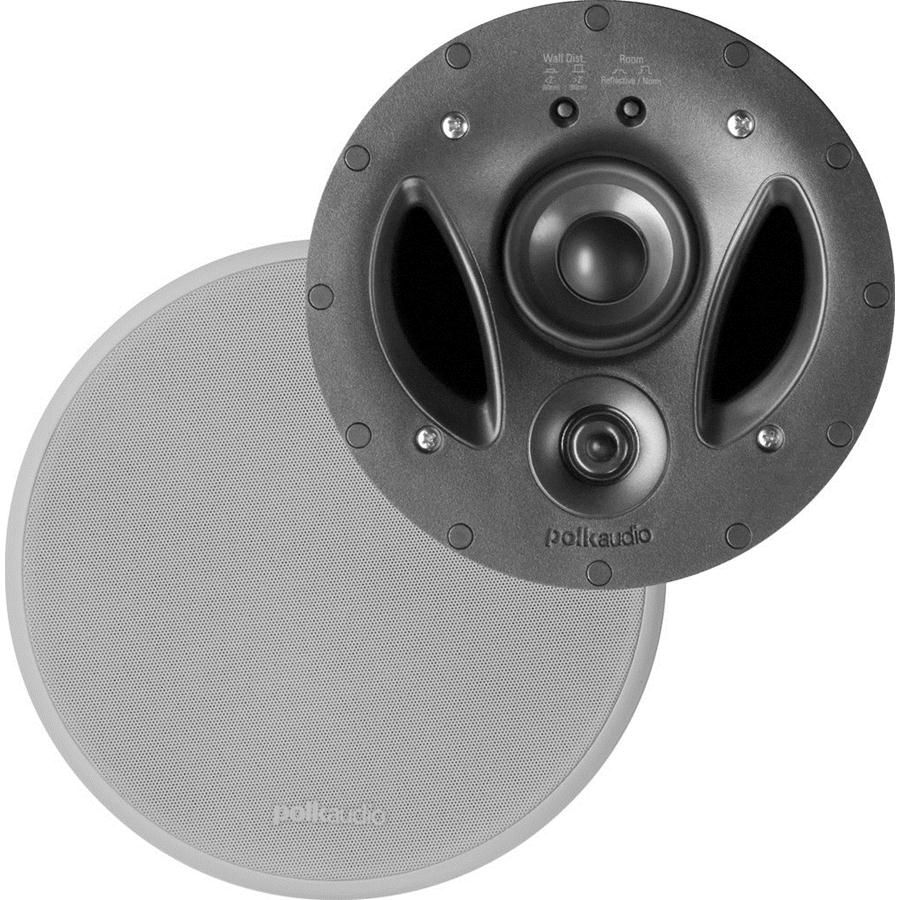

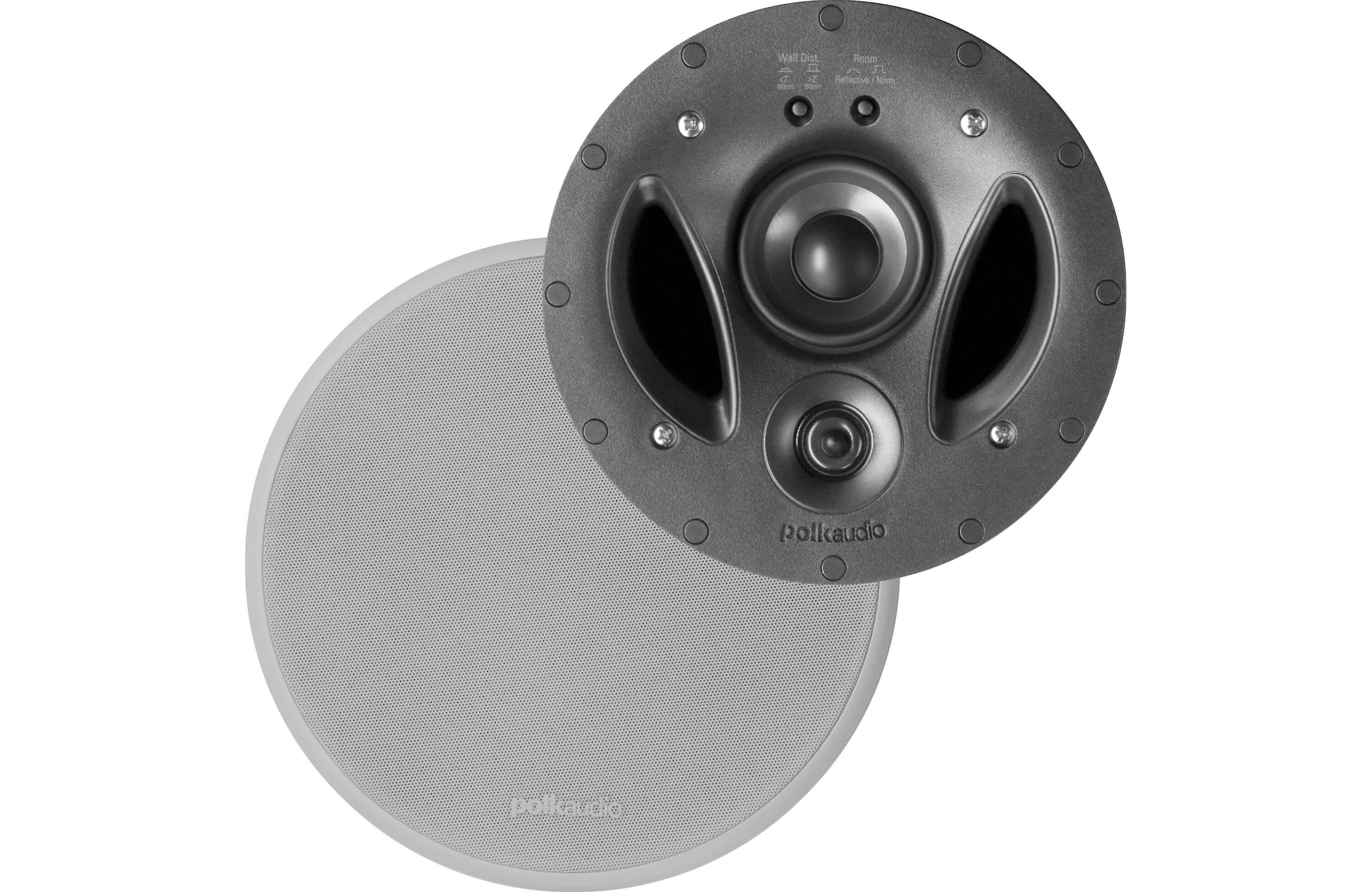

Vanishing Series built-in speakers feature our exclusive wafer-thin Sheer-Grille , a magnetically-secured grille that protrudes only 7mm from its surroundings. Sheer-Grilles have nearly transparent, ultra-small perfs, and are acoustically inert, for dynamic, unimpeded sound and more uniform coverage, even in larger rooms.
Painted to match your d cor, Vanishing Series built-in speakers are virtually indistinguishable from their surroundings.
Enhanced, reengineered ring radiator tweeters extend top-end response for incredible details and realistic imaging.
Reflective surfaces in rooms can make sound brighter and cause image distortion. Engaging the Vanishing reflective room compensation feature (by selecting the low setting) lowers the tweeter level to compensate for reflective surfaces. Vanishing reflective room compensation is a custom audio control that cuts the level only in the 4-5kHz range, exactly where reflectivity destroys sound quality. Outside this narrow 1kHz band, the tweeter retains its detailed and accurate high frequency response, for no loss of realistic musical details.
Vanishing Series LS speakers are timbre-matched to Polk LSi speakers to insure utterly seamless blending from speaker to speaker in systems that combine traditional and built-in speakers.

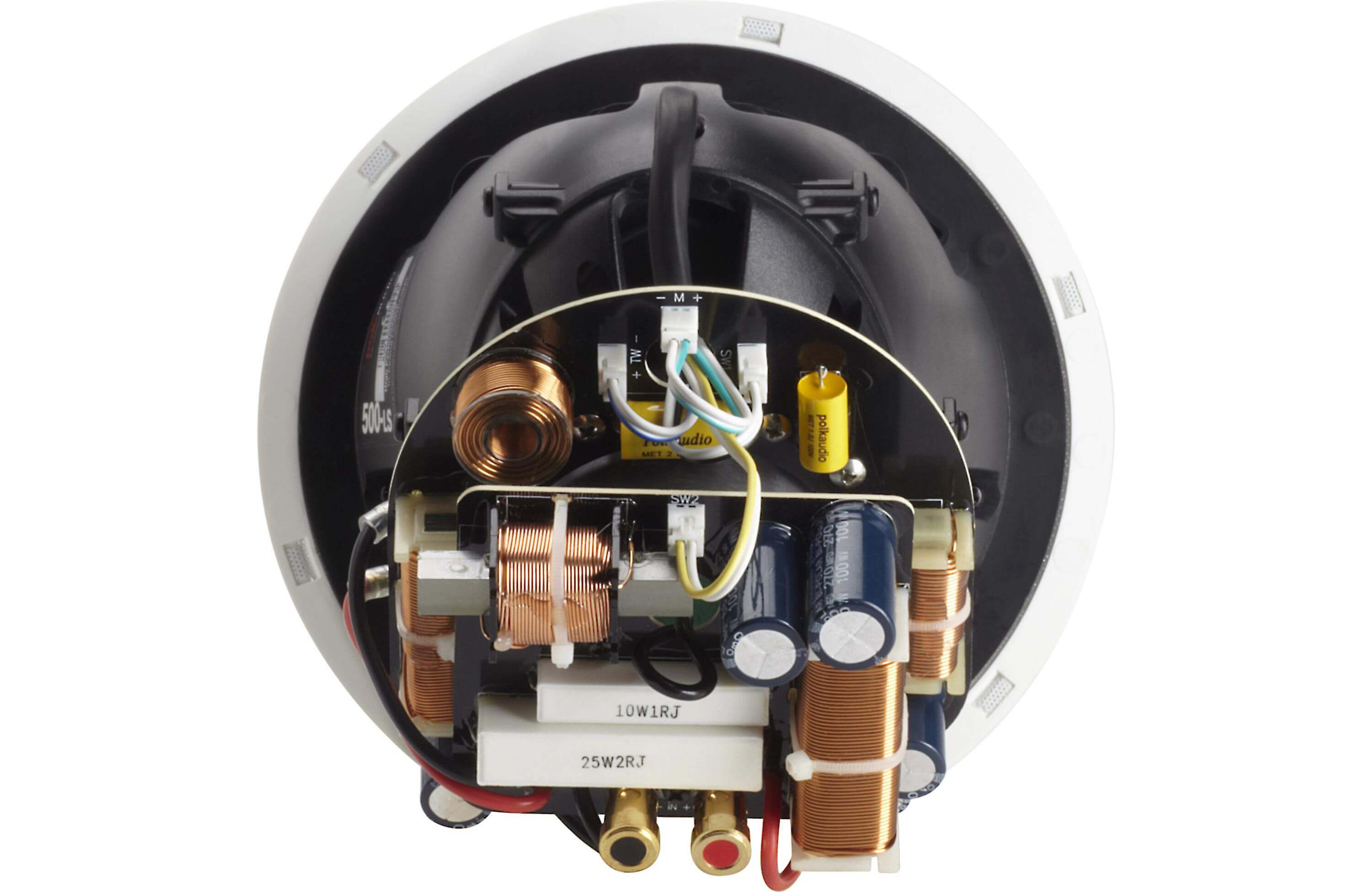

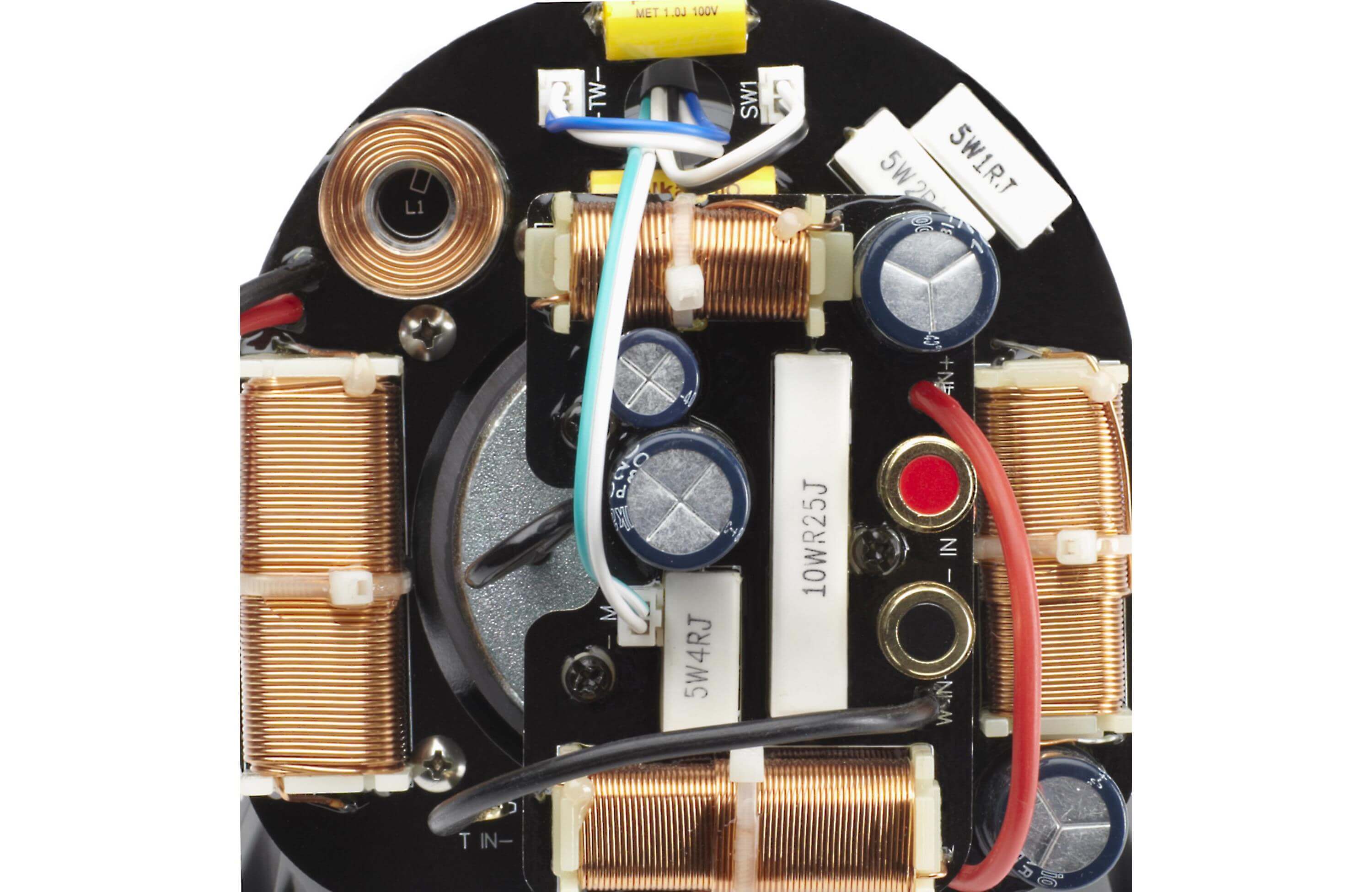

If positioning limitations demand that your loudspeakers be installed closer than 2 feet from side walls, the proximity of the surface can result in a response bump between 50 and 200Hz. This can create boomy sound. The Vanishing wall distance toggle switch is a custom audio control that adjusts the crossover to flatten response and tune out boominess, without sacrificing deep bass response, for more lifelike sound and more flexible placement.
PowerPort bass venting is Polk s patented design for smoothly transitioning the air flow from the port into your listening area, eliminating turbulence and distortion, for bigger, more efficient, deep bass impact.
Easy one-cut, drop-in installation puts built-in audio within reach, with Perfect Fit templates, a precision flange, and (available) pre-construction brackets; achieve secure, vibration-free efficiency with a simple turn of the patented Rotating Cam system.
All Polk products are made using the best materials and the most advanced manufacturing techniques. They pass the industry s most exhaustive quality tests, including drop testing, extreme signal response and UV & salt exposure testing. Polk loudspeakers are built to perform for a lifetime.
Total Pieces 1
Included Accessories (1) Polk s Wafer-thin Sheer Grille - White, Paintable
Optional Accessories (1) PB 450 - Pre-Construction Bracket - Sold Separate
Carton 1 9.5" (24.13 cm) h x 10" (25.4 cm) w x 12.25" (31.12 cm) d - 7.25 lbs (3.29 kg)
Lifetime Warranty Yes
Qty Included 1
Driver Enclosure Type PowerPort Bass Vented
Driver Complement (1) 2.5" (6.35 cm) d (Round) Dynamic Balance driver with aerated polypropylene cone - Midrange (1) 5" (12.7 cm) d (Round) Dynamic Balance woofer with mineral-filled polypropylene cone - Subwoofer (1) 0.75" (1.91 cm) d (Round) Ring radiator - Tweeter
Depth 9.38" (23.83 cm)
Grille Dimensions 7.75" (19.69 cm) diameter
Total Frequency Response 35 Hz 33,000 Hz
Nominal Impedance 8 ohms
Sensitivity (1 watt @ 1 meter) 89 dB
Lower and Upper -3dB Limits 48 Hz 29,000 Hz
Audio Inputs No
Speaker Inputs (1) Pair of Push Connectors - Gold-Plated
Recommended Amplifier Power Per Channel 10 watts 125 watts
Dimensions 6" (15.24 cm) diameter
