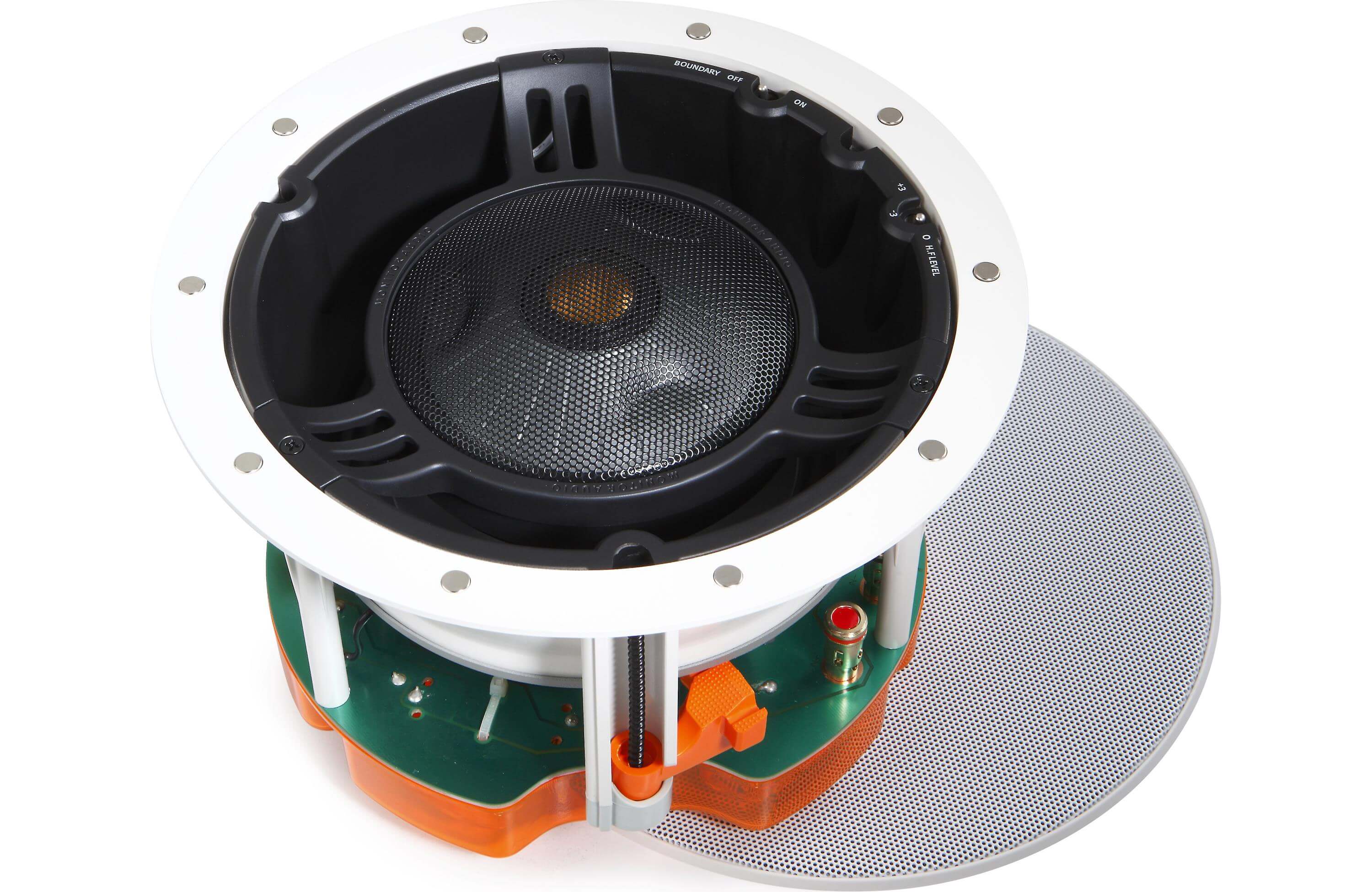

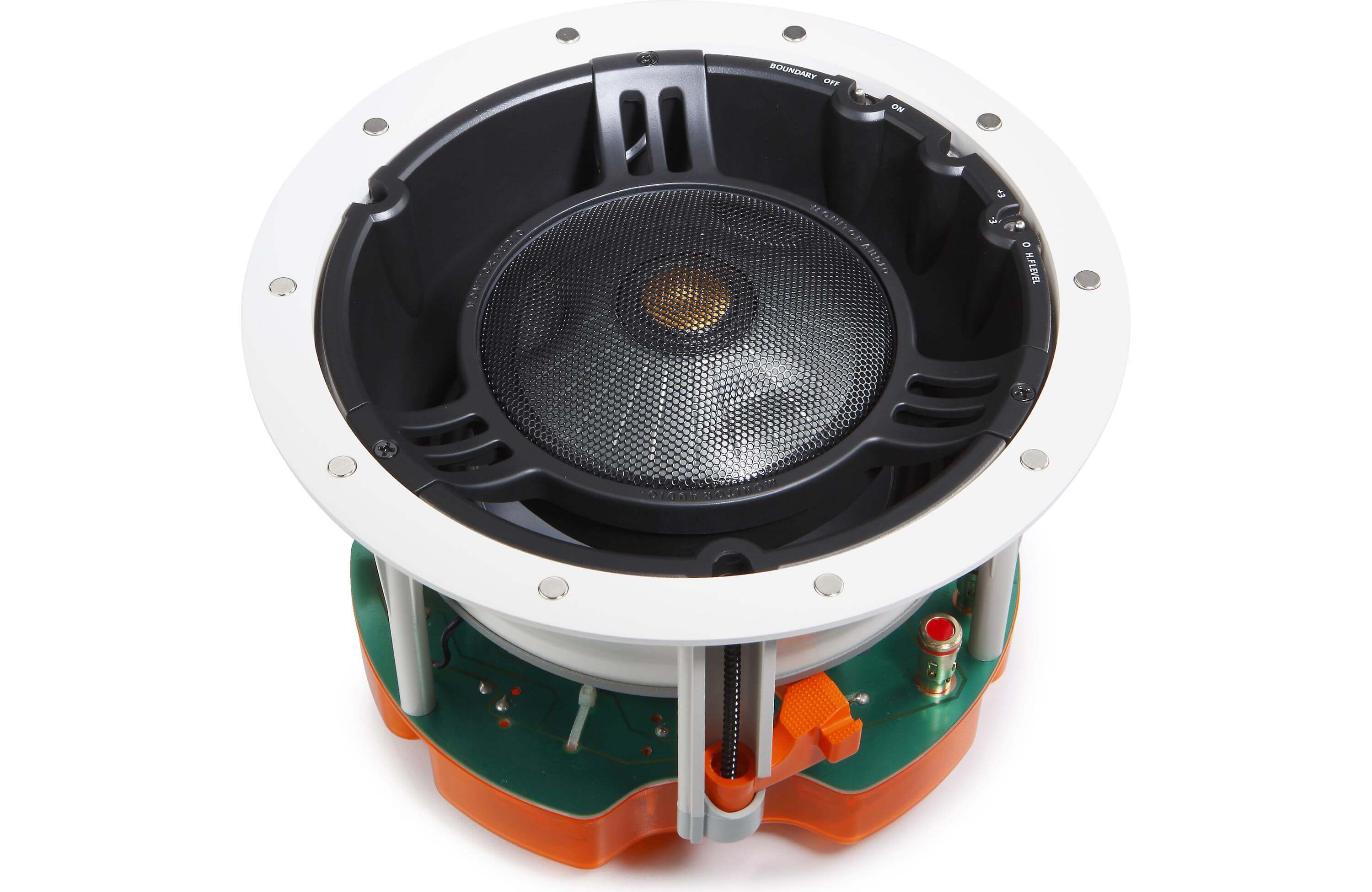

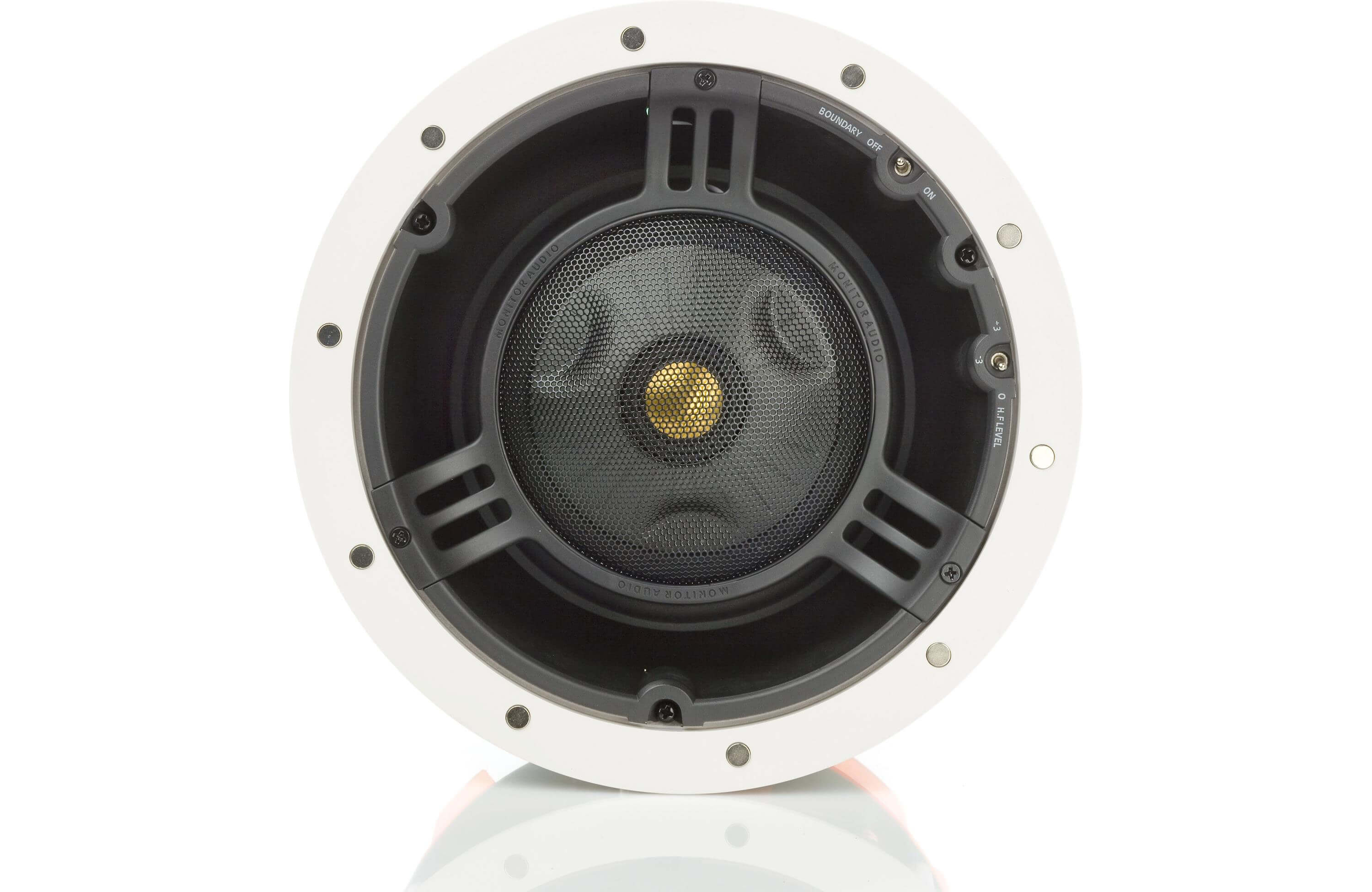

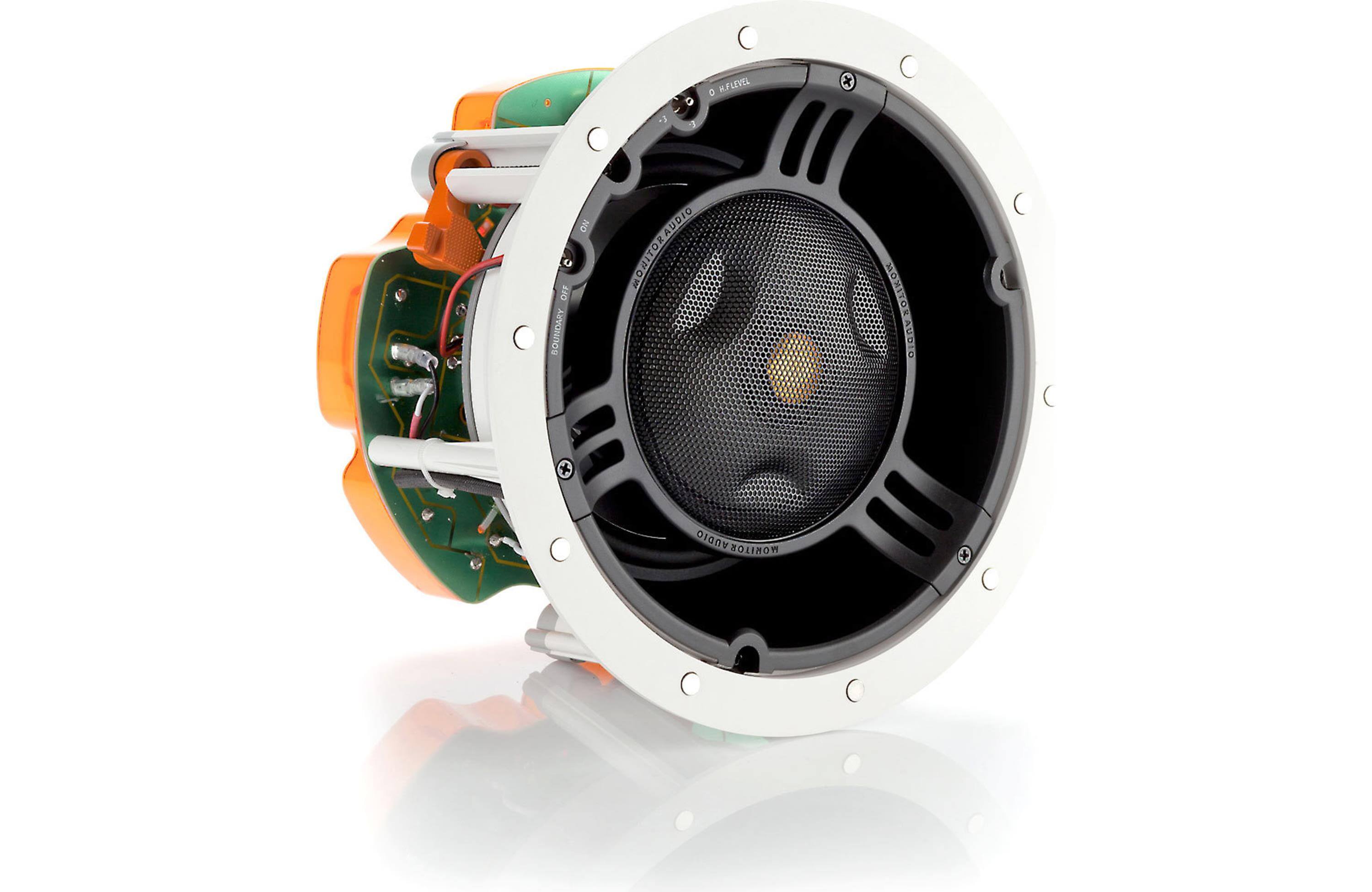

Features a 6.5-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM gold dome tweeter. True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localisation. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3dB /0dB / -3dB) level adjustment, and boundary compensation (on / off) controls.Unique IDC dual concentric mid-range/ HF module offering up to 18 degrees of pivot in all directions. Easily directed during post install set-up.
C-CAM drivers throughout, providing coherent tonal balance and sonic signature across the entire audio frequency spectrum.
Special Inverted C-CAM RST profile mid-range cone provides improved dispersion pattern.
True 3-way designs.
High overall efficiency.
High frequency level adjustment (+/- 3dB).
Boundary compensation control.
Audio match with CP range 200 models and Silver Series hi-fi speakers.

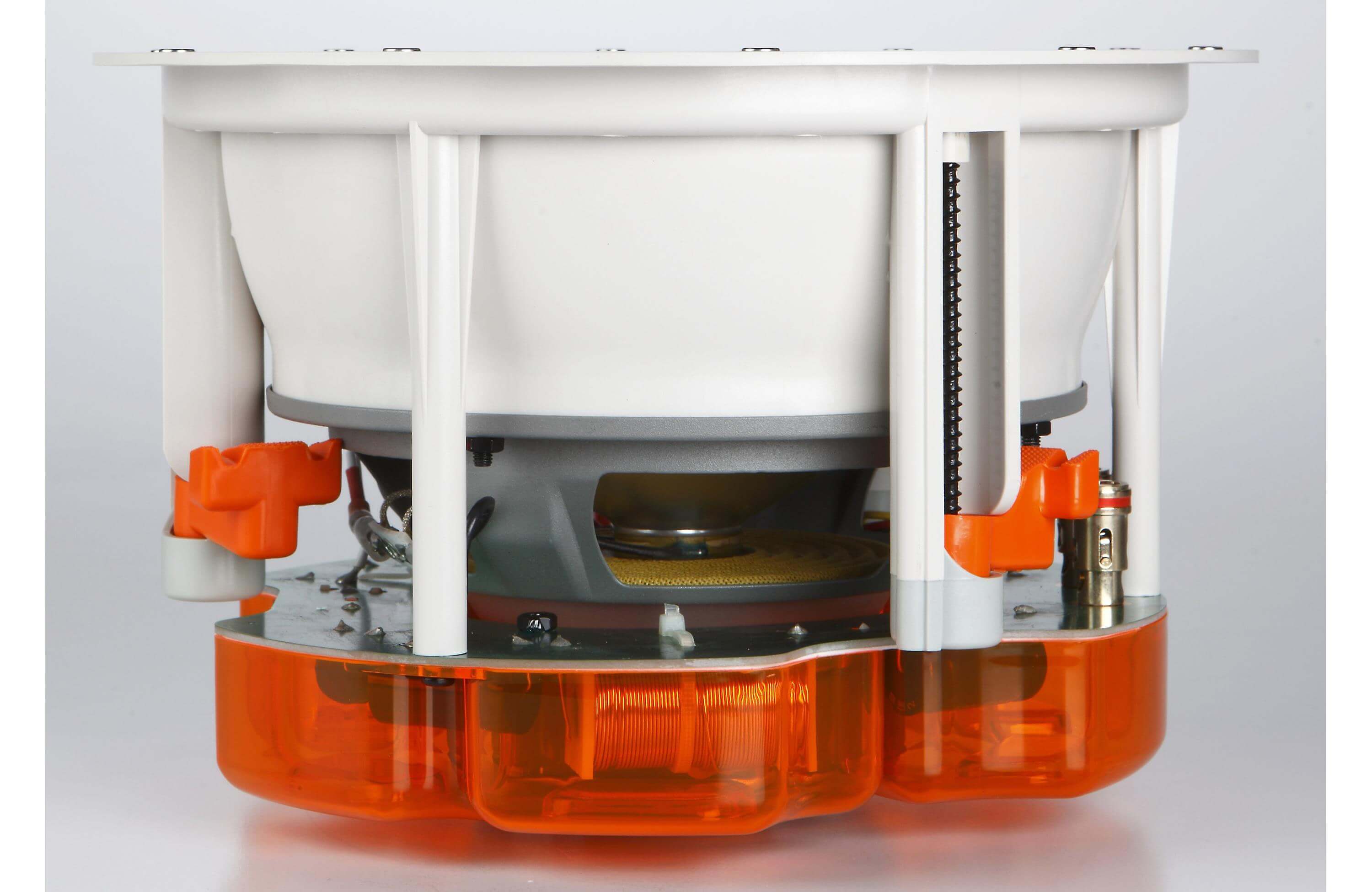

Our innovative Tri-Grip fixing system is easier to install than conventional clamping schemes but provides three times the surface area and a better surface seal, maximising bass response and mid-range clarity.

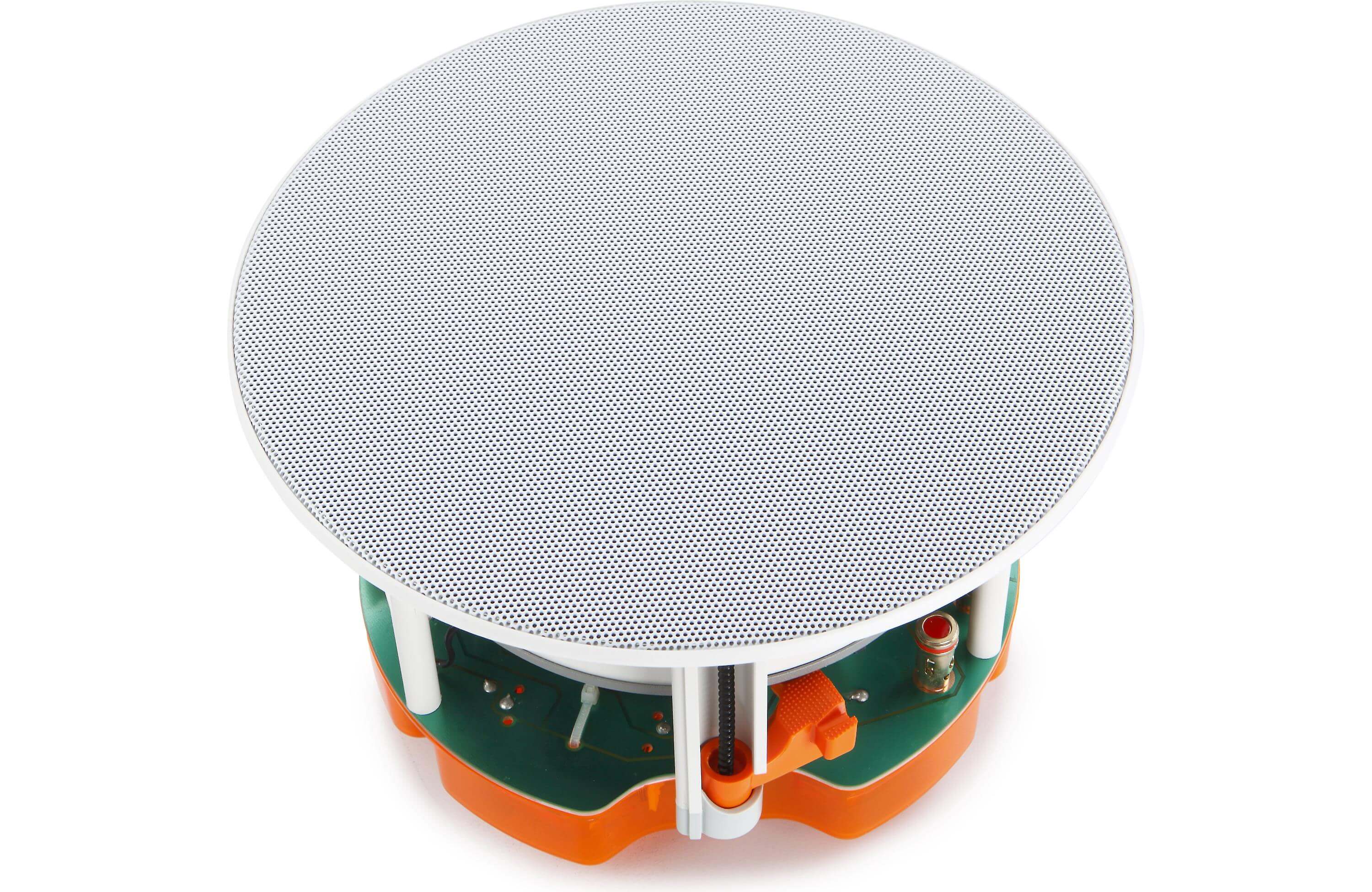

Magnetic and easily removable steel grille.
All models are paint-able to blend with the living environment. Additional scrim material is provided for trouble free painting.
All models are splash and humidity proof for installation in shower rooms or pool areas.

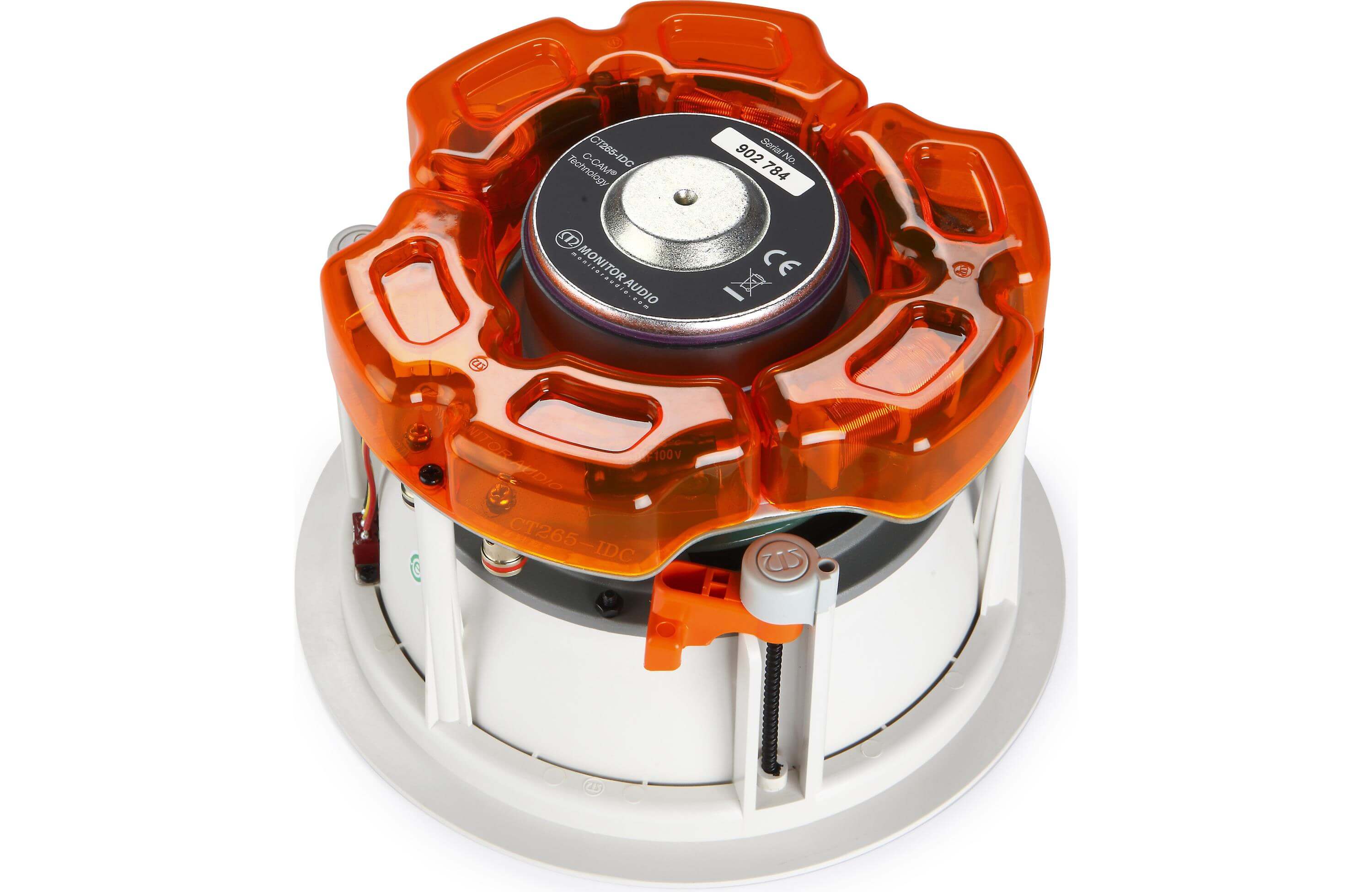

All models feature dust protection covers that are designed to prevent the ingress of dirt or dust into the driver and crossover.
60 Hz - 30 kHz
Power Handling (RMS)
Recommended Amp Requirements
20 - 85 W
Drivers Unit Complement
6.5 C-CAM cone bass driver, pivoting IDC module housing:
4 C-CAM RST inverted mid range driver
1 C-CAM gold dome tweeter
HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch
Overall Diameter:(including grille)
(9 13/16 inch)
Overall Depth:(including grille)
Cut Out Diameter
(8 1/4 inch)
(5 7/8 inch)
3 position Tri-Grip dog leg fixings
Mineral Filled ABS Plastic
2.54kg (6lb 10oz)
