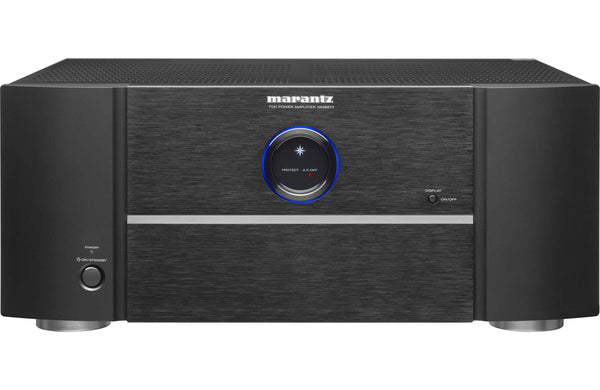

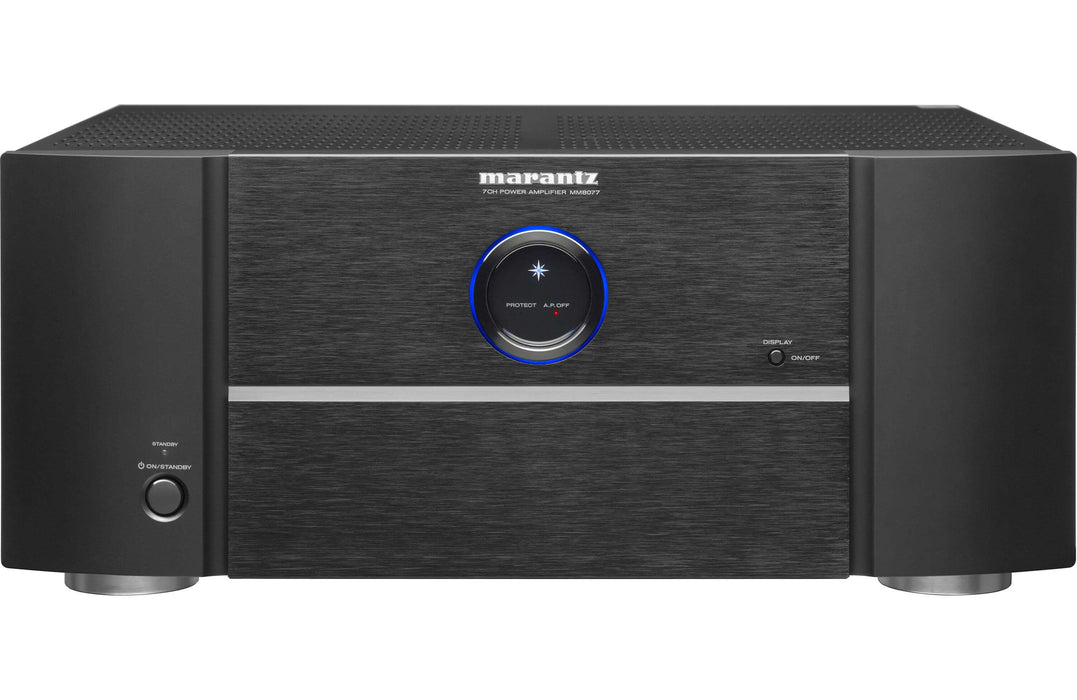

Marantz MM8077 7 Channel Power Amplifier Open Box

by Marantz
UPC: 699927150051
Save 25%
$2,499.00
$1,874.99

SKU MM8077OB

Product Qualifies for FREE Ground Shipping

OPEN BOX
  • 100% WORKING CONDITION
  • THOROUGHLY INSPECTED
  • SAME 30 DAY RETURN POLICY AS NEW FOR ITEMS NOT LISTED AS FINAL SALE
  • ORGINAL OR REPLACEMENT PACKAGING + ALL ACCESSORIES

    • Marantz MM8077 7 Channel Power Amplifier Open Box

    Designed for the ultimate music and movie surround sound experience, the Marantz MM8077 7-channel power amplifier delivers power and detail, and is rated at 150 watts per channel into 8 ohms, and 180 watts per channel into 6 ohms.

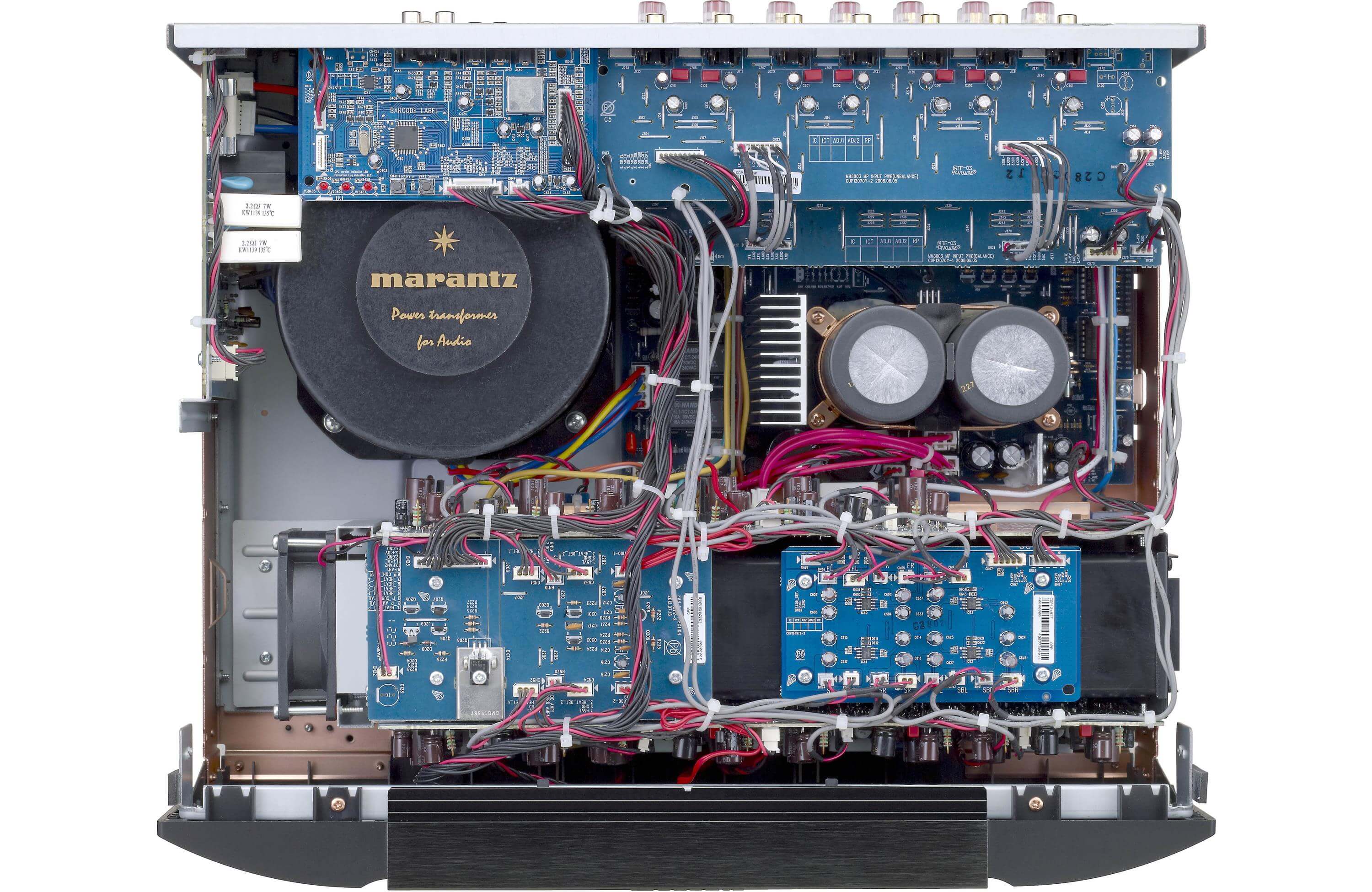

    The power supply features a high current toroidal power transformer along with high power (71WVDC) filter capacitors with a total 100,000 F capacitance to easily handle sharp short-term transient peaks.

    Featuring our unique current feedback discrete power amp output stages that are identical for all channels, the MM8077 is equipped with multiple high current discrete power transistors that feature high slew rate and wide operating bandwidth to extract the most detail from today s high resolution audio formats.

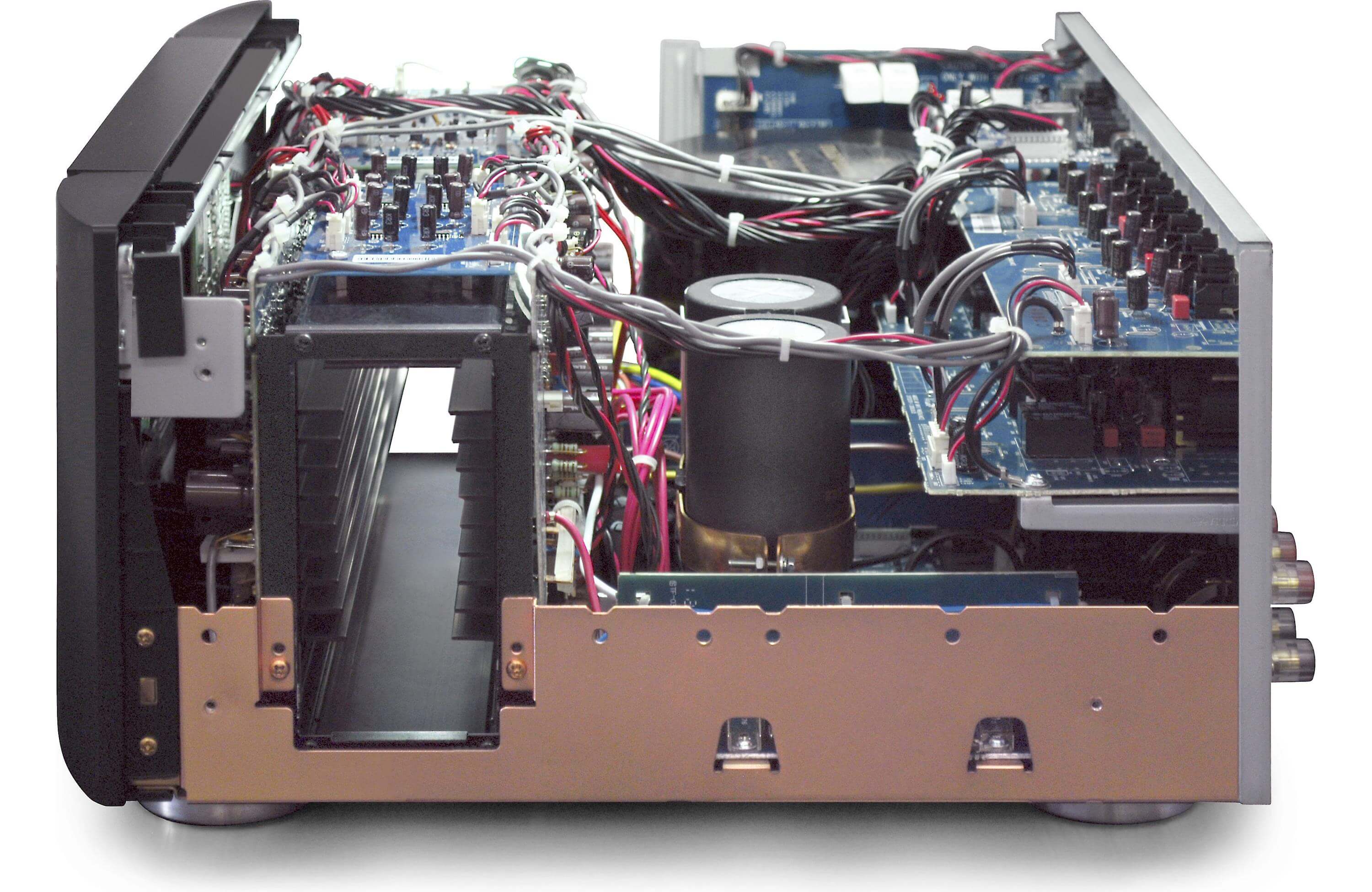

    The output devices are mounted on our unique dual extruded aluminum alloy heat sink assembly, configured in a tunnel arrangement that provides both passive and active cooling. The massive heat sinks feature multiple ribbed fins that provide a large passive cooling area, and the assembly is book-ended with a whisper quiet fan that automatically kicks in to provide near silent active cooling when the soundtrack heats up. As the fan is mounted internally directly to the heat sinks, and not externally to the chassis cover as is often the case, even when it s running, it s designed to be whisper quiet.

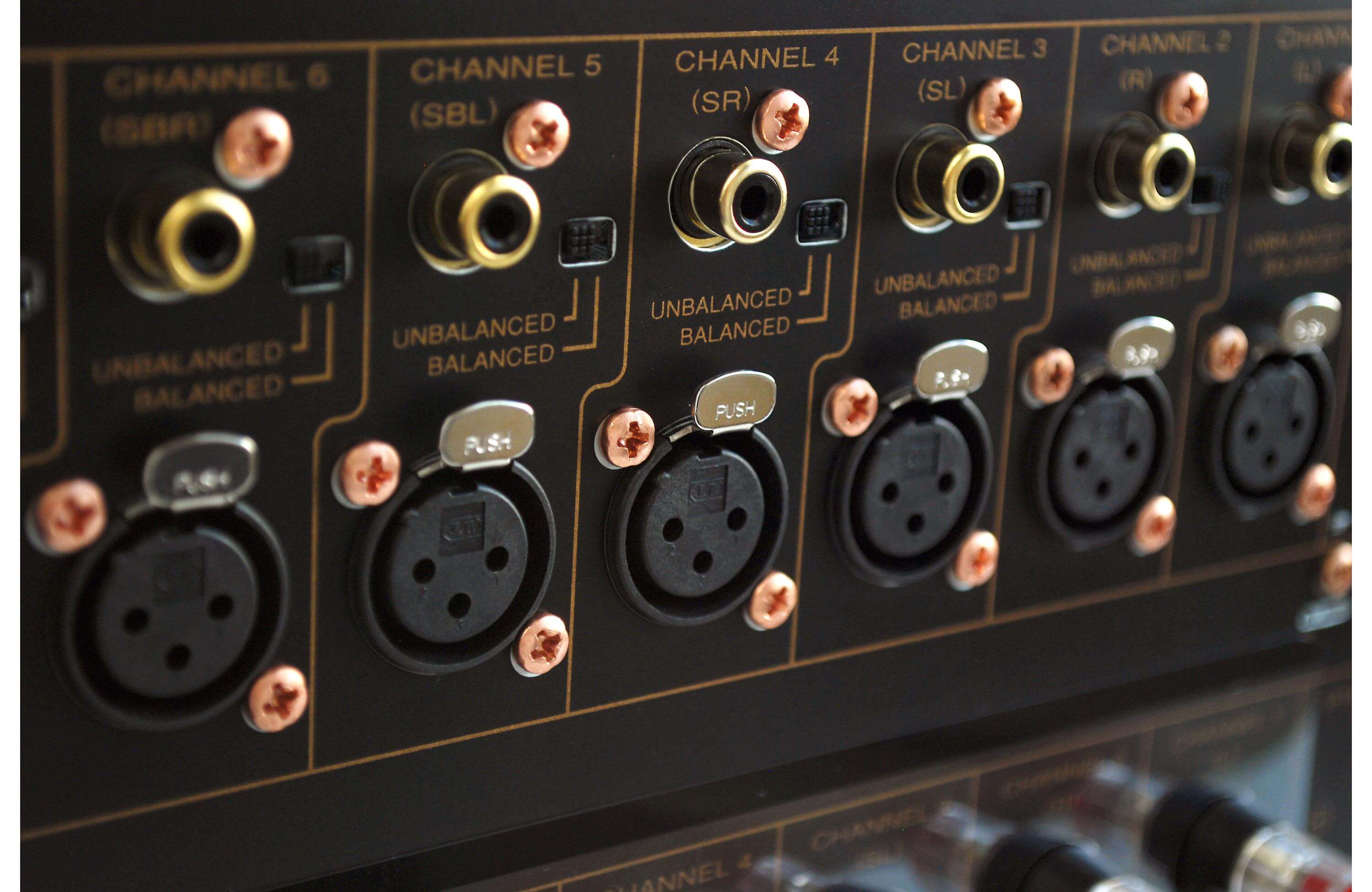

    For maximum connectivity, the MM8077 features both unbalanced (RCA) and balanced (XLR) inputs, and each amp channel can be configured to use your choice of input connector. The loudspeaker terminals feature audiophile-grade construction, and are gold-plated for maximum signal transfer, and they can easily handle a wide range of audiophile speaker cable connectors.

    The MM8077 features a DC trigger input for external power on/off control, and there s also dual RC-5 remote control in/out jacks for connection to a compatible Marantz A/V pre-amp/processor.

    The copper-plated chassis provides isolation from extraneous noise, and features a multi-layer reinforced bottom panel assembly for maximum rigidity along with triple-layer top cover. Elegantly finished in anodized black satin, the MM8077 features the classic Marantz ringed porthole display with a blue illumination accent that includes a display on/off function.
    Specs
    MULTI CHANNEL/SURROUND

    Number of Channels 7

    SOUND ENHANCEMENTS

    Current Feedback Topology Yes
    Discrete Amplification Yes
    Power Transformer Toroidal
    Chassis Copper Plated

    IN/OUTPUTS

    OTHER
    Main Amplifier In Balanced & Unbalanced: 7ch (Exclusive use by a selector switch.)
    DC Triggers 1 In / 1 Out
    D-Bus Remote (RC-5) In/Out 1 In /1 Out
    Flasher In/IR Receiver In/Emitter out 1/0/0

    Specifications

    AUDIO SECTION
    Power Output 150W (20Hz - 20kHz, 0.08%)
    S/N Ratio 105dB
    Freq. Response (Analog In) 8Hz - 100kHz (+/- 3dB)

    General

    Color Black
    Front Panel Aluminum/Glass-reinforced resin
    Power Requirement AC 120 V, 60 Hz
    Power Consumption 800W (Standby: 0.4W)
    Dimensions W x H x D (Inchs) 17.32" x 7.29" x 15.1"
    Weight (lbs) 45.41
