Denon PMA-1700NE Integrated Amplifier Open Box

Denon PMA-1700NE Integrated Amplifier Open Box

Featuring advanced ultra-high current single push-pull circuit power, Advanced AL32 Processing, and MM/MC phono equalizer, the Denon PMA-1700NE integrated amplifier delivers extraordinary sound quality with precise detail.

Powerful sound from an integrated amplifier
Engineered with premium Denon technologies, this amplifier drives two channels at 140W.

Faithful audio reproduction
Advanced AL32 Processing Plus delivers the richly detailed sound the artist intended.

Build integrity with selected components
With more than 110 years of audio excellence, Denon products are built to last.

High-power 140W integrated amplifier
Drive your loudspeakers with 140 Watts of power- per-channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of 6 speaker types and impedances for operational stability.

Advanced AL32 Processing Plus
Advanced AL32 Processing Plus supports high-resolution 384 kHz/32-bit audio sources. The algorithms restore information that was lost during the digital recording to ensure detailed playback.

USB-DAC
To accurately synchronize digital circuits, the PMA- 1700NE provides USB-DAC functions that support high resolution up to 11.2-MHz DSD and 384- kHz/32-bit PCM input signals. Crafted with exceptional quality, the DAC suppresses jitter and ensures optimal precision in D/A conversion.

High-precision electrical controls
The PMA-1700NE embraces electrical volume, balance, and tone controls while preserving the analog feeling of operation. The unique mechanism offers smooth, linear control.

Specs

General
Unit (W x D x H) 434 x 410 x 135mm 17.1 x 16.1 x 5.3in
Net weight 17.6kg 38.8lb

Specifications
Rated Output Power 70W + 70W (8ohm,20Hz-20kHz,THD0.07%)
140W + 140W (4ohm, 1kHz, THD0.7%)
Speaker Impedance A or B : 4 ~ 16ohm A + B : 8 ~ 16ohm
Frequency Response 5Hz - 100kHz (0~ -3dB)
Total Harmonic Distortion 0.01 % (Rated output: –3 dB), 8 ohm/ohms, 1 kHz
Dumping Factor 100 and over
Input Sensitivity: Phono input MM: 2.5 mV / 47 kohm MC: 200
RIAA Deviation 20 Hz - 20 kHz ±0.5 dB (MM/MC)
Phono Maximum Input
MM : 130mV / 1kHz
MC : 10mV / 1kHz
Input Sensitivity: CD/LINE/RECORDER 125 mV / 19 kohm
Input Sensitivity: Power Amp input 0.85V / 47kohm (EXT. PRE)
Signal to Noise Ratio PHONO (MM): (89dB)
PHONO (MC): (74dB) CD: (107dB)
Tone Control BASS : 100Hz ±8dB
TREBLE : 10kHz ±8dB
Power Consumption 295W
at Standby 0.2W TV autoplay off 0.4W TV autoplay on

Audio Feature

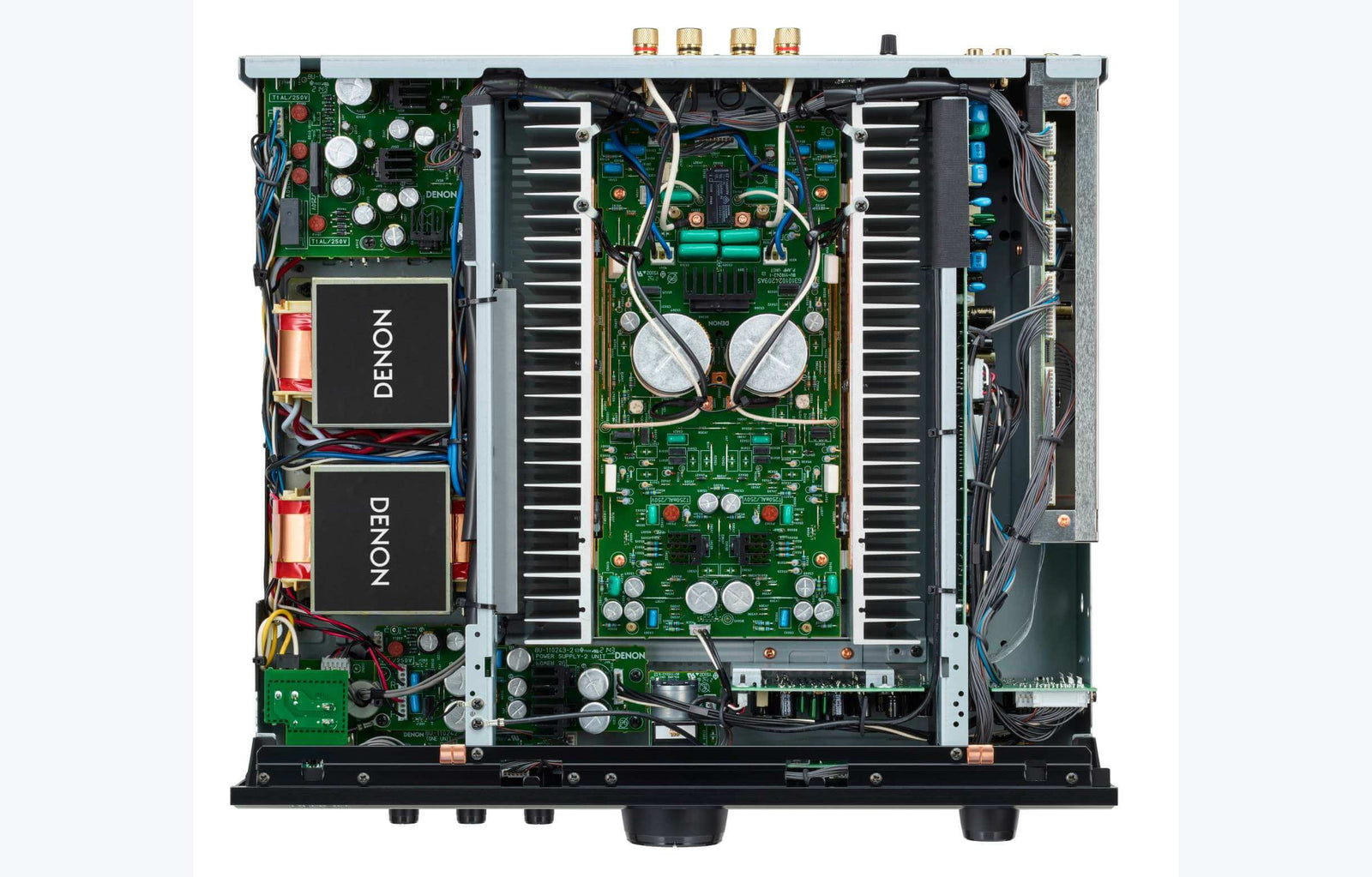

Power Amplifier Circuit New UHC-MOS
Single Push Pull (7)
Power Trans Dual El Core
Pre Amplifier Circuit Variable Gain Preamplifier
Bass / Treble / Mid / Balance Control Yes / Yes / No / Yes
Source Direct Yes
Analog Amp Mode Yes (button on front panel)
DAC Circuit PCM1795
Digital Processing Advanced AL32 Processing Plus
DAC Master Clock Design (Not Support Network Playback) Yes
Asyncronous mode (for USB-B input) yes
Isolator (for USB-B input) Yes
Full Isolation

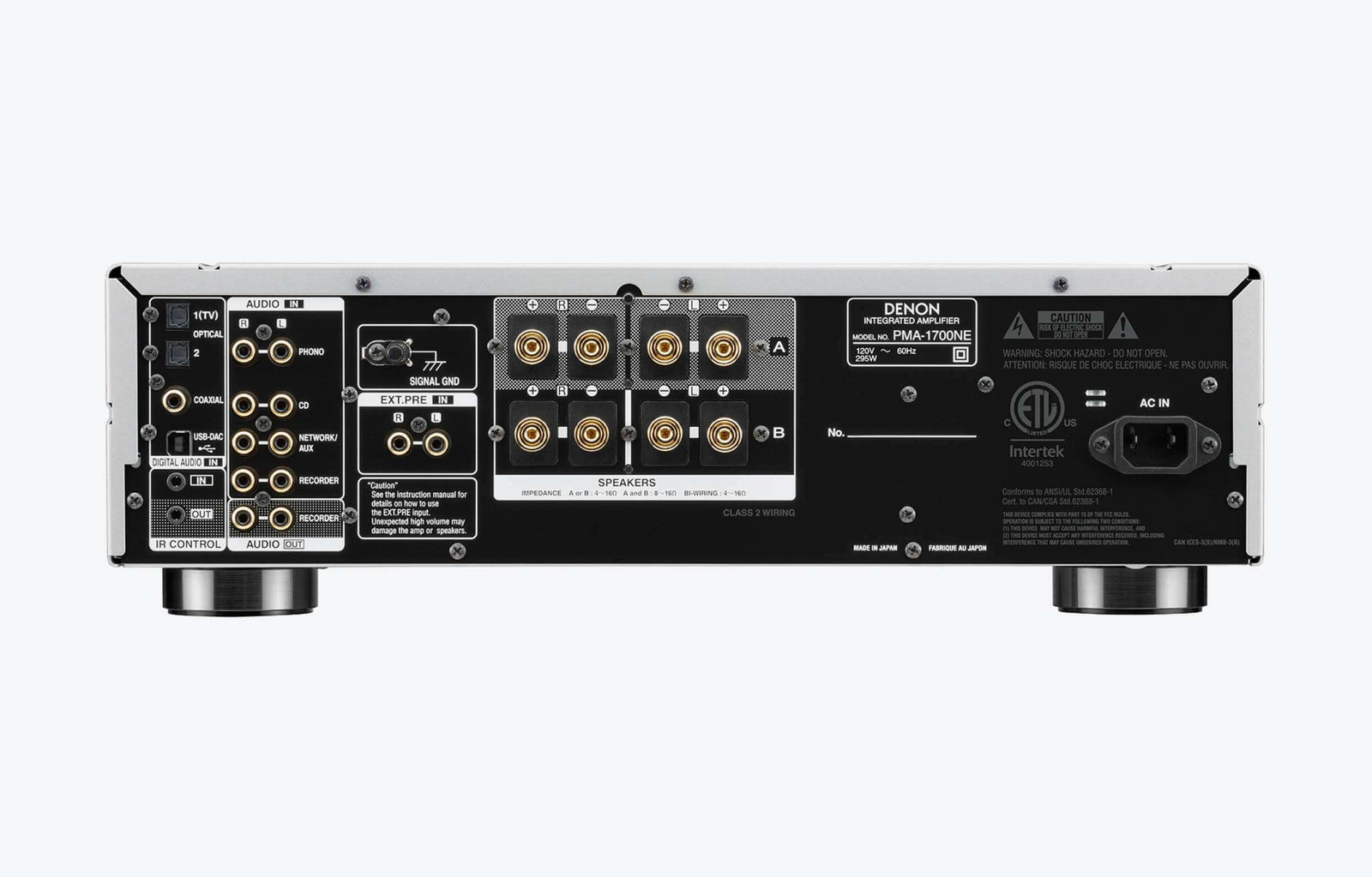

Connectivity
Phono Input Yes (MM / MC) *default=MM
Analog Input (include Phono) / REC Out (RCA) 4/1
(PHONO / CD / NETWORK ,AUX/ RECORDER)
Optical input / output (Maximum Support) 2 / 0 (192kHz/24bit)
Coaxial input / output (Maximum Support) 1 / 0 (192kHz/24bit)
Ext. Pre Input (Power Amp Direct) Yes(Ext.Pre)
2 sets of Speaker Output Yes (Bi-wiring)
Speaker Terminal Gold Plated
Headphone Output 1 (Turn off the speaker when inserting headphone)
Remote Control Bus Terminal Yes (mini)
USB B (USB DAC) 1 (Rear)
PCM Sample Rate ~384kHz/32bit
DSD Audio Streaming (DoP) ~11.2MHz
Roon Certificaton Yes (Roon Tested)
