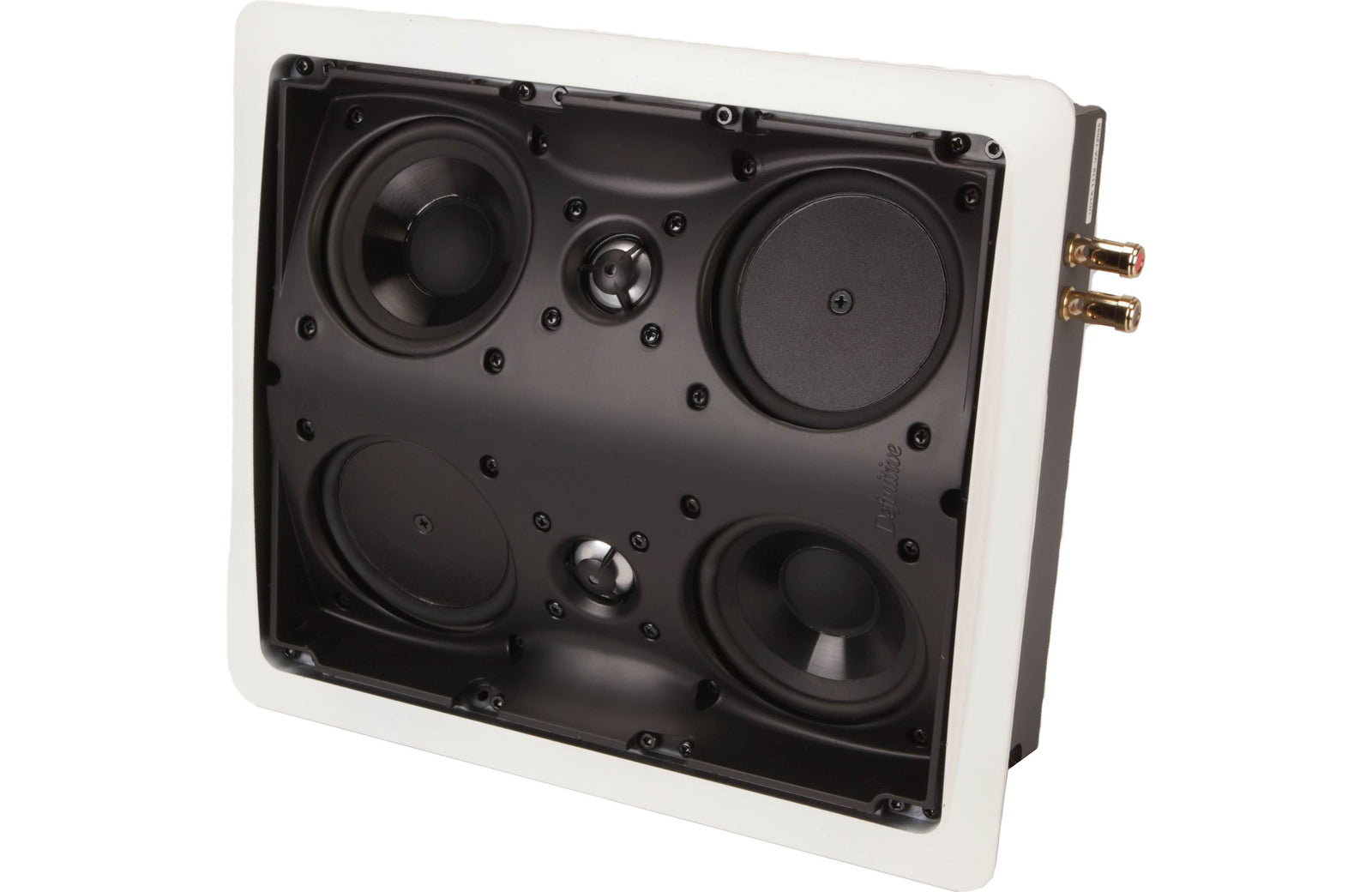

Definitive Reference Architectural Speakers are perfect for bringing spectacular-sounding, high-performance "invisible" home theater systems into every room in your house. The Reference Surround Speaker II (RSS II) is intended for use as an in-ceiling or in-wall rear or side surround speaker in custom installed home theater systems of the highest quality.
The RSS II features a non-resonant sealed medite (a dense wood product) enclosure to deliver the tight, detailed bass and uncolored midrange of audiophile free-standing speakers in every installation. The performance of open back built-in speakers will vary depending on the nature of the wall/ceiling cavity behind the speaker. But Definitive Reference series speakers with integrated enclosures sound superb every time. Six rotating dogleg clamps and beefy wood screws make the RSS II easy to install in either new or existing construction and provide secure, non-resonant mounting for ultimate audiophile performance free of vibrations and buzzes.
It features a curved angle bipolar array, which is perfect for movie and music surround use because it provides an ideal combination of direct sound for specificity and localization and ambient sound for enhanced spaciousness. The RSS II delivers uniquely enveloping surround performance totally immersing the listeners in a complete 360-degree soundstage. Walls seem to disappear and the listening room will be almost magically transformed into the location of the original sonic event. The curved aspect of the bipolar array further improves dispersion into the room. When installed in the ceiling, the direction in which the driver arrays face can be rotated 90 degrees in order to optimize the performance depending on the specific location of the speakers in relation to the seating area.
Each RSS II bipolar surround speaker contains two complete 3-way full-range systems each with a 4-1/2 inch cast-basket bass/midrange driver pressure coupled to a 4-1/2 inch planar Bass Radiator and a 1" pure aluminum tweeter, for a total of 6 driver/radiators in each speaker. The RSS II's dynamic, spacious and uncolored sonic signature has been specifically engineered to blend perfectly with any of Definitive's loudspeakers whether freestanding, in-wall or in-ceiling for an amazing lifelike sonic experience.
Specs
Driver ComplementTweeter
Quantity 2
Diameter 1" (2.54cm)
Type Pure Aluminum Dome
Mid / Woofer
Quantity 2
Diameter 4 1/2" (11.43cm)
Type High Definition Bass/Midrange Driver
Tweeter/Mid Array
Type Bipolar Configuration
Bass Radiator
Quantity 2
Diameter 4 1/2" (11.43cm)
Type Planar Bass Radiator
Electrical
Audio Inputs
Speaker Level 1 Pair (Heavy Duty Spring Loaded
Maximum Sensitivity
1 watt @ 1 Meter 90 dB
Total Frequency Response
Overall 26 Hz - 30 kHz
Nominal Impedance
Compatible with 8 ohm
Compatible with 8 ohm
Crossover
A/V Receiver Crossover Setting Small (80 Hz)
Power Handling 10 - 200 watts per channel
Installation
Cut Out Dimensions
Height 11 5/8" (29.53cm)
Width 9 7/8" (25.08cm)
Mounting Depth 3 7/8" (9.84cm)
Outer Flange
Height 12 3/4" (32.38cm)
Width 11" (27.94cm)
Placement
Orientation In Wall or In Ceiling
Cabinet Type
Speaker Enclosure Sealed Medite
Product Weight
Out of Box 12.5 lbs
Shipping
Accessories
Included Accessories Wall Template; Paint Mask; Paintable Grill; Self Adhering Foam Gasket
Optional Accessories Rough-In-Kit (Available Separately)
Carton Size
Height 14" (35.56cm)
Width 13 1/4" (33.66cm)
Depth 10 1/4" (26.04cm)
Shipping Weight
One per Carton 14 lbs
Warranty
Drivers and Cabinet
Parts and Labor 5
Brand
Definitive Technology
Model
UIW RSS II
Speaker Type
2-Way Speaker
Woofer
Polypropylene
Tweeter
Hard-Dome
Tweeter Size (inches)
1
Woofer Size (inches)
4.5
Bi-Amp Terminal
No
Power Range (watts)
10-250
Frequency Response (Hz)
26-30,000
Speaker Sensitivity (dB)
90
Speaker Impedance (ohms)
8
Weight (lbs)
12.5
Built-in Back-box
Yes
Cutout Width
9.875
Cutout Height
11.625
Mounting Depth
3.875
Pivoting Tweeter
No
Warranty
5 Years
