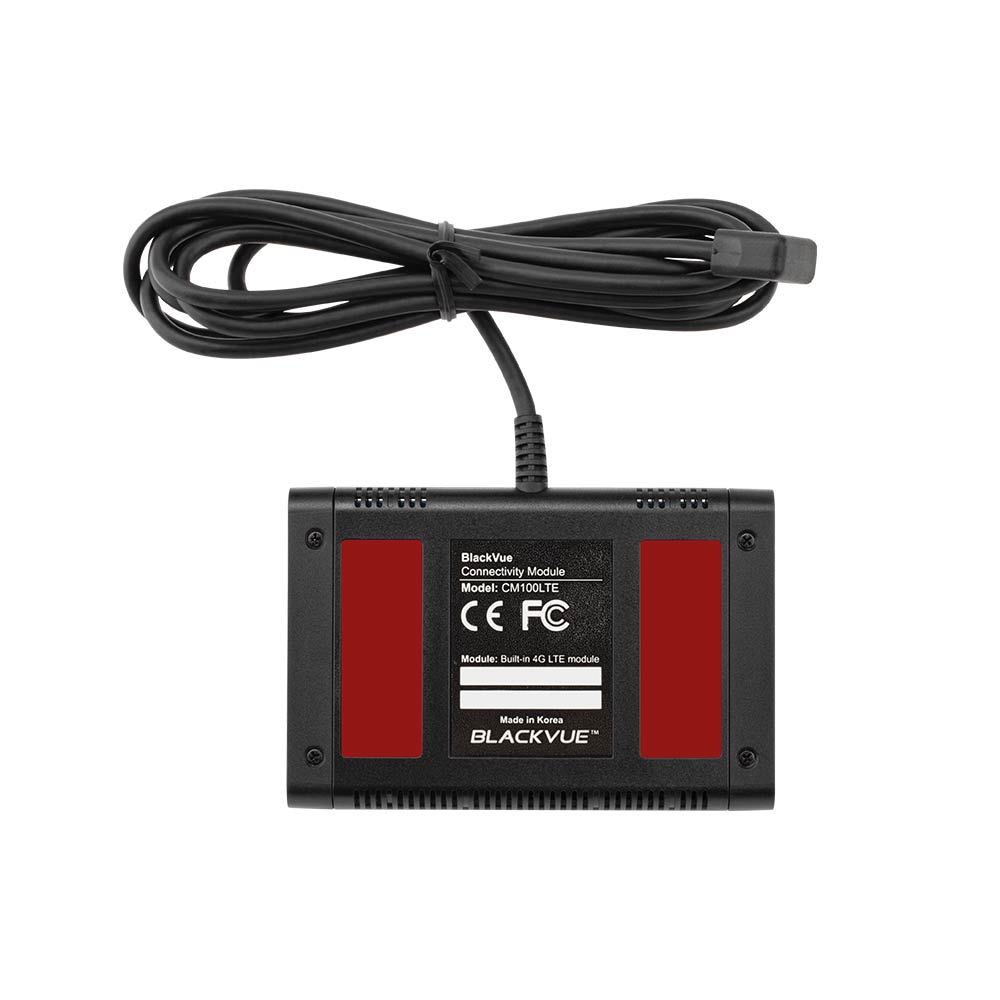

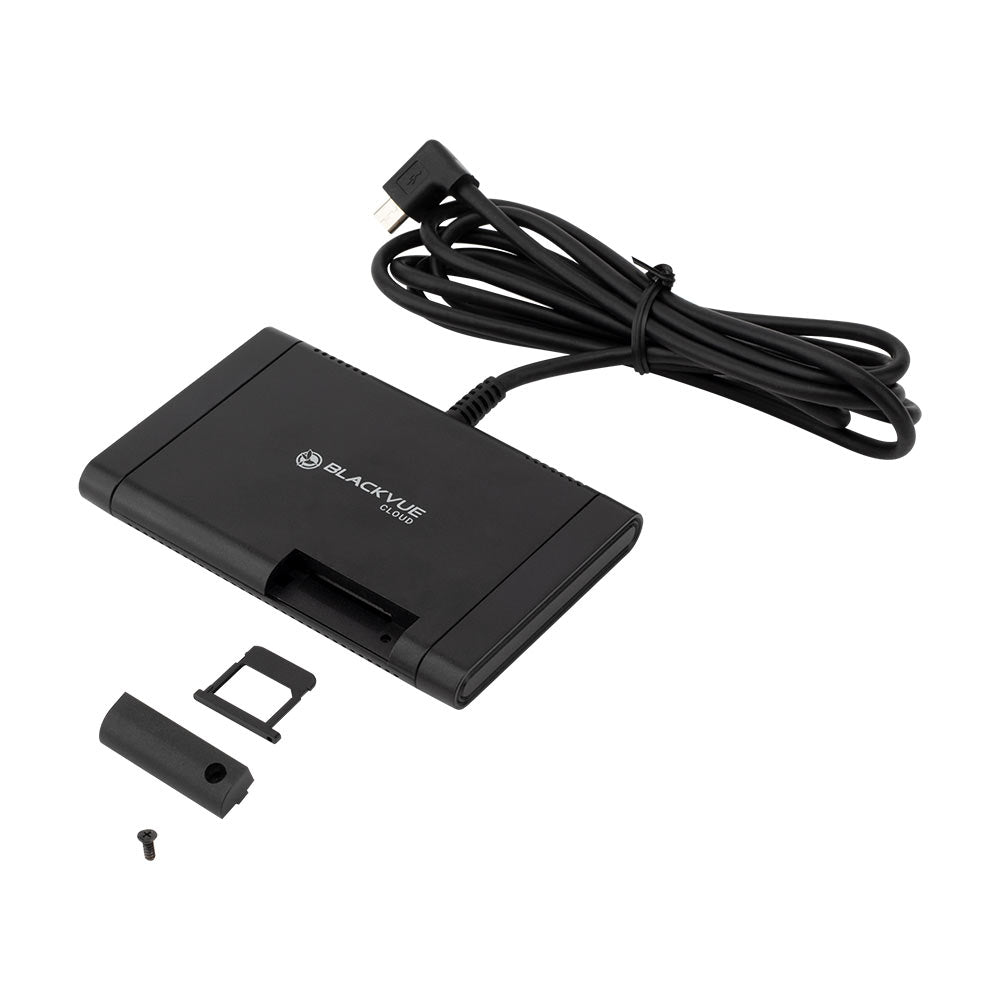

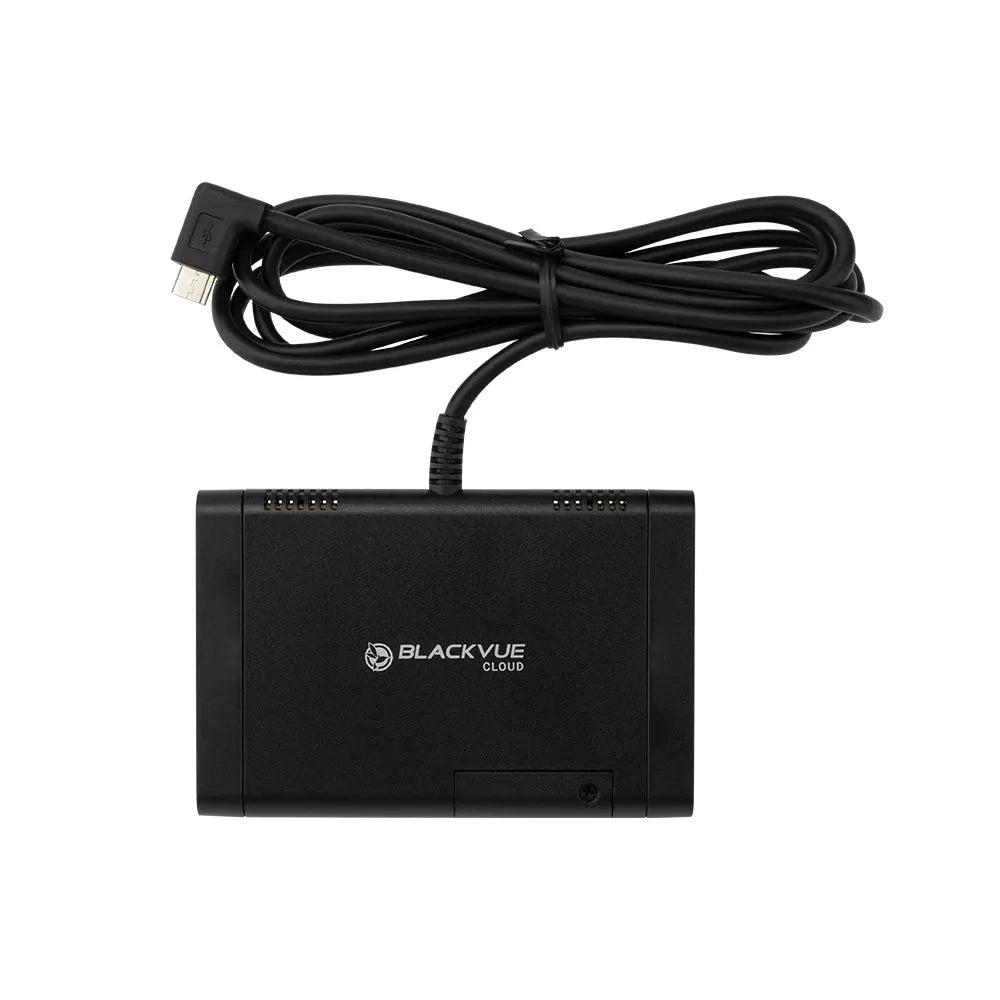

BlackVue CM100LTE-NA LTE Connectivity Module for DR900X (and Plus) and DR750X (and Plus) Dashcams



Product Qualifies for FREE Ground Shipping

BlackVue CM100LTE-NA LTE Connectivity Module for DR900X (and Plus) and DR750X (and Plus) Dashcams

External 4G LTE Module
The CM100LTE connects to your compatible BlackVue X or X Plus Series dashcam to provide easy 4G LTE connectivity. All you need is a valid Nano SIM card. The CM100LTE connects via the USB port of your dashcam. Your BlackVue powers the module and automatically accesses the Cloud when the module is plugged in.

Note: when purchasing, make sure the CM100LTE you choose is compatible with your mobile carrier’s network. Not compatible with DR590X Series.

LTE Connectivity Module
With DR900X/DR900X Plus and DR750X/DR750X Plus models, you can connect the LTE Connectivity Module (CM100LTE) which is powered by the dashcam and provides 4G LTE connectivity for your dashcam. This allows you to connect your dashcam to BlackVue Cloud and receive notifications to your phone when your parked car gets hit. It also lets you remotely see what your dashcam sees in real time. Being powered by the dashcam, you do not need to worry about the CM100LTE running out of power like you might with a self-powered router.

The CM100LTE can also enable Mobile Hotspot Function for your compatible BlackVue.

Mobile Hotspot Function for BlackVue “X Plus” models
With Mobile Hotspot Function, your compatible BlackVue can now turn into a mobile internet router for up to five devices* concurrently. This means you and your passengers can now use your BlackVue’s internet on your laptop, portable game console, tablet or mobile. To connect to the BlackVue, simply open your devices’ Wi-Fi menu, select the BlackVue and enter the dashcam’s Wi-Fi password.

Supported models: BlackVue X Plus Series models. Requires an active data plan.
(*) To ensure the reliability of critical BlackVue Cloud features (Live Event Upload, Push notifications, Remote Live View, etc.), connecting a BlackVue to another BlackVue is not possible at the moment.

Pick the right version
The CM100LTE takes Nano SIM cards and comes in multiple variations: pick one that matches your location.
Which version will work for you depends mostly on the LTE frequency bands supported by your local carrier(s).

USA, Canada: NA version
Europe, Africa, Middle-East, Russia, most of Asia: GL version
Japan: JP version
South America: NA version preferably, with GL version being usable in some countries


Color/Size/Weight Black / Length 90 mm x Width 60 mm x Height 10 mm / 110g
LTE Module Quectel EC25
LTE Supported Band EC25-A : B2/B4/B12
EC25-J : B1/B3/B8/B18/B19/B26
EC25-E : B1/B3/B5/B7/B8/B20
LTE Features Support up to Non-CA CAT. 4 FDD
Support 1.4/3/5/10/15/20MHz RF Bandwidth
LTE-FDD : Max 150Mbps(DL) / Max 50Mbps(UL)
Transmitting Power Class 3 : 23dBm +/-2dBm @ LTE-FDD Bands
SIM Type Support Nano SIM Card / 3.0V
Connector Type Micro USB Type-B Connector with Harness Cable
USB Interface Compliant with USB 2.0 specification(Slave Only), Reach up
to 480Mbps for data transfer rate
LTE Antenna Type Fixed / Intenna (Main, Diversity)
Power Supply USB Harness Cable : 3.0m
Typical Supply Voltage : 5.0V / 1A
Supply Input Voltage : 3.3V ~ 5.5V / Max. Current : 2A
Power Consumption Idle Mode : 30mA / Traffic Mode : 620mA @ Max. Power
Temperature Range Operation Temperature Range : -35°C ~ +75°C
Storage Temperature Range : -40°C ~ +85°C
Certifications CE, UKCA, FCC, ISED, RCM, TELEC, KC, WEEE, RoHS
