Acoustic Signature TA-7000 Neo Tonearm

UPC:
Call for Availability
$16,995.00

SKU TA-70009InchSilver

Product Qualifies for FREE Ground Shipping

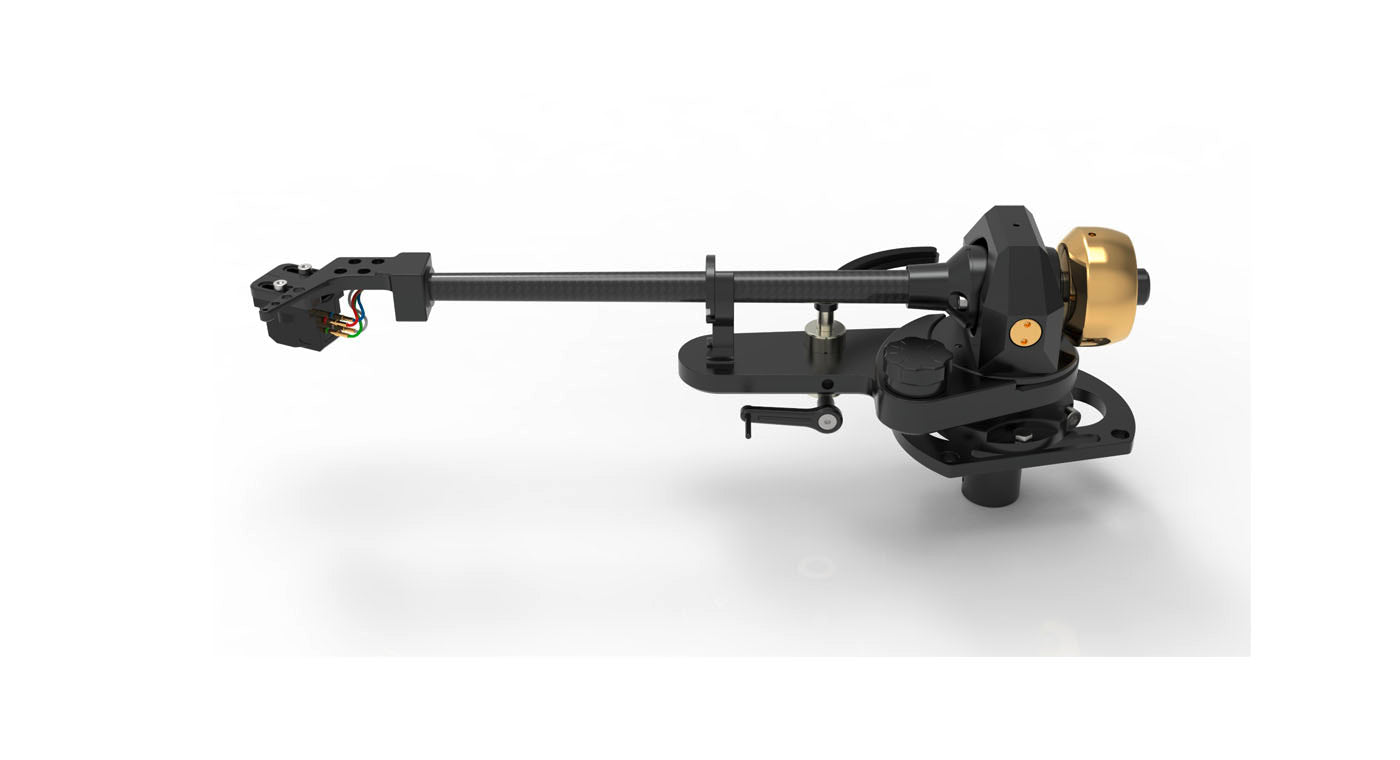

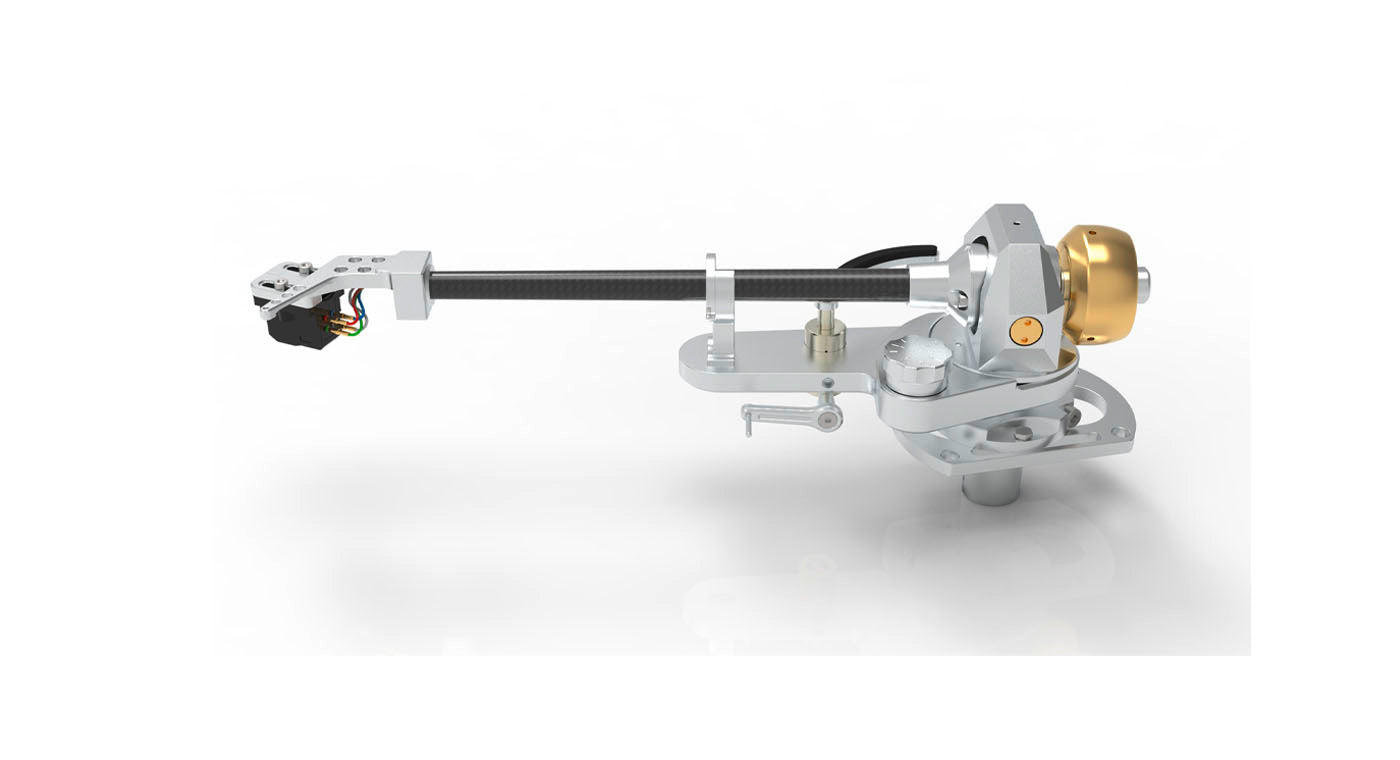

Acoustic Signature TA-7000 Neo Tonearm

Welcome to the abso­lute world class of tone­arms! With its carbon arm­tube, its spe­cial inner cons­truc­tion, the ball bea­rings used in astro­nau­tics, the high-purity silver wiring and last but not least the famous manu­fac­tu­ring quality of Acoustic Signa­ture, the TA‑7000 NEO is one of those tone­arms which are rather limi­ted by the choice of the cart­ridge or turn­table. In short: The 9-inch and 12-inch ver­sions of the TA‑7000 NEO are made to be paired with the very best cart­ridges and turn­tables.

Special features:
Tonearm with 3D-damped carbon armtube
Super-low resonance, extremly rigid and conical shaped tube design
Available as 9″ and 12″ version
Optimal tracking results due to pre-tensioned high-precision ball bearings
Better rigidity and smooth operation due to stainless steel tonearm axis design
Internal high-purity silver wiring (4N)
Supplied with external Audioquest 5-pin phono cable (1.5 m, RCA or XLR)
Counterweight made of brass
Optional head­shell made of massive titanium
Adjustable VTA & azimuth
Anti-skating knob
SME-type mounting versions
5-year warranty (with registration)



Specs

Technical Data
Available sizes: 9″ version, 12″ version
Length: 289 mm (9″ version), 358 mm (12″ version)
Effective length: 239.3 mm (9″ version), 309 mm (12″ version)
Mounting distance(from pivot to center of platter): 222 mm (9″ version), 295.8 mm (12″ version)
Total weight: 678 g (9″ version), 687 g (12″ version)
Effective mass: 10.2 g (9″ version), 13.9 g (12″ version)
Tilt angle (depends on cartridge): 23,9°(9″ version), 12.1° (12″ version)
Overhang: 17.3 mm (9″ version), 13.2 mm (12″ version)
Cartridge balance range: 4 to 16 g
Tonearm mounting versions: SME style
Armtube: 3D-damped carbon armtube
Signal cable material: High-purity silver wiring (4N)
Phono cable: 1.5 m phono cable by Audio­quest
Connectors: 5-pin to RCA or XLR/ground connector
Available finishes
Tonearm: Black (anodized, optional: counter weight 24K gold-plated), Silver (anodized), 24K gold-plated;
Optional: massive titanium headshell upgrade
Armtube: Carbon
