Hear every sound, see every detail. The A6A has been carefully designed so every element of your entertainment is the best it can be. From slight whispers of sound to swift, on-screen movements, the A6A ensures you won’t miss a thing.
The Benchmark for AV Receivers
AVENTAGE AV receivers are the reference standard to which all others are compared. Passionate engineering and meticulous attention to detail produce the Yamaha hallmark of True Sound. You can feel the quality in the design and fabrication – from every electrical path, component and piece of material. Each element was scrutinized with intense detail to produce the finest, first-class performance. The AVENTAGE AV receiver is a work of visual and acoustic art.
Artificial intelligence (AI) technology built into the DSP analyzes the scene of the entertainment content and then creates the optimal surround effect to reproduce it with the ultimate impact. This AI instantaneously analyzes scenes by focusing on distinct sound elements such as dialogue, background music, ambient sounds and sound effects, and automatically optimizes the surround effect in real time. Imagine having a Yamaha sound engineer listening right next to you, tuning the best sound live and specifically for you. AI technology creates a compelling sense of realism with expressive power beyond conventional sound field effects, giving you the most profound entertainment experience possible. Qualcomm® QCS407 with 64-bit high precision processing delivers precise surround sound.
Cinema DSP HD3 for Movie, Music and Games
This Yamaha flagship 3D sound field playback technology was created by combining actual measured sound field data with cutting edge digital signal processing technology. The revamped CINEMA DSP HD3 features new signal processing algorithms and maximizes theater sound effects, accurately reproducing a new dimension of realism for a sound field with a rich sense of presence and no feeling of boundaries. By using front, center and surround speakers to create a rear virtual speaker, CINEMA DSP HD3 playback of up to 11.1 channels is possible* even with a 7.1-channel speaker configuration.
*Requires connection to a front presence speaker.
Dolby Atmos® and Dolby Atmos Height Virtualization
Feel every dimension in Dolby Atmos. Enjoy a 5.1 surround speaker system and two additional overhead speakers or two Dolby Atmos elevation speakers, delivering dramatic overhead effects for truly enveloping audio.
For those without in-ceiling or upward firing speakers in their system, Dolby Atmos Height Virtualization technology can simulate the Atmos experience. Configure up to five speakers to replicate the effect of two in-ceiling speakers, or utilize all seven channels to simulate the powerful effect of four overhead speakers.
DTS:X immersive audio formatting places sound where it would naturally occur in space, creating life-like, multi-dimensional audio. The included spatial remapping engine of DTS Neural:X™ offers improved immersion and heightened realism in all your favorite movies.
The magic of AURO-3D® technology lies in the ability to transform any space and any content. AURO-3D will deliver a purely transformative, breath-taking immersive audio experience, every time. The unique, vertical stereo field of AURO-3D allows sound to move around you, similar to how it does in your everyday life, ensuring a powerful soundscape that transports us into the world of our chosen content. Escape into the story and get lost in the music. Experience every moment and emotion the way nature intended.
Hear more, feel more with AURO-3D.
Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.
High Slew Rate Amplifier
The slew rate measures how quickly an amplifier can respond to a rapid change of input level, which contributes to delivering a precise signal transmission and is especially effective with high resolution audio signals. This newly designed circuit achieves both a high slew rate and stable signal transmission, allowing it to handle each audio signal with precision and accuracy.
High-Quality Digital Components
The Qualcomm® QCS407 is designed to provide truly superior audio performance, with support for Dolby Atmos and DTS:X immersive home audio, as well as a dedicated high-performance audio DSP.
Incorporating the SABRE ES9007S Premier Audio DAC from ESS Technology to achieve an exceptional signal-to-noise ratio and up to 120 dB of dynamic range, this AV receiver produces professional quality digital audio.
Anti-Resonance Technology Wedge
The newly designed Anti-Resonance Technology (A.R.T.) Wedge is a fifth foot in the front-and-center of the chassis unit base. It dampens much more vibrations from the power transformer, power transistors and heat sinks, as well as vibrations that might be caused by the sound from the speakers — providing dynamic sound and focused, accurate reproduction.
Newly Designed Mechanical Structure
The highly logical and symmetrical internal layout of parts and totally renewed circuit boards are designed to keep the signal paths on each board as short as possible. The new H-cross frame improves rigidity of the receiver body and sound stability, allowing for clearer, sharper and more transparent reproduction. Also the newly redesigned mechanical structure contributes to avoiding the transition of vibration from the transformer to the amplifier circuit. Sound noises are reduced to improve clarity.
HDR and HDR10+*
HDR (high dynamic range) video provides incredible contrast, smooth tone and rich, bright colors—giving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.
HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.
* HDR10+ is available via a future update
4K120AB*, 8K60AB* and 4K60
This receiver supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision™ and Hybrid Log-Gamma.
* 4K120AB and 8K60AB are available via a future update
Enhanced Media and Gaming (ALLM, VRR, QMS, QFT)*
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR), which reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay; Quick Media Switching (QMS) for movies and video, which eliminates the delay that can result in blank frames before content is displayed; and Quick Frame Transport (QFT), which reduces latency for smoother, no-lag gaming and real-time interactive virtual reality.
* These features are available via a future update
YPAO™ - R.S.C. (with 3D, Multipoint Measurement and 64-bit High Precision EQ)
YPAO-R.S.C. (Reflected Sound Control) analyzes the room acoustics with the included YPAO microphone to tune your system for the best sound in your unique room. It employs R.S.C. to correct early reflections for studio-quality surround sound. YPAO 3D provides automatic sound parameter optimization that maximizes the 3D sound field effectiveness of SURROUND:AI as well as Dolby Atmos and DTS:X. 64-bit high precision EQ calculation achieves the most natural room acoustics possible.
Combine this AV receiver with the MusicCast 50 or two MusicCast 20 wireless streaming speakers and enjoy MusicCast Surround, creating a 5.1-channel home theater with wireless surround sound. What’s more, you get stunningly realistic sound with a clean, clutter-free setup. Easily turn your living room into a home theater where you can fully enjoy movies and music.
Yamaha AV receivers are crafted with meticulous design and craftsmanship to produce a work of visual and acoustic art.
The immaculate chassis construction further solidifies the alignment of stability in performance. It offers a beautiful form that deepens the AVENTAGE uniqueness and continues to further enhance key acoustic authority.
Inspired by tradition and incorporating fresh new design principles, the new look of AVENTAGE exhibits engineering at its most innovative and awe-inspiring best.
Scene Buttons Easily Get You To Your Favorite Content
There are four SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (network). Once you have set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be re-set at any time.
Simple and Easy with the MusicCast App
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app offers the same functions as a remote control for all your MusicCast-compatible devices as well as full multi-room audio controls.
Voice Control (Alexa, Google Assistant and Siri)
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.
*A third party device is required to initiate voice commands
AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.
Multi-room Audio - MusicCast
Imagine sharing all the music you love throughout the home – no matter the format. From your favorite vinyl to AirPlay 2, Bluetooth® to music streaming services and even sound from your TV, MusicCast has it covered.
Additionally, all MusicCast products are designed with sound quality at the front of mind. High-res formats including Apple Lossless (ALAC) up to 96 kHz, WAV, FLAC and AIFF up to 384 kHz are supported.
Hey Siri. Play music in the kitchen and living room.
AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri fto assist.
Stream it All
Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smart phone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC – available in the industry-leading AV receivers from Yamaha.
eARC delivers full-resolution, multi-channel audio formats such as Dolby® TrueHD and DTS-HD® through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.
Playback in Multiple Zones/Advanced HDMI Zone Switching
You can transmit the video or audio content (not only the HDMI input, but also other audio sources, such as digital or analog audio, network content and FM radio) to a TV or home theater system in another room (Zone 2/4). This lets you enjoy viewing and listening to the same main room content (where the AV receiver is installed), or even different content. An on-screen graphical user interface makes it easy to browse and select content from the second zone no matter what is being played in the main zone.
11-Channel Pre Out
You can add an external power amplifier (pre-main amplifier) to this AV receiver to improve and enhance the sound of your speakers. For example, using a power amplifier to drive the important front channel in home theater gives you the added flexibility of building a system with an emphasis on sound quality.
XLR Input Terminal
This receiver is equipped with XLR balanced audio input terminals that have an outstanding reputation in the world of professional audio and are highly sensitive to noise. In combination with balanced output terminals on a Blu-ray player or CD player, this connectivity enables high-quality signal transmission with reduced degradation of sound quality due to external noise.
Rated Output Power (20Hz-20kHz, 2ch driven) 150 W (8 ohms, 0.06% THD)
High Slew Rate Amplifier Yes
Surround Sound Processing
Cinema DSP Yes (HD3)
DSP Programs 24
Dialog Level Adjustment Yes
Virtual Presence Speaker Yes
Virtual Surround Back Speaker Yes
Dialogue Lift Yes
SILENT Cinema / Virtual Cinema DSP Yes
Dolby Atmos Yes
Dolby Atmos Height Virtualization Yes
Dolby TrueHD Yes
Dolby Digital Plus Yes
Dolby Surround Yes
DTS-HD Master Audio Yes
Auro 3D Yes (via firmware update)
File Format MP3 / WMA / MPEG-4 AAC, ALAC: up to 96 kHz / 24-bit, FLAC: up to 384 kHz / 24-bit, WAV / AIFF: up to 384 kHz / 32-bit, DSD: up to 11.2 MHz
Pure Direct Yes
Compressed Music Enhancer Yes
High-resolution Music Enhancer Yes
YPAO Multipoint Measurement Yes with R.S.C. (Reflected Sound Control), 3D, 64-bit High Precision EQ Calculation, Low Frequency mode and Angle Measurement
YPAO Volume Yes
Adaptive DRC (Dynamic Range Control) Yes
Initial Volume and Maximum Volume Setting Yes
A.R.T. Wedge Yes
Bi-amp Capability Yes
Audio Delay Yes (0-500 ms)
DA Converter 384 kHz / 32-bit ESS Hyperstream DAC ES9026PRO x1 ES9007S x1
HDMI eARC Yes
HDMI Audio Return Channel Yes
HDMI Pass-through 4K120AB*, 8K60AB* and 4K60 (*via future update)
HDMI Upscaling Yes, up to 8K (via firmware update)
HDMI Up-conversion Yes (Analog to HDMI)
Dolby Vision Yes
HDR 10+ Yes (via firmware update)
VRR/ALLM/QMS/QFT Yes (via firmware update)
Video Adjustment Yes
MusicCast Surround Yes
Wi-Fi Yes (2.4 / 5 GHz)
AirPlay 2 Yes
Bluetooth Yes (SBC / AAC)
Phono Input Yes
XLR Terminal Yes
Component Video Input/Output 01/01/00
HDMI Input/Output 7 / 3 (HDMI 2.1 / HDCP 2.3)
HDMI CEC Yes
USB Input Yes
Network Port Yes
Front AV Input USB
Digital Audio Input / Output: Optical 03/01/00
Digital Audio Input / Output: Coaxial 02/01/00
Analog Audio Input / Output 06/01/00
Composite Video Input / Output 02/01/00
Headphone Output 1
FM / AM Tuner Yes
On-Screen Display Graphical User Interface
SCENE SCENE PLUS (8 sets)
App Control Yes (iPhone / iPad / Android phone / tablet)
Web Browser Control Yes

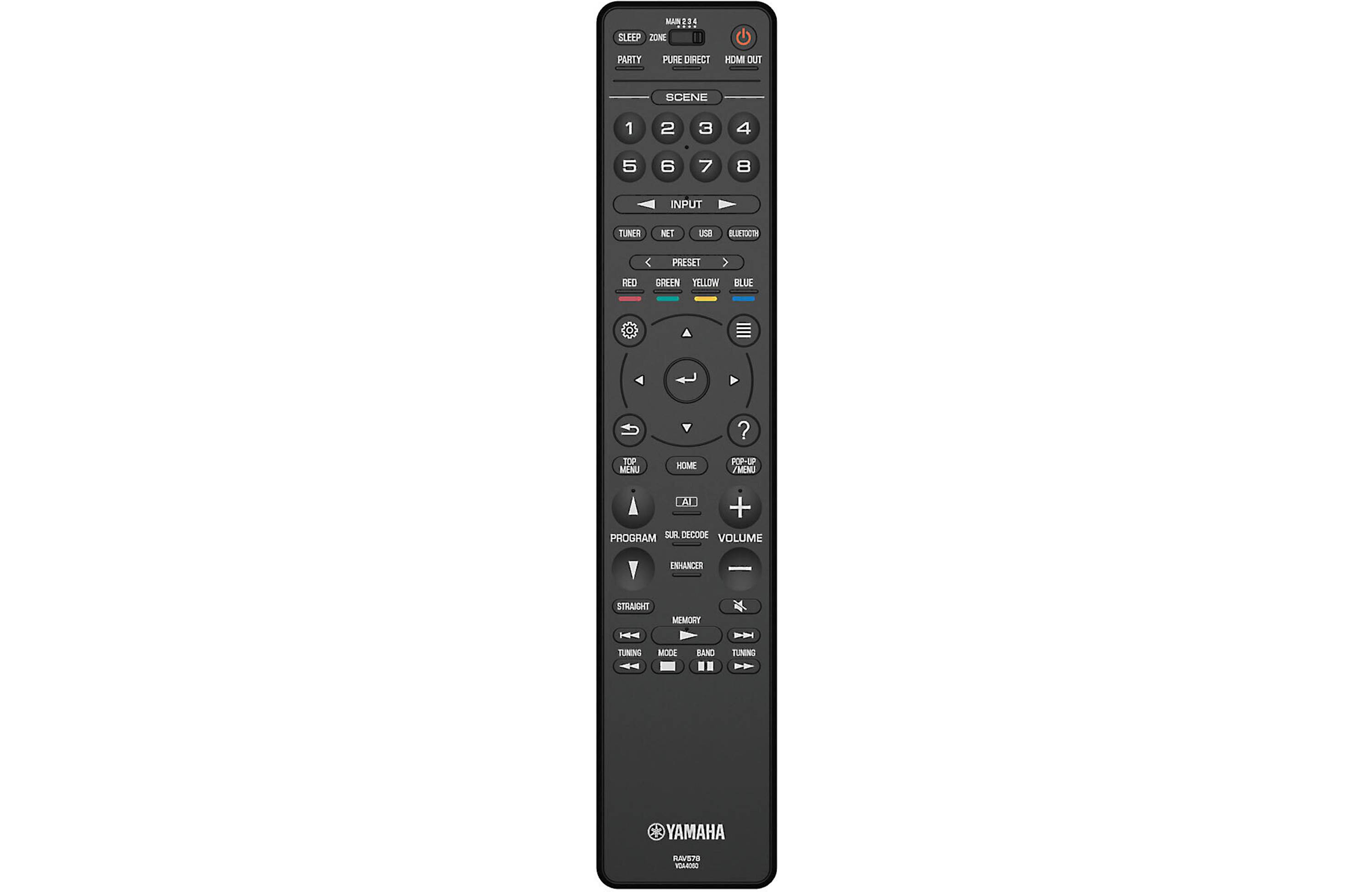

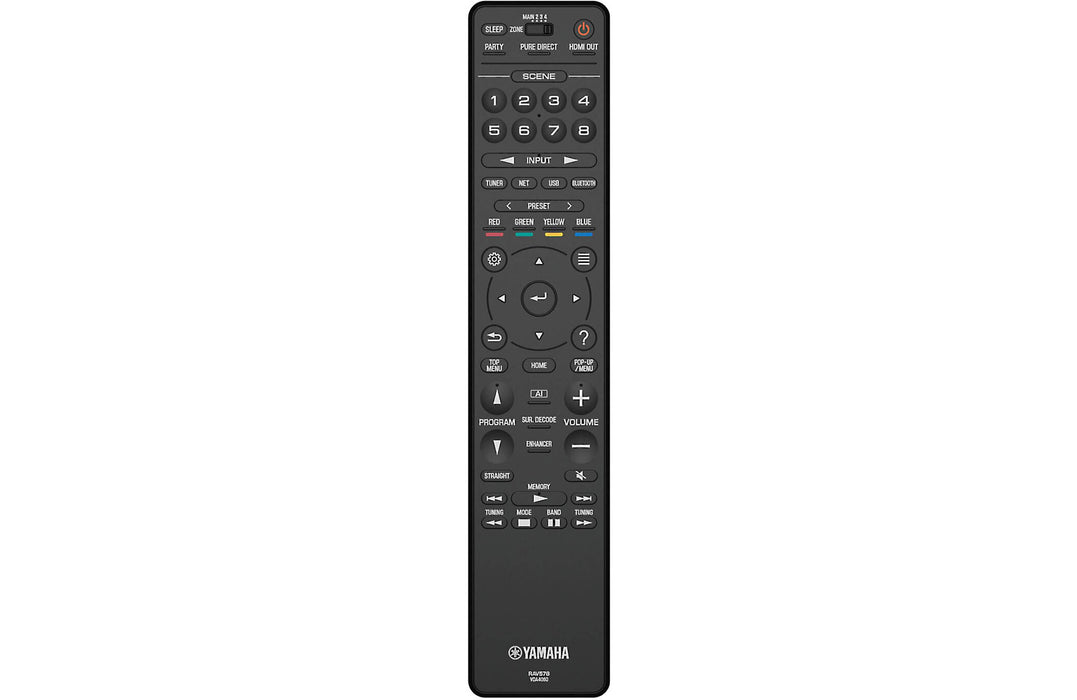

Remote Control Unit Yes
Zone 2 Audio Output Preout / HDMI
Zone 3 Audio Output Preout
Zone 4 Audio Output HDMI
Powered Zone Zone 2 / 3
Zone Video Output HDMI
Zone B Output HDMI
Zone GUI Yes
RS-232C Interface N/A
+12V Trigger Output 2
Remote (IR) Input/Output 01/01/21
Party Mode Yes
Standby Power Consumption (IR only) <0.4 W
Auto Power Standby Yes
ECO Mode Yes
Dimensions (W x H x D) 17-1/8" x 7-1/2" x 17-3/8" (with antenna up:17-1/8" x 10-5/8" x 17-3/8")
Weight 41.2 lbs.
