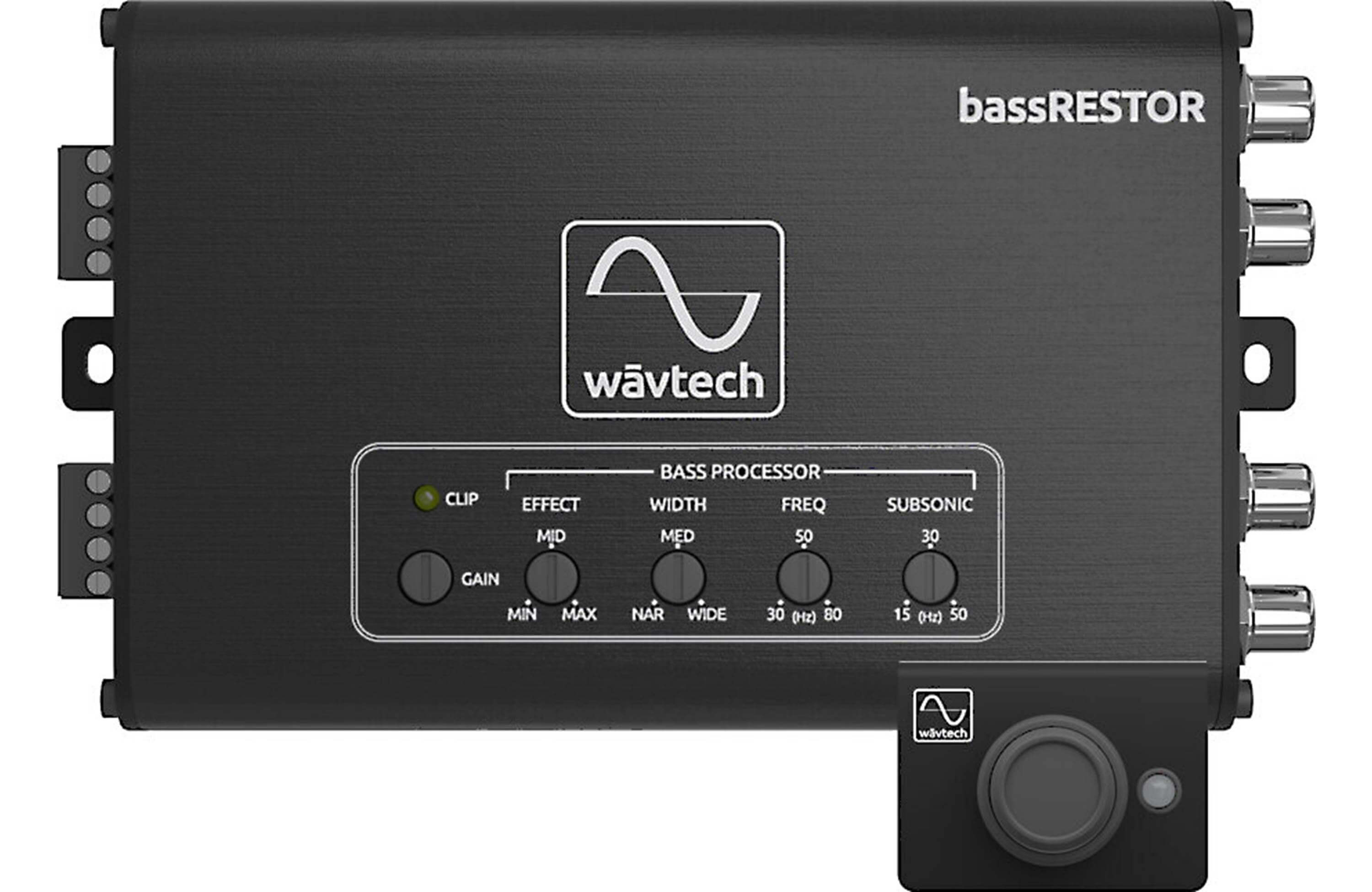

Wavtech bassRESTOR Bass Restoration Processor

Brand: Wavtech | SKU: bassRESTOR | UPC: 700987201369

Price
$199.95
Taxes calculated at checkout

Have a question?

There are certain types of music that just don’t have enough good, low bass.  If you listen to classic rock, older hip-hop or Banda music, you know that something is missing.  The bassRESTOR fills in the gaps and adds just the right amount of bass back into your music.  Unlike similar products that require a full-range signal, the bassRESTOR only needs a lowpass signal to achieve the restoration process. This allows you to get signal from a factory subwoofer amplifier or the subwoofer output of an aftermarket source unit or other processor.

Our unique Multi-Function Remote Level Control (RLC) lets you adjust the overall bass volume, the amount of bass restoration effect needed for a particular song or defeat the effect completely when no restoration is required. The bassRESTOR has both speaker level and RCA inputs, so it integrates easily with factory or aftermarket sources.  There is a variable frequency subsonic filter for fine system tuning.

Specs

bassRESTOR Features

2CH Bass Restoration Processor

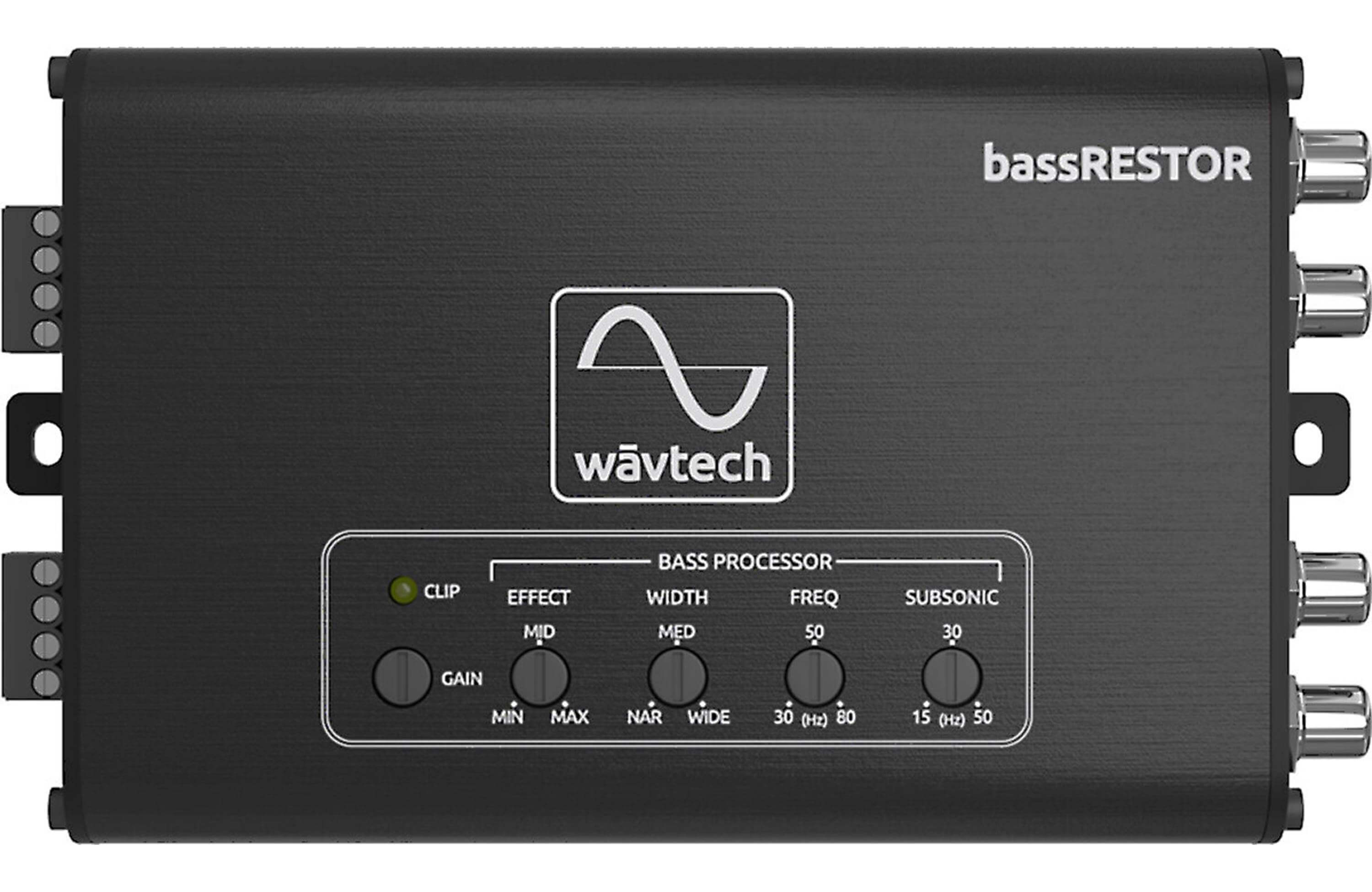

Complete Tuning Control (Effect, Width, Freq)

Variable Subsonic Filter

2CH Line Driver or Line Output Converter

Works with Low Pass or Full-Range Signal

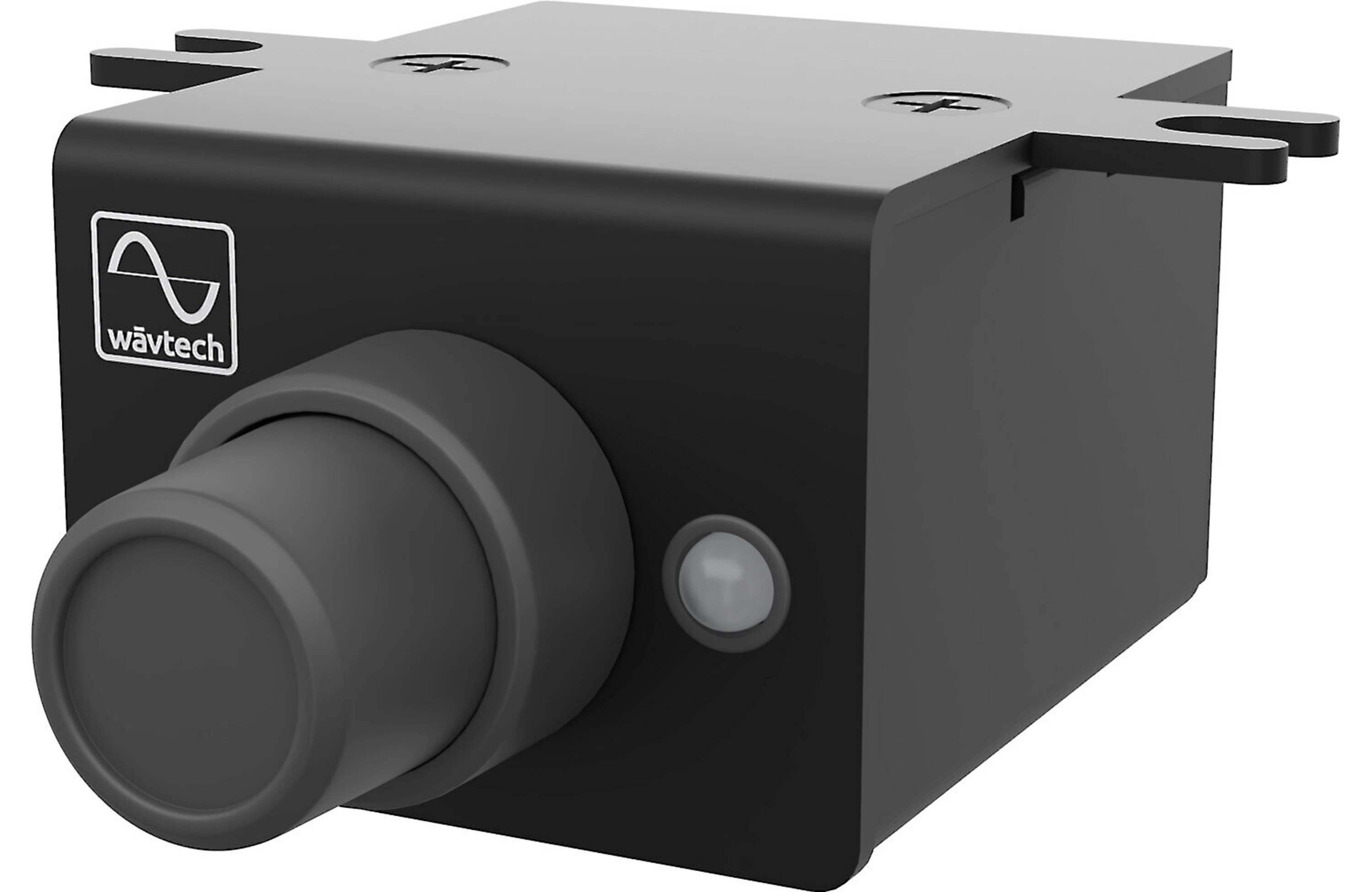

Includes Multi-Function Remote Level Control

Differential Balanced Inputs

Low Impedance Outputs

Variable Gain Adjustment w/Clip LED

Auto Turn-On via DC-Offset or Audio Signal Detect

Generated +12V Remote Output

OEM Load Detect Compatible

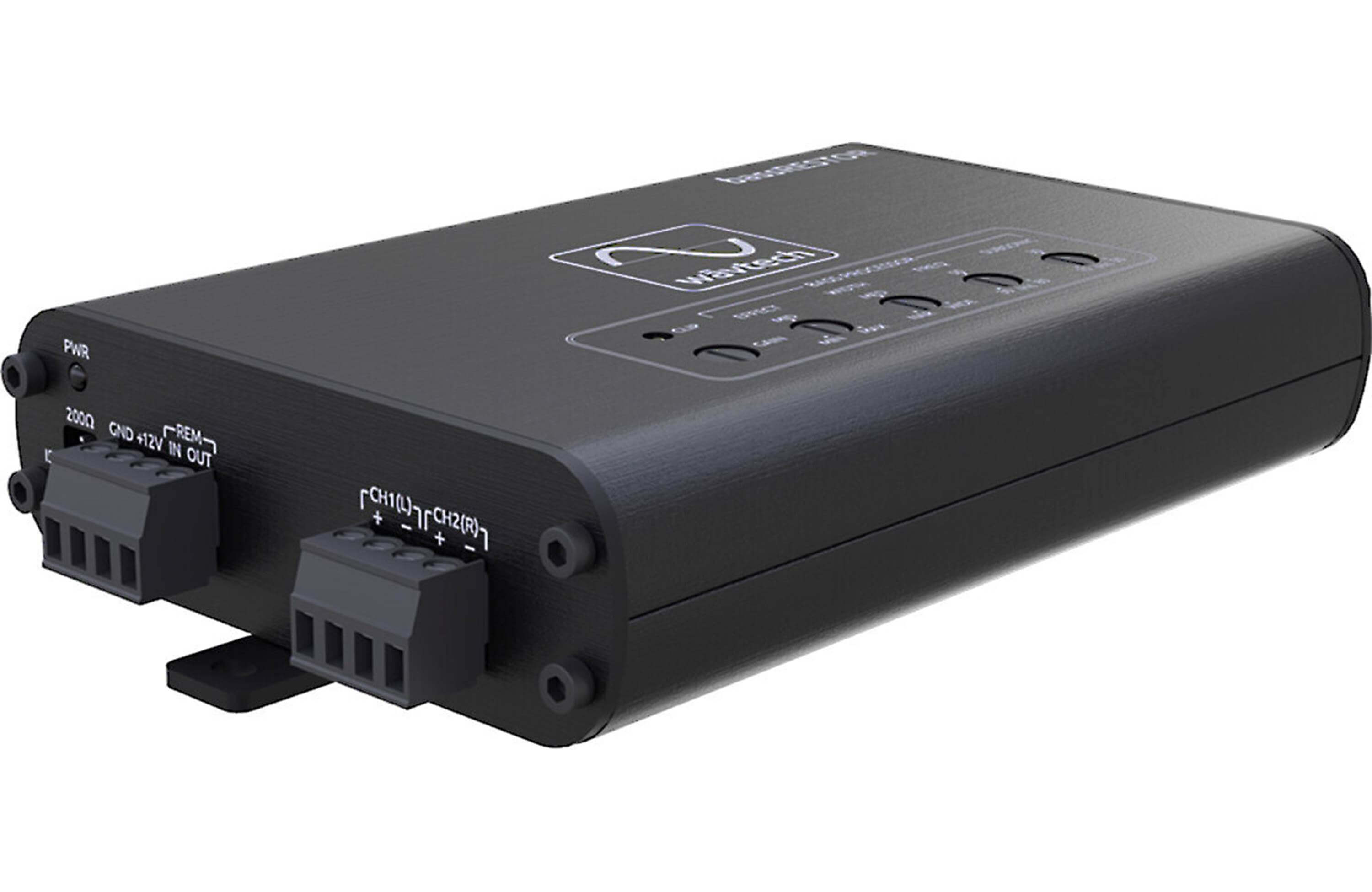

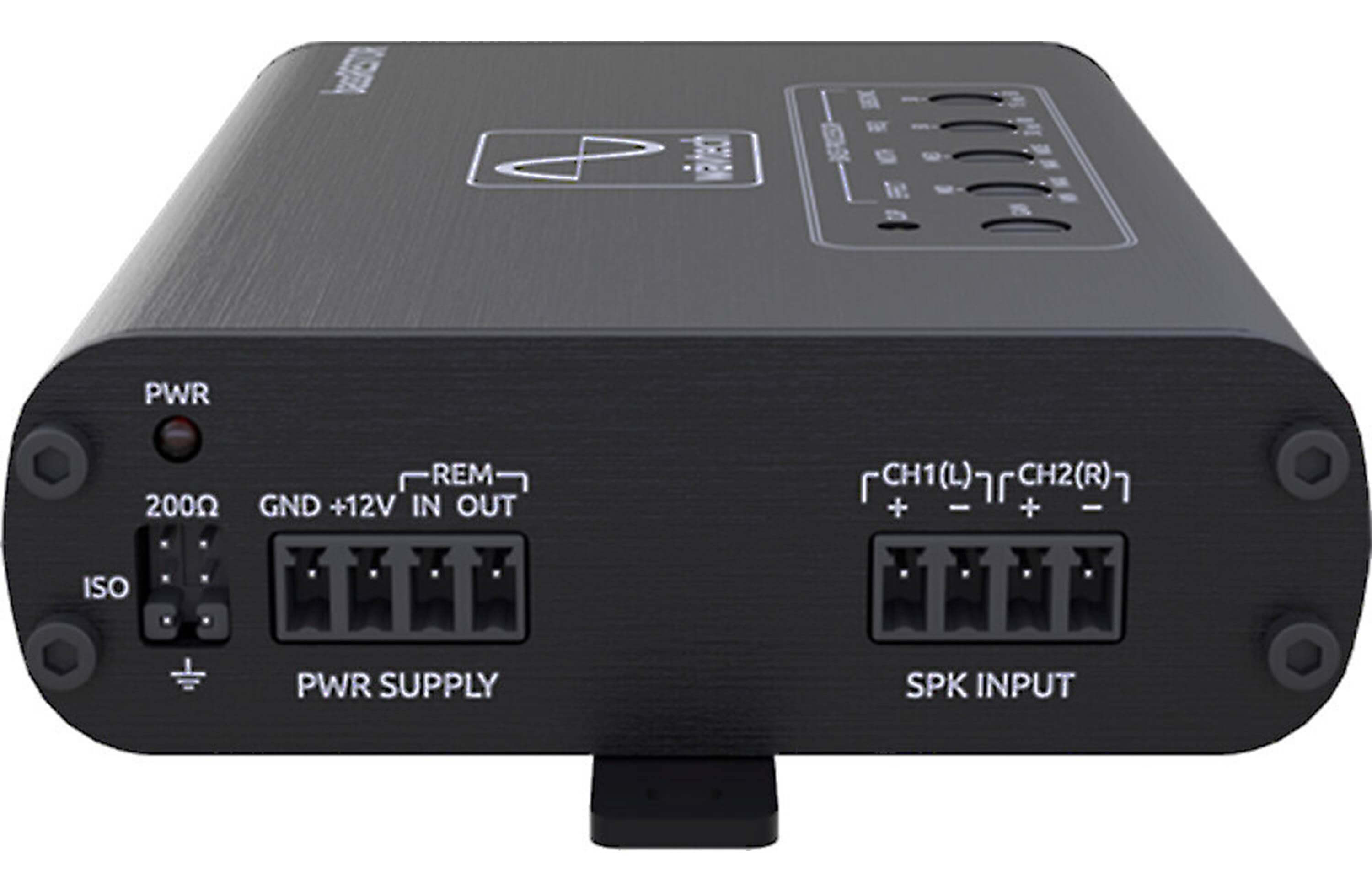

Locking Detachable Power/Speaker Terminals

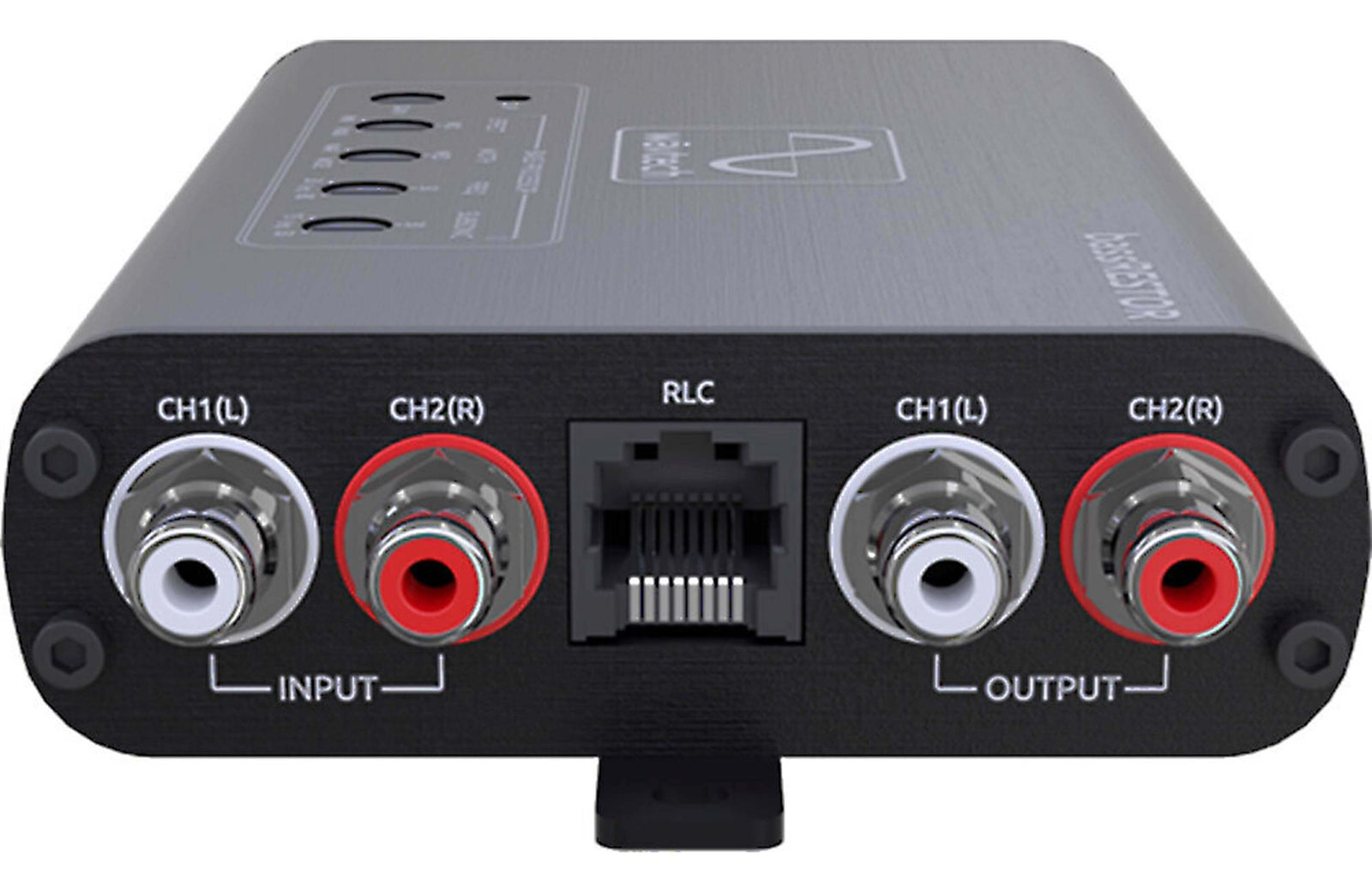

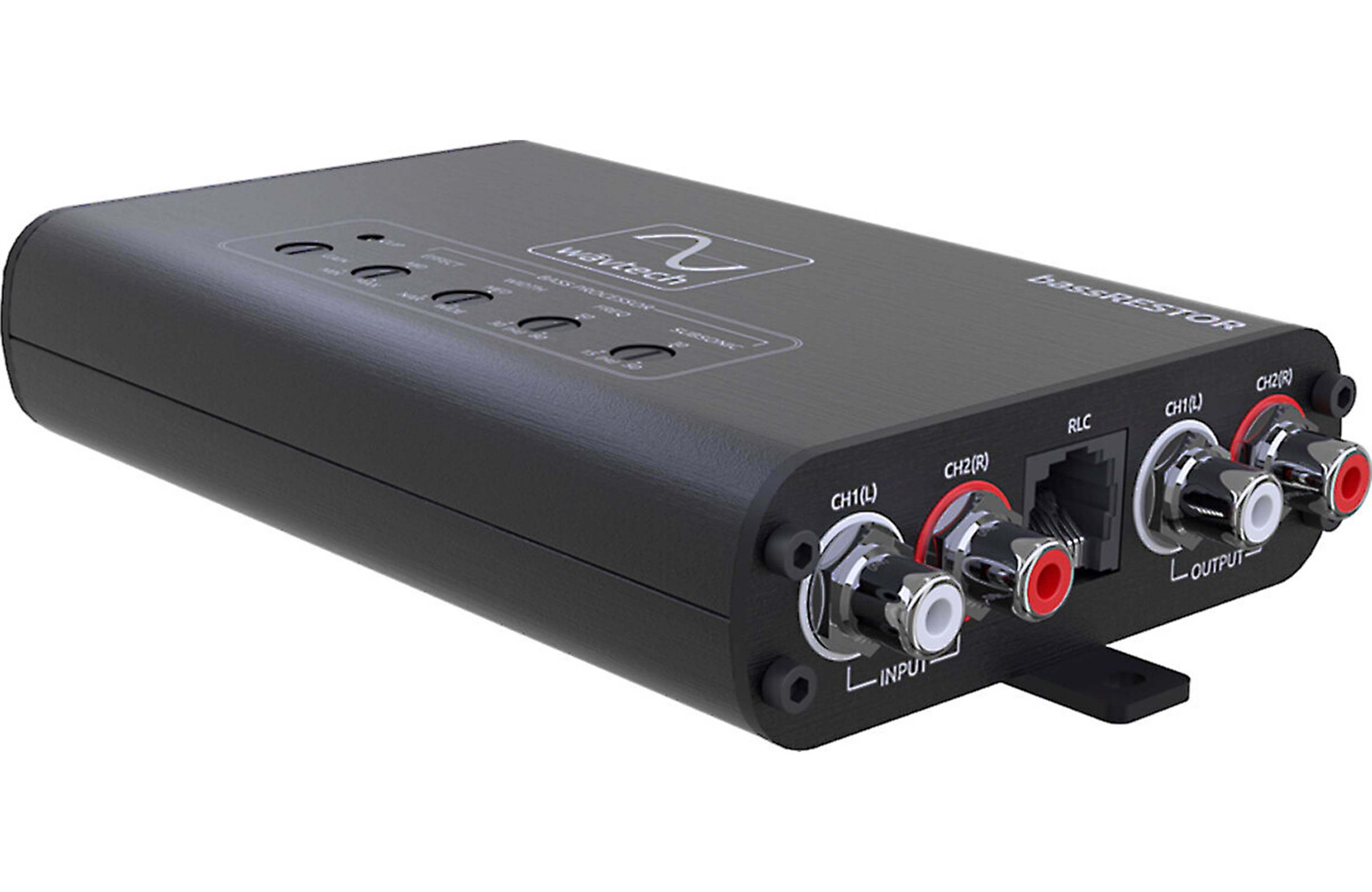

Professional Grade Panel Mount RCA’s

Compact Aluminum Chassis w/Detachable Mounting Tabs

bassRESTOR Specifications

Output Voltage (Max) ----------- >10Vrms

Output Impedance --------------- <50Ω

Input Sensitivity

SPK ----------------------------- 2-20Vrms, 4-40Vrms

RCA ----------------------------- 0.5-5Vrms, 1-10Vrms

Max Input Voltage (SPK) ------- 40Vrms

Frequency Response ------------- 15Hz to >100kHz

THD+N (SPK/RCA) ---------------- <0.05% / <0.1%

S/N (SPK/RCA) --------------------- >115dBA / >114dBA

Bass Restoration

Effect -------------------------- up to +18dB

Width -------------------------- Nar-Wide

Freq ---------------------------- 30-80Hz

Subsonic Filter ---------------------- 15Hz-50Hz

Turn-On Trigger -------------------- +12V, DC-offset & Audio Detect

Generated +12V Output -------- >500mA

Chassis Dimensions --------------- 1.1”x3.5”x5.2” (29x90x133mm)

Brand Wavtech
