The ultimate analog preamplifier
“It’s the most transparent preamp – or audio component of any sort – that I’ve heard.”
– Brian Damkroger, StereophileOur most advanced preamplifier to date
“This is a rare component in the way it disappears, revealing nothing but the music carried through it. I’ve yet to hear one that reveals more music.”
– Jeff Dorgay, TONEAudioSophisticated two chassis design
The audio circuits are isolated within a second box for better signal accuracy.Suspension for complete microphonic annihilation
giving incredibly lifelike natural sound.Design features

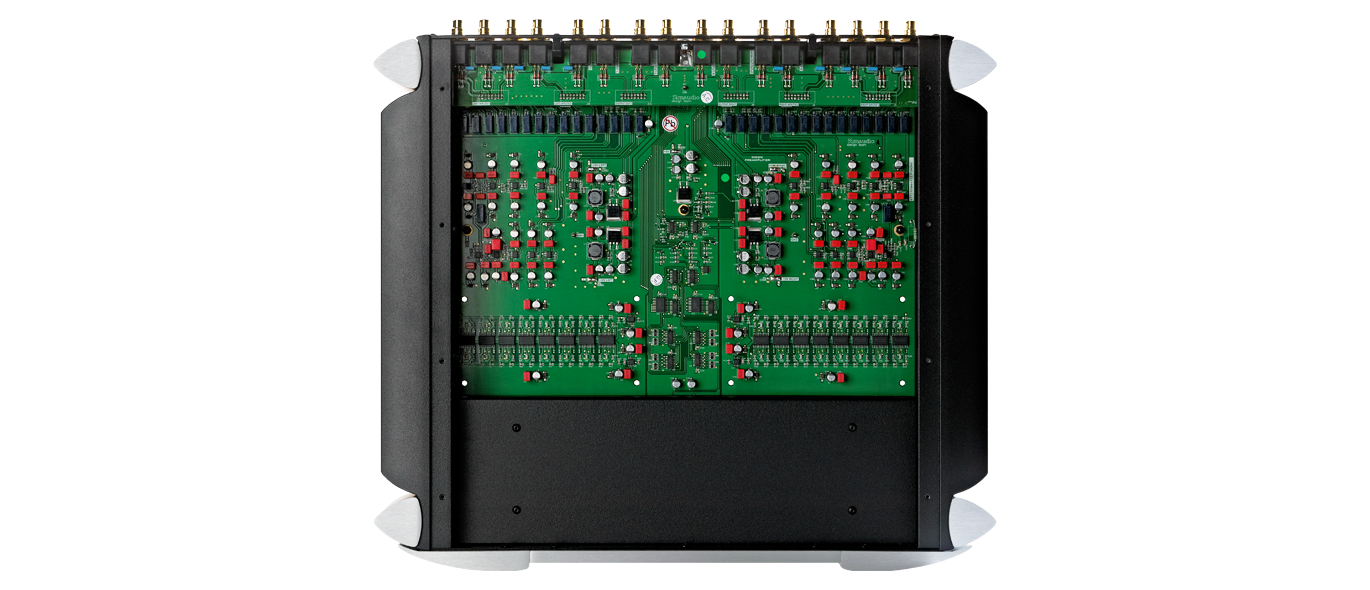

2-chassis design with 1 chassis housing the power supply, digital controller circuitry, software processing & the LED display. The other chassis contains ONLY audio circuitry.
Power supply voltage regulation includes i 2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 40 stages in all.
Gain offset adjustment of ±10dB for each line input.
Each line input is fully configurable to be “home theater ready”, whereby the 850P’s volume control is bypassed.

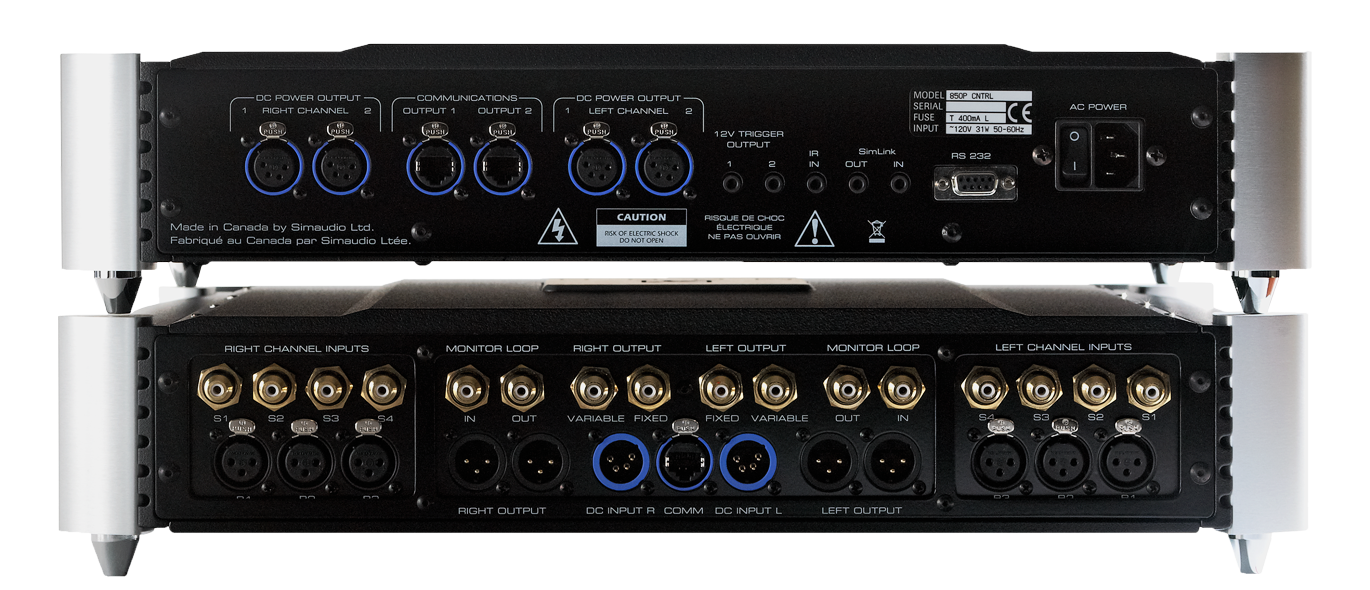

Number of inputs - XLR / RCA 3 pairs / 5 pairs
Input Sensitivity 200mV - 4.0V RMS
Input Impedance 11,000Ω
Number of Outputs - XLR / RCA 2 pairs / 2 pairs (fixed + variable)
Signal-to-noise Ratio (20Hz-20kHz) 130dB @ full output
Frequency response 5Hz - 100kHz ±0.1dB
In the Box:
The following accessories should be included inside the box with your preamplifier:
AC power cable
FRM-3 remote control with three ‘AAA’ batteries
Three (3) color-coded cables to connect the preamplifier to it’s power supply/controller chassis
SimLink™ cable with 1/8” mini plug terminations on each end
Warranty and product registration information (USA and Canada only)
